6-66 — HEAD LINING AND TRIM (#35257) — 272 parça

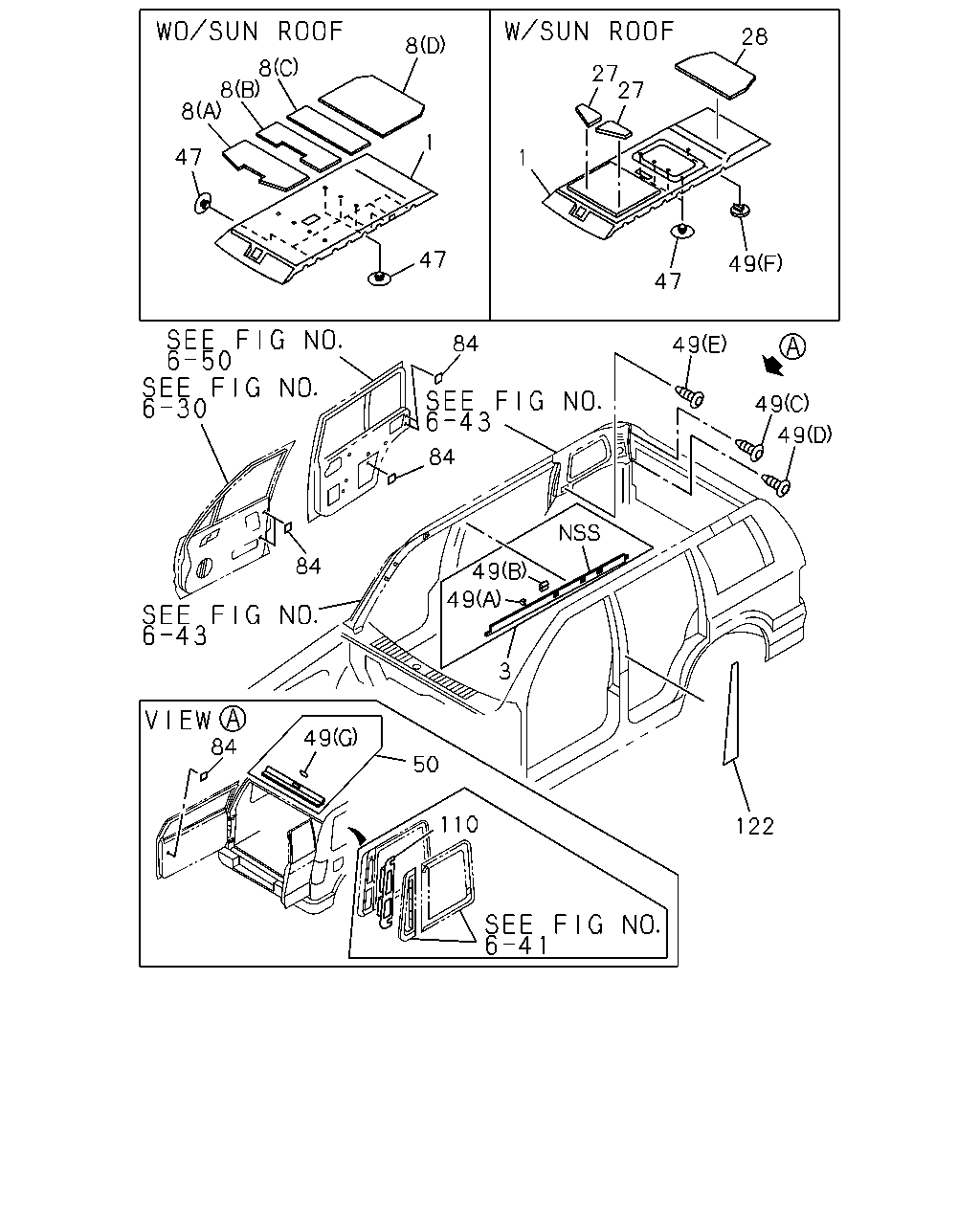

çizim 65732
8 8 8 28 8 27 27 1 47 1 47 49 47 49 84 84 49 49 49 49 84 3 84 49 50 110 122
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-370-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-370-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-373-4 01 1 9112-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-367-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-367-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97151-311-8 01 1 9505-9607 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97151-311-8 01 1 9608- ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-372-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-372-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-392-8 01 1 9505-9607 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-392-8 01 1 9608- ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-375-4 01 1 9112-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-369-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-369-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> 		8-97151-312-2 01 1 9608- ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> 		8-97151-313-2 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-360-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-360-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-364-3 01 1 9112-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97098-389-4 01 1 9505-9607 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97098-389-4 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-356-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-356-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-362-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-362-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-391-6 01 1 9505-9607 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-391-6 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-366-3 01 1 9112-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97151-314-5 01 1 9505-9607 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97151-314-5 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-358-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-358-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97098-390-6 01 1 9505-9607 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97098-390-6 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97151-308-2 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> LIGHT GRAY 		8-97151-309-2 01 1 9608- ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-290-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-287-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-292-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) DARK GRAY 		8-97098-395-3 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-289-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) DARK GRAY 		8-97098-396-3 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-284-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-345-0 01 1 9501-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) DARK GRAY 		8-97152-040-0 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-280-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-347-0 01 1 9501-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) DARK GRAY 		8-97152-041-0 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-286-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-346-0 01 1 9501-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-282-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-348-0 01 1 9501-9504 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97802-960-2 01 1 9112-9407 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97811-267-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-1 01 1 9112-9208 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-2 01 1 9309-9407 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97811-268-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97803-215-1 01 1 9112-9208 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-2 01 1 9209-9308 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97803-215-1 01 1 9209-9407 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97811-269-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97802-963-1 01 1 9112-9407 ● ● ● ●
8 PAD; HEADLINING
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97811-271-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97802-962-1 01 1 9112-9407 ● ● ● ●
8 PAD; HEADLINING
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97811-270-0 01 1 9408- ● ● ● ●
27 INSULATION; ROOF
4 DOOR LONG(UB***F) SUNROOF<CF5> 		8-97135-975-0 01 1 9608- ● ● ● ●
27 INSULATION; ROOF
4 DOOR LONG(UB***F) SUNROOF<CF5> 		8-97135-974-0 01 1 9608- ● ● ● ●
28 INSULATION; ROOF,RR
4 DOOR LONG(UB***F) SUNROOF<CF5> 		8-97135-976-0 01 1 9608- ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-482-0 12 1 9112-9404 ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-192-0 12 1 9405-9504 ● ● ● ●
47 CLIP; HEADLINING
LIGHT GRAY 		8-97098-397-0 12 1 9505- ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-484-0 12 1 9112-9404 ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-193-0 12 1 9405-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (E) GRAY 		8-94429-372-0 02 1 9112-9310 ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9311-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (A) 		8-94313-458-0 10 1 9505- ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (A) DARK GRAY 		8-97098-326-0 02 1 9505- ● ● ●
49 CLIP; TRIM COVER
(G) 		8-94313-458-0 06 1 9203-9405 ● ● ● ●
49 CLIP; TRIM COVER
(G) 		8-94313-458-0 04 1 9406- ● ● ● ●
49 CLIP; TRIM COVER
2 DOOR SHORT(UB***C) (A) 		8-94313-458-0 04 1 9309-9607 ● ● ●
49 CLIP; TRIM COVER
(D) BLACK 		8-94355-808-1 02 1 9112-9607 ● ● ● ●
49 CLIP; TRIM COVER
(D) BLACK 		8-94355-808-1 02 1 9608- ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) (D) DARK BROWN 		8-97805-801-0 04 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) SUNROOF<CF5> (F) DARK BROWN 		8-97805-906-2 01 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
SUNROOF<CF5> (F) LIGHT GRAY 		8-97098-388-2 01 1 9505- ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) (C) DARK GRAY 		8-97805-803-0 04 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
(C) DARK GRAY 		8-97098-326-0 04 1 9505- ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) SUNROOF<CF5> (F) BEIGE 		8-97805-908-2 01 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
2 DOOR SHORT(UB***C) (A) 		8-94313-458-0 03 1 9112-9308 ● ● ● ●
49 CLIP; TRIM COVER
2 DOOR SHORT(UB***C) (A) 		8-94313-458-0 03 1 9608- ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (A) 		8-94313-458-0 10 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (B) 		8-94388-826-0 06 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9311-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (B) 		8-94388-826-0 06 1 9505- ● ● ●
50 TRIM; ROOF BACK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-294-1 01 1 9112-9504 ● ● ● ●
50 TRIM; ROOF BACK
DARK GRAY 		8-97098-398-1 01 1 9505- ● ● ● ●
50 TRIM; ROOF BACK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-296-1 01 1 9112-9504 ● ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
2 DOOR SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9112- ● ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
4 DOOR LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9112- ● ● ● ●
110 VALVE; OUTLET VENT 8-97801-166-3 01 1 9112- ● ● ● ●
110 VALVE; OUTLET VENT 8-94358-809-3 01 1 9112- ● ● ● ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) BLACK 		8-97809-147-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) BLACK 		8-97809-146-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) BLACK 		8-97807-731-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
SPORTY PACKAGE<6LU> BLACK 		8-97807-731-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97807-731-0 01 1 9505-9509 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97807-731-0 01 1 9510-9604 ● ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97156-002-1 01 1 9605- ● ● ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) BLACK 		8-97807-730-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
SPORTY PACKAGE<6LU> BLACK 		8-97807-730-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97807-730-0 01 1 9505-9509 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97807-730-0 01 1 9510-9604 ● ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97156-001-1 01 1 9605- ● ● ●

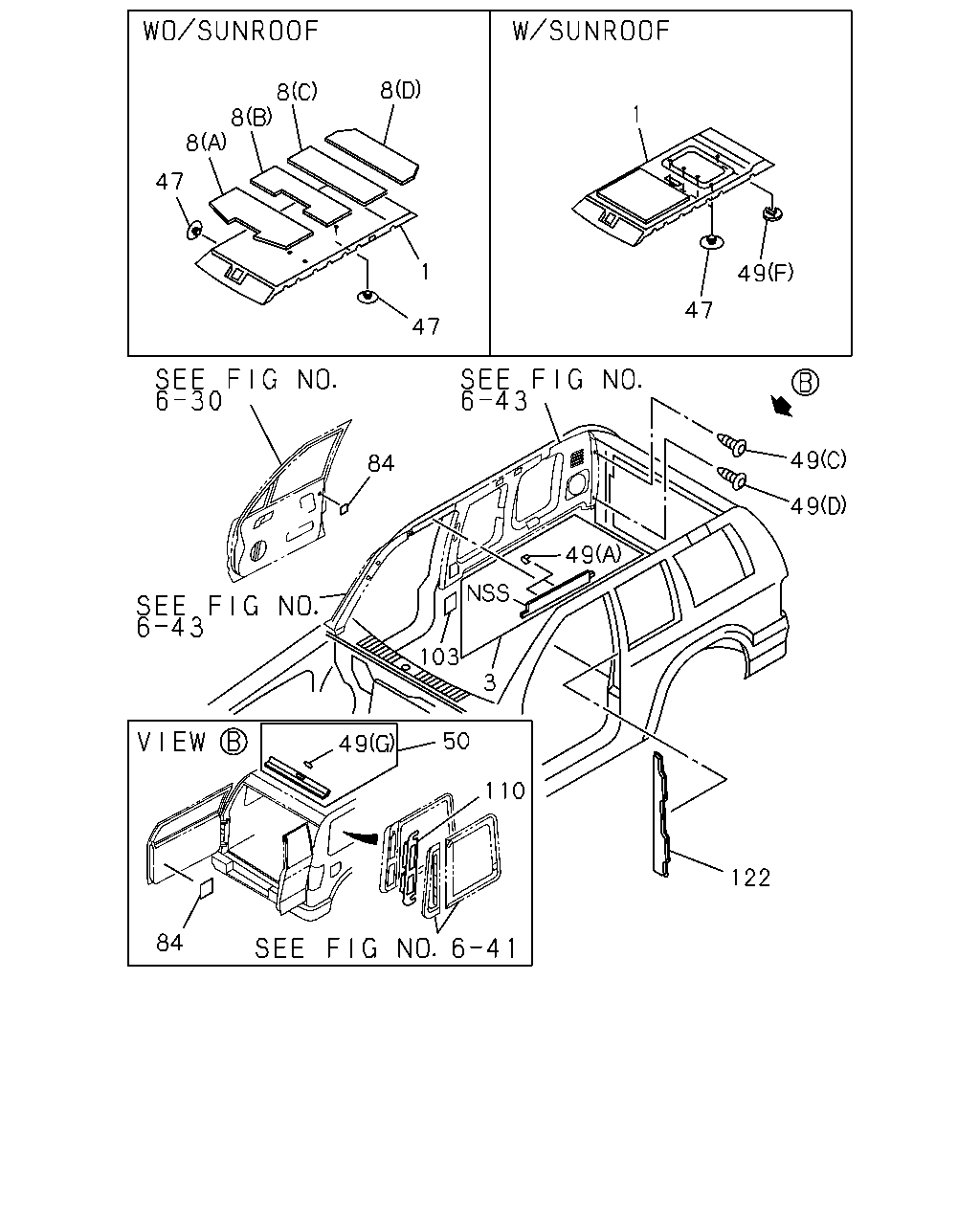

çizim 68597
8 8 8 8 1 47 49 1 47 47 49 84 49 49 103 3 50 49 110 122 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-370-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-370-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-373-4 01 1 9112-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-367-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-367-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97151-311-8 01 1 9505-9607 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97151-311-8 01 1 9608- ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-372-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-372-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-392-8 01 1 9505-9607 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-392-8 01 1 9608- ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-375-4 01 1 9112-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-369-7 01 1 9112-9308 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-369-7 01 1 9309-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> 		8-97151-312-2 01 1 9608- ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> 		8-97151-313-2 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-360-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97804-360-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN 		8-97804-364-3 01 1 9112-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97098-389-4 01 1 9505-9607 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97098-389-4 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-356-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK BROWN 		8-97804-356-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-362-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97804-362-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97098-391-6 01 1 9505-9607 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> LIGHT GRAY 		8-97098-391-6 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY 		8-97804-366-3 01 1 9112-9504 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97151-314-5 01 1 9505-9607 ● ● ● ●
1 LINING; HD
2 DOOR SHORT(UB***C) SUNROOF<CF5> MAP LAMP<UF3> EXC. MULTI METER<7HT> LIGHT GRAY 		8-97151-314-5 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-358-5 01 1 9112-9308 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. SUNROOF<CF5>,MAP LAMP<UF3> DARK GRAY 		8-97804-358-5 01 1 9309-9504 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3> LIGHT GRAY 		8-97098-390-6 01 1 9505-9607 ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> LIGHT GRAY 		8-97098-390-6 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) MAP LAMP<UF3> MULTI METER<7HT> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97151-308-2 01 1 9608- ● ● ● ●
1 LINING; HD
4 DOOR LONG(UB***F) SUNROOF<CF5> MAP LAMP<UF3> MULTI METER<7HT> LIGHT GRAY 		8-97151-309-2 01 1 9608- ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-290-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-287-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-292-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) DARK GRAY 		8-97098-395-3 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-289-3 01 1 9112-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
2 DOOR SHORT(UB***C) DARK GRAY 		8-97098-396-3 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-284-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-345-0 01 1 9501-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) DARK GRAY 		8-97152-040-0 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-280-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-347-0 01 1 9501-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) DARK GRAY 		8-97152-041-0 01 1 9505- ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-286-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-346-0 01 1 9501-9504 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-282-5 01 1 9112-9412 ● ● ● ●
3 COVER; TRIM,ROOF SIDE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-348-0 01 1 9501-9504 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97802-960-2 01 1 9112-9407 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (A) 		8-97811-267-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-1 01 1 9112-9208 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-2 01 1 9309-9407 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97811-268-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97803-215-1 01 1 9112-9208 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (B) 		8-97802-961-2 01 1 9209-9308 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97803-215-1 01 1 9209-9407 ● ● ● ●
8 PAD; HEADLINING
EXC. SUNROOF<CF5> (C) 		8-97811-269-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97802-963-1 01 1 9112-9407 ● ● ● ●
8 PAD; HEADLINING
2 DOOR SHORT(UB***C) EXC. SUNROOF<CF5> (D) 		8-97811-271-0 01 1 9408- ● ● ● ●
8 PAD; HEADLINING
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97802-962-1 01 1 9112-9407 ● ● ● ●
8 PAD; HEADLINING
4 DOOR LONG(UB***F) EXC. SUNROOF<CF5> (D) 		8-97811-270-0 01 1 9408- ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-482-0 12 1 9112-9404 ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-192-0 12 1 9405-9504 ● ● ● ●
47 CLIP; HEADLINING
LIGHT GRAY 		8-97098-397-0 12 1 9505- ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-484-0 12 1 9112-9404 ● ● ● ●
47 CLIP; HEADLINING
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-193-0 12 1 9405-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (E) GRAY 		8-94429-372-0 02 1 9112-9310 ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9311-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (A) 		8-94313-458-0 10 1 9505- ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (A) DARK GRAY 		8-97098-326-0 02 1 9505- ● ● ●
49 CLIP; TRIM COVER
(G) 		8-94313-458-0 06 1 9203-9405 ● ● ● ●
49 CLIP; TRIM COVER
(G) 		8-94313-458-0 04 1 9406- ● ● ● ●
49 CLIP; TRIM COVER
2 DOOR SHORT(UB***C) (A) 		8-94313-458-0 04 1 9309-9607 ● ● ●
49 CLIP; TRIM COVER
(D) BLACK 		8-94355-808-1 02 1 9112-9607 ● ● ● ●
49 CLIP; TRIM COVER
(D) BLACK 		8-94355-808-1 02 1 9608- ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) (D) DARK BROWN 		8-97805-801-0 04 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR BROWN(130) SUNROOF<CF5> (F) DARK BROWN 		8-97805-906-2 01 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
SUNROOF<CF5> (F) LIGHT GRAY 		8-97098-388-2 01 1 9505- ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) (C) DARK GRAY 		8-97805-803-0 04 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
(C) DARK GRAY 		8-97098-326-0 04 1 9505- ● ● ● ●
49 CLIP; TRIM COVER
INTERIOR COLOR GRAY(153) SUNROOF<CF5> (F) BEIGE 		8-97805-908-2 01 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
2 DOOR SHORT(UB***C) (A) 		8-94313-458-0 03 1 9112-9308 ● ● ● ●
49 CLIP; TRIM COVER
2 DOOR SHORT(UB***C) (A) 		8-94313-458-0 03 1 9608- ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (A) 		8-94313-458-0 10 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (B) 		8-94388-826-0 06 1 9112-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9311-9504 ● ● ● ●
49 CLIP; TRIM COVER
4 DOOR LONG(UB***F) (B) 		8-94388-826-0 06 1 9505- ● ● ●
50 TRIM; ROOF BACK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-294-1 01 1 9112-9504 ● ● ● ●
50 TRIM; ROOF BACK
DARK GRAY 		8-97098-398-1 01 1 9505- ● ● ● ●
50 TRIM; ROOF BACK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-296-1 01 1 9112-9504 ● ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
2 DOOR SHORT(UB***C) 45X45 T=0.08 		8-94238-288-1 AR 1 9112- ● ● ● ●
84 PATCH; WATER PROOF SHEET,DOOR
4 DOOR LONG(UB***F) 45X45 T=0.08 		8-94238-288-1 AR 1 9112- ● ● ● ●
103 SEAL; RR PILLAR
2 DOOR SHORT(UB***C) 		8-97805-792-2 02 1 9112- ● ● ● ●
110 VALVE; OUTLET VENT 8-97801-166-3 01 1 9112- ● ● ● ●
110 VALVE; OUTLET VENT 8-94358-809-3 01 1 9112- ● ● ● ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) BLACK 		8-97809-147-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97809-147-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
BLACK 		8-97156-101-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) BLACK 		8-97809-146-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97809-146-0 01 1 9505-9604 ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) SPORTY PACKAGE<6LU> BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
BLACK 		8-97156-100-1 01 1 9605- ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) BLACK 		8-97807-731-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-731-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
SPORTY PACKAGE<6LU> BLACK 		8-97807-731-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97807-731-0 01 1 9505-9509 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97807-731-0 01 1 9510-9604 ● ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97156-002-1 01 1 9605- ● ● ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9112-9504 ●
122 SEAL; CENTER PILLAR
4 DOOR LONG(UB***F) BLACK 		8-97807-730-0 01 1 9112-9504 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97807-730-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
SPORTY PACKAGE<6LU> BLACK 		8-97807-730-0 01 1 9505-9509 ●
122 SEAL; CENTER PILLAR
BLACK 		8-97807-730-0 01 1 9505-9509 ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97807-730-0 01 1 9510-9604 ● ● ●
122 SEAL; CENTER PILLAR
EXTERIOR CHROME PACKAGE<6CX> SPORTY PACKAGE<6LU> BLACK 		8-97156-001-1 01 1 9605- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
