6-65 — SUNROOF (#35256) — 69 parça

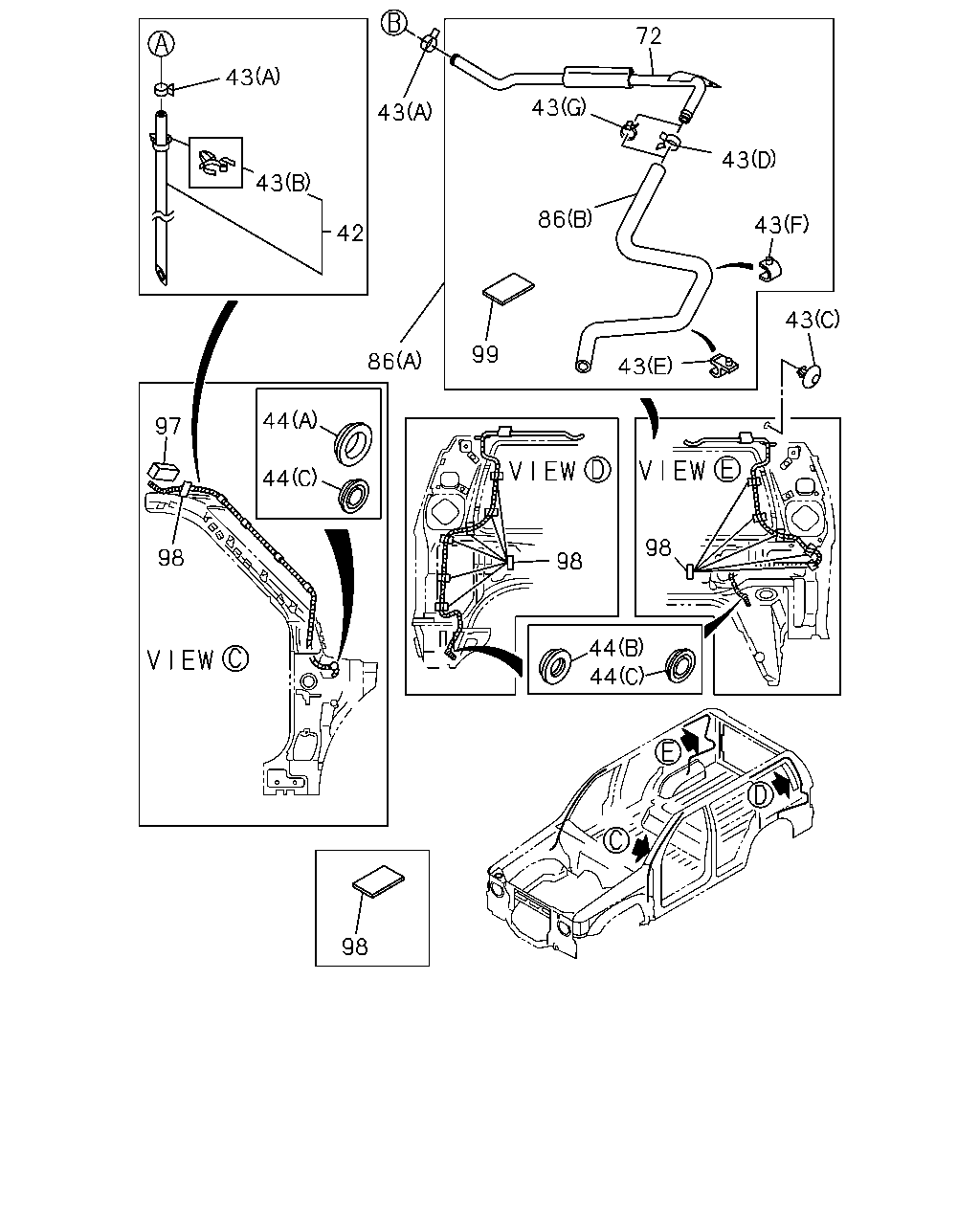

72 43 43 43 43 43 86 43 42 43 99 86 43 44 97 44 98 98 98 44 44 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; DRAIN,FRT,SUNROOF SUNROOF<CF5>	8-97809-581-0	01	1	9112-	●	●
42	HOSE; DRAIN,FRT,SUNROOF SUNROOF<CF5>	8-97809-580-0	01	1	9112-	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (A) ID=13	8-94238-571-0	04	1	9112-	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (B)	8-97809-577-0	08	1	9112-	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (C)	8-97809-579-0	02	1	9112-	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (D) ID=13	8-94205-561-1	02	1	9112-9409	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (G) L=100	8-94279-939-0	02	1	9410-	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (E)	8-97809-576-0	01	1	9112-	●	●
43	CLIP; DRAIN HOSE SUNROOF<CF5> (F)	8-97809-578-0	01	1	9112-	●	●
44	GROMMET; DRAIN HOSE SUNROOF<CF5> (A)	5-09333-026-1	02	1	9112-	●	●
44	GROMMET; DRAIN HOSE SUNROOF<CF5> (B)	8-97809-167-0	02	1	9112-	●	●
44	GROMMET; DRAIN HOSE EXC. SUNROOF<CF5> (C) OD=26	8-94141-484-0	04	1	9112-	●	●
72	PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-585-0	01	1	9112-	●
72	PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-584-0	01	1	9112-	●
72	PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-583-0	01	1	9112-		●
72	PIPE ASM; SUNROOF DRAIN SUNROOF<CF5>	8-97809-474-0	01	1	9112-		●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-161-2	01	1	9112-	●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-160-2	01	1	9112-	●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (B)	8-97809-472-0	01	1	9112-	●	●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (B)	8-97809-471-0	01	1	9112-9308	●	●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (B)	8-97809-472-0	01	1	9309-	●	●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-159-2	01	1	9112-		●
86	HOSE; DRAIN,SUNROOF RR SUNROOF<CF5> (A)	8-97809-158-2	01	1	9112-		●
97	CUSHION; SUNROOF SUNROOF<CF5>	8-97809-154-1	02	1	9112-	●	●
98	TAPE; DRAIN HOSE SUNROOF<CF5>	8-97809-155-0	15	1	9112-9409	●	●
98	TAPE; DRAIN HOSE SUNROOF<CF5>	8-97809-155-0	13	1	9410-	●	●
99	TAPE; SUNROOF SUNROOF<CF5>	8-97809-155-0	02	1	9305-		●

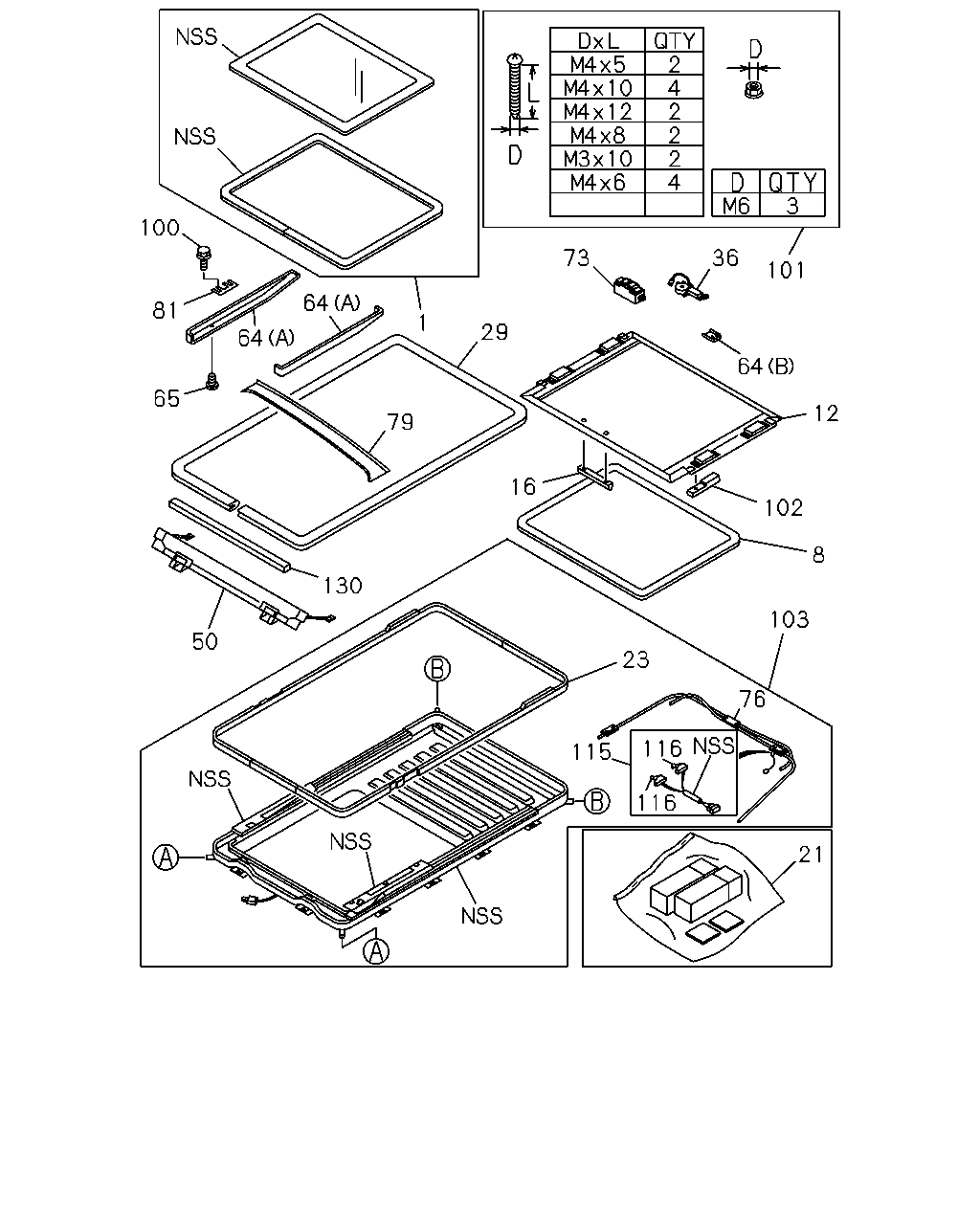

100 73 36 101 64 81 1 29 64 64 65 12 79 16 102 8 130 103 50 23 76 116 115 116 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; SUNROOF SUNROOF<CF5>	8-97805-515-1	01	1	9112-9309	●	●
1	GLASS; SUNROOF SUNROOF<CF5>	8-97810-938-1	01	1	9310-9407	●	●
1	GLASS; SUNROOF SUNROOF<CF5>	8-97114-407-0	01	1	9408-9504	●	●
1	GLASS; SUNROOF SUNROOF<CF5>	8-97121-755-1	01	1	9505-	●	●
8	WEATHERSTRIP; OUTER SUNROOF SUNROOF<CF5>	8-97803-023-5	01	1	9112-9710	●	●
8	WEATHERSTRIP; OUTER SUNROOF SUNROOF<CF5>	8-97186-458-0	01	1	9711-	●	●
12	SUNSHADE; SUNROOF INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN	8-97805-582-4	01	1	9112-9504	●	●
12	SUNSHADE; SUNROOF SUNROOF<CF5> LIGHT GRAY	8-97151-535-4	01	1	9505-	●	●
12	SUNSHADE; SUNROOF INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY	8-97805-584-4	01	1	9112-9504	●	●
16	LOCK; ROTARY,SUNSHADE INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN	8-97805-785-0	01	1	9112-9504	●	●
16	LOCK; ROTARY,SUNSHADE SUNROOF<CF5> LIGHT GRAY	8-97151-537-0	01	1	9505-	●	●
16	LOCK; ROTARY,SUNSHADE INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY	8-97805-787-0	01	1	9112-9504	●	●
21	SEAL; RR,SUNROOF SUNROOF<CF5>	8-97146-874-0	01	1	9608-	●	●
23	SEAL; RUBBER,SUNROOF,CENTER SUNROOF<CF5>	8-97805-702-0	01	1	9112-	●
23	SEAL; RUBBER,SUNROOF,CENTER SUNROOF<CF5>	8-97805-701-0	01	1	9112-		●
29	FINISHER; SUNROOF INTERIOR COLOR BROWN(130) SUNROOF<CF5> DARK BROWN	8-97806-907-2	01	1	9112-9504	●	●
29	FINISHER; SUNROOF SUNROOF<CF5> LIGHT GRAY	8-97098-399-2	01	1	9505-	●	●
29	FINISHER; SUNROOF INTERIOR COLOR GRAY(153) SUNROOF<CF5> DARK GRAY	8-97806-909-2	01	1	9112-9504	●	●
36	MOTOR; SUNROOF SUNROOF<CF5>	8-97805-524-1	01	1	9112-	●	●
50	DEFLECTOR; SUNROOF SUNROOF<CF5>	8-97806-599-1	01	1	9112-	●	●
64	COVER; SUNROOF DECORATION SUNROOF<CF5> (A)	8-97805-527-0	01	1	9112-	●	●
64	COVER; SUNROOF DECORATION SUNROOF<CF5> (A)	8-97805-526-0	01	1	9112-	●	●
64	COVER; SUNROOF DECORATION SUNROOF<CF5> EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97811-425-0	01	1	9510-	●	●
65	SCREW; DECORATION COVER SUNROOF<CF5> M4X6	9-03494-406-0	04	1	9112-	●	●
73	CONTROLLER; SUNROOF SUNROOF<CF5>	8-94332-306-0	01	1	9112-9211	●	●
73	CONTROLLER; SUNROOF SUNROOF<CF5>	8-97810-119-0	01	1	9212-	●	●
76	DRIVE UNIT; SUNROOF SUNROOF<CF5>	8-97805-522-0	01	1	9112-	●	●
79	DRAIN ASM; SUNROOF SUNROOF<CF5>	8-97805-523-1	01	1	9112-	●	●
81	SHIM; SUNROOF SUNROOF<CF5>	8-97805-529-0	AR	1	9112-	●	●
100	BOLT; LID SUNROOF<CF5> M6X11	8-97808-812-0	AR	1	9112-9503	●	●
100	BOLT; LID SUNROOF<CF5> M6X9	8-97808-813-0	AR	1	9112-	●	●
101	FIXING KIT; SUNROOF SUNROOF<CF5>	8-97810-404-1	01	1	9303-	●	●
102	STOPPER; SUN SHADE SUNROOF<CF5>	8-97810-405-0	02	1	9303-	●	●
103	SUNROOF SET SUNROOF<CF5>	8-97810-403-1	01	1	9112-9702	●
103	SUNROOF SET SUNROOF<CF5>	8-97169-678-0	01	1	9703-9708	●
103	SUNROOF SET SUNROOF<CF5>	8-97184-890-0	01	1	9709-	●
103	SUNROOF SET SUNROOF<CF5>	8-97810-402-1	01	1	9112-9702		●
103	SUNROOF SET SUNROOF<CF5>	8-97169-679-0	01	1	9703-9708		●
103	SUNROOF SET SUNROOF<CF5>	8-97184-891-0	01	1	9709-		●
115	SWITCH KIT SUNROOF<CF5>	8-97148-298-0	01	1	9607-	●	●
116	SWITCH; MICRO SUNROOF<CF5>	8-97148-297-0	02	1	9607-	●	●
130	SEAL; SUNROOF SUNROOF<CF5>	8-97186-534-0	01	1	9711-	●	●
