◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#35252) — 86 parça

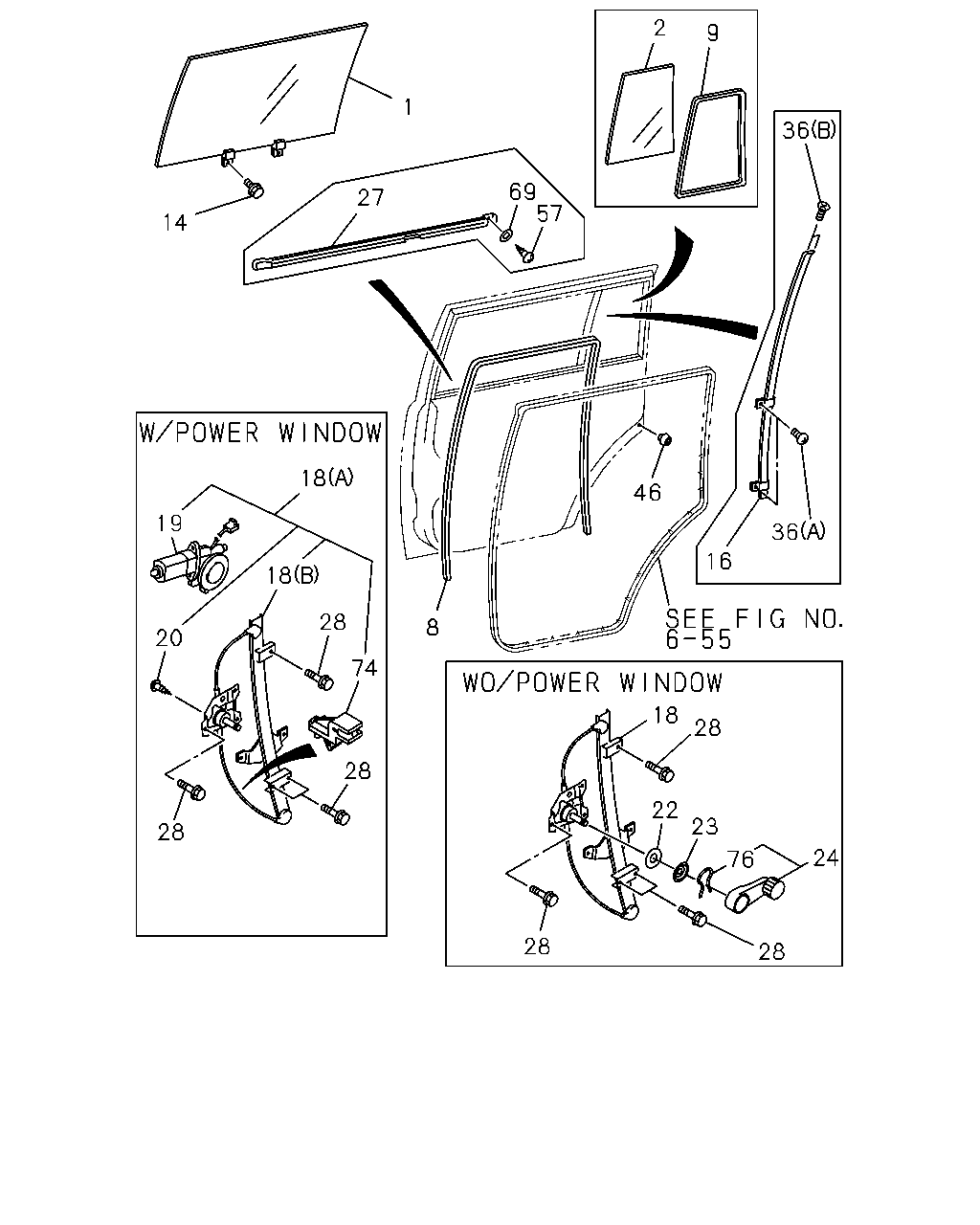

çizim 67863
2 9 1 36 69 57 27 14 18 46 19 36 16 18 28 8 20 74 18 28 28 22 23 76 28 24 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; RR DOOR
BRONZE GLASS(X72) 		8-94358-592-0 01 1 9112-9309 ●
1 GLASS; RR DOOR
BRONZE GLASS(X72) 		8-97810-975-1 01 1 9310- ●
1 GLASS; RR DOOR
BRONZE GLASS(X72) 		8-94358-591-0 01 1 9112-9309 ●
1 GLASS; RR DOOR
BRONZE GLASS(X72) 		8-97810-974-1 01 1 9310- ●
1 GLASS; RR DOOR
EXC. BRONZE GLASS(X72) 		8-94358-590-0 01 1 9112-9309 ●
1 GLASS; RR DOOR
EXC. BRONZE GLASS(X72) 		8-97810-973-0 01 1 9310-9504 ●
1 GLASS; RR DOOR
EXC. BRONZE GLASS(X72) 		8-97121-748-1 01 1 9505- ●
1 GLASS; RR DOOR
EXC. BRONZE GLASS(X72) 		8-94358-589-0 01 1 9112-9309 ●
1 GLASS; RR DOOR
EXC. BRONZE GLASS(X72) 		8-97810-972-0 01 1 9310-9504 ●
1 GLASS; RR DOOR
EXC. BRONZE GLASS(X72) 		8-97121-747-1 01 1 9505- ●
2 GLASS; RR DOOR,RR
BRONZE GLASS(X72) 		8-94358-604-0 01 1 9112-9309 ●
2 GLASS; RR DOOR,RR
BRONZE GLASS(X72) 		8-97810-993-1 01 1 9310- ●
2 GLASS; RR DOOR,RR
BRONZE GLASS(X72) 		8-94358-603-0 01 1 9112-9309 ●
2 GLASS; RR DOOR,RR
BRONZE GLASS(X72) 		8-97810-992-1 01 1 9310- ●
2 GLASS; RR DOOR,RR
EXC. BRONZE GLASS(X72) 		8-94358-602-0 01 1 9112-9309 ●
2 GLASS; RR DOOR,RR
EXC. BRONZE GLASS(X72) 		8-97810-991-0 01 1 9310-9504 ●
2 GLASS; RR DOOR,RR
EXC. BRONZE GLASS(X72) 		8-97121-750-1 01 1 9505- ●
2 GLASS; RR DOOR,RR
EXC. BRONZE GLASS(X72) 		8-94358-601-0 01 1 9112-9309 ●
2 GLASS; RR DOOR,RR
EXC. BRONZE GLASS(X72) 		8-97810-990-0 01 1 9310-9504 ●
2 GLASS; RR DOOR,RR
EXC. BRONZE GLASS(X72) 		8-97121-749-1 01 1 9505- ●
8 RUN; GLASS,RR DOOR 8-94358-580-2 01 1 9112-9604 ●
8 RUN; GLASS,RR DOOR 8-97128-690-0 01 1 9605- ●
8 RUN; GLASS,RR DOOR 8-94358-579-2 01 1 9112-9604 ●
8 RUN; GLASS,RR DOOR 8-97128-689-0 01 1 9605- ●
9 WEATHERSTRIP; RR DOOR 8-94358-614-1 01 1 9112-9607 ●
9 WEATHERSTRIP; RR DOOR 8-94358-614-1 01 1 9608- ●
9 WEATHERSTRIP; RR DOOR 8-94358-613-1 01 1 9112-9607 ●
9 WEATHERSTRIP; RR DOOR 8-94358-613-1 01 1 9608- ●
14 BOLT; RR DOOR GLASS
M6X8 		8-94155-893-0 04 1 9112- ●
16 SASH ASM; DIVISION 8-94358-584-4 01 1 9112- ●
16 SASH ASM; DIVISION 8-94358-583-4 01 1 9112- ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (A) 		8-94358-574-1 01 1 9112-9208 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97800-045-1 01 1 9209-9302 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97810-470-0 01 1 9303-9310 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (A) 		8-94358-573-1 01 1 9112-9208 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97800-044-1 01 1 9209-9302 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97810-469-0 01 1 9303-9310 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97810-470-1 01 1 9311-9504 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97811-106-0 01 1 9505-9505 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97810-470-2 01 1 9506-9509 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97135-175-0 01 1 9510-9608 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97165-870-1 01 1 9609- ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97810-469-1 01 1 9311-9504 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97811-105-0 01 1 9505-9505 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97810-469-2 01 1 9506-9509 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97135-174-0 01 1 9510-9608 ●
18 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> (B) 		8-97165-869-1 01 1 9609- ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-94358-576-2 01 1 9112-9504 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-97811-100-0 01 1 9505-9507 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-94358-576-3 01 1 9508-9509 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-97135-169-0 01 1 9510-9610 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-97164-500-1 01 1 9611- ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-94358-575-2 01 1 9112-9504 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-97811-099-0 01 1 9505-9507 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-94358-575-3 01 1 9508-9509 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-97135-168-0 01 1 9510-9610 ●
18 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-97164-499-1 01 1 9611- ●
19 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A30> 		8-97800-049-1 01 1 9112- ●
19 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A30> 		8-97800-048-1 01 1 9112- ●
20 SCREW
POWER WINDOW<A30> M6X14 W/LK WASHER 		9-03910-614-0 06 1 9112- ●
22 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94106-830-1 02 1 9112- ●
23 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		8-94220-668-1 02 1 9112- ●
24 HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR BROWN(130) EUROPE/CANARY EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK BROWN 		8-97806-031-0 02 1 9112-9504 ●
24 HANDLE; WINDOW REG,RR DOOR
EUROPE/CANARY EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY 		8-97151-346-0 02 1 9505- ●
24 HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR BROWN(130) EXC. POWER WINDOW<A30>,EUROPE/CANARY EQUIPMENT(EK4) DARK BROWN 		8-97806-639-0 02 1 9112-9504 ●
24 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A30>,EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97098-453-0 02 1 9505- ●
24 HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR GRAY(153) EUROPE/CANARY EQUIPMENT(EK4) EXC. POWER WINDOW<A30> DARK GRAY 		8-97806-030-0 02 1 9112-9504 ●
24 HANDLE; WINDOW REG,RR DOOR
INTERIOR COLOR GRAY(153) EXC. POWER WINDOW<A30>,EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97805-571-0 02 1 9112-9504 ●
27 SEAL; WAIST,RR DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-663-3 01 1 9112- ●
27 SEAL; WAIST,RR DOOR
EXTERIOR CHROME PACKAGE<6CX> 		8-94358-662-3 01 1 9112- ●
27 SEAL; WAIST,RR DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-618-5 01 1 9112- ●
27 SEAL; WAIST,RR DOOR
EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-94358-617-5 01 1 9112- ●
28 BOLT; WINDOW REG
M6X8 		8-94155-893-0 12 1 9112-9509 ●
28 BOLT; WINDOW REG
M6X8 		8-94155-893-0 14 1 9510- ●
36 SCREW; DIVISION SASH
(B) M6X8 		8-94155-893-0 04 1 9112- ●
36 SCREW; DIVISION SASH
(A) M4X8 CK-HEAD 		9-93090-408-0 04 1 9112-9210 ●
36 SCREW; DIVISION SASH
(A) M4X8 		8-97810-107-0 04 1 9211-9409 ●
36 SCREW; DIVISION SASH
(A) M4X8 		9-03800-408-0 04 1 9410-9607 ●
36 SCREW; DIVISION SASH
(A) M4X8 		9-03800-408-0 02 1 9608- ●
46 BUFFER; RR DOOR 8-94358-581-0 02 1 9112- ●
57 SCREW; WAIST OUTER SEAL 8-97802-968-1 02 1 9112- ●
69 WASHER; WAIST SEAL
ID=6 		8-94126-642-0 02 1 9112-9404 ●
69 WASHER; WAIST SEAL
D=16 		8-94427-941-0 02 1 9405- ●
74 HOLDER
POWER WINDOW<A30> 		8-97805-403-0 02 1 9112-9505 ●
74 HOLDER
POWER WINDOW<A30> 		8-97805-403-0 02 1 9606- ●
76 PIN
EXC. POWER WINDOW<A30>,EUROPE/CANARY EQUIPMENT(EK4) 		8-94220-591-0 02 1 9502- ● ●
