6-47 — MUD GUARD AND INSULATOR (#35250) — 91 parça

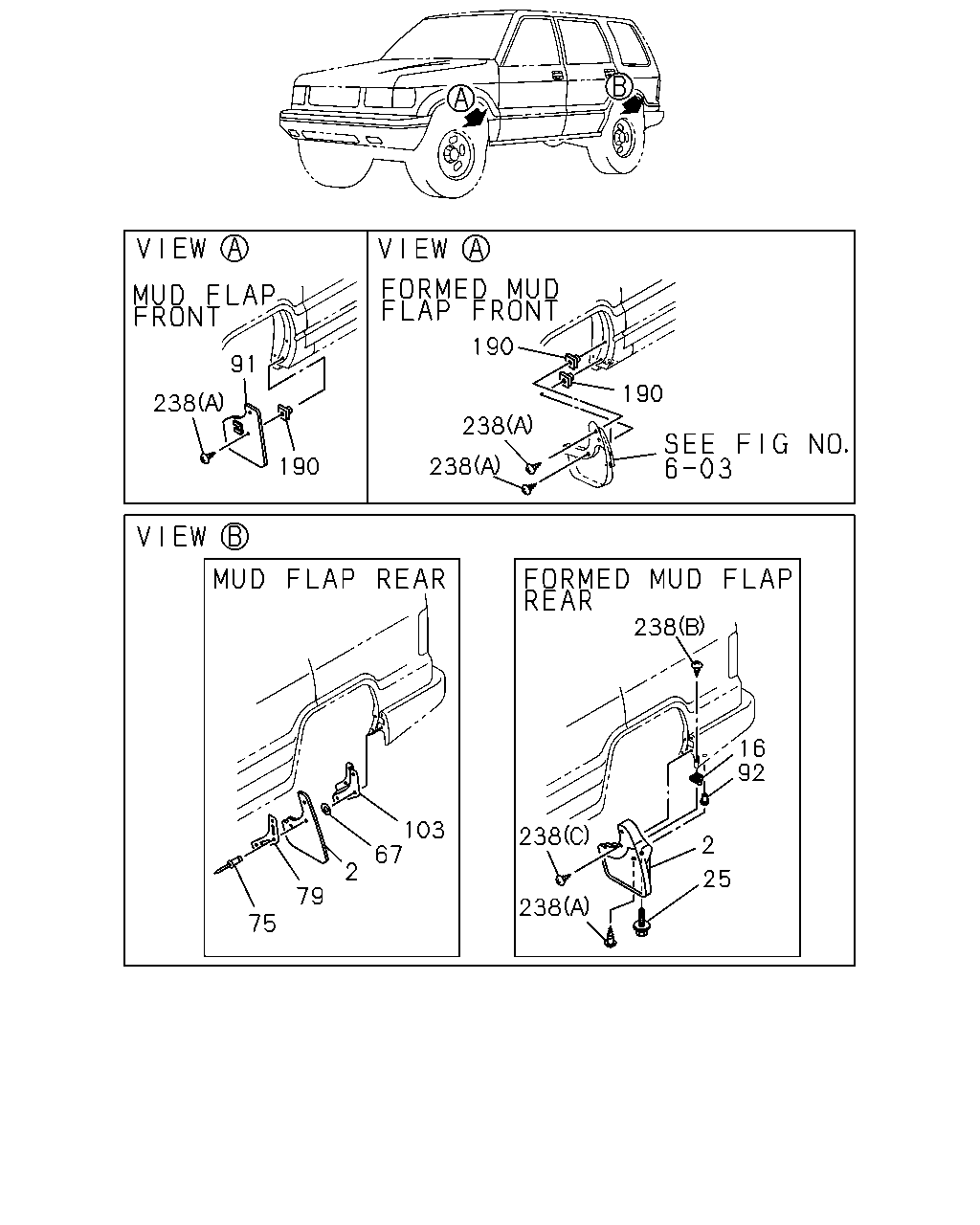

190 91 190 238 238 238 190 238 16 92 103 67 238 2 25 2 79 238 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR EUROPE/CANARY EQUIPMENT(EK4) MUD FLAP<VH4>	8-97808-526-0	01	1	9112-	●	●
2	COVER; MUD,TIRE RR EUROPE/CANARY EQUIPMENT(EK4) MUD FLAP<VH4>	8-97808-525-0	01	1	9112-	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-870-0	01	1	9112-9308	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-870-0	01	1	9309-9607	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-870-0	01	1	9608-9705	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-871-0	01	1	9309-9607	●	●
2	COVER; MUD,TIRE RR FORMED MUD FLAP<6WL> PRIMER	8-97807-871-0	01	1	9608-9705	●	●
2	COVER; MUD,TIRE RR MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97805-350-1	01	1	9112-	●	●
2	COVER; MUD,TIRE RR MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97805-220-1	01	1	9112-	●	●
16	NUT; FLANGE,BRKT TO BODY FORMED MUD FLAP<6WL>	8-97805-829-0	02	1	9112-9410	●	●
25	BOLT; PLATE TO MUD COVER FORMED MUD FLAP<6WL> M6X28 W/PL WASHER	8-94148-420-0	02	1	9112-9607	●	●
25	BOLT; PLATE TO MUD COVER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> M6X28 W/PL WASHER	8-94148-420-0	02	1	9608-	●	●
67	WASHER; PL MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	1-09985-170-0	06	1	9503-9605	●	●
67	WASHER; PL MUD FLAP<VH4>	1-09985-170-0	06	1	9606-	●	●
75	RIVET; MUD COVER MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97802-566-0	06	1	9112-9307	●	●
75	RIVET; MUD COVER MUD FLAP<VH4>	1-09987-128-0	06	1	9308-	●	●
79	RETAINER; MUD COVER MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-360-0	02	1	9112-9307	●	●
79	RETAINER; MUD COVER MUD FLAP<VH4>	8-97807-360-0	02	1	9308-9502	●	●
79	RETAINER; MUD COVER EUROPE/CANARY EQUIPMENT(EK4) MUD FLAP<VH4>	8-97807-360-0	02	1	9503-9605	●	●
91	COVER; MUD,FRT EUROPE/CANARY EQUIPMENT(EK4) MUD FLAP<VH4>	8-97805-867-0	01	1	9112-	●	●
91	COVER; MUD,FRT EUROPE/CANARY EQUIPMENT(EK4) MUD FLAP<VH4>	8-97805-866-0	01	1	9112-	●	●
91	COVER; MUD,FRT MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-553-0	01	1	9112-	●	●
91	COVER; MUD,FRT MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97805-165-0	01	1	9112-	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> WELL NUT	8-94311-999-0	02	1	9112-9305	●	●
92	NUT; MUD COVER FORMED MUD FLAP<6WL> M6 RUBBER NUT	8-97023-281-0	02	1	9306-9607	●	●
92	NUT; MUD COVER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> M6 RUBBER NUT	8-97023-281-0	02	1	9608-	●	●
103	BRACKET ASM; RR MUD FLAP MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-328-0	01	1	9112-9307	●	●
103	BRACKET ASM; RR MUD FLAP MUD FLAP<VH4>	8-97807-328-0	01	1	9308-	●	●
103	BRACKET ASM; RR MUD FLAP MUD FLAP<VH4> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-327-0	01	1	9112-9307	●	●
103	BRACKET ASM; RR MUD FLAP MUD FLAP<VH4>	8-97807-327-0	01	1	9308-	●	●
190	NUT; FENDER COVER MUD FLAP<VH4> ID=5.2 H=10	8-97032-135-0	06	1	9112-	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (C) M6X12	0-28010-612-0	04	1	9112-9204	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (C) M6X12 FLANGE	0-28080-612-0	04	1	9205-9607	●	●
238	SCREW; MUD GUARD ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (C) M6X12 FLANGE	0-28080-612-0	04	1	9608-	●	●
238	SCREW; MUD GUARD MUD FLAP<VH4> (A) M6X20 W/PL WASHER TAPPING	8-94321-767-1	06	1	9112-	●	●
238	SCREW; MUD GUARD FORMED MUD FLAP<6WL> (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9112-9410	●	●

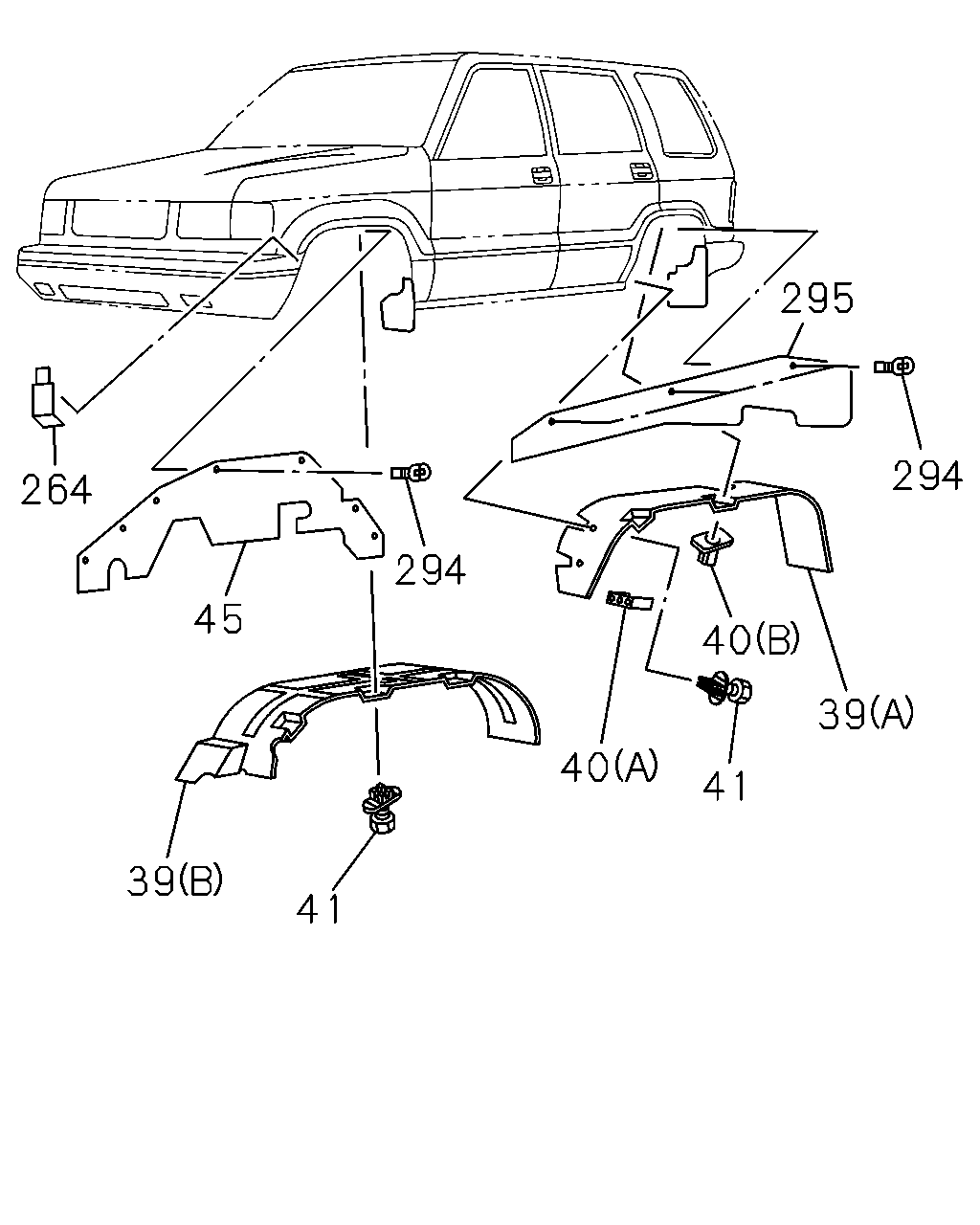

295 294 264 294 45 40 39 40 41 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	LINER; FENDER (B) FRONT	8-94359-272-5	01	1	9112-9408	●	●
39	LINER; FENDER (B) FRONT	8-97103-849-2	01	1	9409-	●	●
39	LINER; FENDER (A) REAR	8-97804-158-0	01	1	9112-9308	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> (A) REAR	8-97804-158-1	01	1	9309-9502	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> (A) REAR	8-97103-851-2	01	1	9503-9504	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> (A) REAR	8-97106-344-2	01	1	9505-9607	●	●
39	LINER; FENDER EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) REAR	8-97106-344-2	01	1	9608-	●	●
39	LINER; FENDER (B) FRONT	8-94359-271-5	01	1	9112-9408	●	●
39	LINER; FENDER (B) FRONT	8-97103-848-2	01	1	9409-	●	●
39	LINER; FENDER (A) REAR	8-97804-157-1	01	1	9112-9308	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> (A) REAR	8-97804-157-2	01	1	9309-9502	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> (A) REAR	8-97103-850-2	01	1	9503-9504	●	●
39	LINER; FENDER EXC. FORMED MUD FLAP<6WL> (A) REAR	8-97106-343-2	01	1	9505-9607	●	●
39	LINER; FENDER EXC. COLOR KEYED ROCKER SKIRT<6YA> (A) REAR	8-97106-343-2	01	1	9608-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> (A) REAR	8-97808-606-0	01	1	9309-9502	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> (A) REAR	8-97106-346-2	01	1	9503-9504	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> (A) REAR	8-97106-342-2	01	1	9505-9607	●	●
39	LINER; FENDER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A) REAR	8-97106-342-2	01	1	9608-	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> (A) REAR	8-97808-605-0	01	1	9309-9502	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> (A) REAR	8-97106-345-2	01	1	9503-9504	●	●
39	LINER; FENDER FORMED MUD FLAP<6WL> (A) REAR	8-97106-341-2	01	1	9505-9607	●	●
39	LINER; FENDER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A) REAR	8-97106-341-2	01	1	9608-	●	●
40	CLIP; INNER LINER (B)	8-97805-240-0	09	1	9112-	●	●
40	CLIP; INNER LINER (A)	8-94215-212-0	02	1	9505-	●	●
41	RIVET; INNER LINER	8-94221-150-0	08	1	9112-	●	●
41	RIVET; INNER LINER MUD FLAP<VH4>	8-94221-150-0	16	1	9112-	●	●
41	RIVET; INNER LINER EXC. MUD FLAP<VH4>,ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	22	1	9112-	●	●
41	RIVET; INNER LINER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-94221-150-0	18	1	9112-	●	●
45	COVER; MUD,FENDER SKIRT EUROPE/CANARY EQUIPMENT(EK4)	8-97132-941-0	01	1	9601-	●	●
45	COVER; MUD,FENDER SKIRT EUROPE/CANARY EQUIPMENT(EK4)	8-97132-940-2	01	1	9601-	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97801-578-2	01	1	9112-9308	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97801-578-2	01	1	9309-9504	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC)	8-97801-578-2	01	1	9505-9512	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97801-578-2	01	1	9601-9601	●	●
45	COVER; MUD,FENDER SKIRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97138-229-0	01	1	9602-	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU)	8-94359-626-2	01	1	9112-9308	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU)	8-94359-626-2	01	1	9309-9512	●	●
45	COVER; MUD,FENDER SKIRT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94359-626-2	01	1	9601-9601	●	●
45	COVER; MUD,FENDER SKIRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97138-228-1	01	1	9602-	●	●
45	COVER; MUD,FENDER SKIRT 4ZE1 ENG(RLJ)	8-97801-577-2	01	1	9112-9512	●	●
45	COVER; MUD,FENDER SKIRT 4ZE1 ENG(RLJ) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97801-577-2	01	1	9601-9601	●	●
45	COVER; MUD,FENDER SKIRT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU)	8-94359-627-2	01	1	9112-9512	●	●
45	COVER; MUD,FENDER SKIRT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94359-627-2	01	1	9601-9601	●	●
264	FINISHER; FRT FENDER	8-97808-857-0	02	1	9207-	●	●
294	CLIP; MUD COVER	8-94215-211-0	14	1	9112-9308	●	●
294	CLIP; MUD COVER	8-94215-211-0	22	1	9309-9602	●	●
294	CLIP; MUD COVER	8-94215-211-0	08	1	9603-	●	●
294	CLIP; MUD COVER EUROPE/CANARY EQUIPMENT(EK4)	8-97809-579-0	14	1	9603-	●	●
294	CLIP; MUD COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94215-211-0	14	1	9603-	●	●
295	COVER; WHEEL HOUSE	8-97809-125-2	01	1	9309-9504	●	●
295	COVER; WHEEL HOUSE	8-97119-720-0	01	1	9505-9512	●	●
295	COVER; WHEEL HOUSE	8-97143-180-0	01	1	9601-	●	●
295	COVER; WHEEL HOUSE	8-97809-124-2	01	1	9309-9504	●	●
295	COVER; WHEEL HOUSE	8-97119-719-0	01	1	9505-9512	●	●
295	COVER; WHEEL HOUSE	8-97143-179-0	01	1	9601-	●	●
