◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#35249) — 194 parça
çizim 17878
1 120 120 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-233-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-233-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-232-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-232-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-225-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-225-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-224-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-224-1 01 1 9209-9308 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR CREAM WHITE/IRON GRAY MET(776),BODY COLORFIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-522-0 01 1 9505- ● ● ● ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR CREAM WHITE/IRON GRAY MET(776),BODY COLORFIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-521-0 01 1 9505- ● ● ● ●
1 STRIPE SET; BODY SIDE
BODY COLOR LT.SILVER MET(753) (C) BEIGE 		5-87831-227-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
BODY COLOR LT.SILVER MET(753) (C) BEIGE 		5-87831-226-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 02 1 9608-9610 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 01 1 9611- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) BODY SIDE PIN STRIPE<X78> (C) LIGHT BROWN 		5-87831-223-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) (C) LIGHT BROWN 		5-87831-223-1 01 1 9309-9504 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) LIGHT SILVER 		5-87831-485-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) BODY SIDE PIN STRIPE<X78> (C) LIGHT BROWN 		5-87831-222-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) (C) LIGHT BROWN 		5-87831-222-1 01 1 9309-9504 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) LIGHT SILVER 		5-87831-484-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-331-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-330-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-337-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-336-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
BODY COLOR RADIANT RED(756) (B) LIGHT BROWN 		5-87831-235-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9505-9506 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9507-9607 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
BODY COLOR RADIANT RED(756) (B) LIGHT BROWN 		5-87831-234-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 01 1 9505-9506 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9604-9607 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9604-9607 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (C) RED 		5-87831-231-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-524-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (C) RED 		5-87831-230-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-523-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-333-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-332-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-339-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-338-0 01 1 9505- ●
120 STRIPE; BUMPER CENTER
BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> LIGHT GRAY 		8-97807-224-1 01 1 9112-9504 ●
120 STRIPE; BUMPER CENTER
EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> LIGHT GRAY 		8-97807-224-1 01 1 9505- ●
120 STRIPE; BUMPER CENTER
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) LIGHT BROWN 		8-97807-222-1 01 1 9112-9308 ●
120 STRIPE; BUMPER CENTER
BODY COLOR RADIANT RED(756) LIGHT BROWN 		8-97807-222-1 01 1 9112-9308 ●
120 STRIPE; BUMPER CENTER
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) LIGHT BROWN 		8-97807-222-1 01 1 9309-9504 ●
120 STRIPE; BUMPER CENTER
BODY COLOR RADIANT RED(756) LIGHT BROWN 		8-97807-222-1 01 1 9309-9504 ●
120 STRIPE; BUMPER CENTER
BODY COLOR LT.SILVER MET(753) BEIGE 		8-97807-225-1 01 1 9112-9504 ●
120 STRIPE; BUMPER CENTER
BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) RED 		8-97807-226-1 01 1 9112-9504 ●
120 STRIPE; BUMPER CENTER
EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> LIGHT GRAY 		8-97809-056-1 01 1 9505- ● ●
çizim 18172
1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-233-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-233-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-232-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-232-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-225-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-225-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-224-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-224-1 01 1 9209-9308 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR CREAM WHITE/IRON GRAY MET(776),BODY COLORFIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-522-0 01 1 9505- ● ● ● ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR CREAM WHITE/IRON GRAY MET(776),BODY COLORFIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-521-0 01 1 9505- ● ● ● ●
1 STRIPE SET; BODY SIDE
BODY COLOR LT.SILVER MET(753) (C) BEIGE 		5-87831-227-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
BODY COLOR LT.SILVER MET(753) (C) BEIGE 		5-87831-226-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 02 1 9608-9610 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 01 1 9611- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) BODY SIDE PIN STRIPE<X78> (C) LIGHT BROWN 		5-87831-223-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) (C) LIGHT BROWN 		5-87831-223-1 01 1 9309-9504 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) LIGHT SILVER 		5-87831-485-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) BODY SIDE PIN STRIPE<X78> (C) LIGHT BROWN 		5-87831-222-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) (C) LIGHT BROWN 		5-87831-222-1 01 1 9309-9504 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) LIGHT SILVER 		5-87831-484-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-331-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-330-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-337-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-336-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
BODY COLOR RADIANT RED(756) (B) LIGHT BROWN 		5-87831-235-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9505-9506 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9507-9607 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
BODY COLOR RADIANT RED(756) (B) LIGHT BROWN 		5-87831-234-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 01 1 9505-9506 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9604-9607 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9604-9607 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (C) RED 		5-87831-231-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-524-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (C) RED 		5-87831-230-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-523-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-333-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-332-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-339-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-338-0 01 1 9505- ●

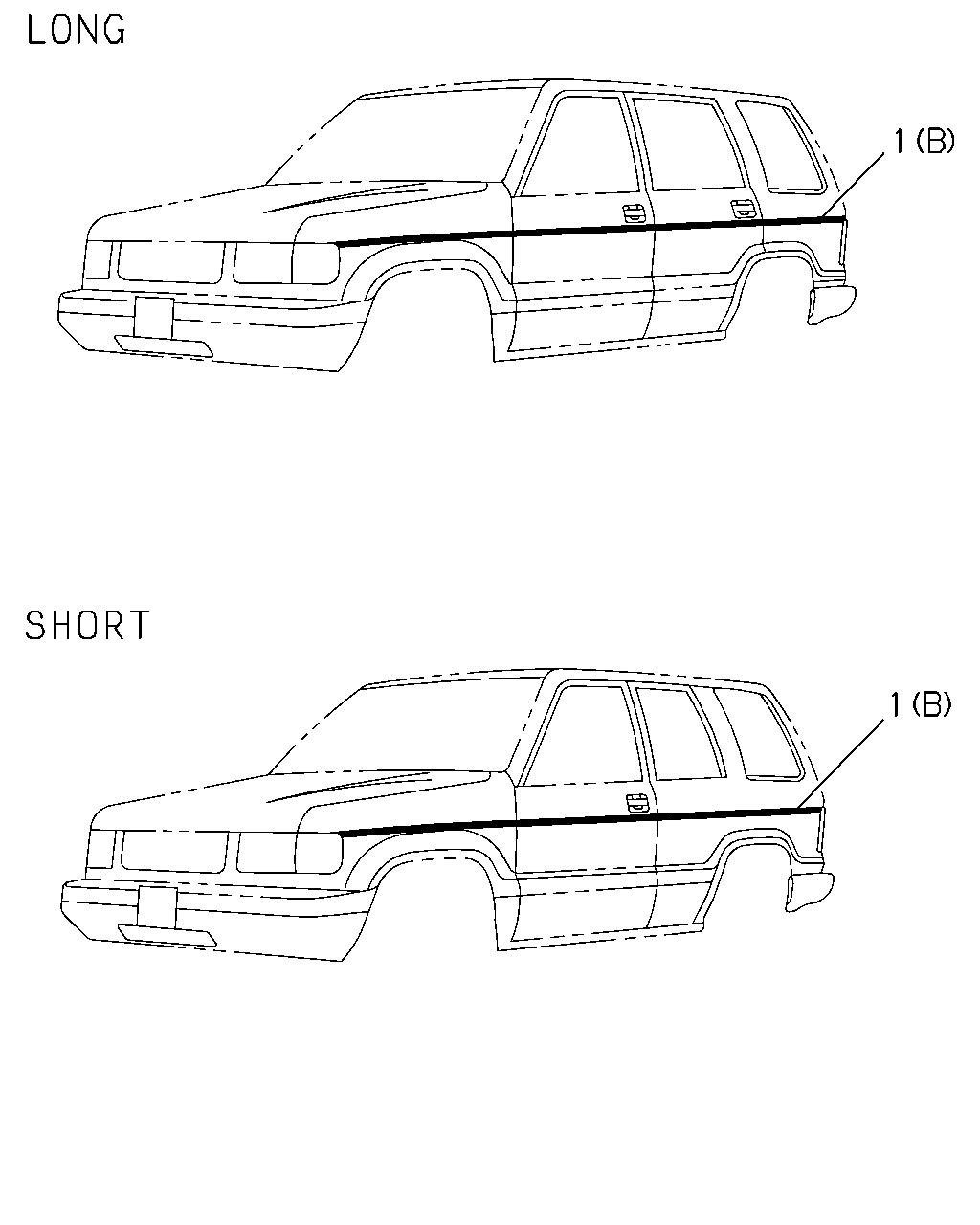

çizim 65464
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-233-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-233-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-232-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-232-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-225-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-225-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-224-1 01 1 9309- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR GOLD MICA GRE EN(757),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (A) LIGHT GRAY 		5-87831-224-1 01 1 9209-9308 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-395-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-394-0 01 1 9604- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR CREAM WHITE/IRON GRAY MET(776),BODY COLORFIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-522-0 01 1 9505- ● ● ● ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR CREAM WHITE/IRON GRAY MET(776),BODY COLORFIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-521-0 01 1 9505- ● ● ● ●
1 STRIPE SET; BODY SIDE
BODY COLOR LT.SILVER MET(753) (C) BEIGE 		5-87831-227-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
BODY COLOR LT.SILVER MET(753) (C) BEIGE 		5-87831-226-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 02 1 9608-9610 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 01 1 9611- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) BODY SIDE PIN STRIPE<X78> (C) LIGHT BROWN 		5-87831-223-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) (C) LIGHT BROWN 		5-87831-223-1 01 1 9309-9504 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) LIGHT SILVER 		5-87831-485-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783),BODY COLOR BRONZE BLUE MICA/IRONGRAY MET(784),BODY COLOR IRON GRAY MET(849) BODY SIDE PIN STRIPE<X78> (C) LIGHT BROWN 		5-87831-222-1 01 1 9112-9308 ●
1 STRIPE SET; BODY SIDE
BODY COLOR CREAM WHITE(752),BODY COLOR GOLD MICAGREEN(757),BODY COLOR CRANBERRY MICA(758),BODY COLOR IRON GRAY MET(849) (C) LIGHT BROWN 		5-87831-222-1 01 1 9309-9504 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) LIGHT SILVER 		5-87831-484-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-331-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-330-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-337-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-336-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
BODY COLOR RADIANT RED(756) (B) LIGHT BROWN 		5-87831-235-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9505-9506 ●
1 STRIPE SET; BODY SIDE
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9507-9607 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-414-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
BODY COLOR RADIANT RED(756) (B) LIGHT BROWN 		5-87831-234-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) LIGHT GOLD 		5-87831-413-0 01 1 9505-9506 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9604-9607 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-397-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9505-9603 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR LT.SILVER MET/IRON GRAY MET(751), BODYCOLOR EBONY BLACK/IRON GRAY MET(775),BODY COLORCREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782),BODY COLOR BRONZE BLUEMICA/IRON GRAY MET(784),BODY COLOR FIR GREEN MICA/IRON GRAY MET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798) EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9604-9607 ●
1 STRIPE SET; BODY SIDE
EUROPE/CANARY EQUIPMENT(EK4) (B) GRAY 		5-87831-396-0 01 1 9608- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (C) RED 		5-87831-231-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-524-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVERMET(753),BODY COLOR BRONZE BLUE MICA(760),BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784),BODY COLOR EBONY BLACK(826),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) BODY SIDE PIN STRIPE<X78> (C) RED 		5-87831-230-1 01 1 9112-9504 ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) GRAY 		5-87831-523-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-333-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DELUXE TWO TONE C TYPE<7BD>,PAINT TWO TONE DLX DTYPE<7KD> (C) GRAY 		5-87831-332-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-339-0 01 1 9505- ●
1 STRIPE SET; BODY SIDE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> (A) GRAY 		5-87831-338-0 01 1 9505- ●

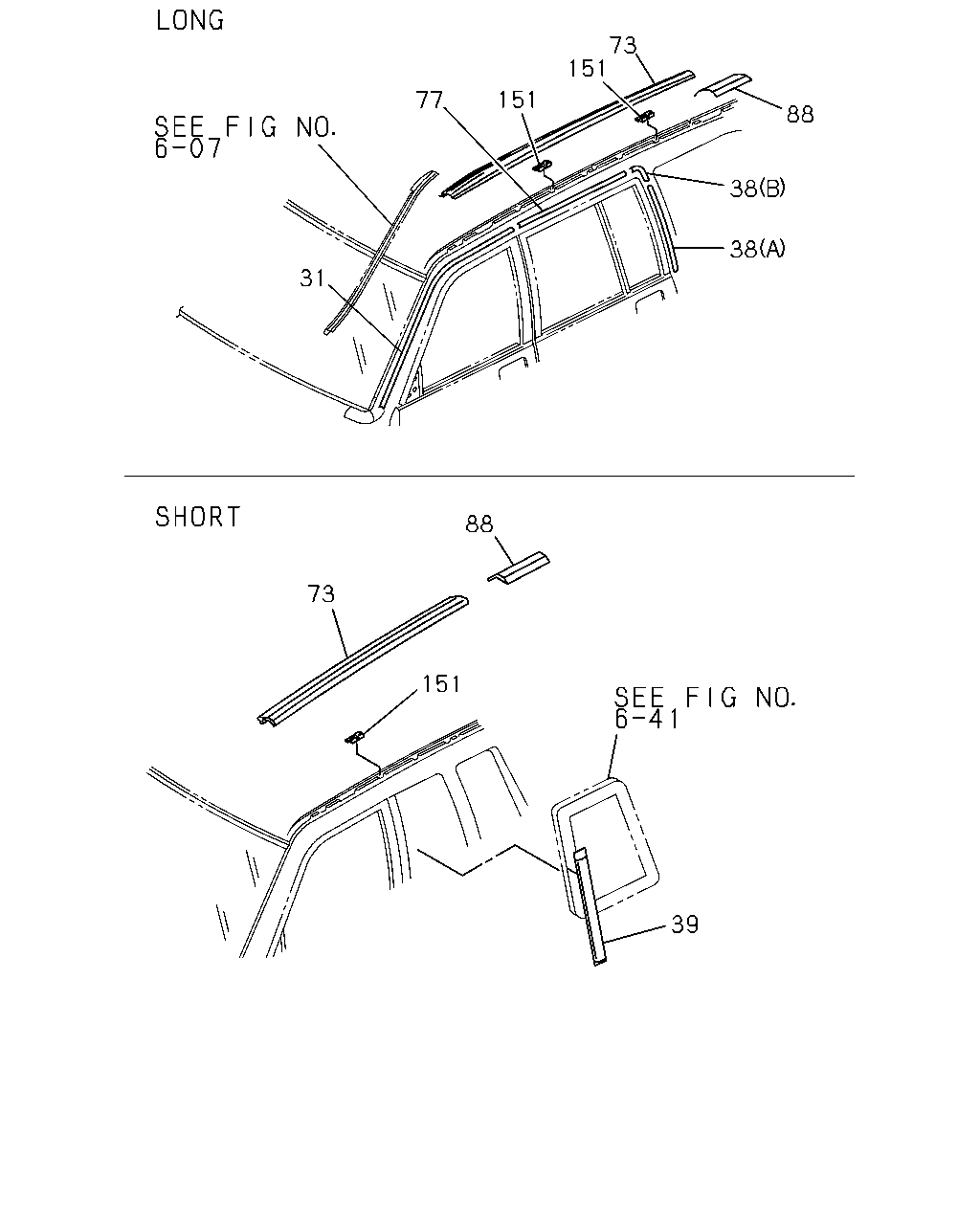

çizim 68392
73 151 151 77 88 38 38 31 88 73 151 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 MOLDING; FRT DOOR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> 		8-97803-077-4 01 1 9112- ● ● ●
31 MOLDING; FRT DOOR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> 		8-97803-076-4 01 1 9112- ● ● ●
38 MOLDING; RR DOOR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-082-3 02 1 9112-9308 ● ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97803-082-3 02 1 9309-9412 ● ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (B) 		8-97811-369-0 02 1 9501- ● ● ● ●
38 MOLDING; RR DOOR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-081-3 01 1 9112-9308 ● ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-081-3 01 1 9309- ● ● ● ●
38 MOLDING; RR DOOR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-080-3 01 1 9112-9308 ● ● ● ●
38 MOLDING; RR DOOR
EXTERIOR CHROME PACKAGE<6CX> (A) 		8-97803-080-3 01 1 9309- ● ● ● ●
39 MOLDING; QUARTER
2 DOOR SHORT(UB***C) BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) 		8-97805-869-6 01 1 9112- ● ● ● ●
39 MOLDING; QUARTER
2 DOOR SHORT(UB***C) BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) 		8-97805-868-6 01 1 9112- ● ● ● ●
73 MOLDING; DRIP,BODY SIDE
4 DOOR LONG(UB***F) 		8-94358-800-1 01 1 9112-9308 ● ● ●
73 MOLDING; DRIP,BODY SIDE
4 DOOR LONG(UB***F) 		8-97810-187-1 01 1 9309- ● ● ●
73 MOLDING; DRIP,BODY SIDE
4 DOOR LONG(UB***F) 		8-94358-799-1 01 1 9112-9308 ● ● ●
73 MOLDING; DRIP,BODY SIDE
4 DOOR LONG(UB***F) 		8-97810-186-1 01 1 9309- ● ● ●
73 MOLDING; DRIP,BODY SIDE
2 DOOR SHORT(UB***C) 		8-97803-808-1 01 1 9112-9308 ● ● ● ●
73 MOLDING; DRIP,BODY SIDE
2 DOOR SHORT(UB***C) 		8-97810-189-1 01 1 9309- ● ● ● ●
73 MOLDING; DRIP,BODY SIDE
2 DOOR SHORT(UB***C) 		8-97803-807-1 01 1 9112-9308 ● ● ● ●
73 MOLDING; DRIP,BODY SIDE
2 DOOR SHORT(UB***C) 		8-97810-188-1 01 1 9309- ● ● ● ●
77 MOLDING; RR DOOR FRAME,UPR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> 		8-97803-079-4 01 1 9112- ● ● ●
77 MOLDING; RR DOOR FRAME,UPR
4 DOOR LONG(UB***F) EXTERIOR CHROME PACKAGE<6CX> 		8-97803-078-4 01 1 9112- ● ● ●
88 MOLDING; DRIP,RR 8-94358-804-2 01 1 9112-9702 ● ● ● ●
88 MOLDING; DRIP,RR 8-97166-284-1 01 1 9703- ● ● ● ●
88 MOLDING; DRIP,RR 8-94358-803-2 01 1 9112-9702 ● ● ● ●
88 MOLDING; DRIP,RR 8-97166-283-1 01 1 9703- ● ● ● ●
151 CLIP; MOLDING
4 DOOR LONG(UB***F) 		8-97803-728-3 14 1 9112-9608 ● ● ●
151 CLIP; MOLDING
4 DOOR LONG(UB***F) 		8-97165-372-0 14 1 9608- ● ● ●
151 CLIP; MOLDING
2 DOOR SHORT(UB***C) 		8-97803-728-3 12 1 9112-9608 ● ● ● ●
151 CLIP; MOLDING
2 DOOR SHORT(UB***C) 		8-97165-372-0 12 1 9608- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
