6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP (#35247) — 100 parça

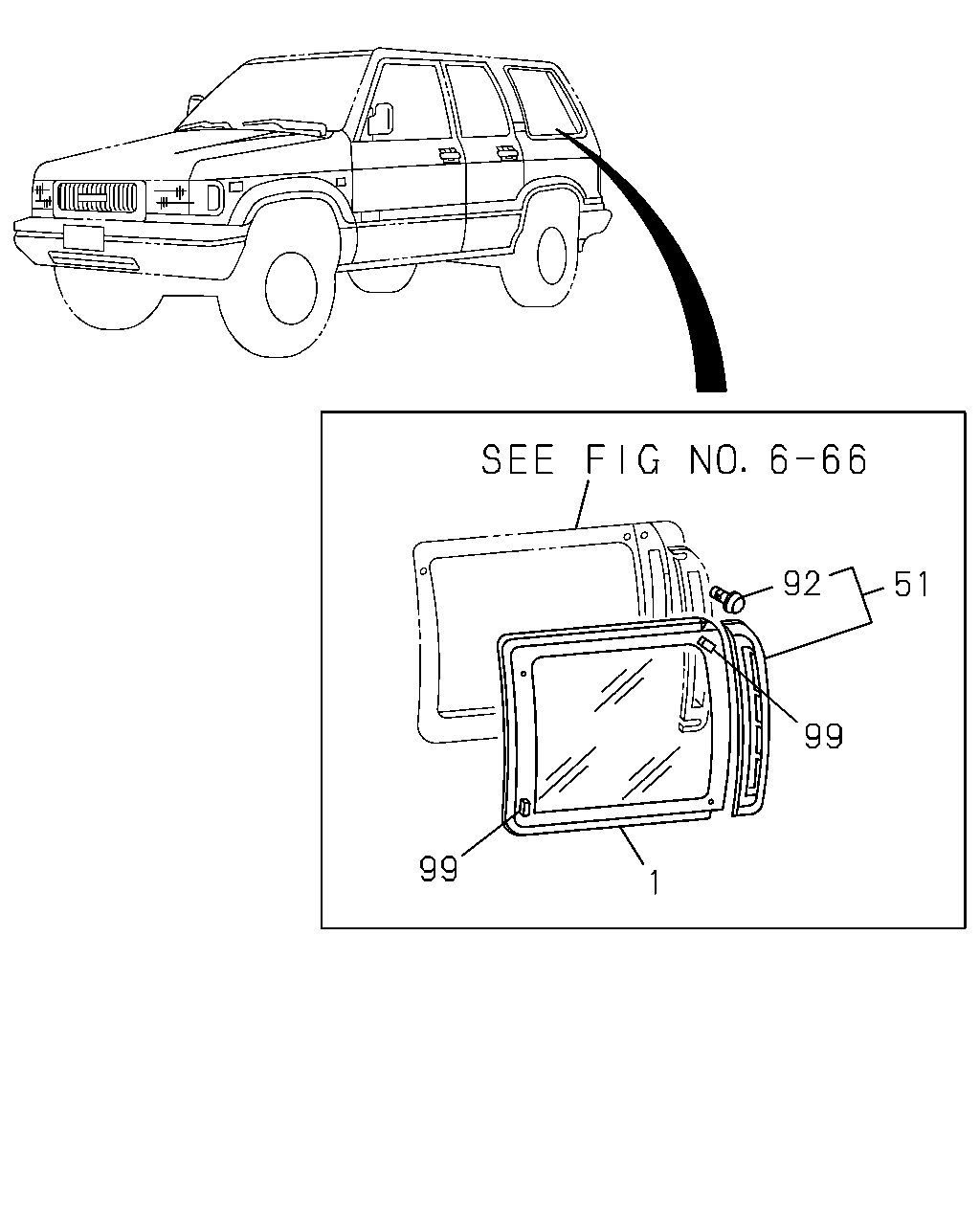

92 51 99 99 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-788-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-949-1	01	1	9310-	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-787-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-948-1	01	1	9310-	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-786-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-947-0	01	1	9310-9504	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-759-1	01	1	9505-	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-785-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-946-0	01	1	9310-9504	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-758-1	01	1	9505-	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-781-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-943-1	01	1	9310-		●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-780-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-942-1	01	1	9310-		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-779-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-941-0	01	1	9310-9504		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-761-1	01	1	9505-		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-778-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-940-0	01	1	9310-9504		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-760-1	01	1	9505-		●
51	VENTILATOR ASM; SIDE WINDOW	8-94358-806-7	01	1	9112-9504	●	●
51	VENTILATOR ASM; SIDE WINDOW	8-97113-196-0	01	1	9505-	●	●
51	VENTILATOR ASM; SIDE WINDOW	8-94358-805-7	01	1	9112-9504	●	●
51	VENTILATOR ASM; SIDE WINDOW	8-97113-195-0	01	1	9505-	●	●
92	CLIP; QUARTER GLASS	8-97808-999-1	06	1	9309-	●	●
99	FASTENER; SIDE WINDOW	8-97805-913-1	04	1	9112-	●	●

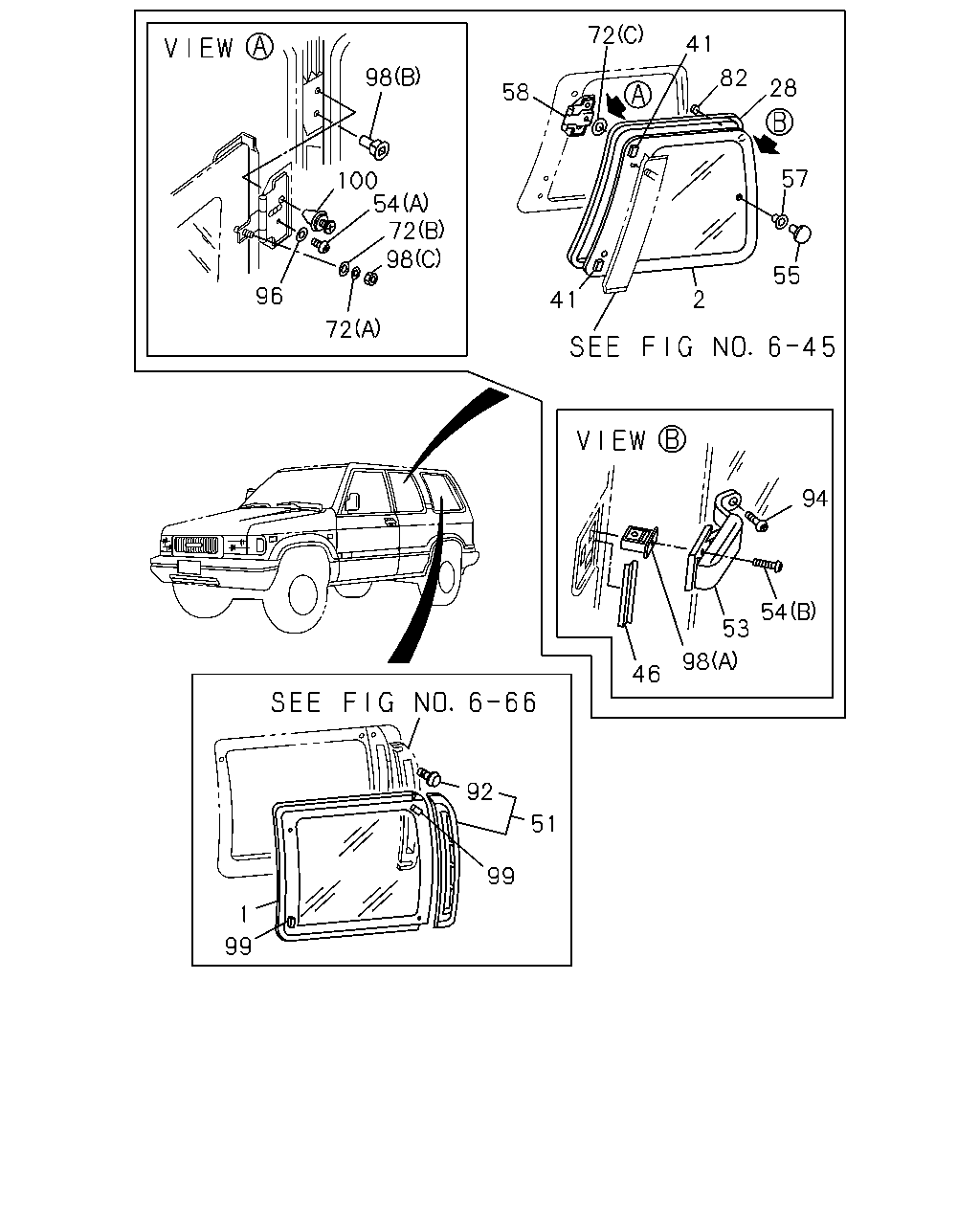

72 41 82 98 28 58 100 54 72 98 57 55 96 2 41 72 94 54 53 98 46 92 51 99 1 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-788-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-949-1	01	1	9310-	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-787-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-948-1	01	1	9310-	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-786-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-947-0	01	1	9310-9504	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-759-1	01	1	9505-	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-785-7	01	1	9112-9309	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-946-0	01	1	9310-9504	●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-758-1	01	1	9505-	●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-781-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-943-1	01	1	9310-		●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-94358-780-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW BRONZE GLASS(X72)	8-97810-942-1	01	1	9310-		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-779-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-941-0	01	1	9310-9504		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-761-1	01	1	9505-		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-94358-778-4	01	1	9112-9309		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97810-940-0	01	1	9310-9504		●
1	GLASS; SIDE WINDOW LAMINATED TINTED GLASS(YM4)	8-97121-760-1	01	1	9505-		●
2	GLASS; RR QUARTER BRONZE GLASS(X72)	8-97801-944-2	01	1	9112-9309	●
2	GLASS; RR QUARTER BRONZE GLASS(X72)	8-97810-961-1	01	1	9310-	●
2	GLASS; RR QUARTER BRONZE GLASS(X72)	8-97801-943-2	01	1	9112-9309	●
2	GLASS; RR QUARTER BRONZE GLASS(X72)	8-97810-960-1	01	1	9310-	●
2	GLASS; RR QUARTER LAMINATED TINTED GLASS(YM4)	8-97801-942-2	01	1	9112-9309	●
2	GLASS; RR QUARTER LAMINATED TINTED GLASS(YM4)	8-97810-959-0	01	1	9310-9504	●
2	GLASS; RR QUARTER LAMINATED TINTED GLASS(YM4)	8-97121-763-1	01	1	9505-	●
2	GLASS; RR QUARTER LAMINATED TINTED GLASS(YM4)	8-97801-941-2	01	1	9112-9309	●
2	GLASS; RR QUARTER LAMINATED TINTED GLASS(YM4)	8-97810-958-0	01	1	9310-9504	●
2	GLASS; RR QUARTER LAMINATED TINTED GLASS(YM4)	8-97121-762-1	01	1	9505-	●
28	SEALER; SIDE WINDOW INTERIOR COLOR BROWN(130) DARK BROWN	8-97807-645-0	01	1	9112-9201	●
28	SEALER; SIDE WINDOW INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-781-5	01	1	9202-9504	●
28	SEALER; SIDE WINDOW INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-953-2	01	1	9112-9201	●
28	SEALER; SIDE WINDOW INTERIOR COLOR BROWN(130) DARK BROWN	8-97808-780-5	01	1	9202-9504	●
28	SEALER; SIDE WINDOW INTERIOR COLOR GRAY(153) DARK GRAY	8-97807-646-0	01	1	9112-9201	●
28	SEALER; SIDE WINDOW INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-783-5	01	1	9202-9504	●
28	SEALER; SIDE WINDOW DARK GRAY	8-97151-571-5	01	1	9505-	●
28	SEALER; SIDE WINDOW INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-955-2	01	1	9112-9201	●
28	SEALER; SIDE WINDOW INTERIOR COLOR GRAY(153) DARK GRAY	8-97808-782-5	01	1	9202-9504	●
28	SEALER; SIDE WINDOW DARK GRAY	8-97151-570-5	01	1	9505-	●
41	BUFFER; RR QUARTER GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-97033-644-2	04	1	9202-9205	●
41	BUFFER; RR QUARTER GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-97808-842-0	04	1	9206-9408	●
41	BUFFER; RR QUARTER GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-97808-842-0	02	1	9409-	●
46	TAPE; RR QUARTER GLASS	8-97807-594-0	02	1	9112-9407	●
46	TAPE; RR QUARTER GLASS BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR WINDSOR BLUE MICA(755),BODY COLOR RADIANT RED(756),BODY COLOR CREAM WHITE/IRON GRAY MET(776)	8-97807-594-0	02	1	9408-9504	●
46	TAPE; RR QUARTER GLASS BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRONGRAY MET(782),BODY COLOR FIR GREEN MICA/IRON GRAYMET(797),BODY COLOR RED ROCK MICA/IRON GRAY MET(798),BODY COLOR FIR GREEN MICA(871)	8-97807-594-0	02	1	9505-	●
51	VENTILATOR ASM; SIDE WINDOW	8-94358-806-7	01	1	9112-9504	●	●
51	VENTILATOR ASM; SIDE WINDOW	8-97113-196-0	01	1	9505-	●	●
51	VENTILATOR ASM; SIDE WINDOW	8-94358-805-7	01	1	9112-9504	●	●
51	VENTILATOR ASM; SIDE WINDOW	8-97113-195-0	01	1	9505-	●	●
53	FASTENER; RR QUARTER BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-97805-871-2	01	1	9112-	●
53	FASTENER; RR QUARTER BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-97805-870-2	01	1	9112-	●
54	SCREW; RR QUARTER FASTENER & HINGE (A) M5X12	8-94386-089-0	04	1	9112-9201	●
54	SCREW; RR QUARTER FASTENER & HINGE (A) M6X16 FLANGE	8-94380-676-1	04	1	9202-	●
54	SCREW; RR QUARTER FASTENER & HINGE (B) M5X20	9-03810-520-0	06	1	9112-9202	●
54	SCREW; RR QUARTER FASTENER & HINGE (B) M5X21	8-97808-762-0	06	1	9203-	●
55	NUT; SPECIAL,HINGE BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-94224-270-0	02	1	9112-	●
57	GROMMET; HINGE BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-94480-192-0	02	1	9112-	●
58	HINGE; RR QUARTER WINDOW BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) RH UPPER/LH LOWER	8-97803-542-4	02	1	9112-	●
58	HINGE; RR QUARTER WINDOW BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) RH LOWER/LH UPPER	8-97805-927-4	02	1	9112-	●
72	WASHER; LK,RR QTR GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) (B) D=16	8-94427-941-0	04	1	9112-	●
72	WASHER; LK,RR QTR GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) (C)	8-97807-687-1	04	1	9112-	●
72	WASHER; LK,RR QTR GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) (A) ID=5.3 OD=12	9-09160-605-0	04	1	9112-9201	●
72	WASHER; LK,RR QTR GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) (A)	8-94412-240-1	04	1	9202-	●
82	SPACER; RR QUARTER GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4)	8-97807-595-1	04	1	9112-	●
92	CLIP; QUARTER GLASS	8-97808-999-1	06	1	9309-	●	●
94	SCREW; GLASS BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) M5X10	9-03810-510-0	02	1	9112-	●
96	WASHER; LK,FASTENER TO CAB D=16	8-94427-941-0	04	1	9202-	●
98	NUT; RR QTR WINDOW (A)	8-97805-884-0	06	1	9112-	●
98	NUT; RR QTR WINDOW (B)	8-97807-581-0	04	1	9112-9201	●
98	NUT; RR QTR WINDOW (B)	8-97031-071-0	04	1	9202-	●
98	NUT; RR QTR WINDOW BRONZE GLASS(X72),LAMINATED TINTED GLASS(YM4) (C) M5	9-99111-405-0	04	1	9112-	●
99	FASTENER; SIDE WINDOW	8-97805-913-1	04	1	9112-	●	●
100	RIVET; HINGE	8-97808-120-0	04	1	9112-	●
