6-30 — FRONT DOOR AND HINGE (#35243) — 22 parça

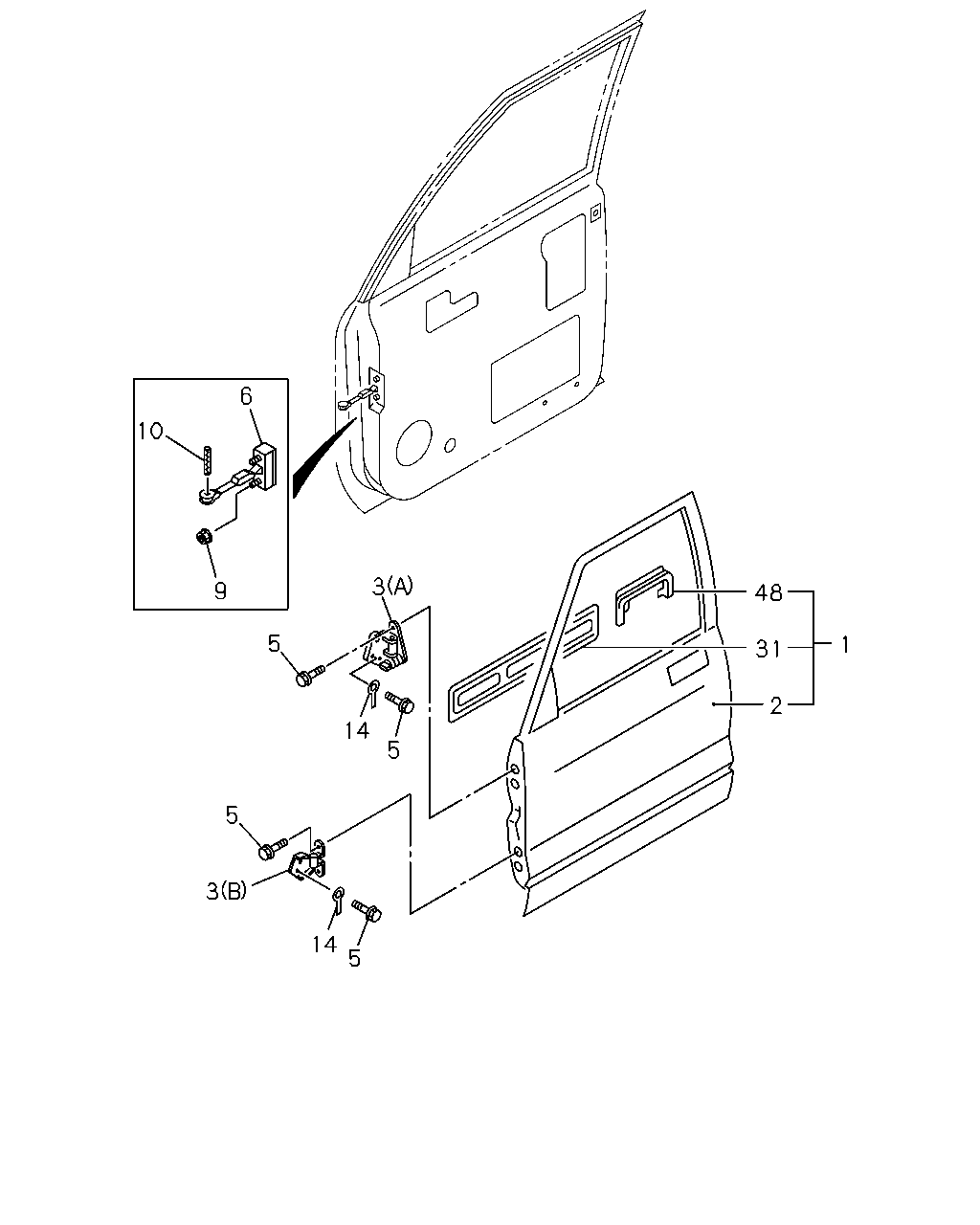

çizim 65655
10 6 9 3 5 14 5 5 3 14 5 48 1 31 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 DOOR ASM; FRT,WO/TRIM
-920913 		8-94358-438-0 01 1 9112-9209 ● ●
1 DOOR ASM; FRT,WO/TRIM
920914- 		8-97808-946-2 01 1 9209-9607 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-97161-753-0 01 1 9608- ● ●
1 DOOR ASM; FRT,WO/TRIM
-920913 		8-94358-437-0 01 1 9112-9209 ● ●
1 DOOR ASM; FRT,WO/TRIM
920914- 		8-97808-945-2 01 1 9209-9607 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-97161-752-0 01 1 9608- ● ●
2 PANEL; FRT DOOR OUTER 8-94358-373-2 01 1 9112- ● ●
2 PANEL; FRT DOOR OUTER 8-94358-372-2 01 1 9112- ● ●
3 HINGE; DOOR FRT
(B)LOWER 		8-94155-314-2 01 1 9112- ● ●
3 HINGE; DOOR FRT
(A)UPPER 		8-94230-392-4 01 1 9112- ● ●
3 HINGE; DOOR FRT
(B)LOWER 		8-94155-315-2 01 1 9112- ● ●
3 HINGE; DOOR FRT
(A)UPPER 		8-94230-393-4 01 1 9112- ● ●
5 BOLT; HINGE
M8X23 FLANGE 		8-94174-559-2 16 1 9112- ● ●
6 ARM; CHECK,FRT DOOR 8-94358-619-0 02 1 9112- ● ●
9 NUT; CHECK ARM
M6 FLANGE 		5-09440-004-0 04 1 9112- ● ●
10 PIN; CHECK ARM 8-97020-859-0 02 1 9112- ● ●
14 WASHER; PL,HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9608-9612 ● ●
14 WASHER; PL,HINGE
ID=8.1 W/PL WASHER 		8-97173-691-0 04 1 9701- ● ●
31 REINFORCEMENT; FRT DOOR 8-94358-446-0 01 1 9112- ● ●
31 REINFORCEMENT; FRT DOOR 8-94358-445-0 01 1 9112- ● ●
48 REINFORCEMENT; HANDLE 8-94358-448-2 01 1 9112- ● ●
48 REINFORCEMENT; HANDLE 8-94358-447-2 01 1 9112- ● ●
