Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#35242) — 284 parça

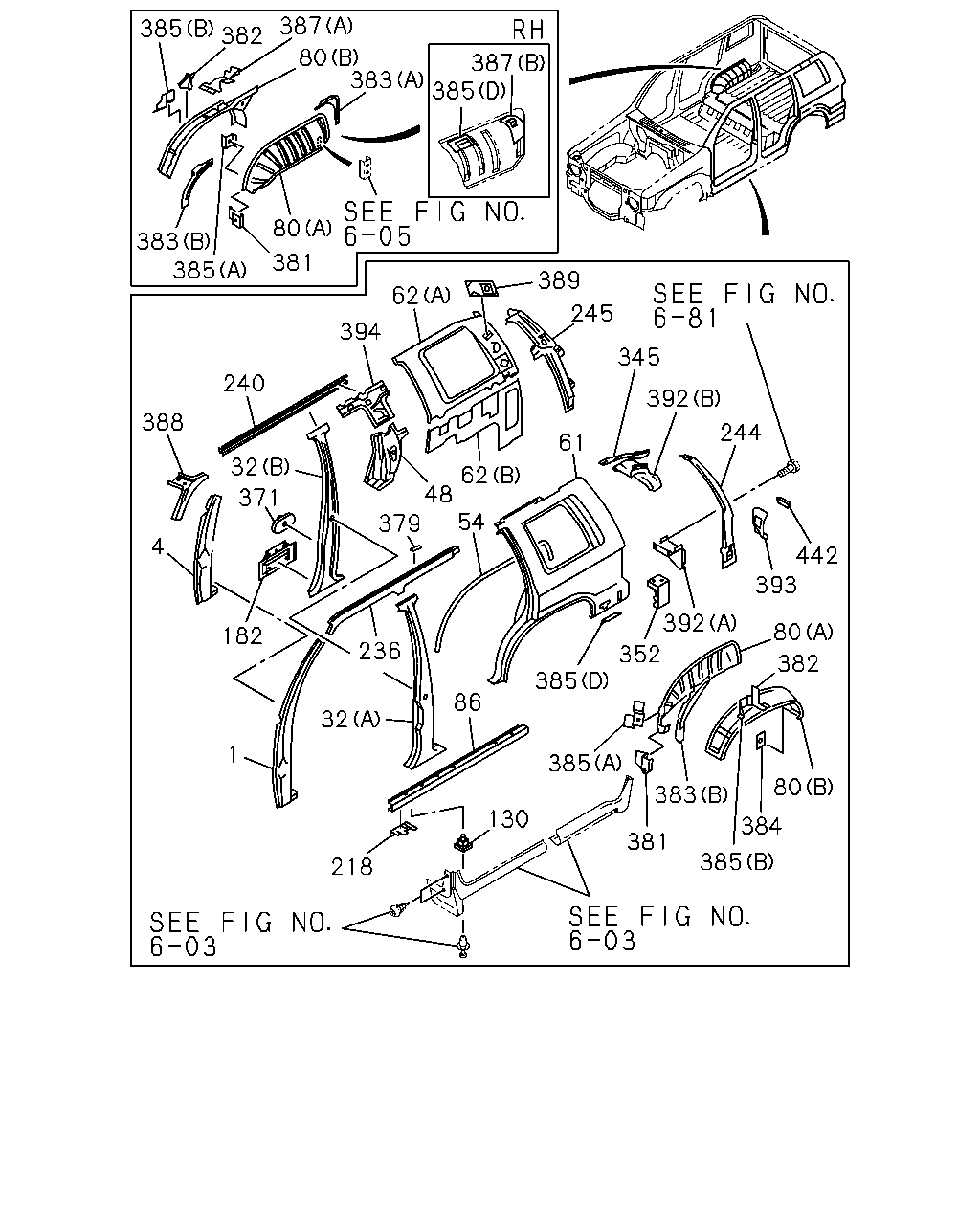

385 382 387 387 383 80 385 80 383 381 385 62 394 240 388 4 32 371 182 1 218 32 236 379 48 62 54 61 389 245 392 345 244 442 393 392 352 385 86 130 381 385 383 384 385 80 382 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; A-POST OUTER ASM,UPR	8-94359-854-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-440-0	01	1	9509-	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-94359-853-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-439-0	01	1	9509-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-918-0	01	1	9112-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-917-1	01	1	9112-	●	●
32	PANEL; BC-POST (A)	8-94359-870-2	01	1	9112-9508		●
32	PANEL; BC-POST (A)	8-97811-436-0	01	1	9509-		●
32	PANEL; BC-POST (B)	8-97800-568-0	01	1	9112-9308		●
32	PANEL; BC-POST (B)	8-94358-367-2	01	1	9309-9501		●
32	PANEL; BC-POST (B)	8-97811-380-0	01	1	9502-		●
32	PANEL; BC-POST (A)	8-94359-869-2	01	1	9112-9508		●
32	PANEL; BC-POST (A)	8-97811-435-0	01	1	9509-		●
32	PANEL; BC-POST (B)	8-97800-567-0	01	1	9112-9308		●
32	PANEL; BC-POST (B)	8-94358-366-2	01	1	9309-9501		●
32	PANEL; BC-POST (B)	8-97811-379-0	01	1	9502-		●
48	REINFORCEMENT; C POST	8-97803-010-2	01	1	9112-9403		●
48	REINFORCEMENT; C POST	8-97111-054-2	01	1	9404-		●
48	REINFORCEMENT; C POST	8-97803-009-2	01	1	9112-9403		●
48	REINFORCEMENT; C POST	8-97111-053-2	01	1	9404-		●
54	PATCH; DOOR STRIKER	8-97808-594-0	02	1	9112-	●	●
61	PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-904-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-904-9	01	1	9505-	●
61	PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-903-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-903-9	01	1	9505-	●
61	PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-983-8	01	1	9112-9209	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9309-	●
61	PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-982-8	01	1	9112-9209	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9309-	●
61	PANEL; SIDE OUTER	8-94358-358-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-712-0	01	1	9203-		●
61	PANEL; SIDE OUTER	8-94358-357-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-711-0	01	1	9203-		●
62	PANEL; BODY SIDE INNER (C)	8-94359-989-6	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (C)	8-97110-496-3	01	1	9405-	●
62	PANEL; BODY SIDE INNER (D)	8-97801-875-9	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (D)	8-97103-662-0	01	1	9405-	●
62	PANEL; BODY SIDE INNER (C)	8-94359-988-5	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (C)	8-97110-495-2	01	1	9405-	●
62	PANEL; BODY SIDE INNER (D)	8-97801-874-6	01	1	9112-	●
62	PANEL; BODY SIDE INNER (A)	8-94358-414-5	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (A)	8-97110-494-2	01	1	9405-		●
62	PANEL; BODY SIDE INNER (B)	8-97801-091-9	01	1	9112-9203		●
62	PANEL; BODY SIDE INNER (B)	8-97808-789-1	01	1	9204-9404		●
62	PANEL; BODY SIDE INNER (B)	8-97104-211-0	01	1	9405-		●
62	PANEL; BODY SIDE INNER (A)	8-94358-413-4	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (A)	8-97110-493-1	01	1	9405-		●
62	PANEL; BODY SIDE INNER (B)	8-97801-090-9	01	1	9112-		●
80	PANEL; WHEEL HOUSE,INNER (B)	8-94358-669-5	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97103-599-2	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97800-544-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97809-011-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97810-389-1	01	1	9306-	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-94358-668-7	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97103-598-1	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97800-543-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97809-010-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97810-388-1	01	1	9306-	●	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-967-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-182-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-966-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-181-0	01	1	9712-	●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-902-4	01	1	9112-9504	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-902-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-184-0	01	1	9712-	●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-901-4	01	1	9112-9504	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-901-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-183-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-967-3	01	1	9112-9209	●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-966-3	01	1	9112-9209	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-667-4	01	1	9505-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-179-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-977-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-666-4	01	1	9505-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-178-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-976-0	01	1	9712-		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9112-9308		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9309-9602		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97133-161-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97188-180-0	01	1	9712-		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9112-9308		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9309-9602		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97133-160-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97188-179-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-94358-667-3	01	1	9112-9209		●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-94358-666-3	01	1	9112-9209		●
130	GROMMET; SCREW,PROTECTOR ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> D=9X9 L=8 M6	8-94222-314-0	02	1	9112-9508	●	●
182	PANEL; CLOSING,CTR PILLAR LWR	8-97802-757-2	01	1	9112-		●
182	PANEL; CLOSING,CTR PILLAR LWR	8-97802-756-2	01	1	9112-		●
218	PATCH; CAB MTG	8-97803-283-3	01	1	9112-	●	●
218	PATCH; CAB MTG	8-97803-282-3	01	1	9112-	●	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9112-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9112-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-965-2	01	1	9112-9607		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-947-1	01	1	9608-		●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-964-2	01	1	9112-9607		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-946-1	01	1	9608-		●
240	CANTRAIL; RR INNER	8-97801-919-0	01	1	9112-	●
240	CANTRAIL; RR INNER	8-97801-918-0	01	1	9112-	●
240	CANTRAIL; RR INNER	8-97801-528-0	01	1	9112-		●
240	CANTRAIL; RR INNER	8-97801-527-0	01	1	9112-		●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-369-7	01	1	9112-	●	●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-368-7	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR	8-94359-904-3	01	1	9112-	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-904-3	01	1	9112-		●
245	PANEL; REINF,RR PILLAR	8-94359-903-3	01	1	9112-	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-903-3	01	1	9112-		●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-743-7	01	1	9112-		●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-742-7	01	1	9112-		●
345	PANEL; EXT,SIDE OUTER	8-94359-890-3	01	1	9112-	●	●
345	PANEL; EXT,SIDE OUTER	8-94359-889-3	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-97803-336-1	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-94359-915-2	01	1	9112-	●	●
371	PATCH; SEAT BELT	8-97804-637-1	02	1	9309-		●
379	PATCH; ROOF RACK	8-94359-867-1	02	1	9112-	●
379	PATCH; ROOF RACK	8-94359-867-1	06	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-995-3	01	1	9112-	●
381	GUSSET; WHEEL HOUSE	8-94359-994-3	01	1	9112-	●
381	GUSSET; WHEEL HOUSE	8-94359-941-2	01	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-940-2	01	1	9112-		●
382	GUSSET; QTR PLR	8-97801-478-0	01	1	9112-		●
382	GUSSET; QTR PLR	8-97801-477-0	01	1	9112-		●
383	PANEL; SIDE INNER (B)	8-94359-993-1	01	1	9112-	●
383	PANEL; SIDE INNER (B)	8-94359-992-1	01	1	9112-	●
383	PANEL; SIDE INNER (A)	8-94359-939-0	01	1	9112-	●	●
383	PANEL; SIDE INNER (B)	8-94359-938-1	01	1	9112-		●
383	PANEL; SIDE INNER (B)	8-94359-937-1	01	1	9112-		●
384	PATCH; WHEEL HOUSE	8-97805-173-1	01	1	9112-	●	●
385	BRACKET; ANCHOR (C)	8-97802-007-2	01	1	9112-	●
385	BRACKET; ANCHOR (C)	8-97802-006-2	01	1	9112-	●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9112-		●
385	BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9112-		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9112-		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9112-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-235-1	01	1	9112-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-234-1	01	1	9112-		●
387	BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (A)	8-97802-007-2	01	1	9112-		●
387	BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (A)	8-97802-006-2	01	1	9112-		●
387	BRACKET; 3RD SEAT 3RD SEAT 7 PASSENGERS(AS3) (B)	8-97803-403-1	01	1	9112-		●
388	REINFORCEMENT; FRONT PILLAR	8-94359-922-4	01	1	9112-	●	●
388	REINFORCEMENT; FRONT PILLAR	8-94359-921-4	01	1	9112-	●	●
389	BRACKET; SIDE 3RD SEAT 7 PASSENGERS(AS3)	8-97802-015-1	01	1	9112-		●
389	BRACKET; SIDE 3RD SEAT 7 PASSENGERS(AS3)	8-97802-014-1	01	1	9112-		●
392	GUSSET; RR PILLAR (B)	8-94359-894-2	01	1	9112-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-896-4	01	1	9112-	●	●
392	GUSSET; RR PILLAR (B)	8-94359-893-2	01	1	9112-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-3	01	1	9112-	●	●
393	PANEL; LAMP HOUSING	8-94359-900-1	01	1	9112-	●	●
393	PANEL; LAMP HOUSING	8-94359-899-1	01	1	9112-	●	●
394	BRACKET; QUARTER UPR	8-94359-957-2	01	1	9112-		●
394	BRACKET; QUARTER UPR	8-94359-956-2	01	1	9112-		●
442	PATCH	8-97811-443-0	02	1	9602-	●	●

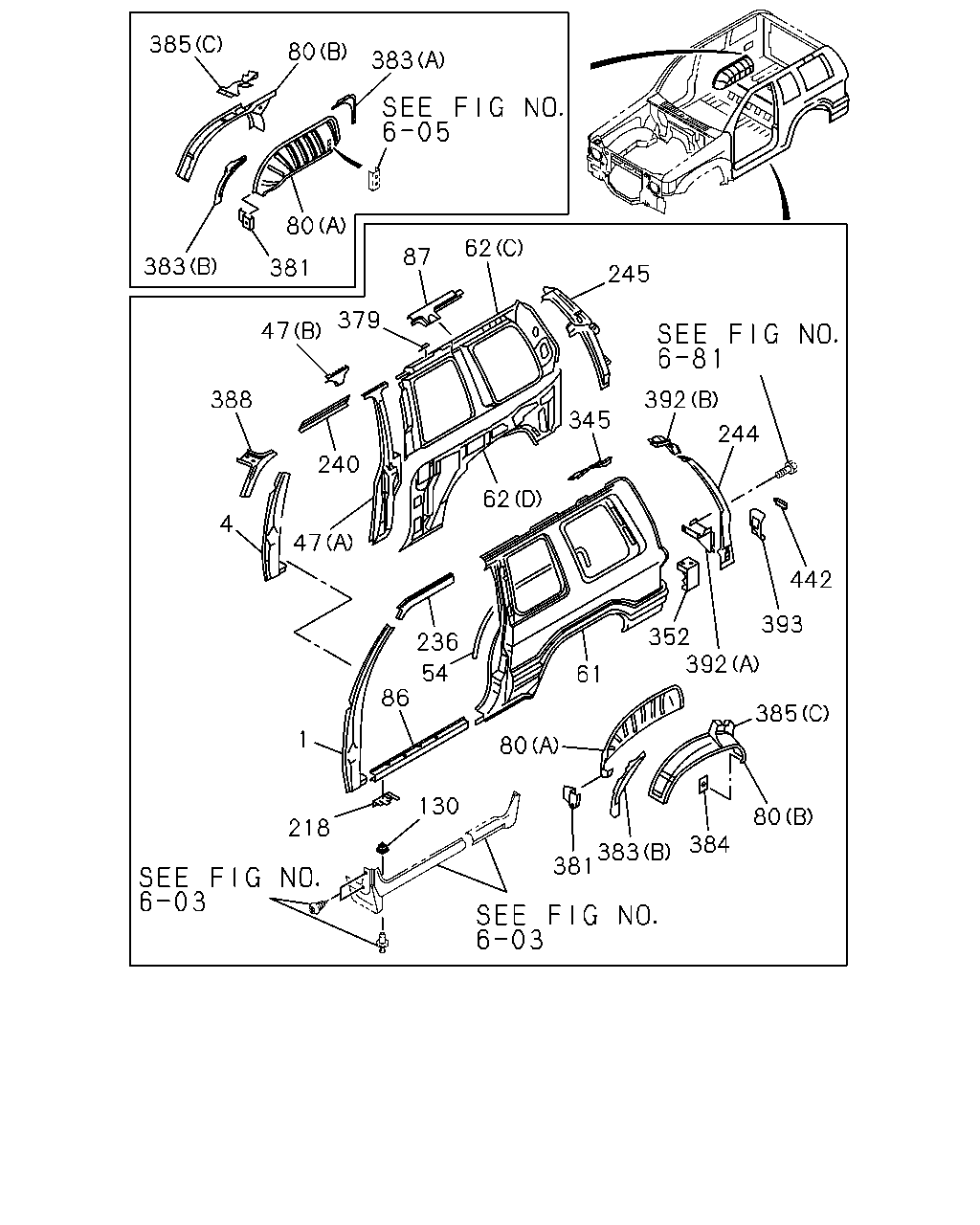

385 80 383 80 381 383 47 388 379 87 62 245 345 62 240 47 4 1 218 86 54 236 392 244 442 393 392 352 61 80 130 381 383 384 385 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; A-POST OUTER ASM,UPR	8-94359-854-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-440-0	01	1	9509-	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-94359-853-1	01	1	9112-9508	●	●
1	PANEL; A-POST OUTER ASM,UPR	8-97811-439-0	01	1	9509-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-918-0	01	1	9112-	●	●
4	PANEL; A-POST INNER,UPR	8-94359-917-1	01	1	9112-	●	●
47	REINFORCEMENT; B-POST (A)	8-97801-871-2	01	1	9112-	●
47	REINFORCEMENT; B-POST (B)	8-97803-931-1	01	1	9112-	●
47	REINFORCEMENT; B-POST (A)	8-97801-870-2	01	1	9112-	●
47	REINFORCEMENT; B-POST (B)	8-97803-930-1	01	1	9112-	●
54	PATCH; DOOR STRIKER	8-97808-594-0	02	1	9112-	●	●
61	PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-904-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-904-9	01	1	9505-	●
61	PANEL; SIDE OUTER ROCKER SKIRT<6PX>	8-97802-903-9	01	1	9112-9504	●
61	PANEL; SIDE OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-903-9	01	1	9505-	●
61	PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-983-8	01	1	9112-9209	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-983-9	01	1	9309-	●
61	PANEL; SIDE OUTER EXC. ROCKER SKIRT<6PX>	8-94359-982-8	01	1	9112-9209	●
61	PANEL; SIDE OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-982-9	01	1	9309-	●
61	PANEL; SIDE OUTER	8-94358-358-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-712-0	01	1	9203-		●
61	PANEL; SIDE OUTER	8-94358-357-9	01	1	9112-9202		●
61	PANEL; SIDE OUTER	8-97808-711-0	01	1	9203-		●
62	PANEL; BODY SIDE INNER (C)	8-94359-989-6	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (C)	8-97110-496-3	01	1	9405-	●
62	PANEL; BODY SIDE INNER (D)	8-97801-875-9	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (D)	8-97103-662-0	01	1	9405-	●
62	PANEL; BODY SIDE INNER (C)	8-94359-988-5	01	1	9112-9404	●
62	PANEL; BODY SIDE INNER (C)	8-97110-495-2	01	1	9405-	●
62	PANEL; BODY SIDE INNER (D)	8-97801-874-6	01	1	9112-	●
62	PANEL; BODY SIDE INNER (A)	8-94358-414-5	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (A)	8-97110-494-2	01	1	9405-		●
62	PANEL; BODY SIDE INNER (B)	8-97801-091-9	01	1	9112-9203		●
62	PANEL; BODY SIDE INNER (B)	8-97808-789-1	01	1	9204-9404		●
62	PANEL; BODY SIDE INNER (B)	8-97104-211-0	01	1	9405-		●
62	PANEL; BODY SIDE INNER (A)	8-94358-413-4	01	1	9112-9404		●
62	PANEL; BODY SIDE INNER (A)	8-97110-493-1	01	1	9405-		●
62	PANEL; BODY SIDE INNER (B)	8-97801-090-9	01	1	9112-		●
80	PANEL; WHEEL HOUSE,INNER (B)	8-94358-669-5	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97103-599-2	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97800-544-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97809-011-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97810-389-1	01	1	9306-	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-94358-668-7	01	1	9112-9403	●	●
80	PANEL; WHEEL HOUSE,INNER (B)	8-97103-598-1	01	1	9404-	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97800-543-0	01	1	9112-9208	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97809-010-0	01	1	9209-9305	●	●
80	PANEL; WHEEL HOUSE,INNER (A)	8-97810-388-1	01	1	9306-	●	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-967-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-182-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94359-966-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97188-181-0	01	1	9712-	●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-902-4	01	1	9112-9504	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-902-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-184-0	01	1	9712-	●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>	8-97802-901-4	01	1	9112-9504	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97802-901-4	01	1	9505-9711	●
86	PANEL; ROCKER OUTER COLOR KEYED ROCKER SKIRT<6YA>	8-97188-183-0	01	1	9712-	●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-967-3	01	1	9112-9209	●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>	8-94359-966-3	01	1	9112-9209	●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-667-4	01	1	9505-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-179-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-977-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-94358-666-4	01	1	9505-9602		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97133-178-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER EXC. COLOR KEYED ROCKER SKIRT<6YA>	8-97187-976-0	01	1	9712-		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9112-9308		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-900-4	01	1	9309-9602		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97133-161-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97188-180-0	01	1	9712-		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9112-9308		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97802-899-4	01	1	9309-9602		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97133-160-0	01	1	9603-9711		●
86	PANEL; ROCKER OUTER ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-97188-179-0	01	1	9712-		●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-94358-667-3	01	1	9112-9209		●
86	PANEL; ROCKER OUTER EXC. ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA>	8-94358-666-3	01	1	9112-9209		●
87	REINFORCEMENT; SEAT BELT,RETRACTOR	8-97803-612-4	01	1	9112-	●
87	REINFORCEMENT; SEAT BELT,RETRACTOR	8-97803-611-4	01	1	9112-	●
130	GROMMET; SCREW,PROTECTOR ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> D=9X9 L=8 M6	8-94222-314-0	02	1	9112-9508	●	●
218	PATCH; CAB MTG	8-97803-283-3	01	1	9112-	●	●
218	PATCH; CAB MTG	8-97803-282-3	01	1	9112-	●	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-866-1	01	1	9112-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-865-1	01	1	9112-	●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-965-2	01	1	9112-9607		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-947-1	01	1	9608-		●
236	PANEL; CANTRAIL OUTER,FRT	8-94359-964-2	01	1	9112-9607		●
236	PANEL; CANTRAIL OUTER,FRT	8-97166-946-1	01	1	9608-		●
240	CANTRAIL; RR INNER	8-97801-919-0	01	1	9112-	●
240	CANTRAIL; RR INNER	8-97801-918-0	01	1	9112-	●
240	CANTRAIL; RR INNER	8-97801-528-0	01	1	9112-		●
240	CANTRAIL; RR INNER	8-97801-527-0	01	1	9112-		●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-369-7	01	1	9112-	●	●
244	PANEL; RR PILLAR UPR,OUTER	8-94358-368-7	01	1	9112-	●	●
245	PANEL; REINF,RR PILLAR	8-94359-904-3	01	1	9112-	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-904-3	01	1	9112-		●
245	PANEL; REINF,RR PILLAR	8-94359-903-3	01	1	9112-	●
245	PANEL; REINF,RR PILLAR EXC. 3RD SEAT 7 PASSENGERS(AS3)	8-94359-903-3	01	1	9112-		●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-743-7	01	1	9112-		●
245	PANEL; REINF,RR PILLAR 3RD SEAT 7 PASSENGERS(AS3)	8-97803-742-7	01	1	9112-		●
345	PANEL; EXT,SIDE OUTER	8-94359-890-3	01	1	9112-	●	●
345	PANEL; EXT,SIDE OUTER	8-94359-889-3	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-97803-336-1	01	1	9112-	●	●
352	CLOSING ASM; D POST	8-94359-915-2	01	1	9112-	●	●
379	PATCH; ROOF RACK	8-94359-867-1	02	1	9112-	●
379	PATCH; ROOF RACK	8-94359-867-1	06	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-995-3	01	1	9112-	●
381	GUSSET; WHEEL HOUSE	8-94359-994-3	01	1	9112-	●
381	GUSSET; WHEEL HOUSE	8-94359-941-2	01	1	9112-		●
381	GUSSET; WHEEL HOUSE	8-94359-940-2	01	1	9112-		●
383	PANEL; SIDE INNER (B)	8-94359-993-1	01	1	9112-	●
383	PANEL; SIDE INNER (B)	8-94359-992-1	01	1	9112-	●
383	PANEL; SIDE INNER (A)	8-94359-939-0	01	1	9112-	●	●
383	PANEL; SIDE INNER (B)	8-94359-938-1	01	1	9112-		●
383	PANEL; SIDE INNER (B)	8-94359-937-1	01	1	9112-		●
384	PATCH; WHEEL HOUSE	8-97805-173-1	01	1	9112-	●	●
385	BRACKET; ANCHOR (C)	8-97802-007-2	01	1	9112-	●
385	BRACKET; ANCHOR (C)	8-97802-006-2	01	1	9112-	●
385	BRACKET; ANCHOR (A)	8-94359-945-2	01	1	9112-		●
385	BRACKET; ANCHOR (B)	8-94359-951-3	01	1	9112-		●
385	BRACKET; ANCHOR (A)	8-94359-944-2	01	1	9112-		●
385	BRACKET; ANCHOR (B)	8-94359-950-3	01	1	9112-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-235-1	01	1	9112-		●
385	BRACKET; ANCHOR 3RD SEAT 7 PASSENGERS(AS3) (D)	8-97802-234-1	01	1	9112-		●
388	REINFORCEMENT; FRONT PILLAR	8-94359-922-4	01	1	9112-	●	●
388	REINFORCEMENT; FRONT PILLAR	8-94359-921-4	01	1	9112-	●	●
392	GUSSET; RR PILLAR (B)	8-94359-894-2	01	1	9112-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-896-4	01	1	9112-	●	●
392	GUSSET; RR PILLAR (B)	8-94359-893-2	01	1	9112-	●	●
392	GUSSET; RR PILLAR (A)	8-94359-895-3	01	1	9112-	●	●
393	PANEL; LAMP HOUSING	8-94359-900-1	01	1	9112-	●	●
393	PANEL; LAMP HOUSING	8-94359-899-1	01	1	9112-	●	●
442	PATCH	8-97811-443-0	02	1	9602-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
