◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#35241) — 11 parça

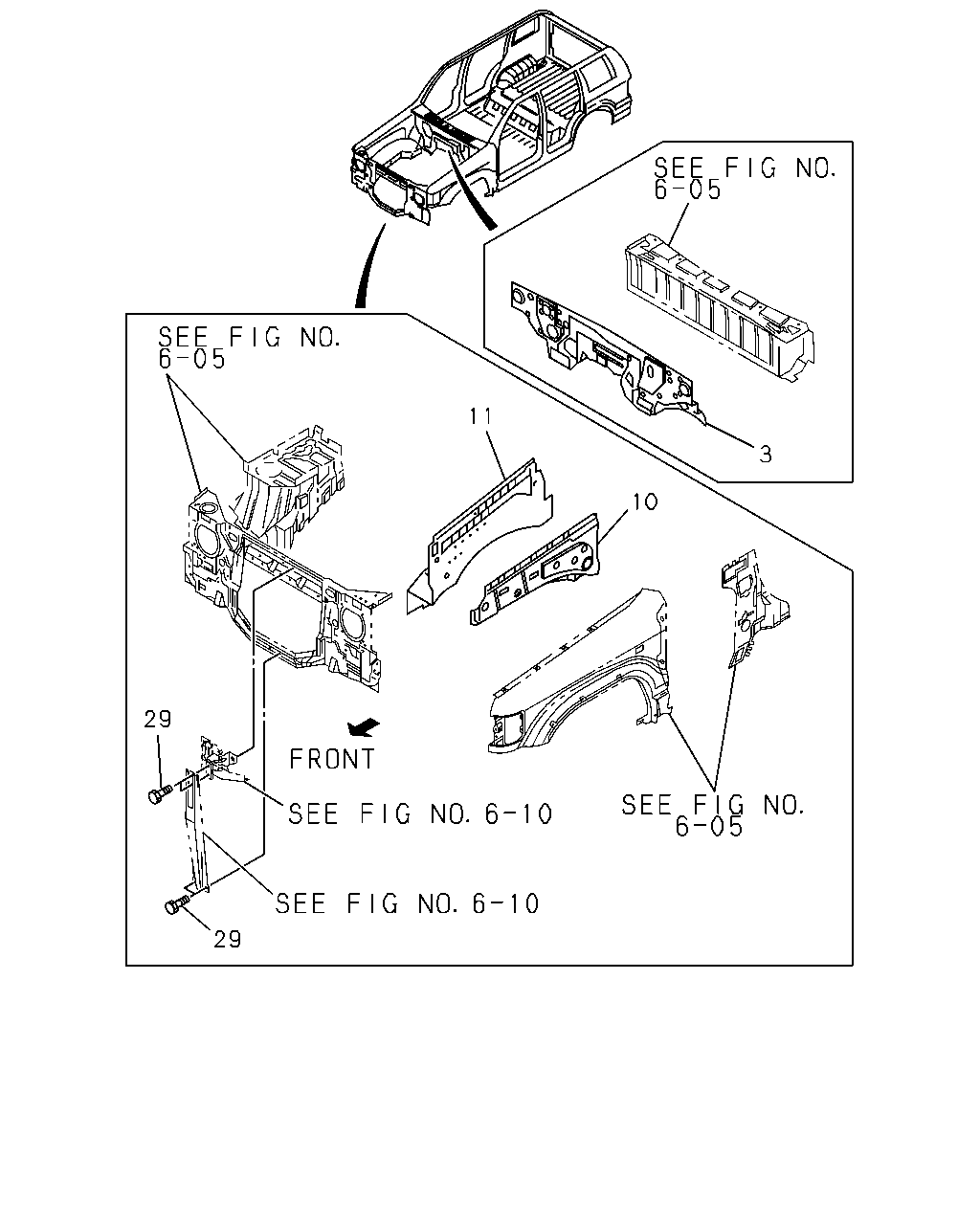

çizim 18064
11 3 10 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; SUB,DASH LWR 8-94358-938-1 01 1 9112- ● ●
10 REINFORCEMENT; FENDER SKIRT,UPR 8-97807-825-0 01 1 9112-9607 ● ●
10 REINFORCEMENT; FENDER SKIRT,UPR 8-94358-959-1 01 1 9608- ● ●
10 REINFORCEMENT; FENDER SKIRT,UPR 8-97807-824-0 01 1 9112-9607 ● ●
10 REINFORCEMENT; FENDER SKIRT,UPR 8-94358-958-1 01 1 9608- ● ●
11 SKIRT; FRT FENDER PNL 8-94358-957-0 01 1 9112- ● ●
11 SKIRT; FRT FENDER PNL 8-94358-956-0 01 1 9112-9308 ● ●
11 SKIRT; FRT FENDER PNL 8-94358-954-1 01 1 9309-9607 ● ●
11 SKIRT; FRT FENDER PNL 8-97161-813-0 01 1 9608- ● ●
29 BOLT; STAY,FRT END PANEL
M6X18 		8-94408-386-1 04 1 9112-9302 ● ●
29 BOLT; STAY,FRT END PANEL
M6X18 		8-97071-681-0 04 1 9303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
