6-10 — ENGINE HOOD AND LOCK (#35240) — 86 parça

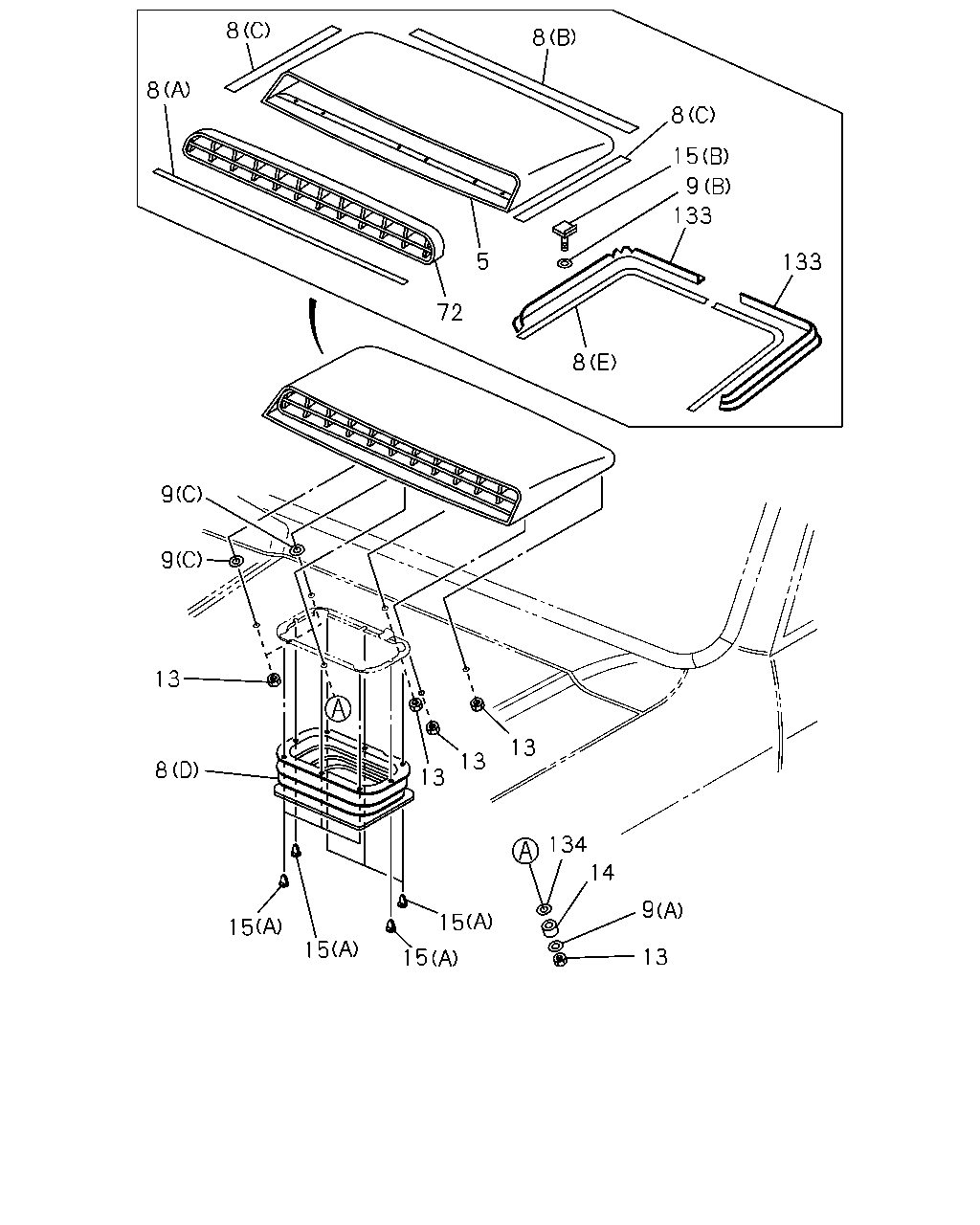

8 8 8 8 15 9 133 133 8 72 5 13 13 13 9 9 13 8 15 15 15 15 134 14 13 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD CHARGE AIR COOLER<6PL> PRIMER PRIMER	8-97806-838-2	01	1	9112-9404	●	●
5	SCOOP; AIR,CHARGE AIR COOLER,ENG HOOD CHARGE AIR COOLER<6PL> PRIMER	8-97811-183-0	01	1	9405-	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (D)	8-97803-749-0	01	1	9112-9509	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (D)	8-97133-889-0	01	1	9510-	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97807-713-0	01	1	9112-9302	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97807-714-0	01	1	9112-9202	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (C)	8-97807-715-0	02	1	9112-9202	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (E)	8-97808-652-0	01	1	9203-9302	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-476-0	01	1	9303-9306	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-865-0	01	1	9307-9506	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (A)	8-97810-476-0	01	1	9507-	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (E)	8-97810-477-0	01	1	9303-9306	●	●
8	SEAL; AIR SCOOP CHARGE AIR COOLER<6PL> (E)	8-97810-866-0	01	1	9307-	●	●
9	WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (A) D=22	8-94358-648-0	01	1	9112-	●	●
9	WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (B) D=16	8-94427-941-0	05	1	9112-	●	●
9	WASHER; PL,AIR SCOOP CHARGE AIR COOLER<6PL> (C) D=16	8-94427-941-0	AR	1	9112-	●	●
13	NUT; AIR SCOOP CHARGE AIR COOLER<6PL> M6 FLANGE	0-91150-106-0	06	1	9112-	●	●
14	SPACER; AIR SCOOP,ENG HOOD CHARGE AIR COOLER<6PL>	8-97807-069-0	01	1	9112-9302	●	●
14	SPACER; AIR SCOOP,ENG HOOD CHARGE AIR COOLER<6PL>	8-97810-466-0	01	1	9303-	●	●
15	CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (A) L=13.5	8-97031-931-0	08	1	9112-9509	●	●
15	CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (A) L=13.5	8-97031-931-0	06	1	9510-	●	●
15	CLIP; AIR SCOOP CHARGE AIR COOLER<6PL> (B)	8-97806-845-2	05	1	9112-	●	●
72	STRAINER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97806-840-1	01	1	9112-9409	●	●
72	STRAINER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97811-204-0	01	1	9410-	●	●
133	FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97810-868-0	01	1	9307-9606	●	●
133	FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97810-867-0	01	1	9307-9606	●	●
133	FINISHER; AIR SCOOP CHARGE AIR COOLER<6PL>	8-97162-066-1	02	1	9607-	●	●
134	WASHER; BULGE CHARGE AIR COOLER<6PL> D=22 T=1	8-94425-158-0	01	1	9508-	●	●

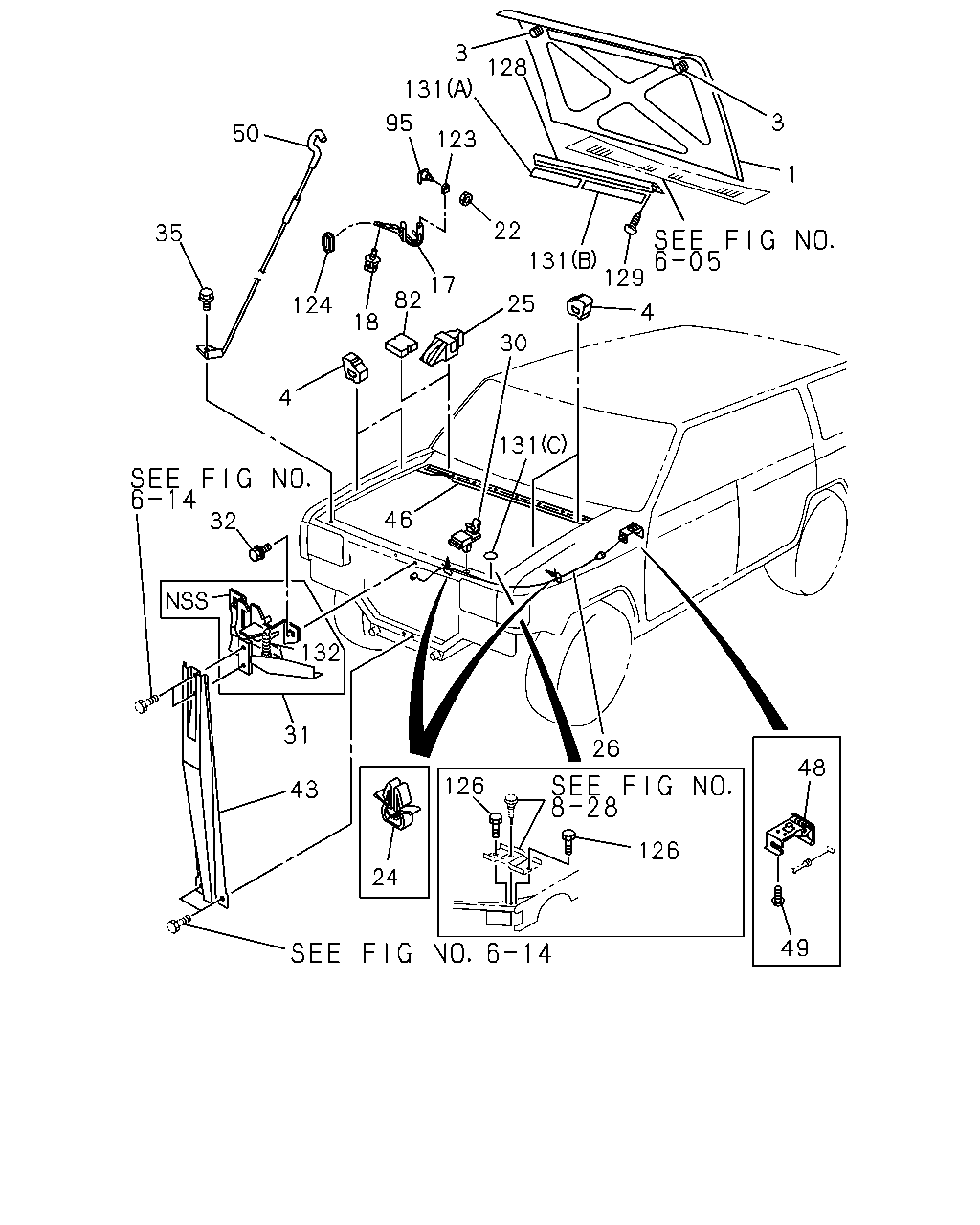

3 128 131 95 50 35 124 4 18 82 17 123 22 131 25 30 4 129 1 3 131 46 32 132 31 43 24 126 126 26 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOOD; ENG CHARGE AIR COOLER<6PL>	8-97803-722-2	01	1	9112-9501	●	●
1	HOOD; ENG CHARGE AIR COOLER<6PL>	8-97127-823-0	01	1	9502-	●	●
1	HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-94358-428-2	01	1	9112-9501	●	●
1	HOOD; ENG EXC. CHARGE AIR COOLER<6PL>	8-97127-771-0	01	1	9502-	●	●
3	BUFFER; ENG HOOD,FRT	8-94237-385-0	02	1	9112-9304	●	●
3	BUFFER; ENG HOOD,FRT	8-97810-601-0	02	1	9305-	●	●
4	REST; SIDE	8-94358-784-1	04	1	9112-	●	●
17	HINGE; ENG HOOD	8-94358-436-4	01	1	9112-	●	●
17	HINGE; ENG HOOD	8-94358-435-4	01	1	9112-	●	●
18	BOLT; HINGE M6X20 W/WASHER	8-94112-987-1	04	1	9112-	●	●
22	NUT; HINGE M6 FLANGE	0-91150-106-0	02	1	9112-	●	●
24	CLIP; CONT CABLE	8-94225-098-0	02	1	9112-	●	●
25	COVER; ENG HOOD HINGE	8-97803-631-1	02	1	9112-9504	●	●
25	COVER; ENG HOOD HINGE	8-97803-631-1	01	1	9505-9505	●	●
26	CABLE; ENG HOOD CONT	8-97803-158-0	01	1	9112-9501	●	●
26	CABLE; ENG HOOD CONT	8-97122-147-0	01	1	9502-9504	●	●
26	CABLE; ENG HOOD CONT	8-97131-324-0	01	1	9505-9707	●	●
26	CABLE; ENG HOOD CONT	8-97180-675-0	01	1	9708-	●	●
30	CLIP; SUPPORT ROD,HOOD	8-94441-538-0	01	1	9112-9504	●	●
30	CLIP; SUPPORT ROD,HOOD	8-97104-427-0	01	1	9505-	●	●
31	LOCK; ENG HOOD	8-94359-084-0	01	1	9112-9301	●	●
31	LOCK; ENG HOOD	8-97810-325-0	01	1	9302-	●	●
32	BOLT; HOOD LK M6X18	8-94408-386-1	02	1	9112-9302	●	●
32	BOLT; HOOD LK M6X18	8-97071-681-0	02	1	9303-	●	●
35	BOLT; STRIKER TO HOOD M6X16 FLANGE	8-94380-676-1	01	1	9112-	●	●
43	STAY; ENG HOOD,FRT END	8-94358-457-0	01	1	9112-9608	●	●
43	STAY; ENG HOOD,FRT END	8-97162-509-0	01	1	9608-	●	●
46	SEAL; ENG HOOD	8-94358-811-3	01	1	9112-9407	●	●
46	SEAL; ENG HOOD	8-97811-307-0	01	1	9408-9505	●	●
46	SEAL; ENG HOOD	8-97811-326-0	01	1	9506-	●	●
48	LEVER; ENG HOOD BLACK	8-97806-914-0	01	1	9112-9305	●	●
48	LEVER; ENG HOOD BLACK	8-97808-822-0	01	1	9306-	●	●
49	SCREW; LEVER,ENG HOOD OPENER M5X10	9-09829-185-0	02	1	9112-	●	●
50	ROD; SUPPORT,ENG HOOD	8-97804-823-3	01	1	9112-	●	●
82	RUBBER; CUSHION,ENG HOOD	8-97811-398-0	01	1	9505-	●	●
95	PIN; HINGE,HOOD CENTER	8-94359-692-0	02	1	9112-	●	●
123	SPACER; HINGE	8-94359-693-0	02	1	9112-9203	●	●
123	SPACER; HINGE	8-97808-777-0	02	1	9204-	●	●
124	SEAL; HINGE	8-94358-506-2	02	1	9112-	●	●
126	BOLT; BRKT ANTI THEFT<UA6> M6X12	0-28010-612-0	02	1	9112-9204	●	●
126	BOLT; BRKT ANTI THEFT<UA6> M6X12 FLANGE	0-28080-612-0	02	1	9205-9410	●	●
126	BOLT; BRKT ANTI THEFT<UA6> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9411-	●	●
128	SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-133-0	01	1	9112-9408	●	●
128	SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2)	8-94376-133-0	01	1	9409-9504	●	●
128	SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-97102-694-1	01	1	9505-9611	●	●
128	SEAL; PLATFORM AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2)	8-97102-694-1	01	1	9612-	●	●
128	SEAL; PLATFORM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U)	8-97102-694-1	01	1	9612-		●
129	CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) BLACK	8-94104-935-0	07	1	9112-9408	●	●
129	CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) BLACK	8-94104-935-0	07	1	9409-9504	●	●
129	CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) BLACK	8-94104-935-0	06	1	9505-9611	●	●
129	CLIP; ENG HOOD SEAL AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) BLACK	8-94104-935-0	06	1	9612-	●	●
129	CLIP; ENG HOOD SEAL 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) BLACK	8-94104-935-0	06	1	9612-		●
131	TAPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97082-085-0	01	1	9208-9408	●	●
131	TAPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97082-085-0	01	1	9409-9504	●	●
131	TAPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97082-086-0	01	1	9208-9408	●	●
131	TAPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97082-086-0	01	1	9409-9504	●	●
131	TAPE (C)	8-97808-119-1	02	1	9505-	●	●
132	SPRING; ENG HOOD LOCK	8-97810-346-0	01	1	9212-9607	●	●
