0-52B — OIL AND VACUUM PIPING; ENGINE (#3524) — 92 parça

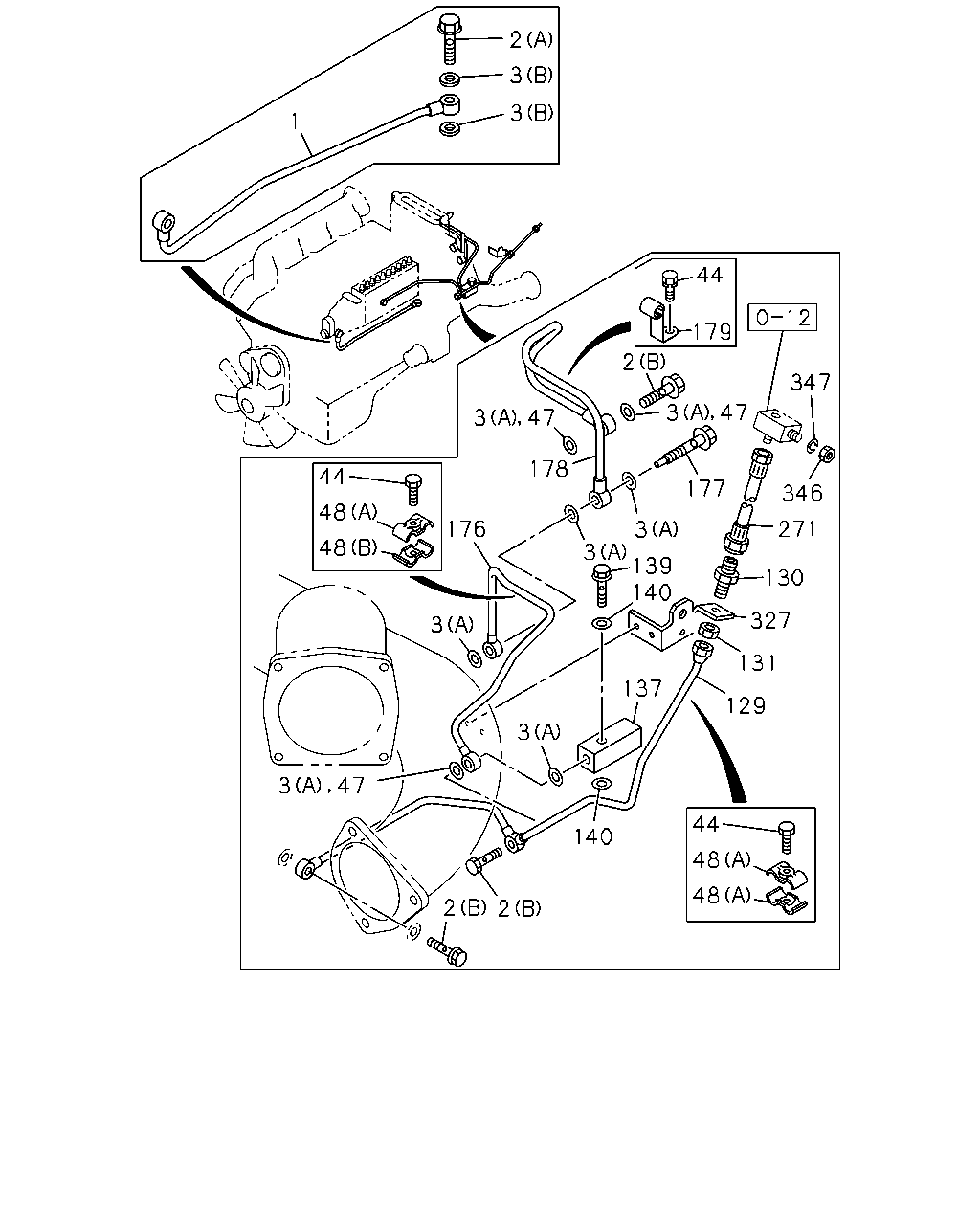

2 3 3 1 44 179 2 347 3 47 3 47 178 44 177 346 48 176 271 3 139 140 48 3 130 327 3 131 137 129 3 3 47 44 140 48 48 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-692-1	01	1	9002-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-711-1	01	1	9307-		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9307-	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9002-9306	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9307-	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9002-9306	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9307-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9002-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	09	1	9002-	●
44	BOLT; CLIP,OIL PIPE M6X22	0-28020-622-0	02	1	9002-9005	●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9006-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	09	1	9307-		●
48	CLIP; OIL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	02	1	9002-	●	●
48	CLIP; OIL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	02	1	9002-	●	●
129	PIPE; OIL,INJ PUMP TO OIL PRESS UNIT	1-13312-927-1	01	1	9002-9306	●
130	UNION; OIL PRESS UNIT	1-09654-278-1	01	1	9002-9306	●
131	NUT; UNION M12	9-09840-280-0	01	1	9002-9306	●
137	UNION; OIL PIPE	1-09664-170-0	01	1	9002-9306	●
137	UNION; OIL PIPE	1-09664-016-1	01	1	9307-	●	●
139	BOLT; EYE,UNION M14X39 FLANGE	1-09675-089-0	01	1	9002-	●	●
140	GASKET; EYE BOLT,UNION ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
176	PIPE ASM; OIL,C/BL TO COVER	1-13312-953-0	01	1	9002-9306	●
176	PIPE ASM; OIL,C/BL TO COVER	1-13312-941-0	01	1	9307-	●	●
177	JET ASM; OIL,OIL PIPE	1-09679-010-0	01	1	9002-	●	●
178	PIPE ASM; OIL,CVR,HSG TO CMPR	1-13312-921-0	01	1	9002-	●	●
179	CLIP; PIPE,HSG TO CMPR	1-09700-876-0	01	1	9002-	●	●
271	TUBE; FLEX,OIL PRESS UNIT	1-09364-715-1	01	1	9002-9306	●
327	BRACKET; UNION	1-22196-288-0	01	1	9002-9306	●
327	BRACKET; UNION	1-22196-283-0	01	1	9307-	●
327	BRACKET; UNION	1-22196-292-1	01	1	9307-		●
346	NUT; CONNECTOR M10	9-09110-510-0	01	1	9002-9306	●
347	WASHER; LK ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-9306	●

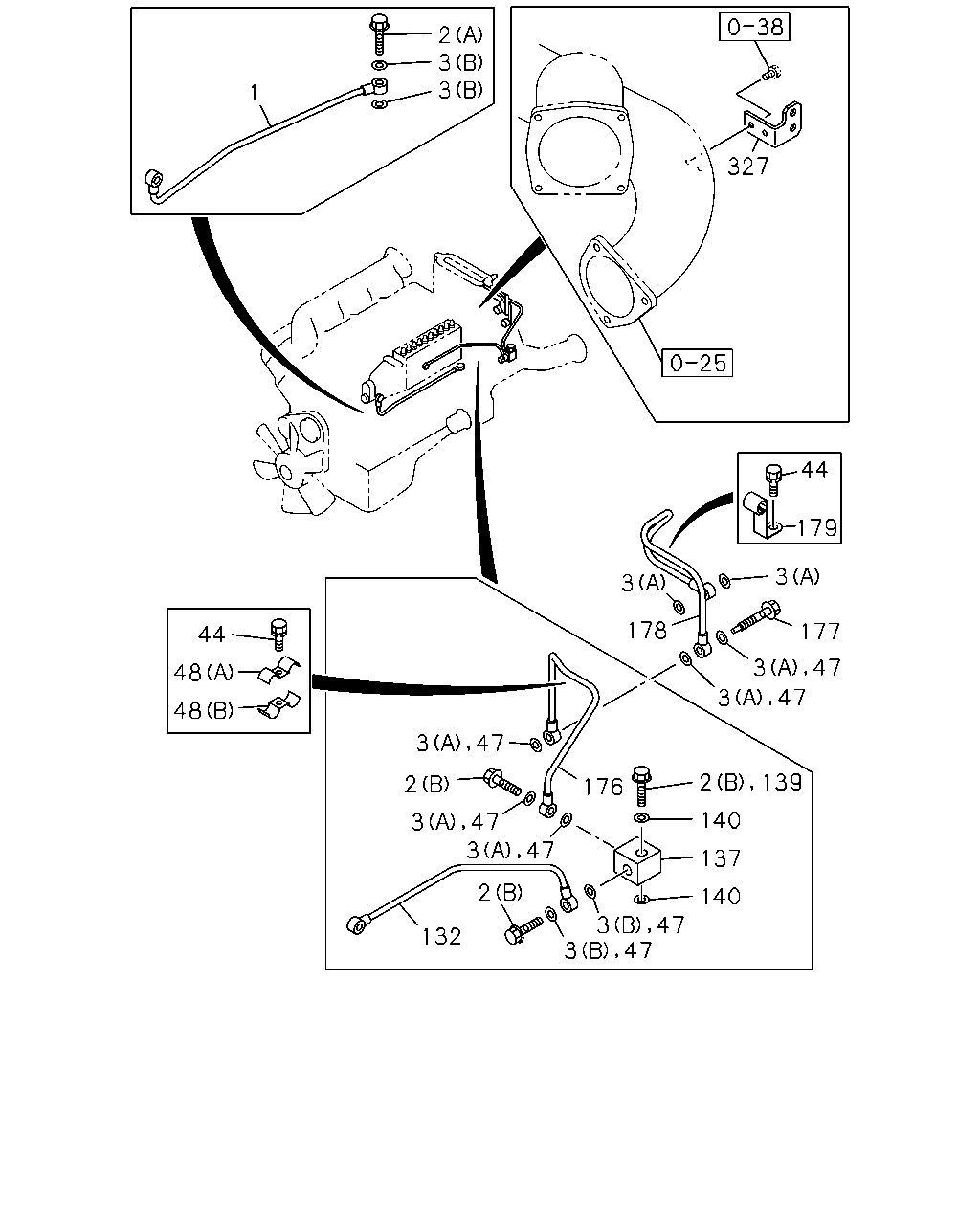

2 3 3 1 327 44 179 3 3 178 177 44 3 47 48 3 47 48 3 47 2 139 2 176 140 3 47 3 47 137 2 140 132 3 47 47 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-692-1	01	1	9002-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13311-711-1	01	1	9307-		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9307-	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9002-9306	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9307-	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9002-9306	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	03	1	9307-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9002-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	09	1	9002-	●
44	BOLT; CLIP,OIL PIPE M6X22	0-28020-622-0	02	1	9002-9005	●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9006-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	09	1	9307-		●
48	CLIP; OIL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	02	1	9002-	●	●
48	CLIP; OIL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	02	1	9002-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13311-623-0	01	1	9307-	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13311-599-0	01	1	9307-		●
137	UNION; OIL PIPE	1-09664-170-0	01	1	9002-9306	●
137	UNION; OIL PIPE	1-09664-016-1	01	1	9307-	●	●
139	BOLT; EYE,UNION M14X39 FLANGE	1-09675-089-0	01	1	9002-	●	●
140	GASKET; EYE BOLT,UNION ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●
176	PIPE ASM; OIL,C/BL TO COVER	1-13312-953-0	01	1	9002-9306	●
176	PIPE ASM; OIL,C/BL TO COVER	1-13312-941-0	01	1	9307-	●	●
177	JET ASM; OIL,OIL PIPE	1-09679-010-0	01	1	9002-	●	●
178	PIPE ASM; OIL,CVR,HSG TO CMPR	1-13312-921-0	01	1	9002-	●	●
179	CLIP; PIPE,HSG TO CMPR	1-09700-876-0	01	1	9002-	●	●
327	BRACKET; UNION	1-22196-288-0	01	1	9002-9306	●
327	BRACKET; UNION	1-22196-283-0	01	1	9307-	●
327	BRACKET; UNION	1-22196-292-1	01	1	9307-		●

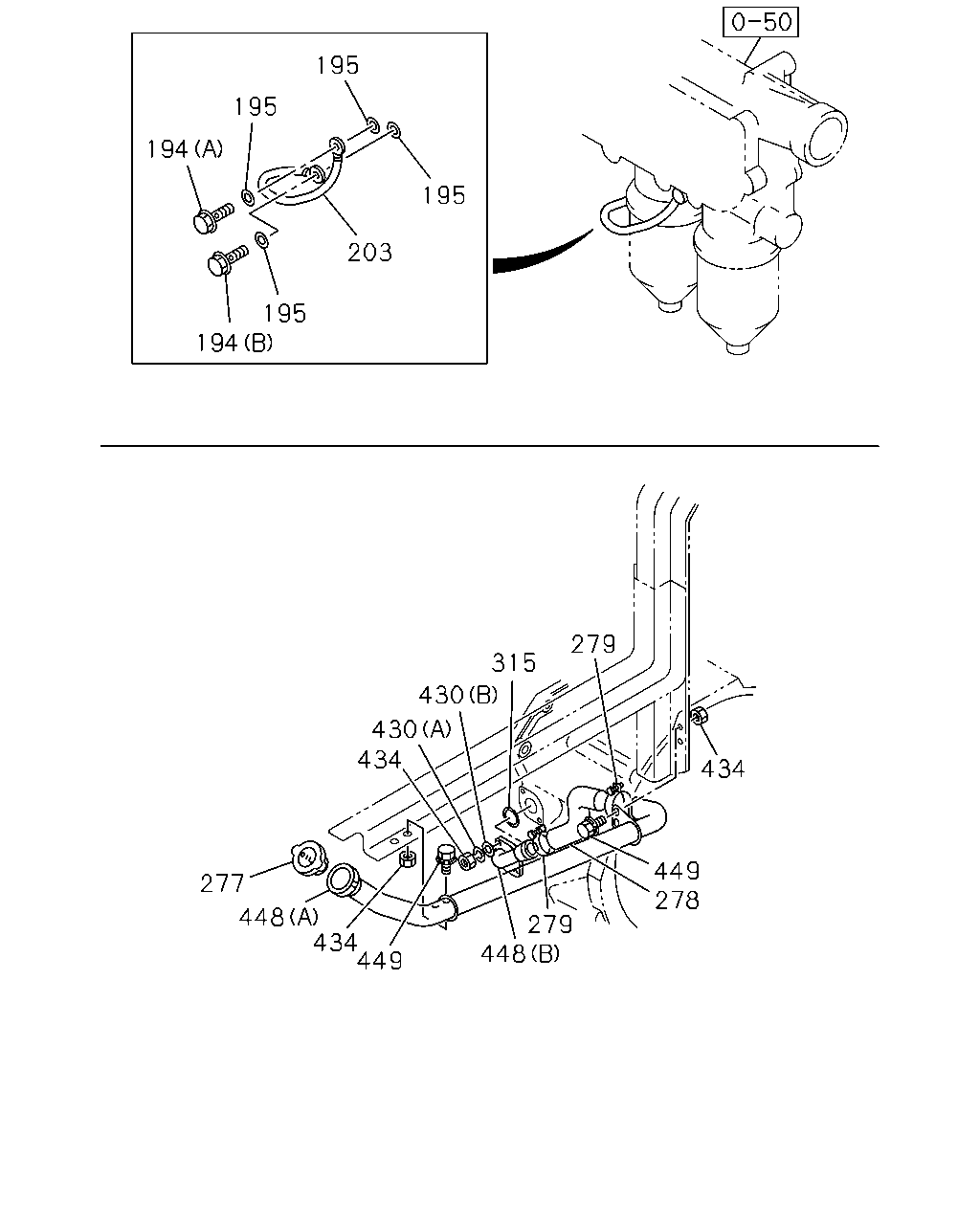

195 195 194 195 203 195 194 279 315 430 430 434 434 449 278 277 448 434 449 279 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (B) M14X45	1-09675-023-1	01	1	9002-	●	●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (A) M14X33 FLANGE	1-09675-088-0	01	1	9002-	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=550	1-09364-707-0	01	1	9002-9102	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=525	1-09364-767-0	01	1	9103-	●	●
277	CAP; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11750-024-1	01	1	9002-	●	●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-066-1	01	1	9002-	●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-102-0	01	1	9307-		●
279	CLIP; RUBBER HOSE EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40	9-09916-024-1	02	1	9002-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILLER CAB BACK DELETE<E6X> ID=35.7	1-09623-026-0	01	1	9002-9003	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL FILLER CAB BACK DELETE<E6X> ID=35.7	1-09623-416-0	01	1	9004-9306	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9307-	●	●
430	WASHER; LK,BRKT,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> (A) LOCK ID=10.2	9-09150-510-0	02	1	9002-9306	●
430	WASHER; LK,BRKT,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> (B) PLAIN ID=10.5 OD=18	9-09160-510-0	02	1	9002-9306	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	03	1	9002-9304	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	04	1	9305-	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M10	9-09110-410-0	02	1	9002-9306	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M10 FLANGE	0-91150-110-0	02	1	9307-9310	●	●
434	NUT; OIL FILLER M10 FLANGE	0-91150-110-0	02	1	9311-	●	●
448	FILLER; OIL EXC. OIL FILLER CAB BACK DELETE<E6X> (A)	1-11740-212-1	01	1	9002-	●	●
448	FILLER; OIL EXC. OIL FILLER CAB BACK DELETE<E6X> (B)	1-13341-142-1	01	1	9002-9310	●	●
448	FILLER; OIL (B)	1-13341-142-1	01	1	9311-	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9304	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9305-9306	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9304	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-9412	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9501-	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9307-9412	●	●
