◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#35238) — 50 parça

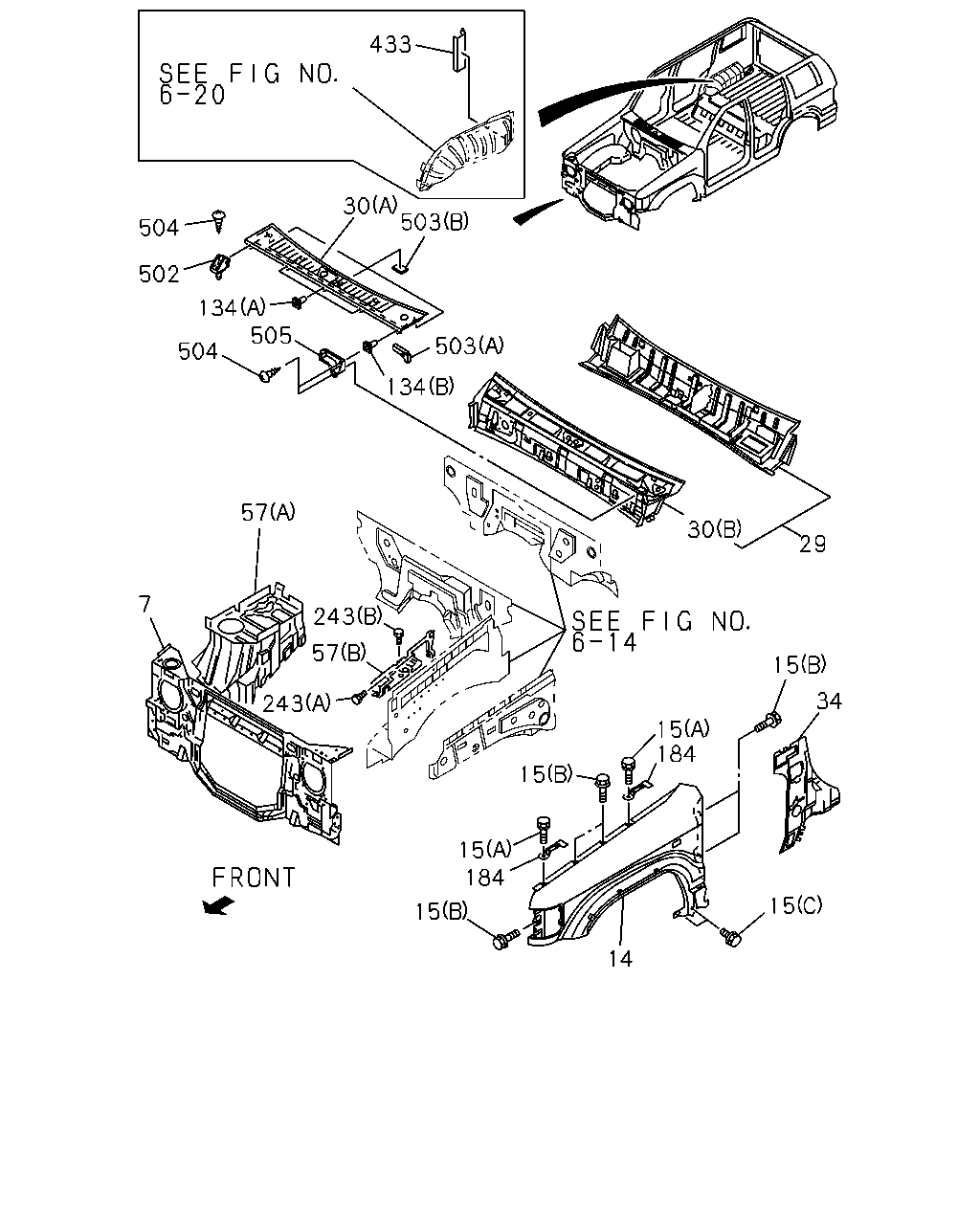

çizim 68566
433 30 503 503 134 505 134 502 504 57 504 243 57 243 7 15 184 15 15 184 15 15 34 29 30 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; DEFLECTOR 8-94358-951-1 01 1 9112-9203 ● ●
7 PANEL; DEFLECTOR 8-97808-655-0 01 1 9204-9404 ● ●
7 PANEL; DEFLECTOR 8-97811-186-0 01 1 9405-9501 ● ●
7 PANEL; DEFLECTOR 8-97125-459-0 01 1 9502- ● ●
14 FENDER; FRT
ANTENNA<U73>,POWER ANTENNA<U75> EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97807-971-0 01 1 9112- ● ●
14 FENDER; FRT
EUROPE/CANARY EQUIPMENT(EK4) 		8-97801-547-0 01 1 9112-9504 ● ●
14 FENDER; FRT
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) ANTENNA<U73>,POWER ANTENNA<U75> 		8-97801-547-0 01 1 9505- ● ●
14 FENDER; FRT
EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTENNA<U73>, POWER ANTENNA<U75>,CHINA EQUIPMENT(YT2) 		8-97801-545-0 01 1 9112- ● ●
14 FENDER; FRT
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97801-548-0 01 1 9112- ● ●
14 FENDER; FRT
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-94358-948-0 01 1 9112- ● ●
14 FENDER; FRT
CHINA EQUIPMENT(YT2) EXC. ANTENNA<U73>,POWER ANTENNA<U75> 		8-94358-947-0 01 1 9505- ●
15 BOLT; FENDER
(B) M6X12 W/PL WASHER 		8-97806-950-0 12 1 9112- ● ●
15 BOLT; FENDER
(A) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ● ●
15 BOLT; FENDER
(A) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ● ●
15 BOLT; FENDER
(C) M6X14 W/LK WASHER 		9-01900-614-0 04 1 9112-9202 ● ●
15 BOLT; FENDER
(C) M6X18 W/LK&PL WASHER 		0-50140-618-0 04 1 9203-9206 ● ●
15 BOLT; FENDER
(C) M6X16 		0-20800-616-0 04 1 9207- ● ●
29 COWL ASM 8-94358-964-1 01 1 9112-9404 ● ●
29 COWL ASM 8-97811-190-2 01 1 9405-9504 ● ●
29 COWL ASM 8-97114-489-2 01 1 9505-9510 ● ●
29 COWL ASM 8-97132-955-0 01 1 9511-9607 ● ●
29 COWL ASM
EXC. AIR BAG DRIVER<AJ3> 		8-97132-955-0 01 1 9608- ● ●
29 COWL ASM
AIR BAG DRIVER<AJ3> 		8-97132-956-0 01 1 9608- ● ●
30 PANEL; COWL UPR
(B) 		8-94359-702-0 01 1 9112-9404 ● ●
30 PANEL; COWL UPR
(B) 		8-97104-105-2 01 1 9405-9607 ● ●
30 PANEL; COWL UPR
(A) 		8-97801-406-1 01 1 9112- ● ●
34 PANEL; DASH SIDE 8-94359-924-2 01 1 9112-9504 ● ●
34 PANEL; DASH SIDE 8-97093-865-3 01 1 9505- ● ●
34 PANEL; DASH SIDE 8-94359-923-3 01 1 9112-9504 ● ●
34 PANEL; DASH SIDE 8-97093-864-3 01 1 9505- ● ●
57 TRAY; BATTERY
(A) 		8-94359-074-5 01 1 9112-9509 ● ●
57 TRAY; BATTERY
(A) 		8-97137-900-0 01 1 9510- ● ●
57 TRAY; BATTERY
(B) 		8-97803-573-3 01 1 9112- ● ●
134 GROMMET; SCREW,COVER TO BODY
(B) 		8-97802-935-2 04 1 9112- ● ●
134 GROMMET; SCREW,COVER TO BODY
(A) OD=8.8 L=19.2 		8-97807-380-0 03 1 9112- ● ●
184 CLIP; REST,FENDER 8-94443-017-1 04 1 9112- ● ●
243 BOLT; BATTERY TRAY
(A) M6X16 W/PL WASHER 		8-97803-781-0 05 1 9112-9207 ● ●
243 BOLT; BATTERY TRAY
(A) M6X16 W/PL WASHER 		8-97803-781-0 04 1 9208- ● ●
243 BOLT; BATTERY TRAY
(B) 		8-97803-782-0 03 1 9112- ● ●
433 BRACKET; FILLER NECK PROTECTOR 8-97803-294-1 01 1 9112-9305 ● ●
433 BRACKET; FILLER NECK PROTECTOR 8-97810-390-0 01 1 9306- ● ●
502 STOPPER; COWL 8-97801-409-5 05 1 9112- ● ●
503 RUBBER; SEAL,COWL
(A) 		8-97806-581-1 02 1 9112- ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 03 1 9112-9209 ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 9210-9308 ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 03 1 9309-9505 ● ●
503 RUBBER; SEAL,COWL
(B) 		8-97807-710-1 04 1 9506- ● ●
504 SCREW; COWL
M6X16 		8-97805-189-0 12 1 9112- ● ●
505 BRACKET; COWL COVER 8-97806-835-1 01 1 9112- ● ●
505 BRACKET; COWL COVER 8-97806-834-1 01 1 9112- ● ●
