◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#35237) — 108 parça

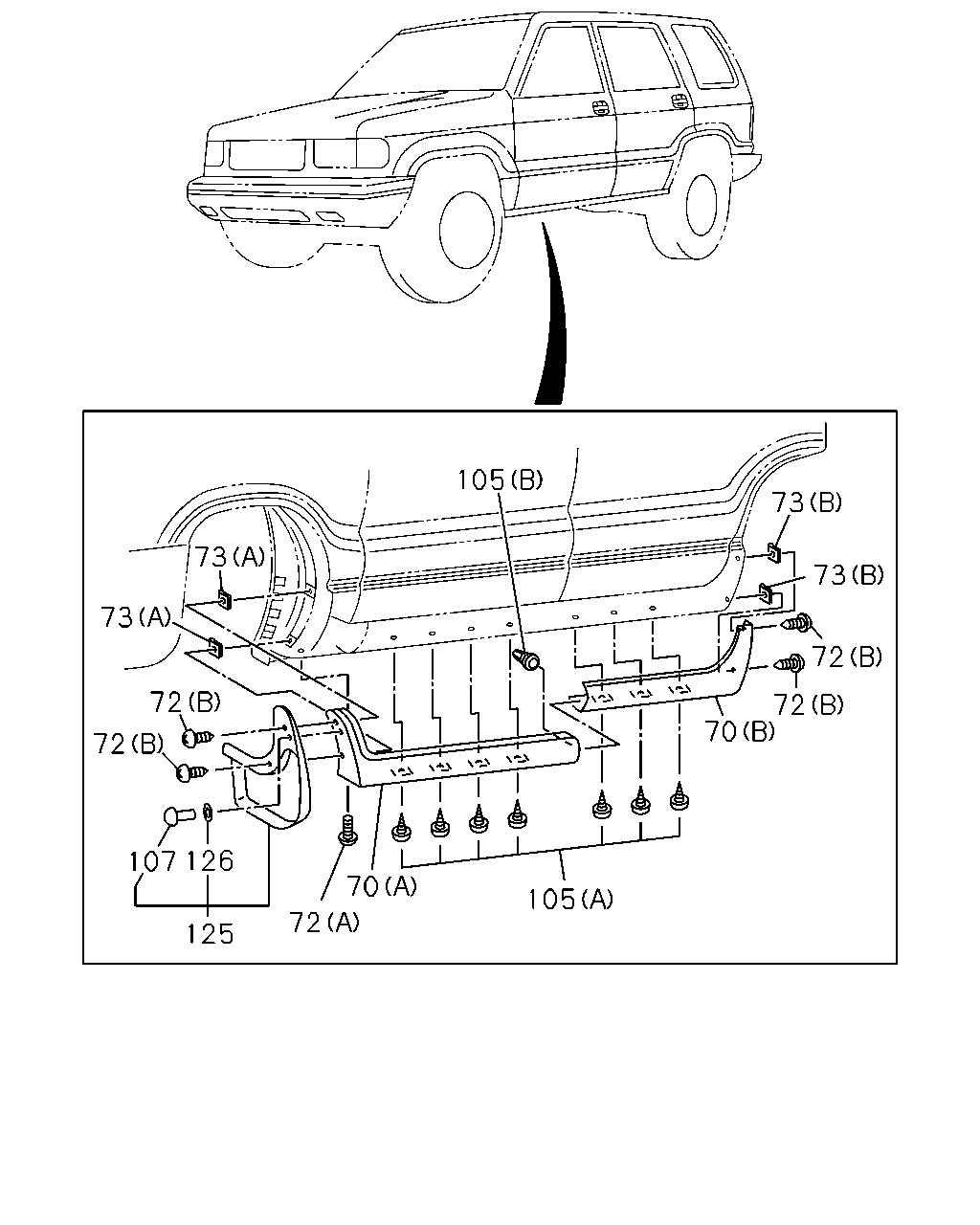

çizim 18141
105 73 73 72 72 70 105 70 72 125 126 107 72 72 73 73
BalonParca AdiParca NoAdetTipApplied Date A B
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX> (B)REAR PRIMER 		8-97807-869-0 01 1 9112-9208 ●
70 COVER; ROCKER PNL
COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-869-2 01 1 9505- ●
70 COVER; ROCKER PNL
COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-868-2 01 1 9505- ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX> (B)REAR PRIMER 		8-97807-868-0 01 1 9112-9208 ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX> (B)REAR PRIMER 		8-97807-869-2 01 1 9209-9504 ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX> (B)REAR PRIMER 		8-97807-868-2 01 1 9209-9504 ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A)FRONT PRIMER 		8-97809-196-1 01 1 9112-9504 ● ●
70 COVER; ROCKER PNL
COLOR KEYED ROCKER SKIRT<6YA> (A)FRONT PRIMER 		8-97809-196-1 01 1 9505-9607 ● ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A)FRONT PRIMER 		8-97809-196-1 01 1 9608- ● ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A)FRONT PRIMER 		8-97809-183-1 01 1 9112- ● ●
70 COVER; ROCKER PNL
COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-867-2 01 1 9505- ●
70 COVER; ROCKER PNL
COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-866-2 01 1 9505- ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-866-1 01 1 9112-9308 ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-867-2 01 1 9112-9504 ●
70 COVER; ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B)REAR PRIMER 		8-97807-866-1 01 1 9309-9309 ●
72 SCREW; COVER,ROCKER
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A) M6X16 TAPPING W/PL WASHER 		0-74315-616-0 02 1 9112-9504 ● ●
72 SCREW; COVER,ROCKER
COLOR KEYED ROCKER SKIRT<6YA> (A) M6X16 TAPPING W/PL WASHER 		0-74315-616-0 02 1 9505-9508 ● ●
72 SCREW; COVER,ROCKER
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9112-9504 ● ●
72 SCREW; COVER,ROCKER
COLOR KEYED ROCKER SKIRT<6YA> (B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9505-9607 ● ●
72 SCREW; COVER,ROCKER
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9608- ● ●
73 NUT; SPIRE,ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A) ID=5.2 H=10 		8-97032-135-0 04 1 9112- ● ●
73 NUT; SPIRE,ROCKER PNL
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B) H=11.5 		8-97807-757-0 04 1 9112- ● ●
105 CLIP; ROCKER CVR
ROCKER SKIRT<6PX> (A) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 10 1 9112-9504 ●
105 CLIP; ROCKER CVR
COLOR KEYED ROCKER SKIRT<6YA> (A) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 10 1 9505- ●
105 CLIP; ROCKER CVR
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (A) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 14 1 9112- ●
105 CLIP; ROCKER CVR
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> (B) OD=14.2 L=19.0 		8-94340-505-0 10 1 9112- ● ●
107 RIVET; ROCKER CVR
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> 		8-94487-995-0 06 1 9112- ● ●
125 FLAP; MUD,ROCKER CVR
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> 		8-97808-993-2 01 1 9112- ● ●
125 FLAP; MUD,ROCKER CVR
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> 		8-97808-992-2 01 1 9112- ● ●
126 WASHER; ROCKER CVR
ROCKER SKIRT<6PX>,COLOR KEYED ROCKER SKIRT<6YA> ID=5.3 OD=14 		1-74618-022-0 06 1 9112- ● ●

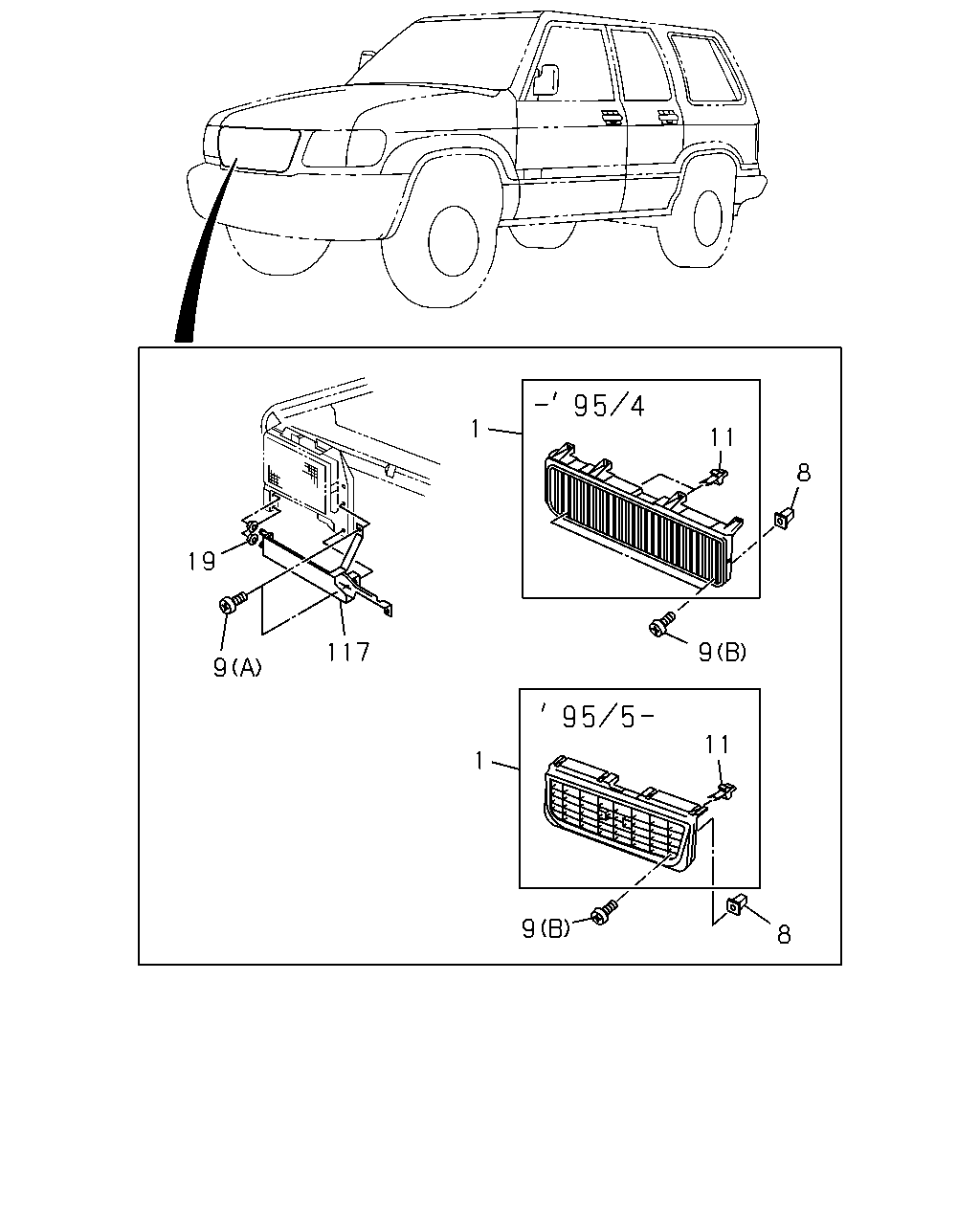

çizim 68724
1 19 9 117 1 9 11 8 8 11 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9209-9210 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9209-9210 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9211-9307 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9211-9307 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97817-164-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97817-164-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA(760),BODY COLOR BRONZEBLUE MICA/IRON GRAY MET(784) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA/IRON GRAY MET(784) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97806-601-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97805-412-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97805-412-2 01 1 9209-9307 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97805-412-2 01 1 9209-9307 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97817-160-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97817-160-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97805-412-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA(758),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT BROWN 		8-97805-412-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/IRON GRAY MET(776) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> WHITE 		8-97805-404-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/IRON GRAY MET(776) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> WHITE 		8-97805-404-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/IRON GRAY MET(776) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> WHITE 		8-97805-404-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
EXTERIOR CHROME PACKAGE<6CX> EXC. EUROPE/CANARY EQUIPMENT(EK4),BRIGHT HEAVY DUTY RAD GRILLE<6QR> BRIGHT 		8-97809-910-2 01 1 9505- ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR EBONY BLACK(826) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97805-411-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR EBONY BLACK(826) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97805-411-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
BODY COLOR EBONY BLACK/IRON GRAY MET(775),BODY COLOR EBONY BLACK(826) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-97805-411-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
GRADE S(RBA),GRADE RS(RBF) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97817-019-2 01 1 9505- ● ●
1 GRILLE; RAD
BODY COLOR GOLD MICA GREEN(757),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK GREEN 		8-97805-410-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR GOLD MICA GREEN(757),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK GREEN 		8-97805-410-2 01 1 9209-9308 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA/IRON GRAY MET(750),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK GREEN 		8-97805-410-2 01 1 9209-9308 ● ●
1 GRILLE; RAD
BODY COLOR GOLD MICA GREEN(757),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> 		8-97817-158-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA/IRON GRAY MET(750),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> 		8-97817-158-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR GOLD MICA GREEN(757),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK GREEN 		8-97805-410-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR CRANBERRY MICA/IRON GRAY MET(750),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK GREEN 		8-97805-410-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97805-405-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97805-405-2 01 1 9209-9308 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97805-405-2 01 1 9209-9308 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97817-154-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97817-154-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97805-405-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR IRON GRAY MET(849) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> GRAY 		8-97805-405-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
EUROPE/CANARY EQUIPMENT(EK4) BRIGHT HEAVY DUTY RAD GRILLE<6QR> PRIMER 		8-97808-940-3 01 1 9505- ● ●
1 GRILLE; RAD
GRADE S(RBA),GRADE RS(RBF) EXTERIOR CHROME PACKAGE<6CX> BRIGHT HEAVY DUTY RAD GRILLE<6QR> PRIMER 		8-97808-940-3 01 1 9505- ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97805-406-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97805-406-2 01 1 9209-9308 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97805-406-2 01 1 9209-9308 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97817-155-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97817-155-0 01 1 9308-9308 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97805-406-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97805-406-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR FIR GREEN MICA(871),BODY COLOR FIR GREEN MICA/LT.SILVER MET(883) GRADE S(RBA) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK GREEN 		8-97153-194-2 01 1 9505- ●
1 GRILLE; RAD
BODY COLOR NEW MED.BROWN MET(754),BODY COLOR NEW MED.BROWN MET/LT.SILVER MET(778) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BROWN 		8-97805-408-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR PALE BEIGE(724) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> BEIGE 		8-97808-496-2 01 1 9209-9210 ● ●
1 GRILLE; RAD
BODY COLOR PALE BEIGE(724) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> BEIGE 		8-97808-496-2 01 1 9209-9210 ● ●
1 GRILLE; RAD
BODY COLOR PALE BEIGE(724) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX>,OPEL BRAND<6XX> BEIGE 		8-97808-496-2 01 1 9211-9309 ● ●
1 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> RED 		8-97805-409-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> RED 		8-97805-409-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/LT.SILVER MET(779) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> RED 		8-97805-409-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
BODY COLOR WINDSOR BLUE MICA(755) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97805-413-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
BODY COLOR WINDSOR BLUE MICA(755) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97805-413-2 01 1 9209-9210 ● ●
1 GRILLE; RAD
BODY COLOR WINDSOR BLUE MICA(755) GRADE XS(RBB),GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97805-413-2 01 1 9209-9210 ● ●
1 GRILLE; RAD
BODY COLOR WINDSOR BLUE MICA(755) EUROPE/CANARY EQUIPMENT(EK4) EXC. EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97805-413-2 01 1 9211-9504 ● ●
1 GRILLE; RAD
BODY COLOR RED ROCK MICA(872),BODY COLOR RED ROCK MICA/LT.SILVER MET(882) GRADE S(RBA) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK RED 		8-97153-195-2 01 1 9505- ●
1 GRILLE; RAD
EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-94359-181-2 01 1 9112-9308 ● ●
1 GRILLE; RAD
EXTERIOR CHROME PACKAGE<6CX> PRIMER 		8-94359-185-2 01 1 9112-9208 ● ●
1 GRILLE; RAD
EXTERIOR CHROME PACKAGE<6CX> BRIGHT HEAVY DUTY RAD GRILLE<6QR> CHROME 		8-97808-892-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
BODY COLOR CREAM WHITE/IRON GRAY MET(776) GRADE S(RBA) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> WHITE 		8-97153-192-2 01 1 9505- ●
1 GRILLE; RAD
EXTERIOR CHROME PACKAGE<6CX> EXC. BRIGHT HEAVY DUTY RAD GRILLE<6QR> PRIMER 		8-94359-185-2 01 1 9209-9504 ● ●
1 GRILLE; RAD
BODY COLOR BRONZE BLUE MICA/LT. SILVET MET(737) GRADE S(RBA) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> DARK BLUE 		8-97817-022-2 01 1 9505- ●
1 GRILLE; RAD
GRADE S(RBA) EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> BLACK 		8-94359-181-2 01 1 9309-9504 ● ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET(753) GRADE S(RBA) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97817-020-2 01 1 9505-9509 ●
1 GRILLE; RAD
BODY COLOR LT.SILVER MET/IRON GRAY MET(751),BODY COLOR LT.SILVER MET(753) GRADE S(RBA) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),EXTERIOR CHROME PACKAGE<6CX> LIGHT SILVER 		8-97817-020-2 01 1 9510- ●
8 GROMMET; SCREW,RAD GRILLE 8-97802-507-0 02 1 9112- ● ●
9 SCREW; RAD GRILLE
(A) M6X16 		8-94381-646-0 04 1 9112- ● ●
9 SCREW; RAD GRILLE
(B) M5X20 		8-94436-927-0 02 1 9112- ● ●
11 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 05 1 9112- ● ●
19 GROMMET; SCREW,RAD GRILLE 8-97805-191-0 04 1 9112- ● ●
117 PANEL; RAD GRILLE
HEADLAMP WASHER<CE3> 		8-97802-514-3 01 1 9112- ● ●
117 PANEL; RAD GRILLE
HEADLAMP WASHER<CE3> 		8-97802-513-3 01 1 9112- ● ●
117 PANEL; RAD GRILLE
EXC. HEADLAMP WASHER<CE3> 		8-97802-512-3 01 1 9112- ● ●
117 PANEL; RAD GRILLE
EXC. HEADLAMP WASHER<CE3> 		8-97802-511-3 01 1 9112- ● ●
