◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#35236) — 77 parça

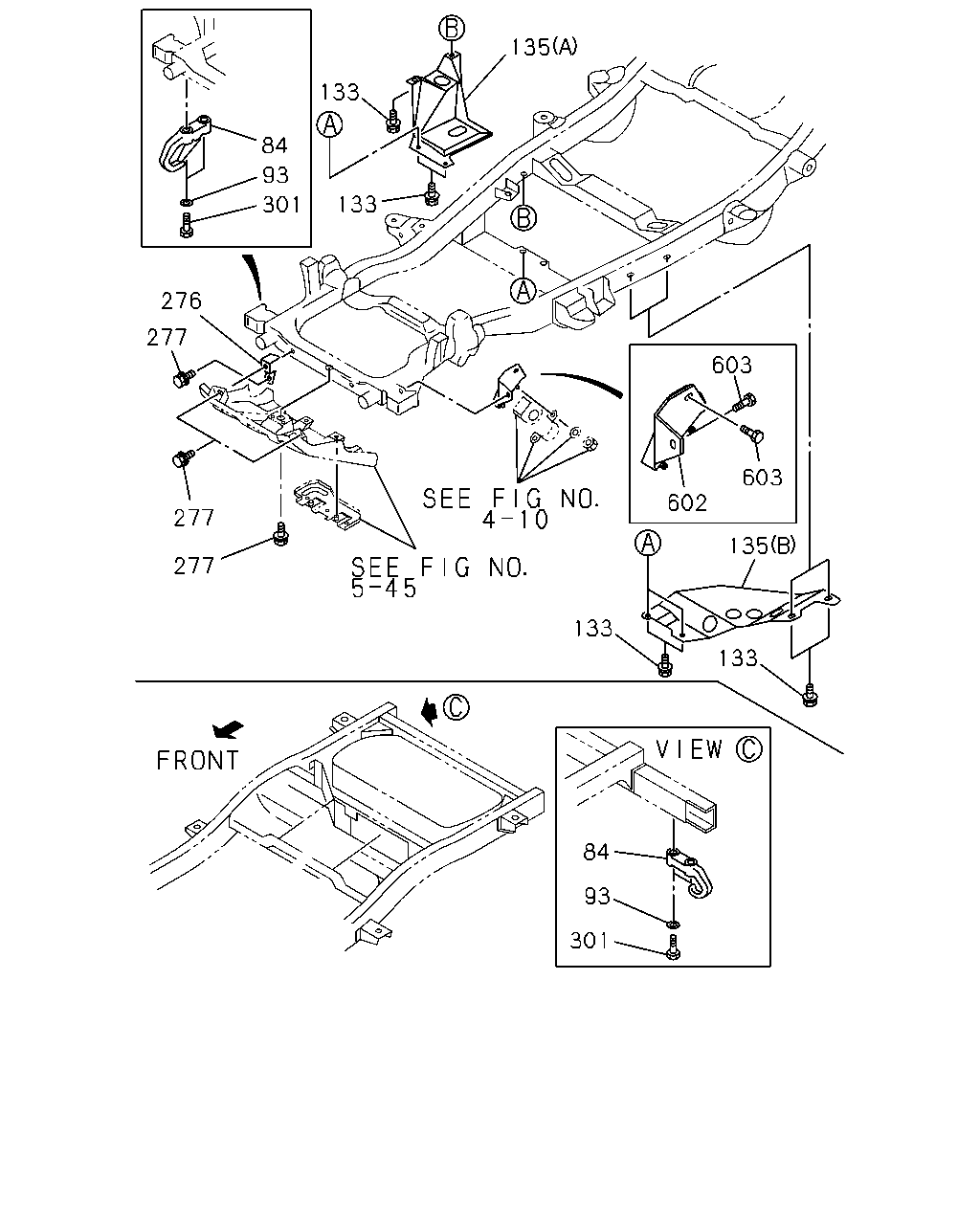

çizim 65844
133 84 93 301 133 135 603 603 602 135 133 133 84 93 301 277 277 277 276
BalonParca AdiParca NoAdetTipApplied Date A B
84 HOOK 8-97041-464-2 02 1 9112-9504 ● ●
84 HOOK
6VD1 SOHC ENG(RLU) A/T THM(RMQ) OPEN TYPE 		8-97041-464-2 02 1 9505-9607 ● ●
84 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) OPEN TYPE 		8-97041-464-2 02 1 9505-9607 ● ●
84 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) 		8-97041-464-2 01 1 9608-9610 ● ●
84 HOOK
EUROPE/CANARY EQUIPMENT(EK4) 		8-97041-464-2 01 1 9608-9610 ● ●
84 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 9608-9610 ● ●
84 HOOK
4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) 		8-97041-464-2 01 1 9611- ● ●
84 HOOK
EUROPE/CANARY EQUIPMENT(EK4) 		8-97041-464-2 01 1 9611- ● ●
84 HOOK
EXC. AIR BAG DRIVER<AJ3> 		8-97041-464-2 01 1 9611- ● ●
84 HOOK
4ZE1 ENG(RLJ) OPEN TYPE 		8-97041-464-2 01 1 9505-9607 ● ●
84 HOOK
AIR BAG DRIVER<AJ3> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94183-262-0 01 1 9608- ● ●
93 WASHER; LK,HOOK
ID=10.2 		9-09150-810-0 04 1 9112-9308 ● ●
93 WASHER; LK,HOOK
6VD1 SOHC ENG(RLU) A/T THM(RMQ) ID=10.2 		9-09150-810-0 04 1 9309-9607 ●
93 WASHER; LK,HOOK
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=10.2 		9-09150-810-0 04 1 9608- ●
133 BOLT; PROTECTOR FIX
M10X25 		8-94492-949-0 04 1 9112-9310 ● ●
133 BOLT; PROTECTOR FIX
M10X28 W/LK&PL WASHER 		8-97104-788-0 04 1 9311- ● ●
135 PROTECTOR; TRANSFER
A/T THM(RMQ) (B) 		8-97049-784-0 01 1 9112- ● ●
135 PROTECTOR; TRANSFER
M/T MUA 5 SPEED(RMN) (A) 		8-94375-527-2 01 1 9112- ● ●
276 BRACKET; GUARD 8-97063-046-2 01 1 9112- ● ●
276 BRACKET; GUARD 8-97063-045-2 01 1 9112- ● ●
277 BOLT; GUARD TO BRKT
M10X25 		8-94492-949-0 05 1 9112-9310 ● ●
277 BOLT; GUARD TO BRKT
M10X28 W/LK&PL WASHER 		8-97104-788-0 05 1 9311-9502 ● ●
277 BOLT; GUARD TO BRKT
M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9503- ● ●
277 BOLT; GUARD TO BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9503- ● ●
301 BOLT; HOOK TO FRAME 8-97070-072-0 04 1 9112-9210 ● ●
301 BOLT; HOOK TO FRAME
M10X50 FLANGE 		0-28091-050-0 04 1 9211-9607 ● ●
301 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9608-9610 ● ●
301 BOLT; HOOK TO FRAME
4JG2 ENG(RJC),4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M10X50 FLANGE 		0-28091-050-0 02 1 9611- ● ●
301 BOLT; HOOK TO FRAME
EUROPE/CANARY EQUIPMENT(EK4) M10X50 FLANGE 		0-28091-050-0 02 1 9611- ● ●
301 BOLT; HOOK TO FRAME
EXC. AIR BAG DRIVER<AJ3> M10X50 FLANGE 		0-28091-050-0 02 1 9611- ● ●
301 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> M10X45 FLANGE 		0-28091-045-0 02 1 9608-9610 ● ●
301 BOLT; HOOK TO FRAME
AIR BAG DRIVER<AJ3> EXC. EUROPE/CANARY EQUIPMENT(EK4) M10X45 FLANGE 		0-28091-045-0 02 1 9611- ● ●
602 BRACKET; FRT STABILIZER 8-97801-156-4 01 1 9112- ● ●
602 BRACKET; FRT STABILIZER 8-97801-155-4 01 1 9112- ● ●
603 BOLT; BRKT
M10X25 FLANGE 		0-28281-025-0 06 1 9112-9411 ● ●
603 BOLT; BRKT
M10X25 FLANGE 		0-28281-025-0 04 1 9412-9412 ● ●
603 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9501- ● ●

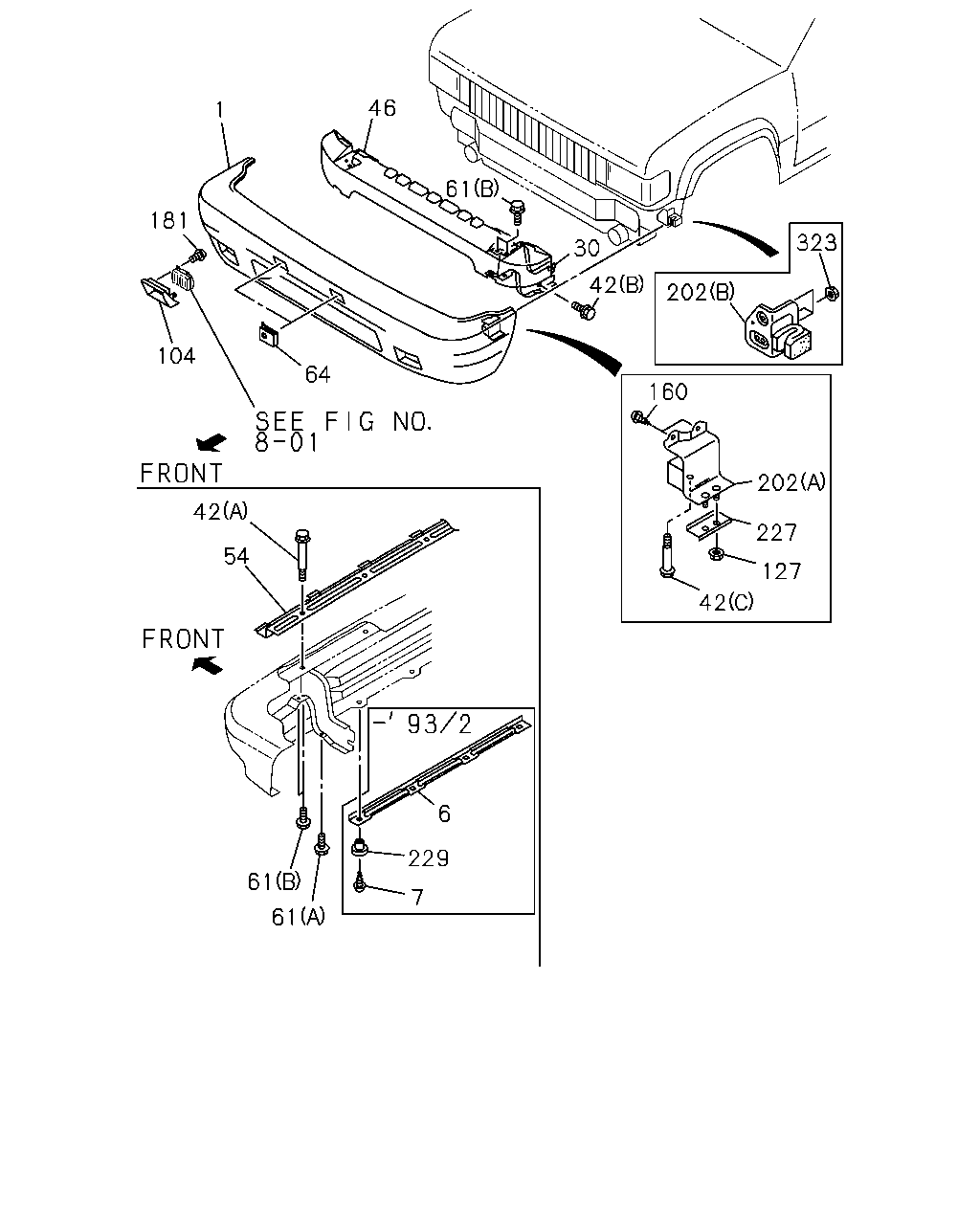

çizim 66229
1 46 61 30 42 202 323 160 202 227 127 42 64 181 104 42 54 6 229 7 61 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-858-1 01 1 9112-9504 ● ●
1 BUMPER ASM; FRT
FOG LAMP HALOGEN(T37) PRIMER 		8-97127-880-0 01 1 9505- ● ●
1 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97807-861-1 01 1 9112-9504 ● ●
1 BUMPER ASM; FRT
EXC. FOG LAMP HALOGEN(T37) PRIMER 		8-97127-882-0 01 1 9505- ● ●
6 SUPPORT; FRT BUMPER SIDE 8-97804-155-0 01 1 9112-9302 ● ●
7 SCREW; FRT BUMPER
M6X20 W/PL WASHER TAPPING 		8-94321-767-0 04 1 9112-9302 ● ●
30 BRACKET; FRT BUMPER 8-97800-078-6 01 1 9112-9410 ● ●
30 BRACKET; FRT BUMPER 8-97811-368-0 01 1 9411- ● ●
30 BRACKET; FRT BUMPER 8-97800-076-6 01 1 9112-9410 ● ●
30 BRACKET; FRT BUMPER 8-97811-367-0 01 1 9411- ● ●
42 BOLT; BUMPER
(A) M6X16 FLANGE 		0-28210-616-0 05 1 9112-9204 ● ●
42 BOLT; BUMPER
(A) M6X16 FLANGE 		0-28280-616-0 05 1 9205- ● ●
42 BOLT; BUMPER
(C) M12X30 FLANGE 		8-94475-424-0 04 1 9112-9509 ● ●
42 BOLT; BUMPER
(C) M12X30 FLANGE 		0-28691-230-0 04 1 9510- ● ●
42 BOLT; BUMPER
(B) 		8-97807-321-0 02 1 9112-9507 ● ●
42 BOLT; BUMPER
(B) 		8-97131-643-0 02 1 9508- ● ●
46 REINFORCEMENT; BUMPER 8-97800-088-8 01 1 9112- ● ●
54 RETAINER; FRT BUMPER 8-97804-154-2 01 1 9112- ● ●
61 BOLT; BACK BAR
(B) M8X20 		8-94198-479-0 08 1 9112-9405 ● ●
61 BOLT; BACK BAR
(B) M8X20 W/LK&PL WASHER 		0-50140-820-0 08 1 9406-9412 ● ●
61 BOLT; BACK BAR
(B) M8X20 FLANGE 		0-28680-820-0 08 1 9501-9607 ● ●
61 BOLT; BACK BAR
(A) M6X16 FLANGE 		8-97804-671-1 02 1 9112- ● ●
61 BOLT; BACK BAR
(B) M8X35 FLANGE 		0-28680-835-0 08 1 9708-9710 ● ●
61 BOLT; BACK BAR
(B) M8X20 FLANGE 		0-28680-820-0 08 1 9711- ● ●
64 NUT; CLIP 8-94342-576-1 02 1 9201- ● ●
104 COVER; HOLE,FOG LAMP
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-827-1 01 1 9112- ● ●
104 COVER; HOLE,FOG LAMP
FOG LAMP HALOGEN(T37) PRIMER 		8-97807-826-1 01 1 9112- ● ●
127 NUT; FRT BUMPER
M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
160 SCREW 8-94198-480-0 04 1 9112- ● ●
181 SCREW; TAP,FOG LAMP COVER
FOG LAMP HALOGEN(T37) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9112- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97805-154-1 01 1 9112- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97807-316-2 01 1 9112-9610 ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97161-070-0 01 1 9611- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97800-096-1 01 1 9112- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97807-315-2 01 1 9112-9501 ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97811-364-0 01 1 9502-9610 ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97161-072-0 01 1 9611- ● ●
227 WASHER; SPECIAL,BUMPER LWR 8-97800-981-1 02 1 9112- ● ●
229 GROMMET 8-97804-050-2 04 1 9112-9302 ● ●
323 NUT; FLANGE
M6 FLANGE 		0-91150-106-0 06 1 9112- ● ●
