◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-45 - UNDER GUARD ▶
5-45 — UNDER GUARD (#35235) — 10 parça

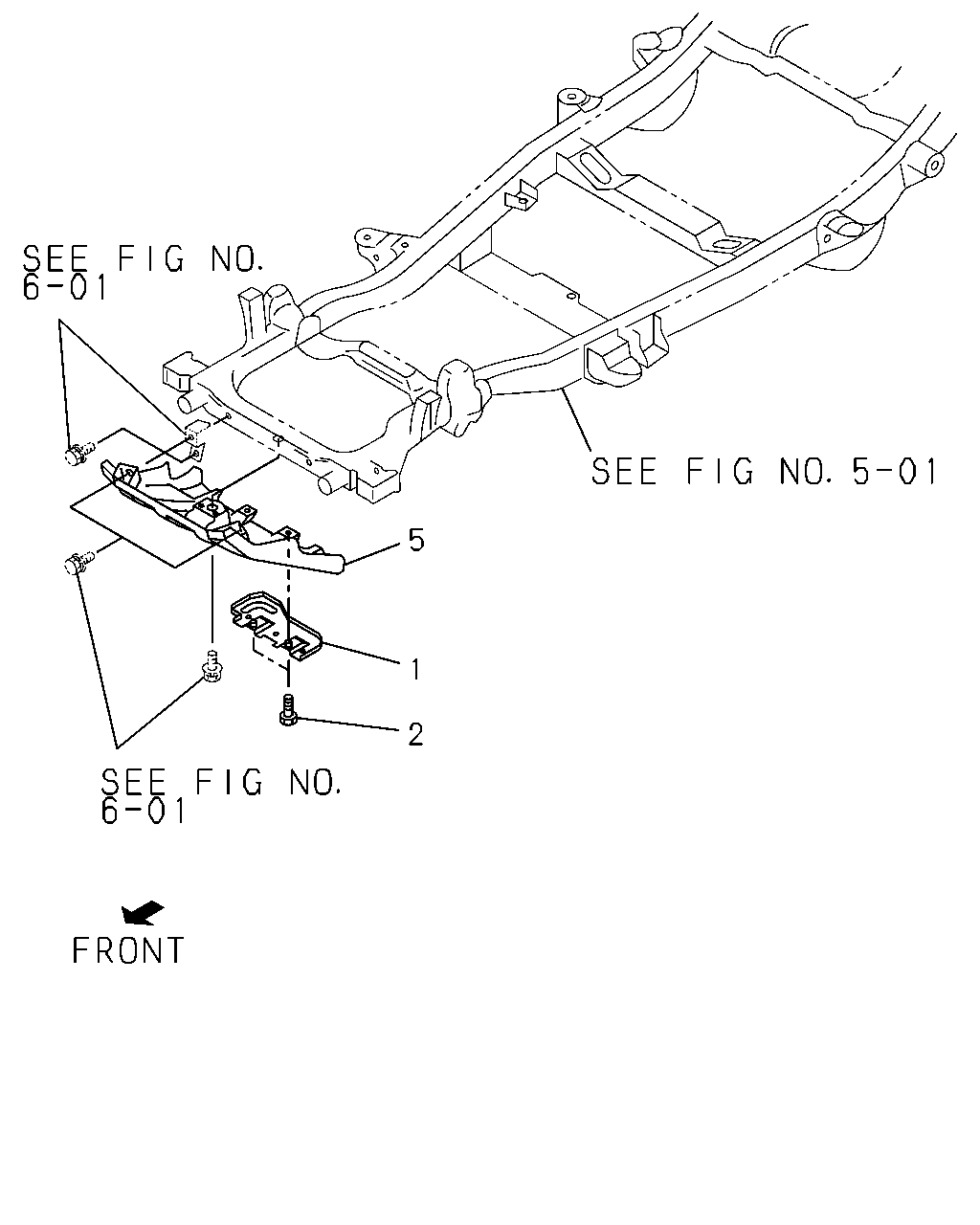

çizim 16600
5 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 COVER; MUD,ENG 8-97018-376-3 01 1 9112-9503 ● ●
1 COVER; MUD,ENG 8-97123-328-0 01 1 9504- ● ●
2 BOLT; MUD COVER
M10X25 		8-94492-949-0 02 1 9112-9310 ● ●
2 BOLT; MUD COVER
M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9311-9503 ● ●
2 BOLT; MUD COVER
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9504- ● ●
5 GUARD; UNDER,FRT 8-97049-702-2 01 1 9112-9312 ● ●
5 GUARD; UNDER,FRT 8-97106-743-0 01 1 9401-9510 ● ●
5 GUARD; UNDER,FRT 8-97134-924-0 01 1 9511-9607 ● ●
5 GUARD; UNDER,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-97134-924-0 01 1 9608- ● ●
5 GUARD; UNDER,FRT
AIR BAG DRIVER<AJ3> 		8-97136-378-2 01 1 9608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
