◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#35234) — 29 parça

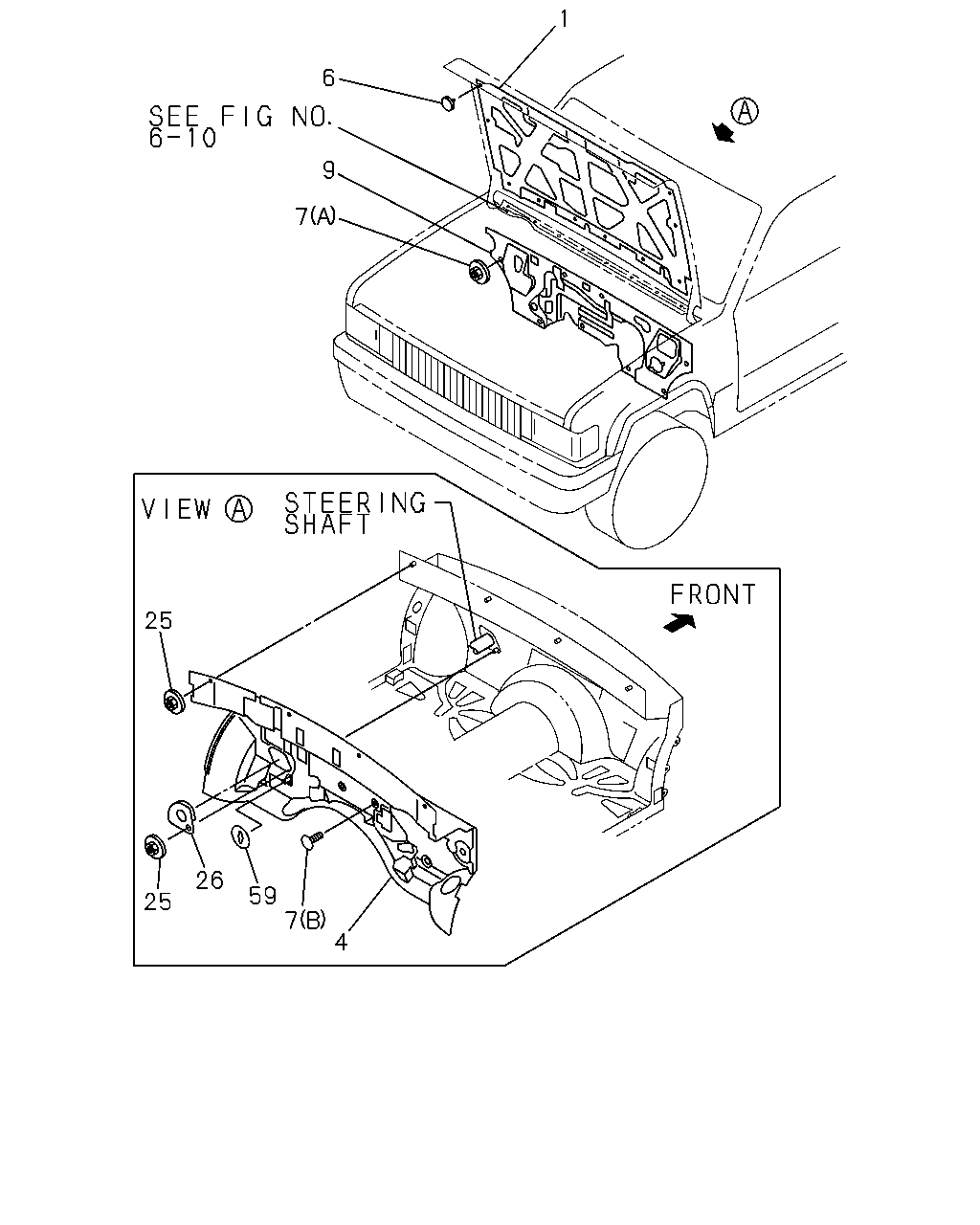

çizim 66232
6 9 7 1 25 25 26 59 7 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 INSULATION; ENG HOOD
EUROPE/CANARY EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> 		8-97805-970-2 01 1 9112-9208 ● ●
1 INSULATION; ENG HOOD
EUROPE/CANARY EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> 		8-97809-350-1 01 1 9209-9507 ● ●
1 INSULATION; ENG HOOD
EUROPE/CANARY EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> 		8-97133-913-0 01 1 9508-9607 ● ●
1 INSULATION; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97133-913-0 01 1 9608- ● ●
1 INSULATION; ENG HOOD
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHARGE AIR COOLER<6PL> 		8-94358-816-2 01 1 9112-9208 ● ●
1 INSULATION; ENG HOOD
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHARGE AIR COOLER<6PL> 		8-97809-349-1 01 1 9209-9507 ● ●
1 INSULATION; ENG HOOD
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHARGE AIR COOLER<6PL> 		8-97133-912-0 01 1 9508-9607 ● ●
1 INSULATION; ENG HOOD
EXC. CHARGE AIR COOLER<6PL> 		8-97133-912-0 01 1 9608- ● ●
4 INSULATION; DASH PNL,INNER
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97807-908-5 01 1 9112-9301 ● ●
4 INSULATION; DASH PNL,INNER
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97810-121-0 01 1 9302-9307 ● ●
4 INSULATION; DASH PNL,INNER
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-97807-526-6 01 1 9112-9301 ● ●
4 INSULATION; DASH PNL,INNER
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-97810-120-0 01 1 9302-9307 ● ●
4 INSULATION; DASH PNL,INNER 8-97810-120-1 01 1 9308-9504 ● ●
4 INSULATION; DASH PNL,INNER 8-97103-859-5 01 1 9505-9510 ● ●
4 INSULATION; DASH PNL,INNER 8-97138-530-1 01 1 9511- ● ●
6 CLIP; ENG HOOD INSULATION
EUROPE/CANARY EQUIPMENT(EK4) OD=30 		8-94279-952-0 14 1 9112-9204 ● ●
6 CLIP; ENG HOOD INSULATION
EUROPE/CANARY EQUIPMENT(EK4) ID=6.2 L=11.4 		8-97808-623-0 14 1 9205-9208 ● ●
6 CLIP; ENG HOOD INSULATION
EUROPE/CANARY EQUIPMENT(EK4) ID=6.2 L=11.4 		8-97808-623-0 16 1 9209-9607 ● ●
6 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 16 1 9608- ● ●
7 CLIP; INSULATION
(A) 		8-94441-810-0 09 1 9112- ● ●
7 CLIP; INSULATION
(B) DARK GRAY 		8-97805-803-0 01 1 9112-9711 ● ●
9 INSULATION; DASH ENG ROOM 8-94358-817-7 01 1 9112-9308 ● ●
9 INSULATION; DASH ENG ROOM 8-97810-333-0 01 1 9309-9603 ● ●
9 INSULATION; DASH ENG ROOM 8-97147-063-0 01 1 9604- ● ●
25 CLIP; DASH INSULATION
H=10.5 		8-94441-810-0 05 1 9112-9304 ● ●
25 CLIP; DASH INSULATION
H=10.5 		8-94441-810-0 06 1 9305-9511 ● ●
25 CLIP; DASH INSULATION
H=10.5 		8-94441-810-0 05 1 9512- ● ●
26 INSULATION; PAD,STRG COLUMN 8-97805-952-4 01 1 9112-9301 ● ●
59 COVER; PAD INSULATION 8-97807-909-0 01 1 9112- ● ●
