◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#35233) — 23 parça

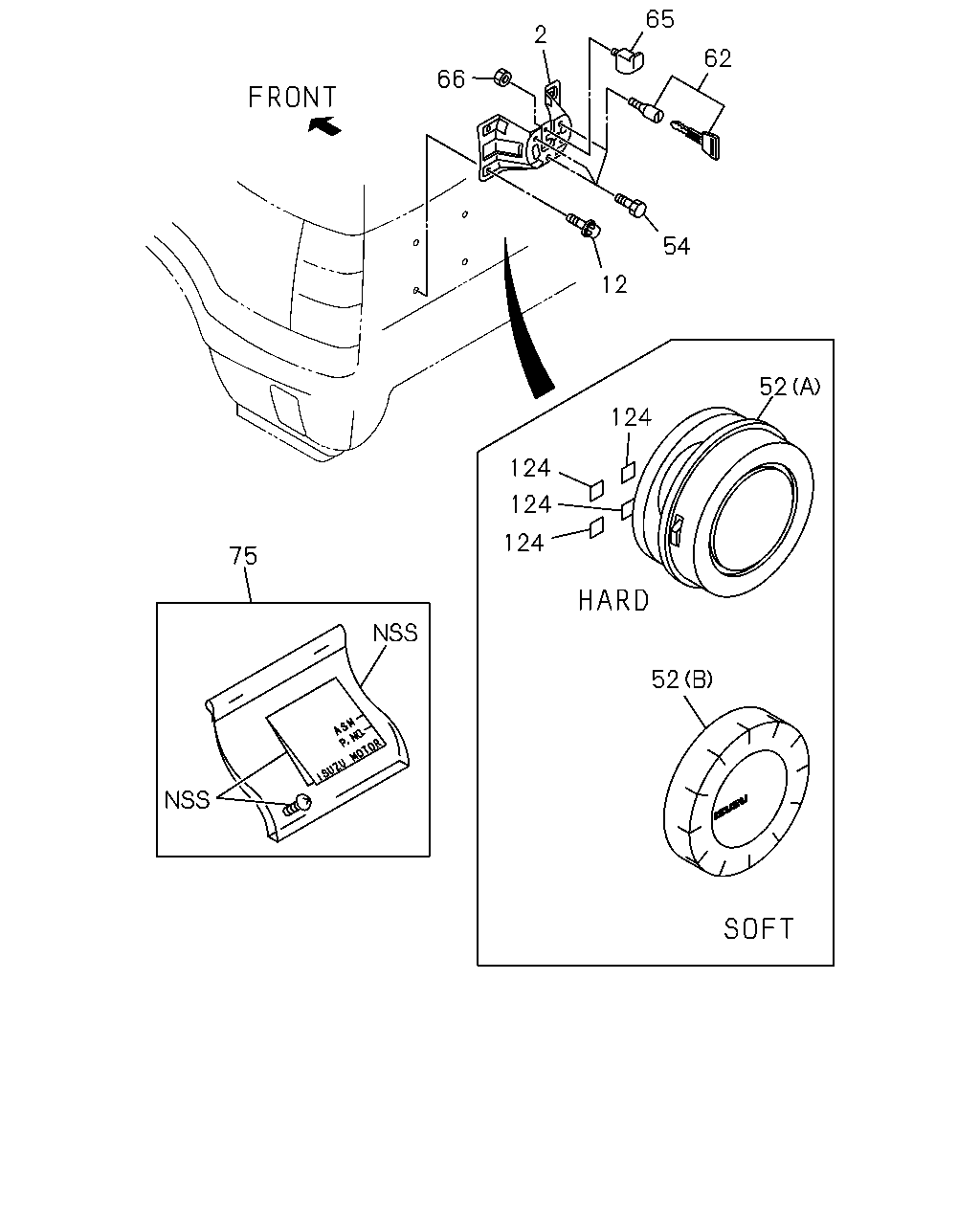

çizim 68680
66 2 65 62 54 12 52 124 124 124 124 52 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 CARRIER ASM; SPARE TIRE 8-97801-181-2 01 1 9112-9203 ● ●
2 CARRIER ASM; SPARE TIRE 8-97809-166-1 01 1 9204-9606 ● ●
2 CARRIER ASM; SPARE TIRE 8-97138-457-0 01 1 9607- ● ●
12 BOLT; SPARE TIRE CARRIER
EUROPE/CANARY EQUIPMENT(EK4) M10X20 		9-01961-020-0 04 1 9112-9204 ● ●
12 BOLT; SPARE TIRE CARRIER
EUROPE/CANARY EQUIPMENT(EK4) M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9205-9205 ● ●
12 BOLT; SPARE TIRE CARRIER
EUROPE/CANARY EQUIPMENT(EK4) M10X20 W/LK&PL WASHER 		8-97808-826-0 04 1 9206- ● ●
12 BOLT; SPARE TIRE CARRIER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94187-369-0 04 1 9112-9205 ● ●
12 BOLT; SPARE TIRE CARRIER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M10X20 W/LK&PL WASHER 		8-94489-931-0 04 1 9206- ● ●
52 COVER; SPARE TIRE
SPARE TIRE COVER HARD<6SU> PRIMER(A) 		8-97807-892-2 01 1 9112-9204 ● ●
52 COVER; SPARE TIRE
SPARE TIRE COVER HARD<6SU> PRIMER(A) 		8-97809-180-1 01 1 9205- ● ●
52 COVER; SPARE TIRE
SPARE TIRE COVER SOFT<P17> ISUZU(B) 		8-97808-471-0 01 1 9112-9504 ● ●
52 COVER; SPARE TIRE
SPARE TIRE COVER SOFT<P17> EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> ISUZU(B) 		8-97808-471-1 01 1 9505-9711 ● ●
52 COVER; SPARE TIRE
SPARE TIRE COVER SOFT<P17> EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> ISUZU(B) 		8-97202-620-0 01 1 9712- ● ●
54 BOLT; SPARE TIRE MTG,STEEL WHEEL
SPARE TIRE FIX BOLT<6CT> 		8-97803-462-0 02 1 9112- ● ●
54 BOLT; SPARE TIRE MTG,STEEL WHEEL
EXC. SPARE TIRE FIX BOLT<6CT> 		8-97803-462-0 03 1 9112- ● ●
62 BOLT; LK,SPARE TIRE
SPARE TIRE FIX BOLT<6CT> 		8-94183-694-0 01 1 9112-9709 ● ●
62 BOLT; LK,SPARE TIRE
SPARE TIRE FIX BOLT<6CT> 		8-97185-582-0 01 1 9710-9711 ● ●
62 BOLT; LK,SPARE TIRE
SPARE TIRE FIX BOLT<6CT> 		8-97190-774-0 01 1 9712- ● ●
65 SADDLE; SPARE TIRE 8-97808-117-0 01 1 9112-9606 ● ●
65 SADDLE; SPARE TIRE 8-97148-837-0 01 1 9607- ● ●
66 NUT; SADDLE,SPARE TIRE
M8 FLANGE 		0-91150-108-0 01 1 9112- ● ●
75 SCREW
SPARE TIRE COVER HARD<6SU> 		8-97809-156-0 01 1 9505- ● ●
124 FASTENER; COVER,SPARE TIRE
SPARE TIRE COVER HARD<6SU> 		8-97809-181-0 04 1 9204-9208 ● ●
