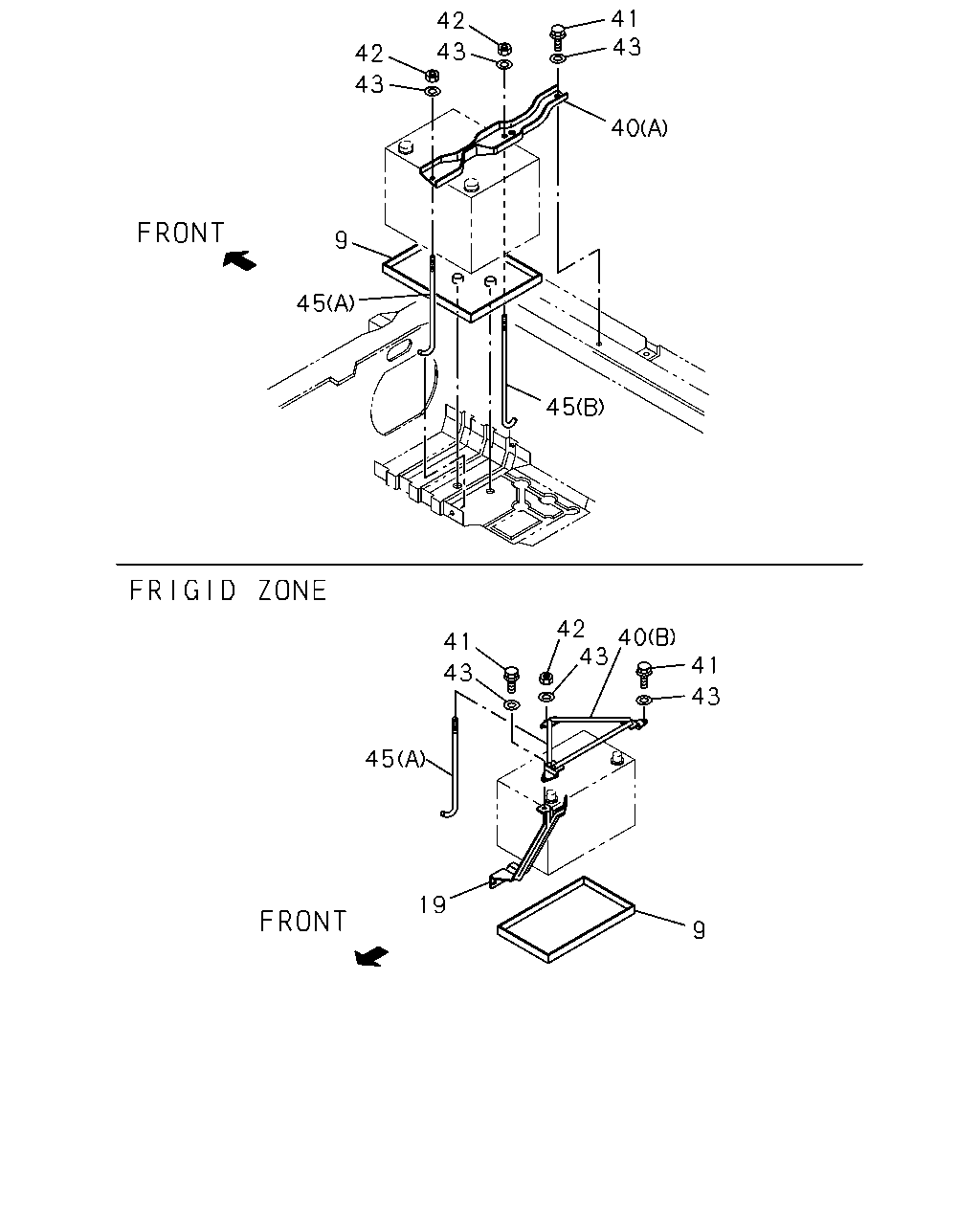

5-20 — BATTERY CARRIER (#35232) — 28 parça

42 42 41 43 40 43 43 9 45 45 42 40 41 43 43 41 43 45 19 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SEAT; BATTERY 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU)	8-94405-030-0	01	1	9112-9504	●	●
9	SEAT; BATTERY FRIGID ZONE<YL3>	8-94405-030-0	01	1	9112-9504	●	●
9	SEAT; BATTERY 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU)	8-94405-030-0	01	1	9505-	●	●
9	SEAT; BATTERY FRIGID ZONE<YL3>	8-94405-030-0	01	1	9505-	●	●
9	SEAT; BATTERY 4ZE1 ENG(RLJ)	8-94405-031-0	01	1	9112-	●	●
19	STAY; BATTERY	8-97803-750-0	01	1	9112-	●	●
40	CLAMP; BATTERY (A)	8-94387-851-1	01	1	9112-	●	●
40	CLAMP; BATTERY (B)	8-97029-258-2	01	1	9112-	●	●
41	BOLT; CLAMP,BATTERY M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
41	BOLT; CLAMP,BATTERY M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9209	●	●
41	BOLT; CLAMP,BATTERY M8X18	8-94478-122-0	01	1	9209-	●	●
41	BOLT; CLAMP,BATTERY M6X25 W/LK WASHER	9-01900-625-0	02	1	9112-9204	●	●
41	BOLT; CLAMP,BATTERY M6X25 W/LK WASHER	0-50040-625-0	02	1	9205-9412	●	●
41	BOLT; CLAMP,BATTERY M6X25 FLANGE	0-28680-625-0	02	1	9501-	●	●
42	NUT; CLAMP	8-94238-948-0	02	1	9112-9412	●	●
42	NUT; CLAMP M6 FLANGE	0-91150-106-0	02	1	9501-	●	●
42	NUT; CLAMP	8-94238-948-0	01	1	9112-9412	●	●
42	NUT; CLAMP M6 FLANGE	0-91150-106-0	01	1	9501-	●	●
43	WASHER; PL,CLAMP FRIGID ZONE<YL3> ID=6.4 OD=14	9-09164-606-0	03	1	9112-9208	●	●
43	WASHER; PL,CLAMP ID=6.4 OD=14	9-09164-606-0	03	1	9112-9208	●	●
43	WASHER; PL,CLAMP ID=6.4 OD=14	9-09164-606-0	02	1	9209-9412	●	●
43	WASHER; PL,CLAMP ID=6.4 OD=14	9-09164-606-0	03	1	9209-9412	●	●
45	ROD; TENSION,BATTERY (B) L=230	8-94133-637-0	01	1	9112-	●	●
45	ROD; TENSION,BATTERY (A) L=204	8-94259-857-0	01	1	9112-	●	●
45	ROD; TENSION,BATTERY 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) L=202	8-97039-079-0	01	1	9112-9208	●	●
45	ROD; TENSION,BATTERY 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) L=202	8-97039-079-1	01	1	9209-9504	●	●
45	ROD; TENSION,BATTERY (A) L=202	8-97039-079-1	01	1	9505-	●	●
45	ROD; TENSION,BATTERY 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (A) L=190	8-94238-991-0	01	1	9112-9504	●	●
