Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#35231) — 161 parça

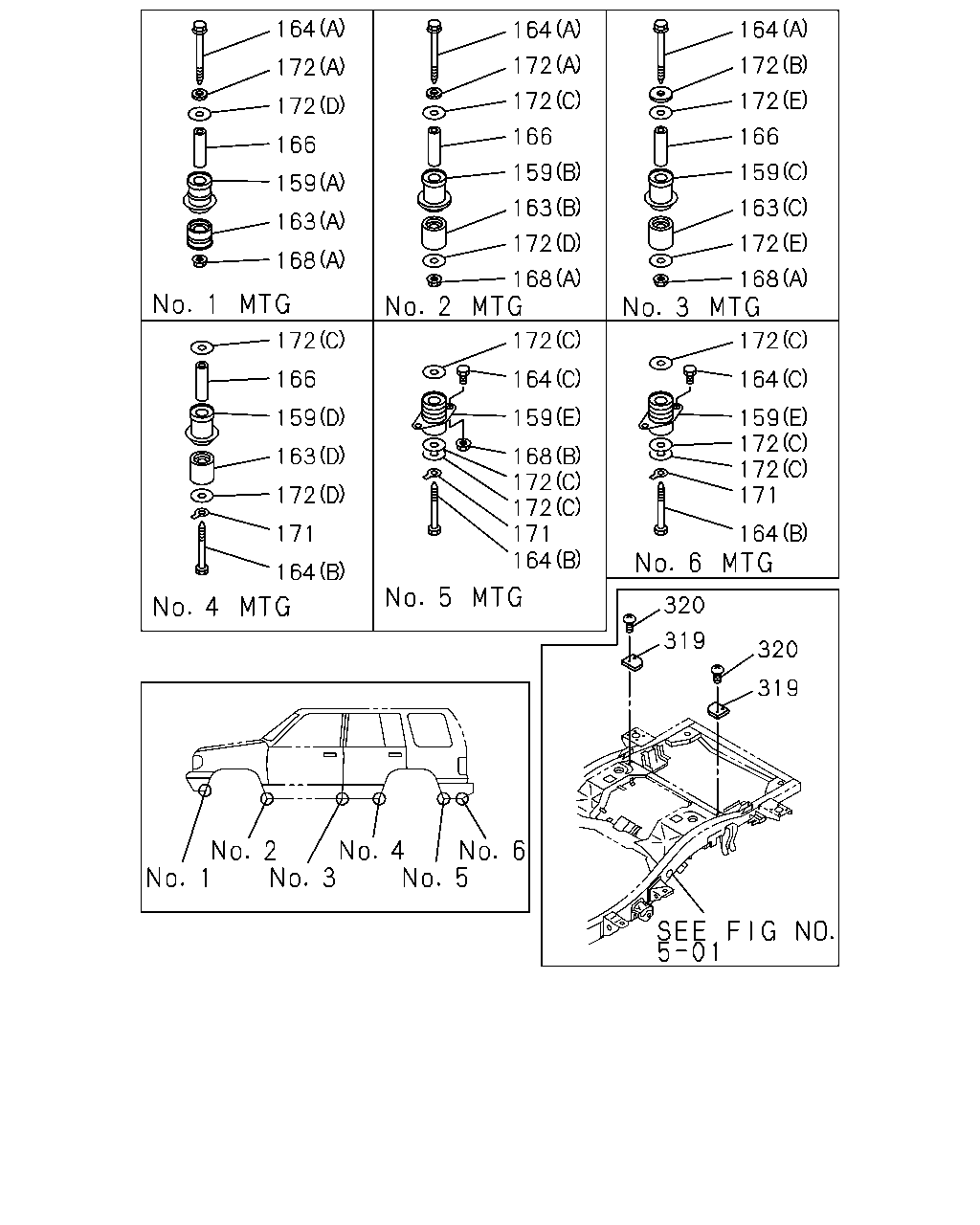

164 172 172 164 172 172 166 159 163 168 164 172 172 166 159 163 172 168 166 159 163 172 168 172 164 159 168 172 164 159 172 172 171 164 172 172 171 164 320 319 320 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9202-9504	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9505-	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9202-9504	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9505-	●
159	RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-078-0	02	1	9507-	●
159	RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-94325-155-2	02	1	9112-	●	●
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-94370-629-2	02	1	9112-	●	●
159	RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9112-9201	●	●
159	RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-	●
159	RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-		●
159	RUBBER; CUSHION,CAB MTG EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9112-9410	●	●
159	RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9411-	●	●
159	RUBBER; CUSHION,CAB MTG EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9112-9410	●	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	RUBBER; CUSHION,CAB MTG EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	RUBBER; CUSHION,CAB MTG EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-94325-158-2	02	1	9112-		●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-079-0	02	1	9507-	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-94227-777-1	02	1	9112-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-94325-156-0	02	1	9112-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9112-9410	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9411-9506	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9507-		●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9112-9308	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9112-9308	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9309-9410	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-94157-885-0	02	1	9112-		●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28081-020-0	08	1	9112-9412	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28681-020-0	08	1	9501-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X100	8-94318-911-2	04	1	9112-9302	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X102	8-97091-599-0	04	1	9303-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10X125	8-97042-439-1	06	1	9112-9501	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10X120	8-97122-607-1	06	1	9502-9507	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10X120	8-97134-968-0	06	1	9508-9607	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 M10X120	8-97134-968-0	02	1	9608-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.2 (LWB NO.3)(SWB NO.4) M10X105	8-97142-724-0	04	1	9608-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X100	8-94318-911-2	02	1	9112-9302		●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X102	8-97091-599-0	02	1	9303-		●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97042-440-0	06	1	9112-9605	●	●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97148-478-0	06	1	9606-	●	●
166	PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97042-440-0	02	1	9112-9605		●
166	PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97148-478-0	02	1	9606-		●
168	NUT; CUSHION RUBBER,BODY MTG (B) NO.5 MTG M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10 FLANGE	0-91150-210-0	06	1	9112-	●	●
171	WASHER; BODY MTG RUBBER NO.5 NO.6 MTG ID=10.2	9-09150-810-0	04	1	9112-9302	●	●
171	WASHER; BODY MTG RUBBER NO.4 MTG ID=10.2	9-09150-810-0	02	1	9112-9302		●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	08	1	9208-9308	●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9309-9504	●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9505-	●
172	WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308	●
172	WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308		●
172	WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-	●
172	WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-		●
172	WASHER; BODY MTG RUBBER (D) NO.1 NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	06	1	9112-9207	●	●
172	WASHER; BODY MTG RUBBER (C) NO.2 NO.4 MTG OD=62 T=2.9	8-97077-385-1	04	1	9208-	●	●
172	WASHER; BODY MTG RUBBER (A) NO.1 NO.2 MTG OD=32 T=6.0	8-94416-693-0	04	1	9112-	●	●
172	WASHER; BODY MTG RUBBER (B) LWB NO.3 SWB NO.4 OD=48 T=6.0	8-94416-694-0	02	1	9112-	●	●
172	WASHER; BODY MTG RUBBER (C) NO.2 NO.4 NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	16	1	9112-9207	●	●
172	WASHER; BODY MTG RUBBER (D) NO.1 NO.2 NO.4 MTG OD=48 T=2.9	8-97077-386-1	06	1	9208-9308	●	●
172	WASHER; BODY MTG RUBBER (D) NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9309-	●	●
172	WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-	●	●
172	WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-		●
172	WASHER; BODY MTG RUBBER (E) NO.3 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9112-9207		●
172	WASHER; BODY MTG RUBBER (E) NO.3 MTG OD=48 T=2.9	8-97077-386-1	04	1	9208-9308		●
172	WASHER; BODY MTG RUBBER (E) NO.3 LOWER ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9309-		●
319	GASKET; BODY MTG BOLT RR COIL & LINK SUSPENSION<6SV>	8-97021-539-3	02	1	9112-9504	●	●
319	GASKET; BODY MTG BOLT	8-97021-539-3	02	1	9505-	●	●
319	GASKET; BODY MTG BOLT EXC. RR COIL & LINK SUSPENSION<6SV>	8-94362-270-0	02	1	9112-9504	●	●
320	SCREW; BODY MTG GASKET M6X16 TAPPING CK-HEAD	0-70180-616-0	04	1	9112-	●	●

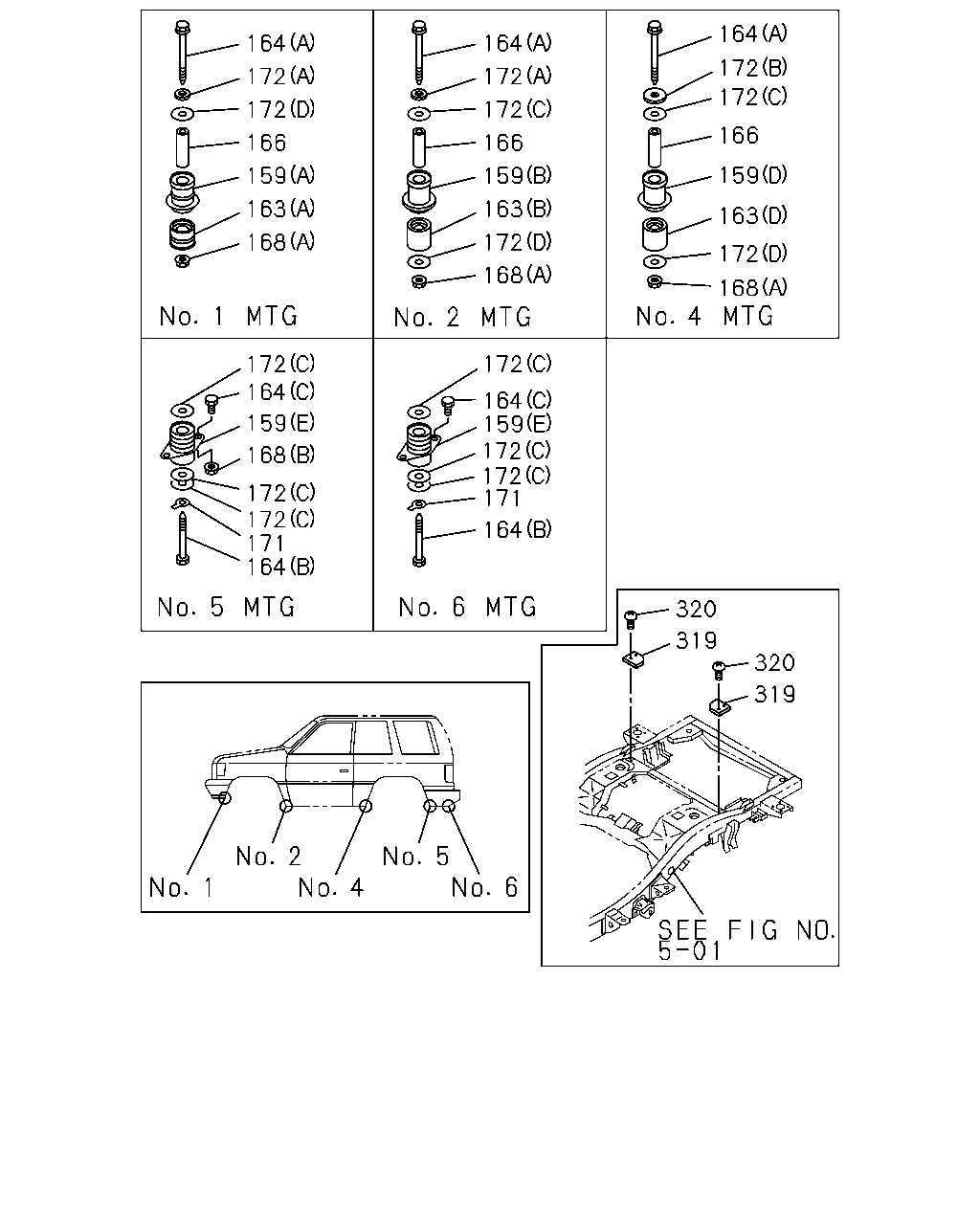

164 164 172 172 164 172 172 172 172 166 159 163 172 168 172 166 159 163 172 168 172 166 159 163 168 172 164 164 166 159 159 159 172 172 171 163 168 172 172 171 164 172 164 171 164 320 319 320 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9202-9504	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-844-0	02	1	9505-	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9202-9504	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) (E) NO.5 NO.6 MTG	8-97077-843-0	02	1	9505-	●
159	RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-078-0	02	1	9507-	●
159	RUBBER; CUSHION,CAB MTG (A) NO.1 MTG	8-94325-155-2	02	1	9112-	●	●
159	RUBBER; CUSHION,CAB MTG (D) NO.4 MTG	8-94370-629-2	02	1	9112-	●	●
159	RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9112-9201	●	●
159	RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-	●
159	RUBBER; CUSHION,CAB MTG (E) NO.5 NO.6 MTG	8-94370-631-1	04	1	9202-		●
159	RUBBER; CUSHION,CAB MTG EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9112-9410	●	●
159	RUBBER; CUSHION,CAB MTG 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-571-2	02	1	9411-	●	●
159	RUBBER; CUSHION,CAB MTG EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9112-9410	●	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	RUBBER; CUSHION,CAB MTG EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9411-9504	●	●
159	RUBBER; CUSHION,CAB MTG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	RUBBER; CUSHION,CAB MTG EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-778-3	02	1	9505-	●	●
159	RUBBER; CUSHION,CAB MTG (C) NO.3 MTG	8-94325-158-2	02	1	9112-		●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97132-079-0	02	1	9507-	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (D) NO.4 MTG	8-94227-777-1	02	1	9112-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (A) NO.1 MTG	8-94325-156-0	02	1	9112-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9112-9410	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9411-9506	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-97035-572-1	02	1	9507-		●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9112-9308	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9112-9308	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9309-9410	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC),4JG1 ENG(RLT) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9411-9504	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (B) NO.2 MTG	8-94227-777-1	02	1	9505-	●	●
163	RUBBER; CUSHION,BODY MTG,REBOUND (C) NO.3 MTG	8-94157-885-0	02	1	9112-		●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28081-020-0	08	1	9112-9412	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (C) NO.5 NO.6 MTG M10X20 FLANGE	0-28681-020-0	08	1	9501-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X100	8-94318-911-2	04	1	9112-9302	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.5 NO.6 MTG M10X102	8-97091-599-0	04	1	9303-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10X125	8-97042-439-1	06	1	9112-9501	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10X120	8-97122-607-1	06	1	9502-9507	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10X120	8-97134-968-0	06	1	9508-9607	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.1 M10X120	8-97134-968-0	02	1	9608-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (A) NO.2 (LWB NO.3)(SWB NO.4) M10X105	8-97142-724-0	04	1	9608-	●	●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X100	8-94318-911-2	02	1	9112-9302		●
164	BOLT; CUSHION RUBBER,CAB MTG (B) NO.4 MTG M10X102	8-97091-599-0	02	1	9303-		●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97042-440-0	06	1	9112-9605	●	●
166	PIECE; DIST,BODY MTG RUBBER NO.1 NO.2 NO.4 MTG L=70	8-97148-478-0	06	1	9606-	●	●
166	PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97042-440-0	02	1	9112-9605		●
166	PIECE; DIST,BODY MTG RUBBER NO.3 MTG L=70	8-97148-478-0	02	1	9606-		●
168	NUT; CUSHION RUBBER,BODY MTG (B) NO.5 MTG M10 FLANGE	0-91150-110-0	04	1	9112-	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) NO.1 NO.2 NO.3 SWB NO.4 M10 FLANGE	0-91150-210-0	06	1	9112-	●	●
171	WASHER; BODY MTG RUBBER NO.5 NO.6 MTG ID=10.2	9-09150-810-0	04	1	9112-9302	●	●
171	WASHER; BODY MTG RUBBER NO.4 MTG ID=10.2	9-09150-810-0	02	1	9112-9302		●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	08	1	9208-9308	●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9309-9504	●
172	WASHER; BODY MTG RUBBER 4JG2 ENG(RJC) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	08	1	9505-	●
172	WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308	●
172	WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG OD=62 T=2.9	8-97077-385-1	12	1	9208-9308		●
172	WASHER; BODY MTG RUBBER 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-	●
172	WASHER; BODY MTG RUBBER (C) NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	12	1	9309-		●
172	WASHER; BODY MTG RUBBER (D) NO.1 NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	06	1	9112-9207	●	●
172	WASHER; BODY MTG RUBBER (C) NO.2 NO.4 MTG OD=62 T=2.9	8-97077-385-1	04	1	9208-	●	●
172	WASHER; BODY MTG RUBBER (A) NO.1 NO.2 MTG OD=32 T=6.0	8-94416-693-0	04	1	9112-	●	●
172	WASHER; BODY MTG RUBBER (B) LWB NO.3 SWB NO.4 OD=48 T=6.0	8-94416-694-0	02	1	9112-	●	●
172	WASHER; BODY MTG RUBBER (C) NO.2 NO.4 NO.5 NO.6 MTG ID=11 OD=62 T=2.9	8-97037-993-0	16	1	9112-9207	●	●
172	WASHER; BODY MTG RUBBER (D) NO.1 NO.2 NO.4 MTG OD=48 T=2.9	8-97077-386-1	06	1	9208-9308	●	●
172	WASHER; BODY MTG RUBBER (D) NO.2 NO.4 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9309-	●	●
172	WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-	●	●
172	WASHER; BODY MTG RUBBER (D) NO.1 (E) NO.3 UPPER OD=48 T=2.9	8-97077-386-1	02	1	9309-		●
172	WASHER; BODY MTG RUBBER (E) NO.3 MTG ID=11 OD=48 T=2.9	8-94223-170-0	04	1	9112-9207		●
172	WASHER; BODY MTG RUBBER (E) NO.3 MTG OD=48 T=2.9	8-97077-386-1	04	1	9208-9308		●
172	WASHER; BODY MTG RUBBER (E) NO.3 LOWER ID=11 OD=48 T=2.9	8-94223-170-0	02	1	9309-		●
319	GASKET; BODY MTG BOLT RR COIL & LINK SUSPENSION<6SV>	8-97021-539-3	02	1	9112-9504	●	●
319	GASKET; BODY MTG BOLT	8-97021-539-3	02	1	9505-	●	●
319	GASKET; BODY MTG BOLT EXC. RR COIL & LINK SUSPENSION<6SV>	8-94362-270-0	02	1	9112-9504	●	●
320	SCREW; BODY MTG GASKET M6X16 TAPPING CK-HEAD	0-70180-616-0	04	1	9112-	●	●

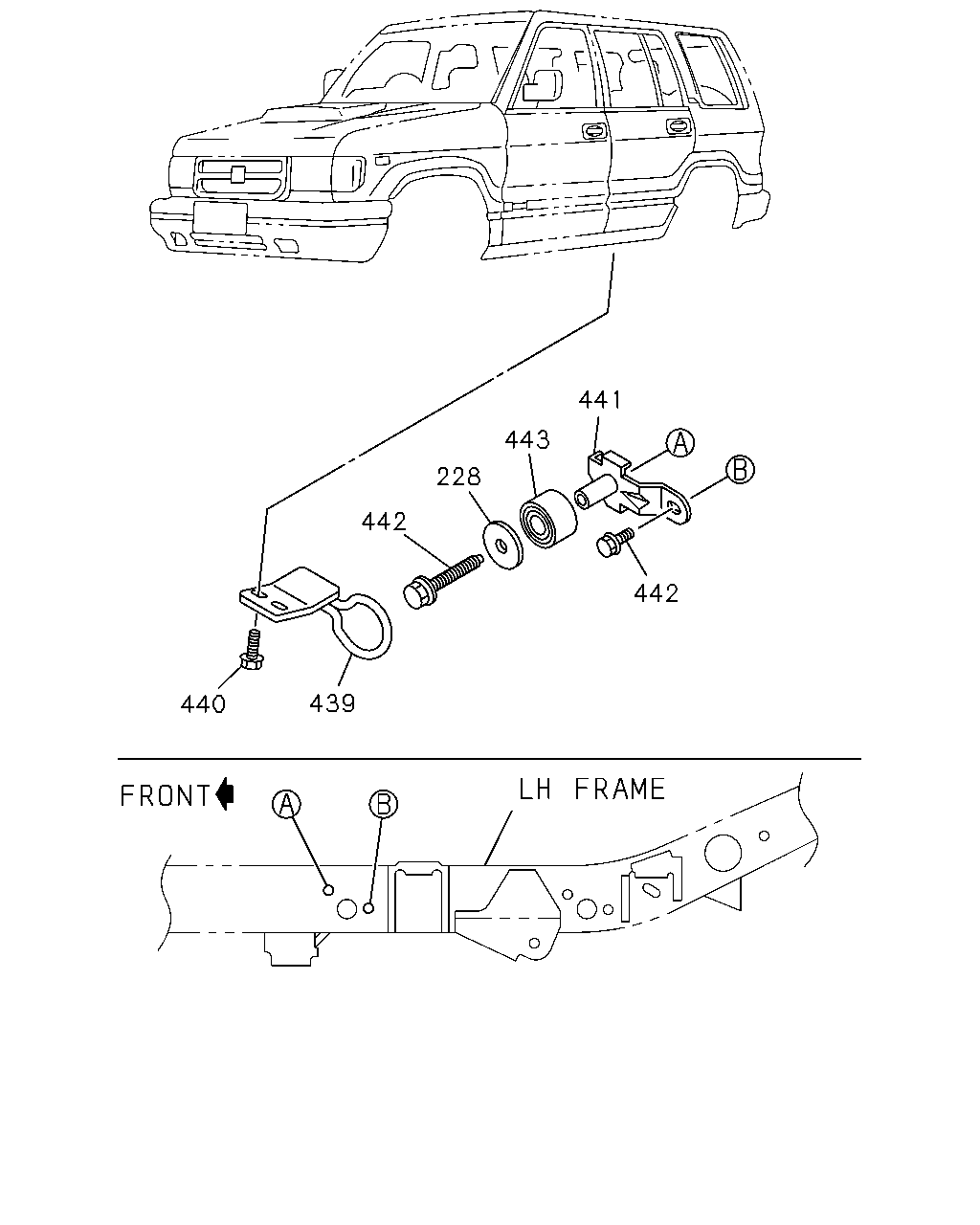

441 443 228 442 442 439 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
228	WASHER; PL AIR BAG DRIVER<AJ3> ID=15 OD=36	9-09164-714-0	02	1	9608-	●	●
439	ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-499-1	01	1	9608-	●	●
439	ROD; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-498-1	01	1	9608-	●	●
440	BOLT; ROD AIR BAG DRIVER<AJ3> M14X30 FLANGE	0-28691-430-0	04	1	9608-	●	●
441	BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-500-1	01	1	9608-	●	●
441	BRACKET; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-501-1	01	1	9608-	●	●
442	BOLT; BRKT AIR BAG DRIVER<AJ3> M10X25 FLANGE	0-28691-025-0	02	1	9608-	●	●
442	BOLT; BRKT AIR BAG DRIVER<AJ3> M14X85 FLANGE	8-97022-802-2	02	1	9608-	●	●
443	CUSHION; CAB STOPPER AIR BAG DRIVER<AJ3>	8-97122-502-0	02	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
