0-52A — OIL AND VACUUM PIPING; ENGINE (#3523) — 181 parça

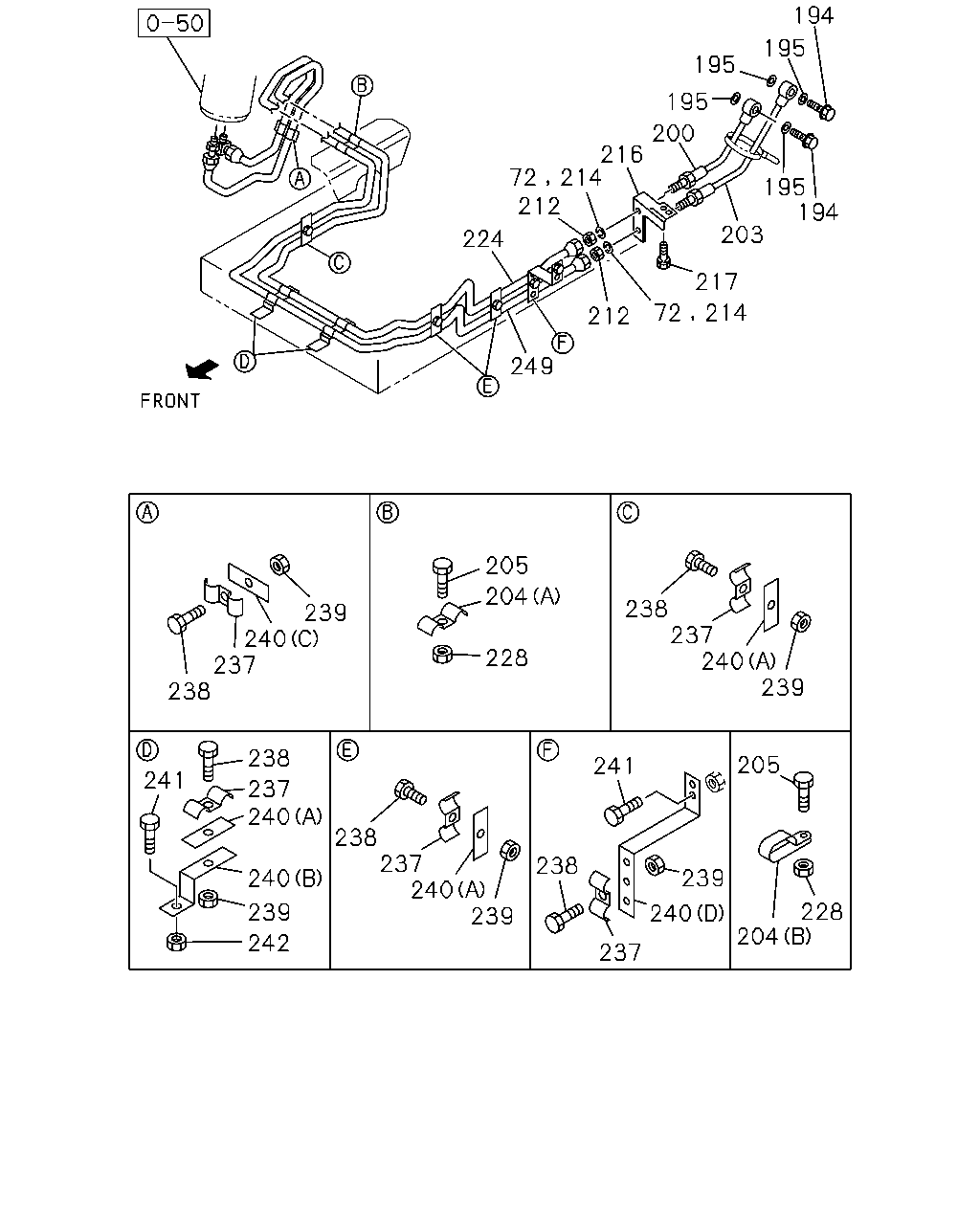

194 195 195 195 200 216 212 195 194 203 224 217 212 249 205 204 238 237 240 239 239 240 237 238 228 238 205 241 241 237 240 238 237 240 239 238 239 240 228 204 239 240 242 237 72 214 72 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	WASHER; LK,OIL PIPE ID=16.2	9-09150-516-0	02	1	9406-	●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M14X27 FLANGE	1-09675-086-0	02	1	9002-	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S> L=500	1-09364-487-0	01	1	9002-9310	●	●
200	HOSE; FLEX,PARTIAL FILTER,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S> L=440	1-09364-488-0	01	1	9311-	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN EXC. OIL FILTER CENTRIFUGAL<E6S> L=500	1-09364-656-0	01	1	9002-9310	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN EXC. OIL FILTER CENTRIFUGAL<E6S> L=440	1-09364-657-0	01	1	9311-	●	●
204	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-09700-656-0	01	1	9307-	●	●
204	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> (B)	9-09535-025-0	02	1	9307-	●	●
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> (A)	1-09700-739-0	01	1	9002-	●	●
204	CLIP; OIL PIPE EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> (B) ID=11X2 L=20	9-09535-036-0	01	1	9002-	●	●
205	BOLT; CLIP ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 FLANGE	0-28080-816-0	03	1	9307-	●	●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●
205	BOLT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
212	NUT; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M16	9-99111-416-0	02	1	9002-	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=16.2	9-09150-516-0	02	1	9002-	●	●
214	WASHER; LK,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=16.2	9-09150-516-0	02	1	9307-9312	●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-296-1	01	1	9002-9310	●	●
216	BRACKET; FLEX HOSE,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-782-0	01	1	9311-	●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 FLANGE	0-28080-820-0	02	1	9307-9410	●	●
217	BOLT; BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X30 FLANGE	0-28080-830-0	02	1	9411-	●	●
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-790-0	01	1	9002-9007		●
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-027-0	01	1	9008-9306	●	●
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9>	1-13313-278-0	01	1	9307-9310	●	●
224	PIPE; OIL,DELIVERY EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9>	1-13313-478-0	01	1	9311-	●	●
224	PIPE; OIL,DELIVERY ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-406-0	01	1	9307-9310	●	●
224	PIPE; OIL,DELIVERY ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-480-0	01	1	9311-	●	●
228	NUT; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9002-	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> L=15.0 & 15.0	1-09700-656-0	01	1	9307-	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> L=17.5 & 17.5	1-09700-739-0	02	1	9307-	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> L=15.0 & 15.0	1-09700-656-0	01	1	9002-9103	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> L=15.0 & 15.0	1-09700-656-0	04	1	9002-9306	●	●
237	CLIP; FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> L=15.0 & 15.0	1-09700-656-0	06	1	9307-	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9204	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9306	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9103	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●
238	BOLT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> M8X16 W/LK WASHER	0-50040-816-0	06	1	9307-	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	04	1	9002-9306	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9307-	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	01	1	9002-9103	●	●
239	NUT; CLIP,FLEX HOSE,PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	06	1	9307-	●	●
240	BRACKET; CLIP ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> (D)	1-47476-824-0	01	1	9307-	●	●
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S> (C)	1-47475-299-2	01	1	9002-	●	●
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> (A)	1-47475-299-2	04	1	9002-	●	●
240	BRACKET; CLIP EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> (B)	1-47475-601-0	02	1	9002-	●	●
241	BOLT; CLIP BRKT ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S> M8X30 FLANGE	0-28080-830-0	02	1	9307-	●	●
241	BOLT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
241	BOLT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●
241	BOLT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
242	NUT; CLIP BRKT EXC. OIL FILTER CENTRIFUGAL<E6S> M8	9-09110-408-0	02	1	9002-	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13312-791-0	01	1	9002-9007		●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-028-0	01	1	9008-9306	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9>	1-13313-280-0	01	1	9307-9310	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE EXC. OIL FILTER CENTRIFUGAL<E6S>,ANTI NOISE EQUIPMENT<SV9>	1-13313-479-0	01	1	9311-	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-407-0	01	1	9307-9310	●	●
249	PIPE; OIL,PARTIAL FILTER TO FLEX HOSE ANTI NOISE EQUIPMENT<SV9> EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13313-481-0	01	1	9311-	●	●

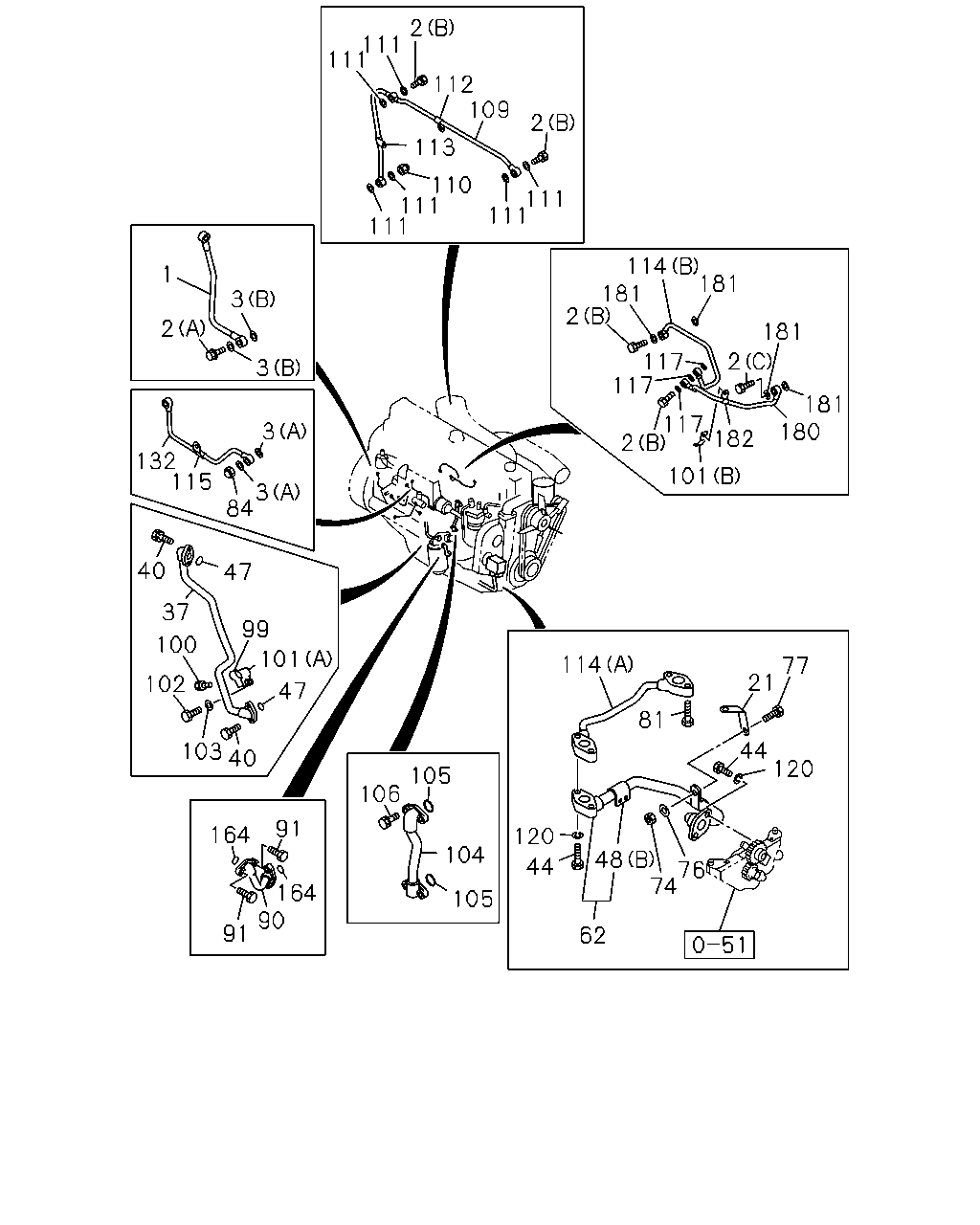

2 111 111 112 109 2 113 110 111 111 111 111 114 181 181 2 1 3 2 181 117 117 2 3 181 180 117 2 3 182 132 115 101 3 84 40 47 37 99 100 101 114 77 21 102 47 81 44 120 103 40 105 106 120 91 164 104 48 76 74 44 164 90 105 91 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	9-13312-675-0	01	1	9002-		●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13312-205-0	01	1	9012-	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9002-9306	●	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	04	1	9307-	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9002-9306	●	●
2	BOLT; EYE,OIL PIPE (A) M12X27 FLANGE	1-09675-085-0	01	1	9307-	●	●
2	BOLT; EYE,OIL PIPE (C) M10X32	1-09675-119-0	01	1	9002-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9002-	●	●
21	STAY; OIL PIPE	1-13345-105-1	01	1	9002-	●	●
37	PIPE; OIL,FILTER TO COOLER	1-13311-848-0	01	1	9002-	●	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005		●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005		●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-9306		●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9307-	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	02	1	9012-9306	●
40	BOLT; OIL PIPE M10X30 W/LK WASHER	0-50051-030-0	02	1	9012-	●
44	BOLT; CLIP,OIL PIPE M8X70	9-01055-870-0	02	1	9002-9005		●
44	BOLT; CLIP,OIL PIPE M8X70	0-10805-870-0	02	1	9006-	●	●
44	BOLT; CLIP,OIL PIPE M10X55	9-01656-055-0	01	1	9002-9004		●
44	BOLT; CLIP,OIL PIPE M10X55	0-16806-055-0	01	1	9005-	●	●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	9-01931-022-0	01	1	9002-9002		●
44	BOLT; CLIP,OIL PIPE M10X22 W/LK WASHER	0-50051-022-0	01	1	9003-	●	●
44	BOLT; CLIP,OIL PIPE M8X20	9-01970-820-0	01	1	9002-9005		●
44	BOLT; CLIP,OIL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9006-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-170-0	02	1	9002-9003		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=27.7	1-09623-450-0	02	1	9004-	●	●
48	CLIP; OIL PIPE (B)	1-09700-377-0	01	1	9002-	●	●
48	CLIP; OIL PIPE (A)	1-09700-113-0	01	1	9012-	●
62	PIPE; OIL,PUMP TO C/BL	1-13311-871-1	01	1	9002-	●	●
74	NUT; CLIP,OIL PIPE,PUMP TO BODY M8	9-09110-408-0	01	1	9002-	●	●
76	WASHER; CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9002-	●	●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005		●
77	BOLT; STAY,PUMP TO BODY M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005		●
81	BOLT; OIL PIPE,BODY TO BODY M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-	●	●
84	NUT; CAP,OIL PIPE M10	9-09844-022-0	01	1	9002-	●	●
90	PIPE ASM; OIL,C/BL TO FILTER	1-13311-849-1	01	1	9002-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22	9-01910-822-0	02	1	9002-9005		●
91	BOLT; OIL PIPE,BODY TO FILTER M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	9-01910-840-0	02	1	9002-9005		●
91	BOLT; OIL PIPE,BODY TO FILTER M8X40 W/LK WASHER	0-50040-840-0	02	1	9006-	●	●
99	CLIP; OIL PIPE,FILTER TO COOLER ID=23.6 L=35	1-09700-634-0	01	1	9002-	●	●
100	BOLT; CLIP M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005		●
100	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-	●	●
100	BOLT; CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002		●
100	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-	●	●
101	BRACKET; CLIP (A)	1-13345-118-0	01	1	9002-	●	●
101	BRACKET; CLIP (B)	1-23219-106-0	01	1	9010-	●	●
102	BOLT; BRKT M14X25	9-92351-425-0	01	1	9002-9005		●
102	BOLT; BRKT M14X25	0-23801-425-0	01	1	9006-	●	●
103	WASHER; LK,BRKT ID=14.2	9-09150-514-0	01	1	9002-	●	●
104	PIPE ASM; OIL,COOLER TO BODY	1-13311-304-1	01	1	9002-	●	●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003		●
105	GASKET; OIL PIPE,COOLER TO BODY ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22	9-01910-822-0	02	1	9002-9005		●
106	BOLT; OIL PIPE,COOLER TO BODY M8X22 W/LK WASHER	0-50040-822-0	02	1	9006-	●	●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	9-01910-828-0	02	1	9002-9005		●
106	BOLT; OIL PIPE,COOLER TO BODY M8X28 W/LK WASHER	0-50040-828-0	02	1	9006-	●	●
109	PIPE ASM; OIL,BODY TO HD	1-13312-057-0	01	1	9002-		●
109	PIPE ASM; OIL,BODY TO HD	1-13312-360-0	01	1	9012-	●
110	NUT; CAP OIL PIPE M10	9-09844-022-0	01	1	9002-		●
110	NUT; CAP OIL PIPE M12	9-09844-632-1	01	1	9012-	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	06	1	9002-		●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	9012-	●
111	GASKET; JOINT,OIL PIPE,BODY TO HD ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9012-	●
112	CLIP; OIL PIPE,TAP CHAMBER CVR	1-09700-144-0	01	1	9002-	●	●
113	CLIP; WATER OUTLET PIPE	1-09700-444-0	01	1	9002-	●	●
114	PIPE ASM; OIL,BODY (A)	1-13311-703-1	01	1	9002-	●	●
114	PIPE ASM; OIL,BODY (B)	1-13312-144-0	01	1	9002-	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-411-0	01	1	9002-9401	●	●
115	CLIP; PIPE,INJ PUMP	9-09917-649-0	01	1	9402-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	03	1	9002-	●	●
120	WASHER; PL,PIPE FIX ID=8.2	9-09150-508-0	02	1	9002-	●	●
120	WASHER; PL,PIPE FIX ID=10.2	9-09150-510-0	01	1	9002-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	9-13312-414-1	01	1	9002-	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-170-0	02	1	9002-9003		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	02	1	9004-	●	●
180	PIPE ASM; OIL,FAN CENTER	1-13312-463-0	01	1	9002-	●	●
181	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9002-	●	●
182	CLIP; OIL PIPE TO ELBOW ID=7 L=20	9-09524-635-0	02	1	9002-	●	●

48 148 147 63 3 3 145 147 40 149 150 152 151 279 278 434 449 279 277 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	9002-	●	●
40	BOLT; OIL PIPE M8X22	9-01910-822-0	03	1	9002-9005		●
40	BOLT; OIL PIPE M8X22 W/LK WASHER	0-50040-822-0	03	1	9006-	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	9-01910-832-0	01	1	9002-9005		●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9006-9306		●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	01	1	9307-	●	●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	02	1	9012-9306	●
40	BOLT; OIL PIPE M10X30 W/LK WASHER	0-50051-030-0	02	1	9012-	●
48	CLIP; OIL PIPE (B)	1-09700-377-0	01	1	9002-	●	●
48	CLIP; OIL PIPE (A)	1-09700-113-0	01	1	9012-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-408-0	01	1	9012-9306	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13312-300-0	01	1	9307-	●
145	NUT; CAP,OIL PIPE,TURBOCHARGER FEED M12	9-09844-632-1	01	1	9012-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9012-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-359-0	01	1	9012-9306	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-273-0	01	1	9307-	●
148	BOLT; FLANGE & BRKT M10X35 W/LK WASHER	0-50051-035-0	02	1	9307-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-815-0	01	1	9012-9306	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-814-0	01	1	9307-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9012-	●
151	NUT; PIPE,TURBOCHARGER RETAINER M8	9-09110-408-0	02	1	9012-	●
152	WASHER; LK,OIL PIPE,TURBOCHARGER ID=8.2	9-09150-508-0	02	1	9012-	●
277	CAP; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11750-024-1	01	1	9002-	●	●
278	HOSE; RUBBER,OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11749-077-0	01	1	9002-	●	●
279	CLIP; RUBBER HOSE EXC. OIL FILLER CAB BACK DELETE<E6X> ID=40	9-09916-024-1	02	1	9002-	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	03	1	9002-9304	●	●
434	NUT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8	9-09110-408-0	04	1	9305-	●	●
448	FILLER; OIL EXC. OIL FILLER CAB BACK DELETE<E6X>	1-11740-213-1	01	1	9002-	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9304	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9305-9306	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9304	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-9412	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X20 FLANGE	0-28080-820-0	04	1	9501-	●	●
449	BOLT; OIL FILLER EXC. OIL FILLER CAB BACK DELETE<E6X> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9307-9412	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
