4-61 — SHOCK ABSORBER; REAR SUSPENSION (#35227) — 60 parça

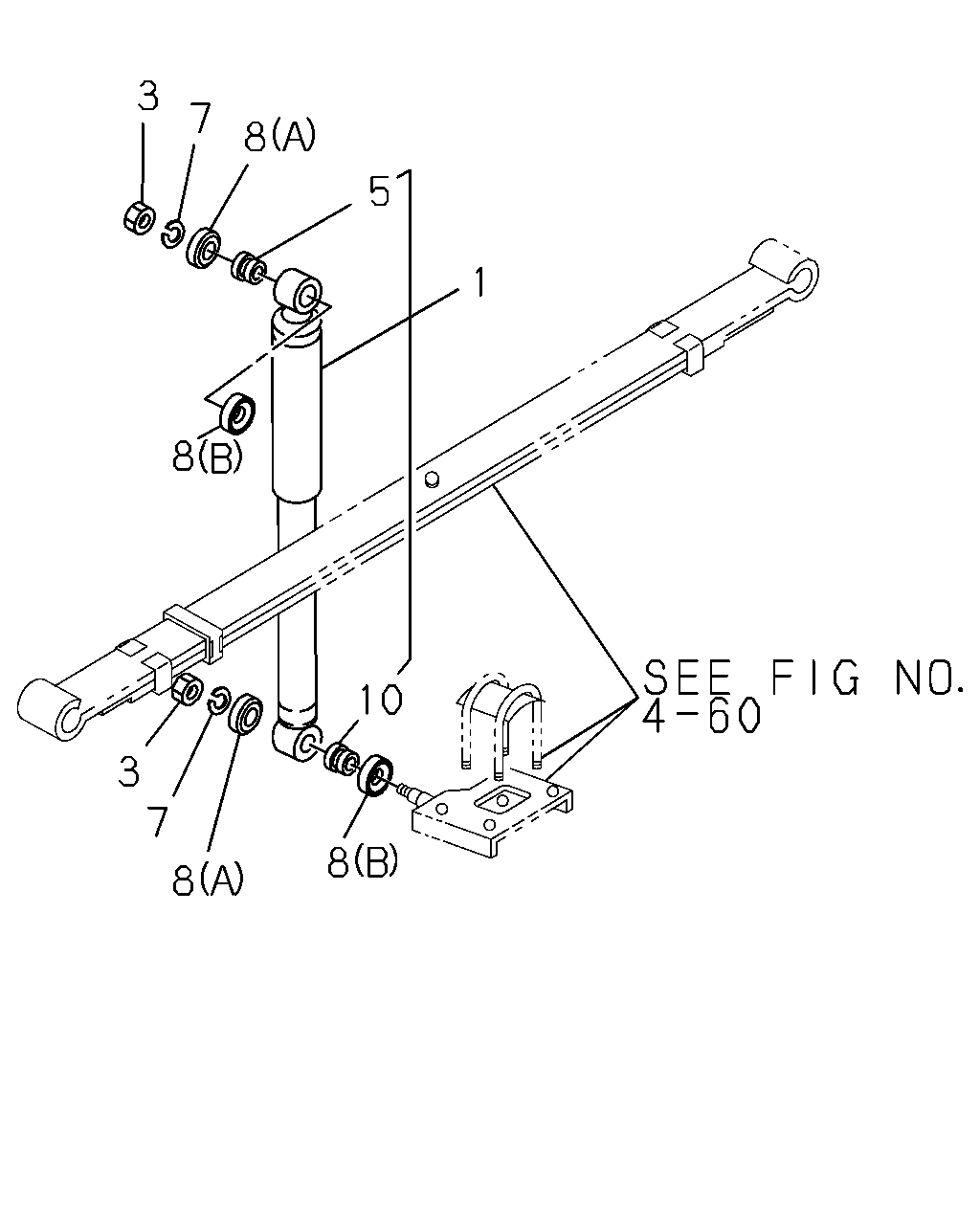

3 7 8 5 1 8 10 3 7 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97043-307-1	02	1	9112-9503	●
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97120-038-0	02	1	9504-9504	●
1	ABSORBER ASM; SHOCK,RR	8-97120-038-0	02	1	9505-	●
1	ABSORBER ASM; SHOCK,RR EXC. RR COIL & LINK SUSPENSION<6SV>	8-94374-630-1	02	1	9112-9504	●	●
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97039-322-1	02	1	9112-9502		●
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97120-037-0	02	1	9503-9504		●
1	ABSORBER ASM; SHOCK,RR	8-97120-037-0	02	1	9505-9607		●
1	ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING(FE2)	8-97120-037-0	02	1	9608-		●
1	ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING(FE2)	8-97043-817-1	02	1	9608-		●
3	NUT; S/ABS RR COIL & LINK SUSPENSION<6SV> M14 FLANGE	8-94137-483-0	04	1	9112-9504	●	●
3	NUT; S/ABS M14 FLANGE	8-94137-483-0	04	1	9505-	●	●
3	NUT; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> M12	9-99111-412-0	04	1	9112-9301	●	●
3	NUT; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> M12	9-99110-412-0	04	1	9302-9504	●	●
5	BUSHING; RUBBER,S/ABS,UPR EXC. RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94224-694-0	02	1	9112-9504	●	●
7	WASHER; LK,S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> ID=12.2	9-09150-512-0	04	1	9112-9504	●	●
8	WASHER; S/ABS RR COIL & LINK SUSPENSION<6SV> (B)	8-97040-376-1	02	1	9112-9504	●	●
8	WASHER; S/ABS (B)	8-97040-376-1	02	1	9505-	●	●
8	WASHER; S/ABS RR COIL & LINK SUSPENSION<6SV> (A) ID=20.0	9-51679-013-0	02	1	9112-9504	●	●
8	WASHER; S/ABS (A) ID=20.0	9-51679-013-0	02	1	9505-	●	●
8	WASHER; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> (B) ID=16.5	8-94445-688-0	04	1	9112-9504	●	●
8	WASHER; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> (A) ID=12.5	9-51679-022-0	04	1	9112-9504	●	●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94382-149-0	02	1	9209-9502	●	●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94382-149-0	02	1	9503-9503	●
10	BUSHING; RUBBER,S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94224-694-0	02	1	9209-9504	●	●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> KAYABA	8-97120-139-0	02	1	9503-9503		●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> KAYABA	8-97120-139-0	02	1	9504-9504	●	●
10	BUSHING; RUBBER,S/ABS KAYABA	8-97120-139-0	02	1	9505-9607	●	●
10	BUSHING; RUBBER,S/ABS KAYABA	8-97120-139-0	02	1	9608-	●
10	BUSHING; RUBBER,S/ABS EXC. SUSPENSION RIDE&HANDLING(FE2) KAYABA	8-97120-139-0	02	1	9608-		●
10	BUSHING; RUBBER,S/ABS SUSPENSION RIDE&HANDLING(FE2) TOKICO	8-94382-149-0	02	1	9608-		●

3 6 8 1 10 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97043-307-1	02	1	9112-9503	●
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97120-038-0	02	1	9504-9504	●
1	ABSORBER ASM; SHOCK,RR	8-97120-038-0	02	1	9505-	●
1	ABSORBER ASM; SHOCK,RR EXC. RR COIL & LINK SUSPENSION<6SV>	8-94374-630-1	02	1	9112-9504	●	●
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97039-322-1	02	1	9112-9502		●
1	ABSORBER ASM; SHOCK,RR RR COIL & LINK SUSPENSION<6SV>	8-97120-037-0	02	1	9503-9504		●
1	ABSORBER ASM; SHOCK,RR	8-97120-037-0	02	1	9505-9607		●
1	ABSORBER ASM; SHOCK,RR EXC. SUSPENSION RIDE&HANDLING(FE2)	8-97120-037-0	02	1	9608-		●
1	ABSORBER ASM; SHOCK,RR SUSPENSION RIDE&HANDLING(FE2)	8-97043-817-1	02	1	9608-		●
3	NUT; S/ABS RR COIL & LINK SUSPENSION<6SV> M14 FLANGE	8-94137-483-0	04	1	9112-9504	●	●
3	NUT; S/ABS M14 FLANGE	8-94137-483-0	04	1	9505-	●	●
3	NUT; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> M12	9-99111-412-0	04	1	9112-9301	●	●
3	NUT; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> M12	9-99110-412-0	04	1	9302-9504	●	●
6	BOLT; S/ABS,RR SUSP RR COIL & LINK SUSPENSION<6SV>	8-97022-803-1	02	1	9112-9504	●	●
6	BOLT; S/ABS,RR SUSP	8-97022-803-1	02	1	9505-	●	●
8	WASHER; S/ABS RR COIL & LINK SUSPENSION<6SV> (B)	8-97040-376-1	02	1	9112-9504	●	●
8	WASHER; S/ABS (B)	8-97040-376-1	02	1	9505-	●	●
8	WASHER; S/ABS RR COIL & LINK SUSPENSION<6SV> (A) ID=20.0	9-51679-013-0	02	1	9112-9504	●	●
8	WASHER; S/ABS (A) ID=20.0	9-51679-013-0	02	1	9505-	●	●
8	WASHER; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> (B) ID=16.5	8-94445-688-0	04	1	9112-9504	●	●
8	WASHER; S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> (A) ID=12.5	9-51679-022-0	04	1	9112-9504	●	●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94382-149-0	02	1	9209-9502	●	●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94382-149-0	02	1	9503-9503	●
10	BUSHING; RUBBER,S/ABS EXC. RR COIL & LINK SUSPENSION<6SV> TOKICO	8-94224-694-0	02	1	9209-9504	●	●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> KAYABA	8-97120-139-0	02	1	9503-9503		●
10	BUSHING; RUBBER,S/ABS RR COIL & LINK SUSPENSION<6SV> KAYABA	8-97120-139-0	02	1	9504-9504	●	●
10	BUSHING; RUBBER,S/ABS KAYABA	8-97120-139-0	02	1	9505-9607	●	●
10	BUSHING; RUBBER,S/ABS KAYABA	8-97120-139-0	02	1	9608-	●
10	BUSHING; RUBBER,S/ABS EXC. SUSPENSION RIDE&HANDLING(FE2) KAYABA	8-97120-139-0	02	1	9608-		●
10	BUSHING; RUBBER,S/ABS SUSPENSION RIDE&HANDLING(FE2) TOKICO	8-94382-149-0	02	1	9608-		●
