◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#35226) — 101 parça

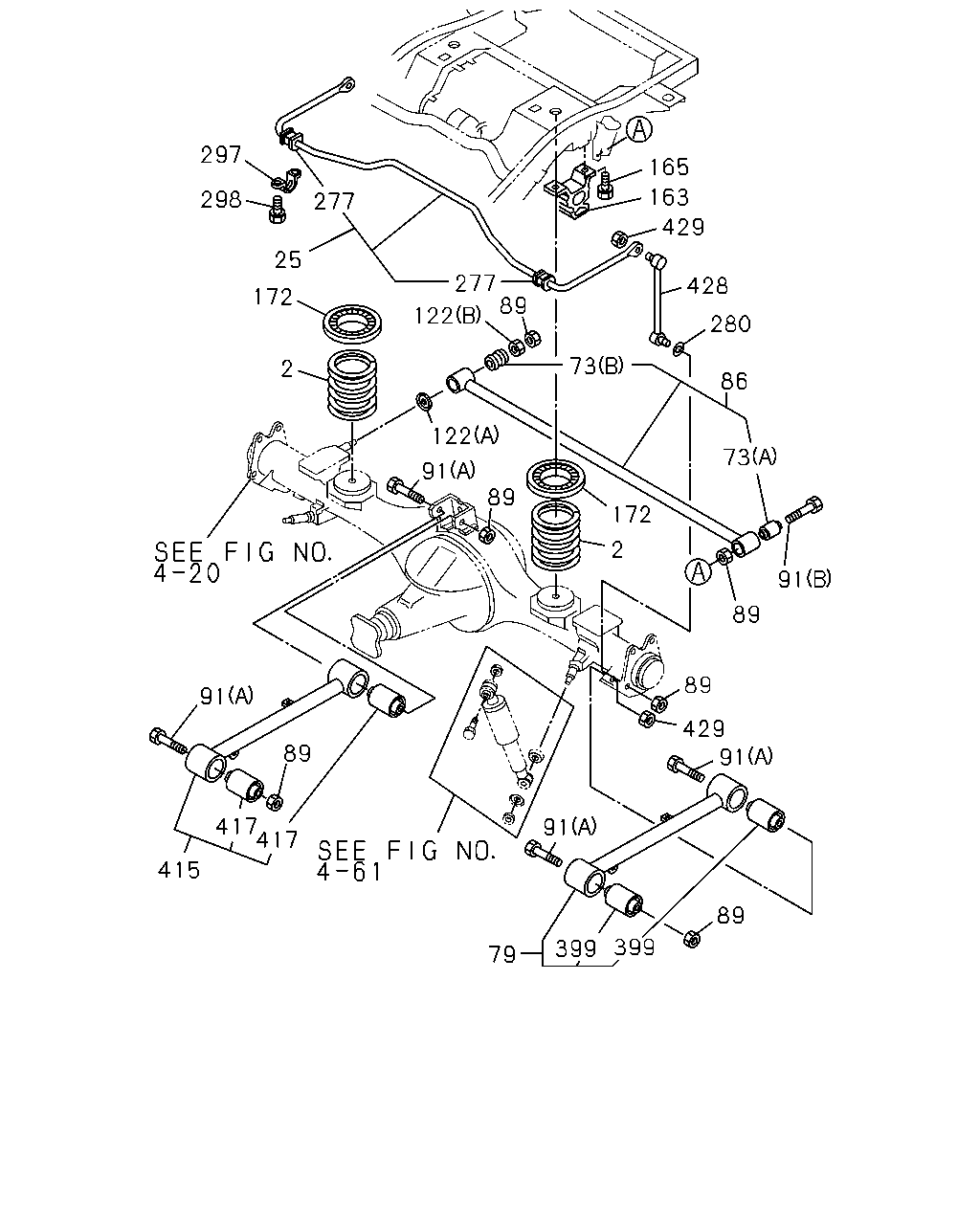

çizim 17053
297 165 163 429 298 277 25 277 89 122 73 428 172 280 2 86 122 91 89 73 172 2 91 89 89 91 429 91 89 417 417 91 415 89 399 399 79
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING; COIL,RR SUSP
EUROPE/CANARY EQUIPMENT(EK4) RR COIL & LINK SUSPENSION<6SV> 		8-97108-028-0 02 1 9406- ●
2 SPRING; COIL,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-97024-489-0 02 1 9112-9405 ●
2 SPRING; COIL,RR SUSP
RR COIL & LINK SUSPENSION<6SV> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97108-026-0 02 1 9406-9504 ●
2 SPRING; COIL,RR SUSP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97108-026-0 02 1 9505- ●
2 SPRING; COIL,RR SUSP
EUROPE/CANARY EQUIPMENT(EK4) RR COIL & LINK SUSPENSION<6SV> 		8-97108-027-0 02 1 9406- ●
2 SPRING; COIL,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-97024-488-0 02 1 9112-9405 ●
2 SPRING; COIL,RR SUSP
RR COIL & LINK SUSPENSION<6SV> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97108-025-0 02 1 9406-9607 ●
2 SPRING; COIL,RR SUSP
EXC. EUROPE/CANARY EQUIPMENT(EK4),SUSPENSION RIDE&HANDLING(FE2) 		8-97108-025-0 02 1 9608- ●
2 SPRING; COIL,RR SUSP
SUSPENSION RIDE&HANDLING(FE2) 		8-97108-030-0 02 1 9608- ●
25 BAR ASM; STAB,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-97039-331-2 01 1 9112-9504 ●
25 BAR ASM; STAB,RR SUSP 8-97039-331-2 01 1 9505-9607 ●
25 BAR ASM; STAB,RR SUSP 8-97039-331-2 01 1 9608- ●
25 BAR ASM; STAB,RR SUSP
SUSPENSION RIDE&HANDLING(FE2) 		8-97039-331-2 01 1 9608- ●
25 BAR ASM; STAB,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-97047-737-2 01 1 9112-9504 ●
25 BAR ASM; STAB,RR SUSP 8-97047-737-2 01 1 9505-9607 ●
25 BAR ASM; STAB,RR SUSP
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97047-737-2 01 1 9608- ●
73 BUSHING; LATERAL ROD,RR SUSP
RR COIL & LINK SUSPENSION<6SV> (A) 		8-94375-106-0 01 1 9112-9504 ● ●
73 BUSHING; LATERAL ROD,RR SUSP
(A) 		8-94375-106-0 01 1 9505- ● ●
73 BUSHING; LATERAL ROD,RR SUSP
RR COIL & LINK SUSPENSION<6SV> (B) 		8-94375-107-1 01 1 9112-9205 ● ●
73 BUSHING; LATERAL ROD,RR SUSP
RR COIL & LINK SUSPENSION<6SV> (B) 		8-97081-408-0 01 1 9206-9504 ● ●
73 BUSHING; LATERAL ROD,RR SUSP
(B) 		8-97081-408-0 01 1 9505- ● ●
79 LINK; TRAILING,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-97069-398-0 02 1 9112-9504 ●
79 LINK; TRAILING,RR SUSP 8-97069-398-0 02 1 9505-9505 ●
79 LINK; TRAILING,RR SUSP 8-97130-543-0 02 1 9505- ●
79 LINK; TRAILING,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-94374-441-2 02 1 9112-9504 ●
79 LINK; TRAILING,RR SUSP 8-94374-441-2 02 1 9505-9505 ●
79 LINK; TRAILING,RR SUSP 8-97130-541-0 02 1 9505- ●
86 ROD; LATERAL,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-94374-445-2 01 1 9112-9504 ● ●
86 ROD; LATERAL,RR SUSP 8-94374-445-2 01 1 9505- ● ●
89 NUT; LATERAL ROD TO RR AXLE
RR COIL & LINK SUSPENSION<6SV> M14 FLANGE 		8-94137-483-0 08 1 9112-9504 ● ●
89 NUT; LATERAL ROD TO RR AXLE
M14 FLANGE 		8-94137-483-0 08 1 9505- ● ●
91 BOLT; LATERAL ROD TO BODY
RR COIL & LINK SUSPENSION<6SV> (A) M14X106 FLANGE 		8-97022-753-2 06 1 9112-9504 ● ●
91 BOLT; LATERAL ROD TO BODY
(A) M14X106 FLANGE 		8-97022-753-2 06 1 9505- ● ●
91 BOLT; LATERAL ROD TO BODY
RR COIL & LINK SUSPENSION<6SV> (B) M14X85 FLANGE 		8-97022-802-2 01 1 9112-9504 ● ●
91 BOLT; LATERAL ROD TO BODY
(B) M14X85 FLANGE 		8-97022-802-2 01 1 9505- ● ●
122 WASHER; LK,LATERAL ROD TO RR AXLE
RR COIL & LINK SUSPENSION<6SV> (A) 		8-94379-595-1 01 1 9112-9504 ● ●
122 WASHER; LK,LATERAL ROD TO RR AXLE
(A) 		8-94379-595-1 01 1 9505- ● ●
122 WASHER; LK,LATERAL ROD TO RR AXLE
RR COIL & LINK SUSPENSION<6SV> (B) 		8-94379-596-1 01 1 9112-9504 ● ●
122 WASHER; LK,LATERAL ROD TO RR AXLE
(B) 		8-94379-596-1 01 1 9505- ● ●
163 RUBBER; HELPER,RR SPR
RR COIL & LINK SUSPENSION<6SV> 		8-94374-448-1 02 1 9112-9504 ● ●
163 RUBBER; HELPER,RR SPR 8-94374-448-1 02 1 9505- ● ●
163 RUBBER; HELPER,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94234-897-2 02 1 9112-9504 ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER 		8-97033-053-1 04 1 9112- ● ●
172 INSULATOR; RR SPR UPR
RR COIL & LINK SUSPENSION<6SV> 		8-94374-447-1 02 1 9112-9410 ● ●
172 INSULATOR; RR SPR UPR
RR COIL & LINK SUSPENSION<6SV> 		8-97113-325-0 02 1 9411-9504 ● ●
172 INSULATOR; RR SPR UPR 8-97113-325-0 02 1 9505- ● ●
277 BUSHING; STAB,RR UPR
RR COIL & LINK SUSPENSION<6SV> 		8-97039-520-0 02 1 9309-9504 ●
277 BUSHING; STAB,RR UPR 8-97039-520-0 02 1 9505-9607 ●
277 BUSHING; STAB,RR UPR 8-97039-520-0 02 1 9608- ●
277 BUSHING; STAB,RR UPR
SUSPENSION RIDE&HANDLING(FE2) 		8-97039-520-0 02 1 9608- ●
277 BUSHING; STAB,RR UPR
RR COIL & LINK SUSPENSION<6SV> 		8-97048-318-0 02 1 9404-9504 ●
277 BUSHING; STAB,RR UPR 8-97048-318-0 02 1 9505-9607 ●
277 BUSHING; STAB,RR UPR
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97048-318-0 02 1 9608- ●
280 WASHER; PL,STAB BAR
RR COIL & LINK SUSPENSION<6SV> 		8-97049-475-0 02 1 9112-9504 ● ●
280 WASHER; PL,STAB BAR 8-97049-475-0 02 1 9505- ● ●
297 CAP; STAB BAR
RR COIL & LINK SUSPENSION<6SV> ID=36 		8-97032-869-0 02 1 9112-9504 ● ●
297 CAP; STAB BAR
ID=36 		8-97032-869-0 02 1 9505- ● ●
298 BOLT; STAB BAR TO BODY
RR COIL & LINK SUSPENSION<6SV> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9112-9504 ● ●
298 BOLT; STAB BAR TO BODY
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9505- ● ●
399 BUSHING; TRAILING ROD
RR COIL & LINK SUSPENSION<6SV> 		8-94375-105-0 04 1 9112-9504 ●
399 BUSHING; TRAILING ROD 8-94375-105-0 04 1 9505- ●
399 BUSHING; TRAILING ROD
RR COIL & LINK SUSPENSION<6SV> 		8-97021-055-0 04 1 9112-9504 ●
399 BUSHING; TRAILING ROD 8-97021-055-0 04 1 9505- ●
415 LINK; CENTER,RR SUSP
RR COIL & LINK SUSPENSION<6SV> 		8-94374-443-0 01 1 9112-9504 ● ●
415 LINK; CENTER,RR SUSP 8-94374-443-0 01 1 9505- ● ●
417 BUSHING; CENTER LINK
RR COIL & LINK SUSPENSION<6SV> 		8-97021-055-0 02 1 9112-9504 ● ●
417 BUSHING; CENTER LINK 8-97021-055-0 02 1 9505- ● ●
428 LINK; RR STABILIZER
RR COIL & LINK SUSPENSION<6SV> 		8-97018-125-1 02 1 9112-9504 ● ●
428 LINK; RR STABILIZER 8-97018-125-2 02 1 9505- ● ●
429 NUT; LINK
RR COIL & LINK SUSPENSION<6SV> 		8-97035-383-0 04 1 9112-9504 ● ●
429 NUT; LINK 8-97035-383-0 04 1 9505- ● ●

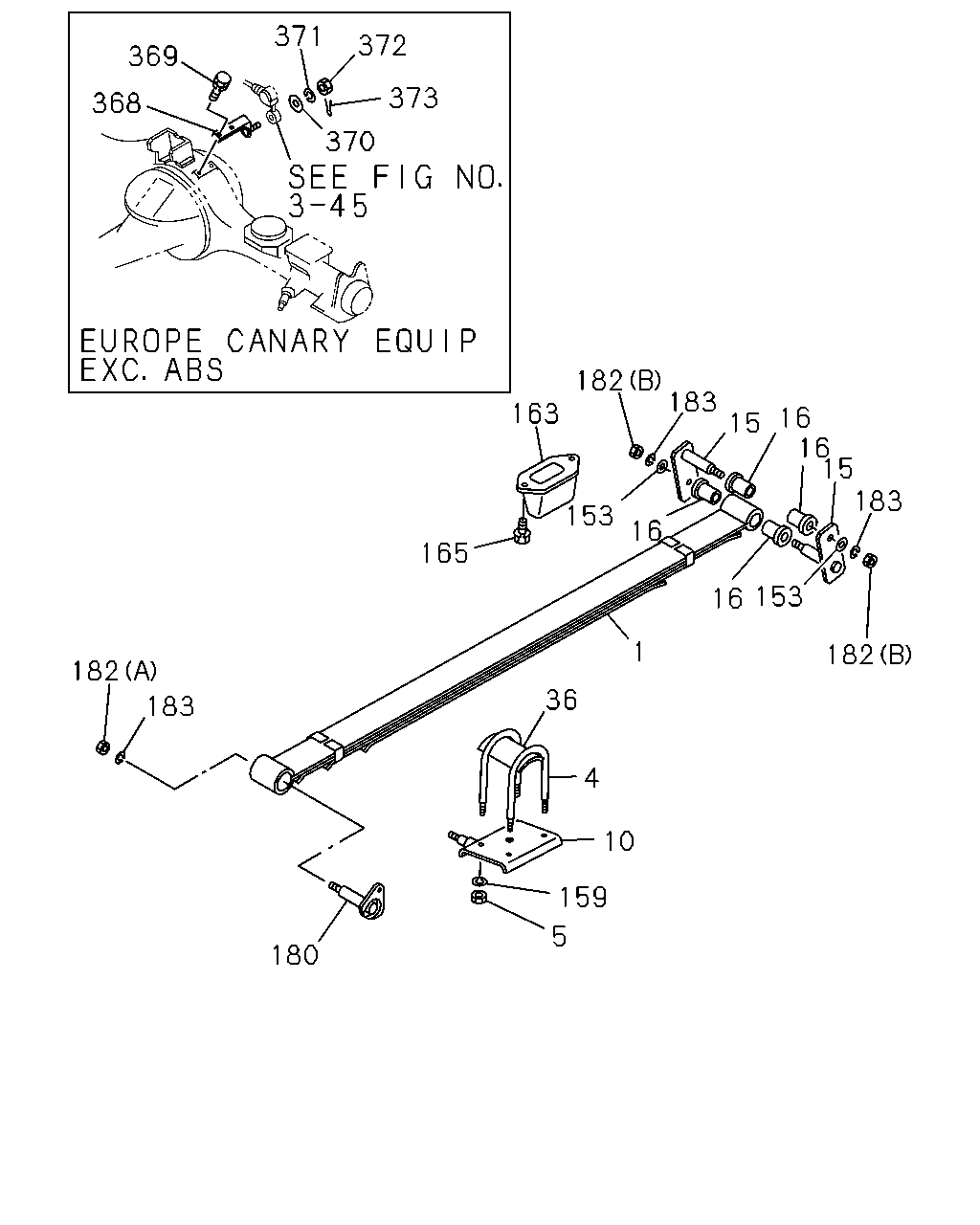

çizim 65715
371 372 369 373 368 370 182 183 163 15 16 16 15 183 153 16 165 1 182 182 183 36 4 10 159 5 180 16 153
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94386-144-0 02 1 9112-9504 ● ●
4 U-BOLT; RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-97011-874-0 04 1 9112-9504 ● ●
5 NUT; U-BOLT,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> M14 		9-99110-514-0 08 1 9112-9504 ● ●
10 CLAMP; LWR,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94386-180-0 02 1 9112-9504 ● ●
15 SHACKLE; RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94253-846-1 04 1 9112-9502 ● ●
15 SHACKLE; RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-97023-145-1 04 1 9503-9504 ● ●
16 BUSHING; SHACKLE,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94234-319-0 08 1 9112-9504 ● ●
36 SEAT; HELPER RUBBER,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-97022-246-0 02 1 9112-9504 ● ●
153 WASHER; PL,SPRING PIN
EXC. RR COIL & LINK SUSPENSION<6SV> ID=14.5 OD=30 		8-94476-635-0 02 1 9112-9504 ● ●
159 WASHER; LK,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> ID=14.2 		9-09150-614-0 08 1 9112-9504 ● ●
163 RUBBER; HELPER,RR SPR
RR COIL & LINK SUSPENSION<6SV> 		8-94374-448-1 02 1 9112-9504 ● ●
163 RUBBER; HELPER,RR SPR 8-94374-448-1 02 1 9505- ● ●
163 RUBBER; HELPER,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94234-897-2 02 1 9112-9504 ● ●
165 BOLT; HELPER RUBBER
M10X20 W/LK WASHER 		8-97033-053-1 04 1 9112- ● ●
180 PIN; RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> M14X106 		8-94438-834-1 02 1 9112-9504 ● ●
182 NUT; PIN,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> (A) M14 		8-94232-849-0 02 1 9112-9504 ● ●
182 NUT; PIN,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> (B) M14 		9-99110-414-0 04 1 9112-9504 ● ●
183 WASHER; LK,PIN,RR SPR
EXC. RR COIL & LINK SUSPENSION<6SV> ID=14.2 		9-09150-614-0 04 1 9112-9504 ● ●
368 BRACKET; SHACKLE TO RR AXLE
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) 		8-97012-291-0 01 1 9112-9409 ● ●
368 BRACKET; SHACKLE TO RR AXLE
EUROPE/CANARY EQUIPMENT(EK4) 		8-97012-291-0 01 1 9410- ● ●
369 BOLT; BRKT TO RR AXLE
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9112-9409 ● ●
369 BOLT; BRKT TO RR AXLE
EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9410- ● ●
370 RETAINER; SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) 		8-94241-364-0 01 1 9112-9409 ● ●
370 RETAINER; SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) 		8-94241-364-0 01 1 9410- ● ●
371 WASHER; LK,SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) ID=8.2 		9-09150-508-0 01 1 9112-9409 ● ●
371 WASHER; LK,SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) ID=8.2 		9-09150-508-0 01 1 9410- ● ●
372 NUT; SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) M8 		9-09117-408-0 01 1 9112-9409 ● ●
372 NUT; SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) M8 		9-09117-408-0 01 1 9410- ● ●
373 PIN; SPLIT,SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) OD=1.8 L=15 		9-08112-015-0 01 1 9112-9409 ● ●
373 PIN; SPLIT,SHACKLE
EUROPE/CANARY EQUIPMENT(EK4) OD=1.8 L=15 		9-08112-015-0 01 1 9410- ● ●
