◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#35225) — 86 parça

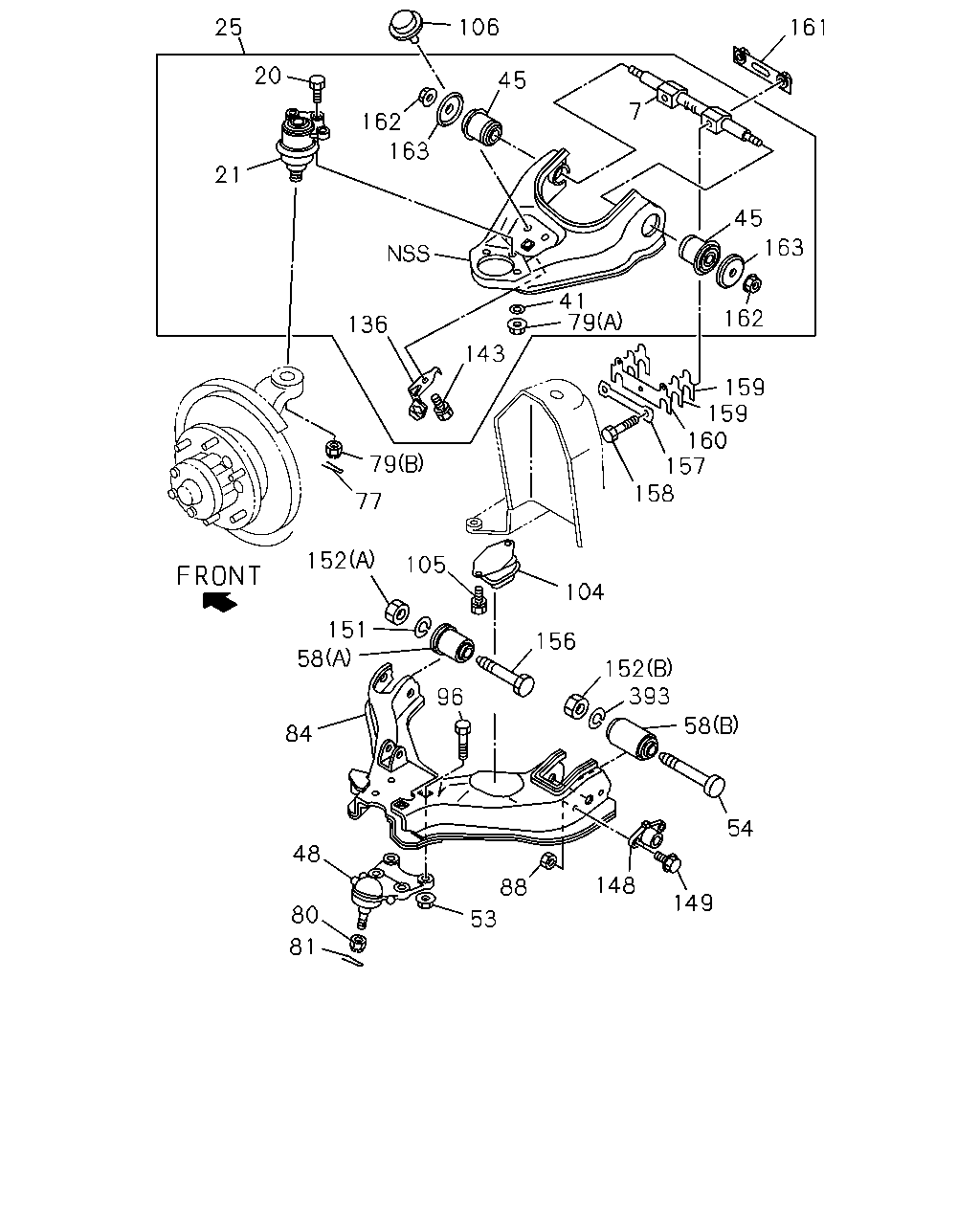

çizim 17052
25 106 161 20 45 7 162 163 21 45 163 162 41 79 136 143 159 159 160 157 158 79 77 152 105 104 151 58 156 152 393 58 96 84 54 48 148 88 53 149 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
7 PIN; FULCRUM,UPR LINK 8-94381-234-3 02 1 9112- ● ●
20 BOLT; UPR LINK END TO UPR LINK
M10X28 		8-94382-103-0 06 1 9112-9401 ● ●
20 BOLT; UPR LINK END TO UPR LINK
M10X30 		8-97010-129-0 06 1 9402- ● ●
21 JOINT ASM; BALL,UPR CONT ARM 8-94374-424-0 02 1 9112- ● ●
25 ARM; UPR CONT 8-94374-419-5 01 1 9112- ● ●
25 ARM; UPR CONT 8-94374-418-5 01 1 9112- ● ●
41 WASHER; LK,UPR LINK END TO UPR LINK
ID=10.2 		9-09150-810-0 06 1 9112-9401 ● ●
45 BUSHING; UPR LINK,FRT 8-94408-840-3 04 1 9112- ● ●
48 JOINT ASM; BALL,LWR CONT ARM 8-94459-465-2 02 1 9112- ● ●
53 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 08 1 9112- ● ●
54 PIN; FULCRUM,LWR LINK
M18X127 		8-97032-986-0 02 1 9112- ● ●
58 BUSHING; LWR LINK
(A) FRONT 		8-97018-165-0 02 1 9112- ● ●
58 BUSHING; LWR LINK
(B) REAR ID=18.2 OD=44.1 L=85.2 		8-97018-166-1 02 1 9112- ● ●
77 PIN; SPLIT,LINK END TO KNUCKLE
OD=2.8 L=28 		9-08113-028-0 02 1 9112- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(B) M14 SLOTTED 		8-94124-556-0 02 1 9112- ● ●
79 NUT; UPR LINK END TO KNUCKLE
(A) M10 FLANGE 		8-94383-595-0 06 1 9112- ● ●
80 NUT; LWR LINK END TO KNUCKLE
M18 SLOTTED 		9-99116-418-0 02 1 9112- ● ●
81 PIN; SPLIT,LWR LINK TO KNUCKLE
OD=3.7 L=30 		9-08114-030-0 02 1 9112- ● ●
84 ARM; LWR CONT 8-94374-429-1 01 1 9112- ● ●
84 ARM; LWR CONT 8-94374-428-1 01 1 9112- ● ●
88 NUT; LWR LINK
M12 FLANGE 		0-91150-212-0 04 1 9505- ● ●
96 BOLT; LWR LINK
M12X35 		9-92061-235-0 08 1 9112-9407 ● ●
96 BOLT; LWR LINK
M12X50 		9-92061-250-0 08 1 9408- ● ●
104 RUBBER; BUMPER,STRUT 8-94374-431-0 01 1 9112- ● ●
104 RUBBER; BUMPER,STRUT 8-94374-430-0 01 1 9112- ● ●
105 BOLT; STRUT BAR TO LWR LINK
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9112- ● ●
106 RUBBER; REBOUND,STRUT 8-94374-432-0 02 1 9112- ● ●
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-605-1 01 1 9112- ● ●
136 BRACKET; FLEX HOSE,FRT BRAKE 8-94387-604-1 01 1 9112- ● ●
143 BOLT; BRKT,FLEX HOSE,FRT BRAKE
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9112- ● ●
148 ARM; LWR LINK 8-97018-220-0 02 1 9112- ● ●
149 BOLT; ARM TO LWR CONT ARM
M12X37 FLANGE 		8-94382-104-1 04 1 9112- ● ●
151 WASHER; LK,LWR LINK TO FRT C/MBR
ID=16.2 		9-09150-616-0 02 1 9112- ● ●
152 NUT; LWR LINK TO FRT C/MBR
(A) M16 		8-94478-728-0 02 1 9112- ● ●
152 NUT; LWR LINK TO FRT C/MBR
(B) M18 		8-94478-729-0 02 1 9112- ● ●
156 PIN; FULCRUM,FRT SUSPENSION
M16X91 		8-94173-359-0 02 1 9112- ● ●
157 PLATE; UPR LINK TO FRAME 8-94382-920-1 02 1 9112- ● ●
158 BOLT; UPR LINK TO FRAME
M14X65 		8-94478-730-0 04 1 9112- ● ●
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=0.40 		8-94227-053-1 AR 1 9112- ● ●
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=1.60 		8-94227-054-2 AR 1 9112- ● ●
159 SHIM; CASTER ANGLE,FRT SUSPENSION
T=3.20 		8-94241-885-3 AR 1 9112- ● ●
160 SHIM; CAMBER ANGLE,FRT SUSPENSION
T=3.20 		8-94381-376-1 AR 1 9112- ● ●
160 SHIM; CAMBER ANGLE,FRT SUSPENSION
T=1.60 		8-94381-377-1 AR 1 9112- ● ●
161 NUT ASM; UPR LINK TO FRAME 8-94381-235-0 02 1 9112- ● ●
162 NUT; FULCRUM PIN TO UPR ARM
M14 FLANGE 		8-94137-483-0 04 1 9112- ● ●
163 PLATE; FULCRUM PIN,UPR LINK 8-94407-707-0 04 1 9112- ● ●
393 WASHER; PL
ID=19 OD=36 		9-09164-618-0 02 1 9412- ● ●
çizim 19042
14 65 17 18 62 17 65 60 76 103
BalonParca AdiParca NoAdetTipApplied Date A B
14 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 9112-9502 ● ●
14 NUT; S/ABS,UPR
EXC. RR COIL & LINK SUSPENSION<6SV> M10 		8-94317-772-0 02 1 9503-9504 ● ●
14 NUT; S/ABS,UPR
RR COIL & LINK SUSPENSION<6SV> 		8-97120-140-0 02 1 9503-9504 ● ●
14 NUT; S/ABS,UPR 8-97120-140-0 02 1 9505-9607 ● ●
14 NUT; S/ABS,UPR 8-97120-140-0 02 1 9608- ●
14 NUT; S/ABS,UPR
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97120-140-0 02 1 9608- ●
14 NUT; S/ABS,UPR
SUSPENSION RIDE&HANDLING(FE2) M10 		8-94317-772-0 02 1 9608- ●
17 BUSHING; RUBBER,S/ABS 8-97036-284-0 04 1 9112-9502 ● ●
17 BUSHING; RUBBER,S/ABS
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-97036-284-0 04 1 9503-9504 ● ●
17 BUSHING; RUBBER,S/ABS
RR COIL & LINK SUSPENSION<6SV> 		8-97120-138-0 04 1 9503-9504 ● ●
17 BUSHING; RUBBER,S/ABS 8-97120-138-0 04 1 9505-9607 ● ●
17 BUSHING; RUBBER,S/ABS 8-97120-138-0 04 1 9608- ●
17 BUSHING; RUBBER,S/ABS
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97120-138-0 04 1 9608- ●
17 BUSHING; RUBBER,S/ABS
SUSPENSION RIDE&HANDLING(FE2) 		8-97036-284-0 04 1 9608- ●
18 WASHER; CENTERING,S/ABS 8-97036-285-0 02 1 9112-9502 ● ●
18 WASHER; CENTERING,S/ABS
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-97036-285-0 02 1 9503-9504 ● ●
18 WASHER; CENTERING,S/ABS
RR COIL & LINK SUSPENSION<6SV> 		8-97120-137-0 02 1 9503-9504 ● ●
18 WASHER; CENTERING,S/ABS 8-97120-137-0 02 1 9505-9607 ● ●
18 WASHER; CENTERING,S/ABS 8-97120-137-0 02 1 9608- ●
18 WASHER; CENTERING,S/ABS
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97120-137-0 02 1 9608- ●
18 WASHER; CENTERING,S/ABS
SUSPENSION RIDE&HANDLING(FE2) 		8-97036-285-0 02 1 9608- ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		0-10811-250-0 02 1 9112-9611 ● ●
60 BOLT; S/ABS TO LWR LINK
M12X50 		9-91061-250-0 02 1 9612- ● ●
62 ABSORBER ASM; SHOCK,FRT
RR COIL & LINK SUSPENSION<6SV> 		8-97039-320-1 02 1 9112-9502 ● ●
62 ABSORBER ASM; SHOCK,FRT
RR COIL & LINK SUSPENSION<6SV> 		8-97120-036-0 02 1 9503-9504 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97120-036-0 02 1 9505-9607 ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97120-036-0 02 1 9608- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97120-036-0 02 1 9608- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. RR COIL & LINK SUSPENSION<6SV> 		8-94374-440-1 02 1 9112-9504 ● ●
62 ABSORBER ASM; SHOCK,FRT
SUSPENSION RIDE&HANDLING(FE2) 		8-97039-319-1 02 1 9608- ●
65 WASHER; S/ABS
ID=10.8 		8-97036-286-0 04 1 9112-9502 ● ●
65 WASHER; S/ABS
EXC. RR COIL & LINK SUSPENSION<6SV> ID=10.8 		8-97036-286-0 04 1 9503-9504 ● ●
65 WASHER; S/ABS
RR COIL & LINK SUSPENSION<6SV> 		8-97120-136-0 04 1 9503-9504 ● ●
65 WASHER; S/ABS 8-97120-136-0 04 1 9505-9607 ● ●
65 WASHER; S/ABS 8-97120-136-0 04 1 9608- ●
65 WASHER; S/ABS
EXC. SUSPENSION RIDE&HANDLING(FE2) 		8-97120-136-0 04 1 9608- ●
65 WASHER; S/ABS
SUSPENSION RIDE&HANDLING(FE2) ID=10.8 		8-97036-286-0 04 1 9608- ●
76 WASHER; LK,S/ABS TO LWR LINK
ID=12.2 		9-09150-512-0 02 1 9112- ● ●
103 NUT; S/ABS TO LWR LINK
M12 		9-99111-512-0 02 1 9112- ● ●
