◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#35223) — 17 parça

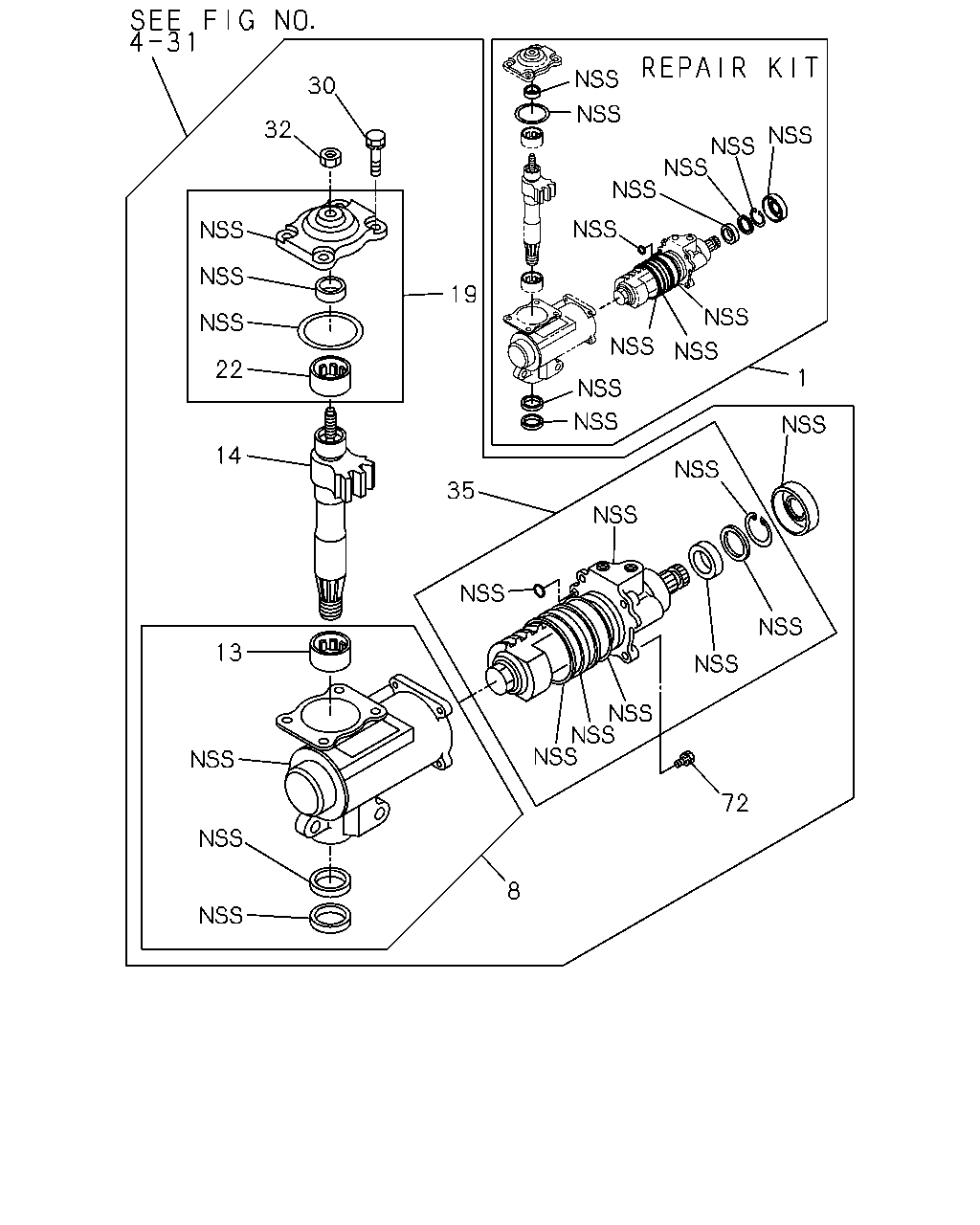

çizim 68673
30 32 19 22 1 14 35 13 72 8
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1 		8-97029-945-0 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: E = 8-97109-986-0 		8-97132-700-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1 		8-97029-939-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97101-354-1, D = 8-97101-355-1 		8-97103-779-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: E = 8-97109-986-0 		8-97132-697-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1, E = 8-97109-986-0 		8-94240-933-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1 		8-97029-941-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97109-986-0 		8-97132-699-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1, E = 8-97109-986-0 		8-97029-942-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1, E = 8-97109-986-0 		8-94240-939-0 01 1 -
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1, E = 8-97109-986-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1, E = 8-97109-986-0 		8-97029-944-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-94375-203-4, D = 8-97101-355-1 		8-97029-940-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97080-321-1 		8-97080-641-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97101-354-1 		8-97102-696-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97109-986-0 		8-97132-695-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
M10X22 ASM PART: A = 8-94375-203-4, B = 8-97080-321-1, C = 8-97101-354-1, D = 8-97101-355-1, E = 8-97109-986-0 		9-01911-022-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
