4-36 — POWER STEERING CONTROL; ENGINE SIDE (#35222) — 225 parça

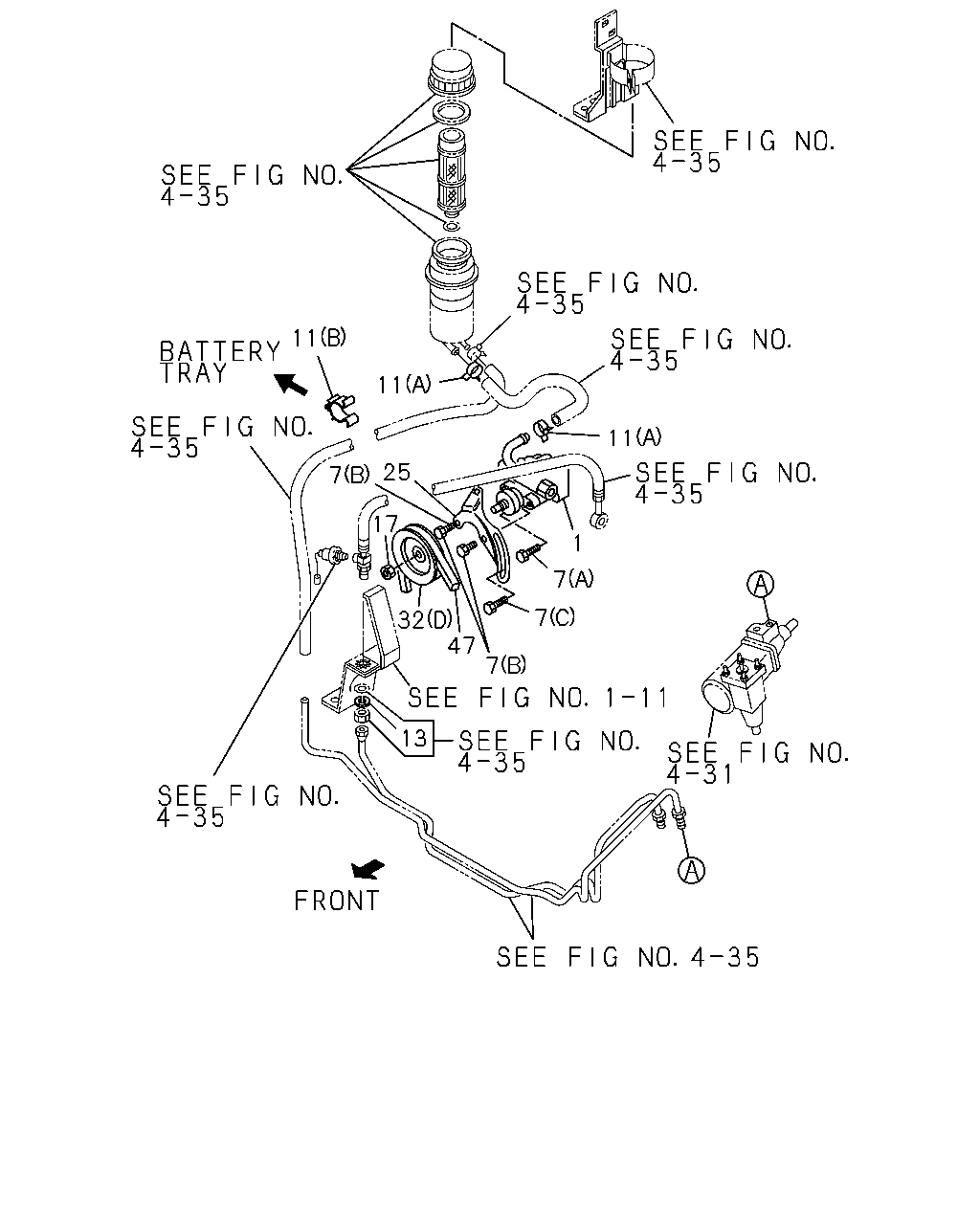

11 11 11 7 25 17 1 7 7 32 47 7 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97061-711-2	01	1	9112-9211	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97084-953-1	01	1	9212-9405	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97110-269-0	01	1	9406-9504	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97110-269-0	01	1	9505-9505	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97129-593-1	01	1	9506-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-94388-923-2	01	1	9112-9504	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-97104-020-0	01	1	9505-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94365-012-4	01	1	9112-9308	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94375-242-2	01	1	9309-9607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-97094-200-1	01	1	9608-	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-9504	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9505-	●	●
7	BOLT; OIL PUMP,P/S 4ZE1 ENG(RLJ) (B) M10X20 W/LK WASHER	0-50041-020-0	03	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (C) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-9308	●	●
11	CLIP; FLEX HOSE 4ZE1 ENG(RLJ) (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9309-	●	●
11	CLIP; FLEX HOSE 6VD1 SOHC ENG(RLU) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) ID=12.2	9-09150-512-0	01	1	9112-9504	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) ID=12.2	9-09150-512-0	01	1	9505-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9112-	●	●
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) M10 FLANGE	0-91150-210-0	01	1	9112-9504	●	●
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M10 FLANGE	0-91150-210-0	01	1	9505-	●	●
17	NUT; POWER STRG PUMP 6VD1 SOHC ENG(RLU) M12	8-94139-015-0	01	1	9112-	●	●
25	BRACKET; P/S PUMP 4ZE1 ENG(RLJ)	8-94420-004-0	01	1	9112-	●	●
25	BRACKET; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94374-508-1	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-97042-266-1	01	1	9112-9504	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A)	8-97042-266-1	01	1	9505-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94434-864-0	01	1	9309-9405	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-9504	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (B)	8-97112-740-0	01	1	9505-	●	●
32	PULLEY; IDLER,P/S 4ZE1 ENG(RLJ) (C)	8-94450-564-2	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-94386-088-0	01	1	9112-9208	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-97068-765-0	01	1	9209-9308	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-97068-764-0	01	1	9309-	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94450-395-0	01	1	9112-9210	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9505-	●	●
47	BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9112-	●	●
47	BELT; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94382-105-0	01	1	9112-	●	●

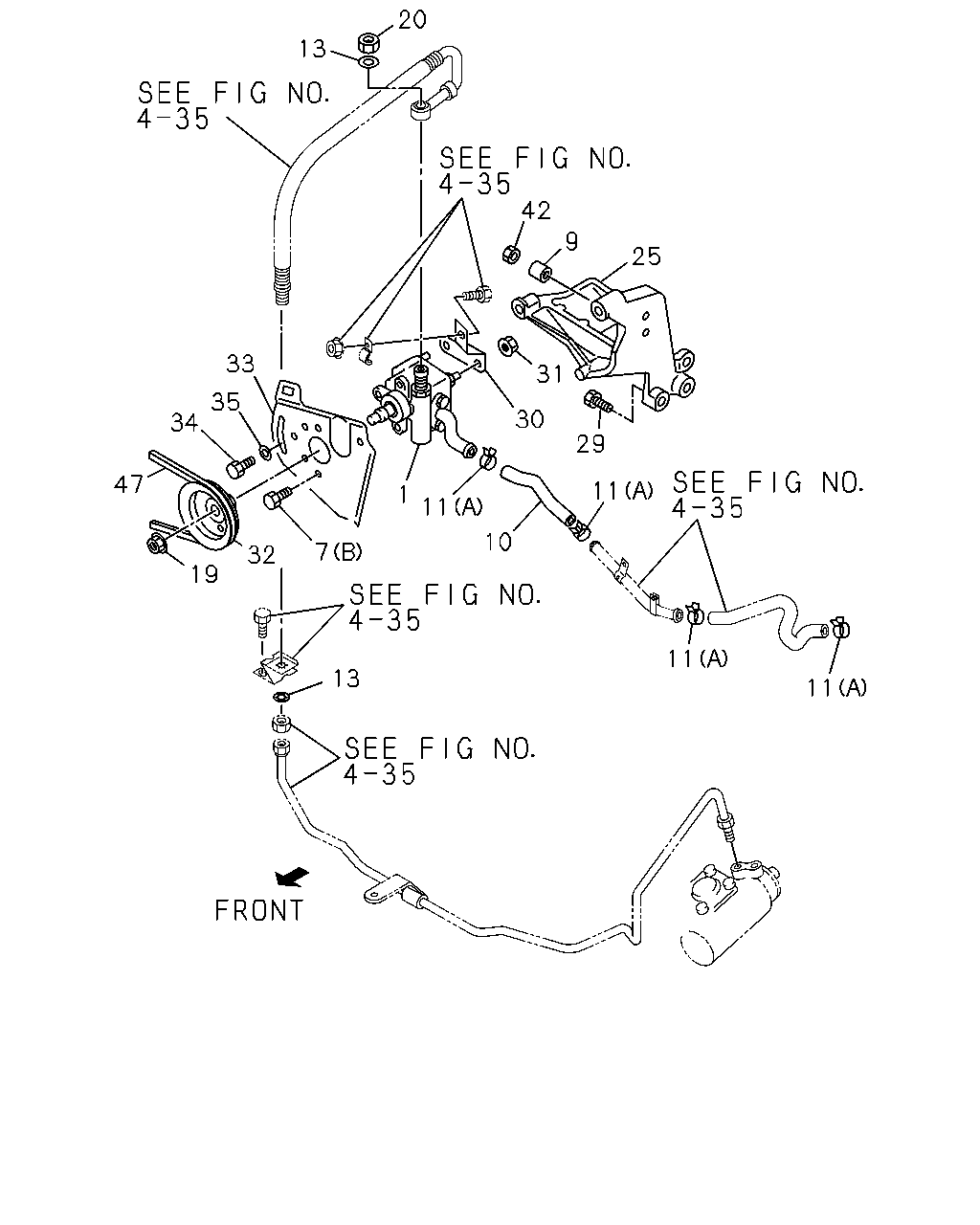

20 13 42 9 25 33 29 31 35 34 30 47 11 1 11 10 7 32 19 11 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97061-711-2	01	1	9112-9211	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97084-953-1	01	1	9212-9405	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97110-269-0	01	1	9406-9504	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97110-269-0	01	1	9505-9505	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97129-593-1	01	1	9506-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-94388-923-2	01	1	9112-9504	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-97104-020-0	01	1	9505-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94365-012-4	01	1	9112-9308	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94375-242-2	01	1	9309-9607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-97094-200-1	01	1	9608-	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-9504	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9505-	●	●
7	BOLT; OIL PUMP,P/S 4ZE1 ENG(RLJ) (B) M10X20 W/LK WASHER	0-50041-020-0	03	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (C) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
9	COLLAR; IDLER 4ZE1 ENG(RLJ)	8-94146-294-0	01	1	9112-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 4ZE1 ENG(RLJ)	8-94471-683-0	01	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-9308	●	●
11	CLIP; FLEX HOSE 4ZE1 ENG(RLJ) (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9309-	●	●
11	CLIP; FLEX HOSE 6VD1 SOHC ENG(RLU) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) ID=12.2	9-09150-512-0	01	1	9112-9504	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) ID=12.2	9-09150-512-0	01	1	9505-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9112-	●	●
19	NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M12	8-94139-015-0	01	1	9112-9504	●	●
19	NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) M12	8-94139-015-0	01	1	9505-	●	●
20	NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M12	9-99111-412-0	01	1	9112-9504	●	●
20	NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) M12	9-99111-412-0	01	1	9505-	●	●
25	BRACKET; P/S PUMP 4ZE1 ENG(RLJ)	8-94420-004-0	01	1	9112-	●	●
25	BRACKET; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94374-508-1	01	1	9112-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (B) M8X60 W/LK WASHER	0-50040-860-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X60 W/LK WASHER	0-50041-060-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (D) M10X60 W/LK WASHER	0-50041-060-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9202	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 W/WASHER	8-97075-268-0	01	1	9203-9207	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 FLANGE	0-28080-616-0	01	1	9309-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (E) M6X16 FLANGE	0-28080-616-0	01	1	9505-9507	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (E) M8X35 FLANGE	0-28080-835-0	01	1	9508-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 FLANGE	0-28080-616-0	01	1	9208-9308	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4ZE1 ENG(RLJ) (H) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-	●	●
30	BRACKET; FLEX HOSE 4ZE1 ENG(RLJ)	8-94463-474-0	01	1	9112-	●	●
31	NUT; FLEX HOSE 4ZE1 ENG(RLJ) M10 FLANGE	0-91150-110-0	02	1	9112-9402	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-97042-266-1	01	1	9112-9504	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A)	8-97042-266-1	01	1	9505-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94434-864-0	01	1	9309-9405	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-9504	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (B)	8-97112-740-0	01	1	9505-	●	●
32	PULLEY; IDLER,P/S 4ZE1 ENG(RLJ) (C)	8-94450-564-2	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-94386-088-0	01	1	9112-9208	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-97068-765-0	01	1	9209-9308	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-97068-764-0	01	1	9309-	●	●
33	PLATE; ADJ,P/S 4ZE1 ENG(RLJ)	8-94472-342-0	01	1	9112-	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M10X70	9-02051-070-0	01	1	9112-9304	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M10X70	0-20801-070-0	01	1	9305-9504	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M10X70	0-20801-070-0	01	1	9505-	●	●
34	BOLT; ADJ PLATE 4ZE1 ENG(RLJ) M10X22 W/LK WASHER	0-50041-022-0	02	1	9112-9403	●	●
34	BOLT; ADJ PLATE 4ZE1 ENG(RLJ) M10X25 W/LK WASHER	0-50041-025-0	02	1	9404-	●	●
35	WASHER; PL,ADJ PLATE 4ZE1 ENG(RLJ) ID=10.5 OD=26	9-09164-710-0	02	1	9112-	●	●
42	NUT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●
42	NUT; ADJ PLATE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M8 FLANGE	0-91150-208-0	01	1	9505-	●	●
42	NUT; ADJ PLATE 4ZE1 ENG(RLJ) M8 FLANGE	5-09440-005-0	01	1	9112-	●	●
42	NUT; ADJ PLATE 4ZE1 ENG(RLJ) M10 FLANGE	0-91150-210-0	02	1	9401-	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94450-395-0	01	1	9112-9210	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9505-	●	●
47	BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9112-	●	●
47	BELT; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94382-105-0	01	1	9112-	●	●

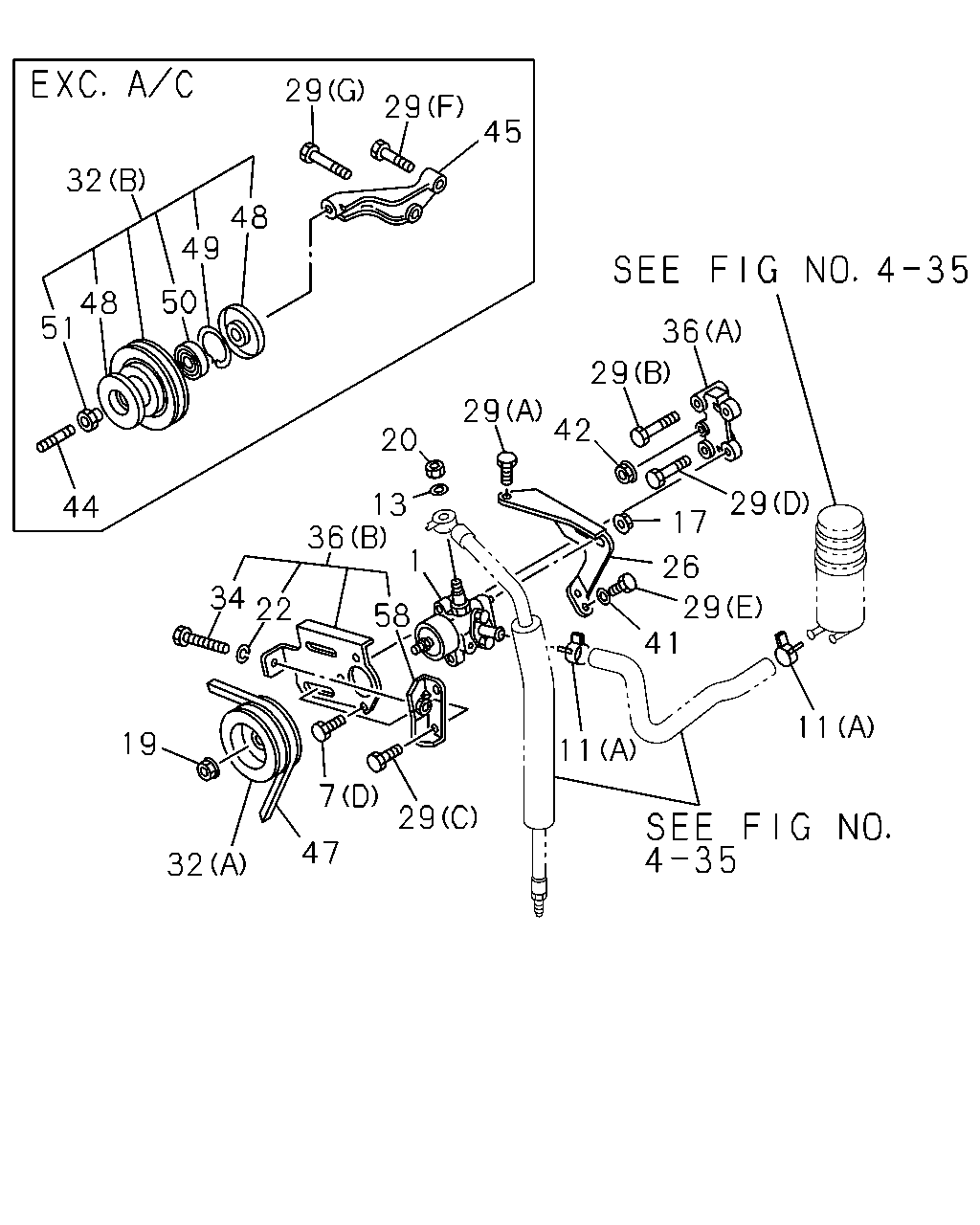

29 29 45 32 48 49 50 48 51 36 29 29 42 20 13 36 29 44 17 26 29 41 1 34 22 58 11 19 11 7 29 47 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97061-711-2	01	1	9112-9211	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97084-953-1	01	1	9212-9405	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97110-269-0	01	1	9406-9504	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97110-269-0	01	1	9505-9505	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97129-593-1	01	1	9506-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-94388-923-2	01	1	9112-9504	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4ZE1 ENG(RLJ)	8-97104-020-0	01	1	9505-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94365-012-4	01	1	9112-9308	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-94375-242-2	01	1	9309-9607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 SOHC ENG(RLU)	8-97094-200-1	01	1	9608-	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9112-9504	●	●
7	BOLT; OIL PUMP,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (D) M10X20 W/LK WASHER	8-97033-053-1	03	1	9505-	●	●
7	BOLT; OIL PUMP,P/S 4ZE1 ENG(RLJ) (B) M10X20 W/LK WASHER	0-50041-020-0	03	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (A) M10X100 W/LK WASHER	0-50041-000-0	01	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (B) M10X20 W/LK WASHER	0-50041-020-0	02	1	9112-	●	●
7	BOLT; OIL PUMP,P/S 6VD1 SOHC ENG(RLU) (C) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9112-9308	●	●
11	CLIP; FLEX HOSE 4ZE1 ENG(RLJ) (A) ID=21	8-94242-034-0	02	1	9112-	●	●
11	CLIP; FLEX HOSE (A) ID=21	8-94242-034-0	02	1	9309-	●	●
11	CLIP; FLEX HOSE 6VD1 SOHC ENG(RLU) (B) ID=17	8-94382-792-1	01	1	9112-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) ID=12.2	9-09150-512-0	01	1	9112-9504	●	●
13	WASHER; LK,FLEX HOSE,P/S 4JG2 ENG(RJC),4ZE1 ENG(RLJ) ID=12.2	9-09150-512-0	01	1	9505-	●	●
13	WASHER; LK,FLEX HOSE,P/S 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9112-	●	●
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) M10 FLANGE	0-91150-210-0	01	1	9112-9504	●	●
17	NUT; POWER STRG PUMP 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M10 FLANGE	0-91150-210-0	01	1	9505-	●	●
17	NUT; POWER STRG PUMP 6VD1 SOHC ENG(RLU) M12	8-94139-015-0	01	1	9112-	●	●
19	NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M12	8-94139-015-0	01	1	9112-9504	●	●
19	NUT; PULLEY,OIL PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) M12	8-94139-015-0	01	1	9505-	●	●
20	NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) M12	9-99111-412-0	01	1	9112-9504	●	●
20	NUT; HOSE TO PUMP 4JG2 ENG(RJC),4ZE1 ENG(RLJ) M12	9-99111-412-0	01	1	9505-	●	●
22	WASHER; LK,OIL PUMP,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) ID=10.2	9-09150-510-0	01	1	9112-9504	●	●
22	WASHER; LK,OIL PUMP,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ID=10.2	9-09150-510-0	01	1	9505-	●	●
26	BRACKET; P/S PUMP,RR 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97062-791-3	01	1	9112-9504	●	●
26	BRACKET; P/S PUMP,RR 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97062-791-3	01	1	9505-9507	●	●
26	BRACKET; P/S PUMP,RR 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-97134-149-0	01	1	9508-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (B) M8X60 W/LK WASHER	0-50040-860-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (C) M10X28 W/LK WASHER	0-50041-028-0	02	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (D) M10X60 W/LK WASHER	0-50041-060-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (D) M10X60 W/LK WASHER	0-50041-060-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9202	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 W/WASHER	8-97075-268-0	01	1	9203-9207	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 FLANGE	0-28080-616-0	01	1	9309-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (E) M6X16 FLANGE	0-28080-616-0	01	1	9505-9507	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (E) M8X35 FLANGE	0-28080-835-0	01	1	9508-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) (E) M6X16 FLANGE	0-28080-616-0	01	1	9208-9308	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (F) M8X30 W/LK WASHER	0-50040-830-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
29	BOLT; BRKT,POWER STRG 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (G) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
29	BOLT; BRKT,POWER STRG 4ZE1 ENG(RLJ) (H) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-97042-266-1	01	1	9112-9504	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A)	8-97042-266-1	01	1	9505-	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94434-864-0	01	1	9309-9405	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97112-740-0	01	1	9406-9504	●	●
32	PULLEY; IDLER,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) (B)	8-97112-740-0	01	1	9505-	●	●
32	PULLEY; IDLER,P/S 4ZE1 ENG(RLJ) (C)	8-94450-564-2	01	1	9112-	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-94386-088-0	01	1	9112-9208	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-97068-765-0	01	1	9209-9308	●	●
32	PULLEY; IDLER,P/S 6VD1 SOHC ENG(RLU) (D)	8-97068-764-0	01	1	9309-	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M10X70	9-02051-070-0	01	1	9112-9304	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M10X70	0-20801-070-0	01	1	9305-9504	●	●
34	BOLT; ADJ PLATE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M10X70	0-20801-070-0	01	1	9505-	●	●
34	BOLT; ADJ PLATE 4ZE1 ENG(RLJ) M10X22 W/LK WASHER	0-50041-022-0	02	1	9112-9403	●	●
34	BOLT; ADJ PLATE 4ZE1 ENG(RLJ) M10X25 W/LK WASHER	0-50041-025-0	02	1	9404-	●	●
36	BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-94478-880-1	01	1	9112-9504	●	●
36	BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A)	8-94478-880-1	01	1	9505-	●	●
36	BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) (B)	8-97066-758-1	01	1	9112-9504	●	●
36	BRACKET; PLATE,P/S PUMP 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (B)	8-97066-758-1	01	1	9505-	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) ID=6.4 OD=18	9-09164-706-0	01	1	9208-9504	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ID=6.4 OD=18	9-09164-706-0	01	1	9505-9507	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9508-	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) ID=10 OD=18 T=2	9-09651-116-0	01	1	9211-9504	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ID=10 OD=18 T=2	9-09651-116-0	01	1	9505-9507	●	●
41	WASHER; PL,BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ID=8.4	9-09164-508-0	01	1	9508-	●	●
42	NUT; ADJ PLATE 4JG2 ENG(RJC),4JG1 ENG(RLT) M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●
42	NUT; ADJ PLATE 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) M8 FLANGE	0-91150-208-0	01	1	9505-	●	●
42	NUT; ADJ PLATE 4ZE1 ENG(RLJ) M8 FLANGE	5-09440-005-0	01	1	9112-	●	●
42	NUT; ADJ PLATE 4ZE1 ENG(RLJ) M10 FLANGE	0-91150-210-0	02	1	9401-	●	●
44	STUD; IDLER PULLEY 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X25 L=40	9-04411-025-0	01	1	9309-9504	●	●
44	STUD; IDLER PULLEY 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) M10X25 L=40	9-04411-025-0	01	1	9505-	●	●
45	BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94449-652-0	01	1	9112-9504	●	●
45	BRACKET; IDLE PULLEY,P/S 4JG2 ENG(RJC) HEATER&DEFROSTER(C41)	8-94449-652-0	01	1	9505-	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94450-395-0	01	1	9112-9210	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9211-9504	●	●
47	BELT; P/S PUMP 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) L=1451 MITSUBOSHI	1-13671-301-0	01	1	9505-	●	●
47	BELT; P/S PUMP 4ZE1 ENG(RLJ) L=1019	8-94452-904-0	01	1	9112-	●	●
47	BELT; P/S PUMP 6VD1 SOHC ENG(RLU)	8-94382-105-0	01	1	9112-	●	●
48	COVER; IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94476-310-0	02	1	9112-9405	●	●
48	COVER; IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) FRONT	8-97092-819-0	01	1	9406-9504	●	●
48	COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) FRONT	8-97092-819-0	01	1	9505-	●	●
48	COVER; IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) REAR	9-13669-603-0	01	1	9406-9504	●	●
48	COVER; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41) REAR	9-13669-603-0	01	1	9505-	●	●
49	RING; SNAP,IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=50.5	9-09180-147-0	01	1	9112-9405	●	●
49	RING; SNAP,IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94175-036-0	01	1	9406-9504	●	●
49	RING; SNAP,IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41)	8-94175-036-0	01	1	9505-	●	●
50	BEARING; IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94251-052-0	01	1	9112-9504	●	●
50	BEARING; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41)	8-94251-052-0	01	1	9505-	●	●
51	NUT; IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94372-495-0	01	1	9112-9405	●	●
51	NUT; IDLER 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97092-813-0	01	1	9406-9504	●	●
51	NUT; IDLER 4JG2 ENG(RJC) HEATER&DEFROSTER(C41)	8-97092-813-0	01	1	9505-	●	●
58	SLIDER; BELT ADJ,P/S OIL PUMP 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94479-122-0	01	1	9112-9504	●	●
58	SLIDER; BELT ADJ,P/S OIL PUMP 4JG2 ENG(RJC)	8-94479-122-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
