Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#35221) — 294 parça

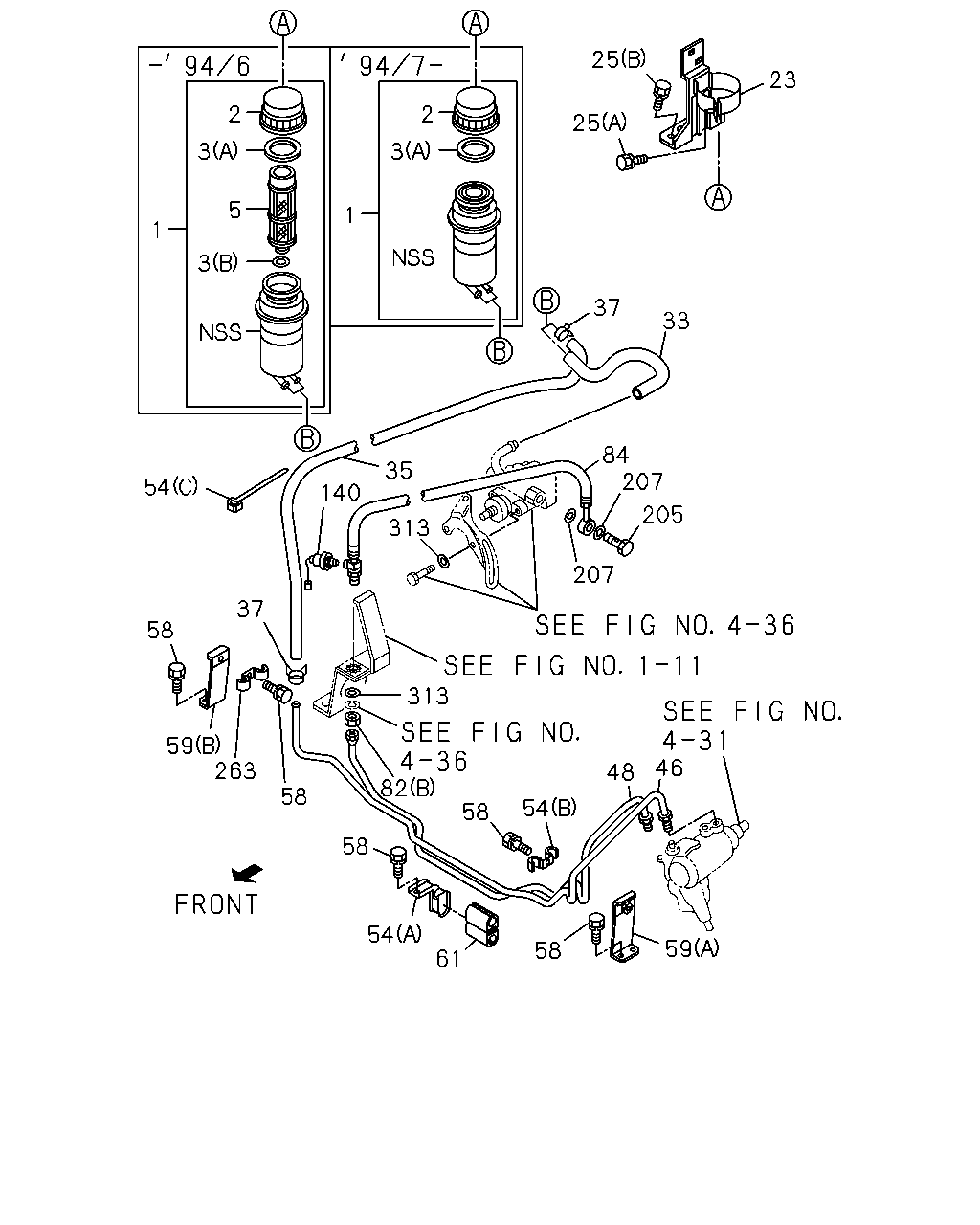

25 23 2 2 25 3 3 5 1 1 3 37 33 84 207 205 35 54 140 313 207 37 58 313 82 46 59 263 48 58 54 58 58 54 61 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-988-0	01	1	9112-9504	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9505-	●	●
23	BRACKET; OIL TANK,P/S 4ZE1 ENG(RLJ)	8-94440-403-1	01	1	9112-	●	●
23	BRACKET; OIL TANK,P/S 6VD1 SOHC ENG(RLU)	8-94381-052-1	01	1	9112-	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9309-9504	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9505-	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (B) M6X16	0-28410-616-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (A) M8X16 FLANGE	0-28410-816-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (A) M8X16 FLANGE	0-28480-816-0	02	1	9205-	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9209-9308	●	●
25	BOLT; OIL TANK BRKT 6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9205-9208	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9309-	●	●
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-467-0	01	1	9112-9504	●	●
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC)	8-97037-467-0	01	1	9505-	●	●
33	HOSE; RUBBER,POWER STRG 4ZE1 ENG(RLJ)	8-94434-125-2	01	1	9112-	●	●
33	HOSE; RUBBER,POWER STRG 6VD1 SOHC ENG(RLU)	8-97023-665-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-908-0	01	1	9112-9504	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9505-	●	●
35	HOSE; RETURN,P/S TANK 4ZE1 ENG(RLJ)	8-94310-226-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU) L=650	8-97027-876-2	01	1	9112-	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=16	8-94238-568-0	02	1	9112-9504	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ID=16	8-94238-568-0	02	1	9505-	●	●
37	CLIP; HOSE,P/S 4ZE1 ENG(RLJ) ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	CLIP; HOSE,P/S 4ZE1 ENG(RLJ) ID=17.1	8-94122-679-0	01	1	9609-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-035-2	01	1	9112-9203	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-454-0	01	1	9204-9504	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97076-454-0	01	1	9505-9607	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97111-118-0	01	1	9608-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 SOHC ENG(RLU)	8-94375-246-3	01	1	9112-9203	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 SOHC ENG(RLU)	8-97076-452-0	01	1	9204-9607	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 SOHC ENG(RLU)	8-97111-117-0	01	1	9608-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97037-909-0	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97076-457-0	01	1	9204-9607	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97111-115-0	01	1	9608-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-94374-925-4	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97076-451-2	01	1	9204-9607	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97111-112-0	01	1	9608-	●	●
54	CLIP; OIL PIPE (C) L=170	5-09707-054-0	01	1	9112-	●	●
54	CLIP; OIL PIPE (B)	8-94222-795-1	01	1	9112-	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9112-9504	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9505-	●	●
54	CLIP; OIL PIPE 4ZE1 ENG(RLJ) (A)	8-94178-110-0	01	1	9112-	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16	0-28410-616-0	03	1	9112-9204	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	03	1	9205-9501	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	02	1	9502-9504	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) M6X16 FLANGE	0-28480-616-0	02	1	9505-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28010-822-0	03	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	05	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9309-9504	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X22 FLANGE	0-28080-822-0	03	1	9505-9601	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9309-	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9309-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9309-9501	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	04	1	9502-	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16	0-28410-616-0	06	1	9112-9204	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	06	1	9205-9208	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	03	1	9209-9308	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	06	1	9209-9501	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-94442-105-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-97075-968-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-97120-706-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-94442-104-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-97075-969-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-97120-705-0	01	1	9502-	●	●
61	CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=10X2 H=22	8-94252-455-2	01	1	9112-9504	●	●
61	CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ID=10X2 H=22	8-94252-455-2	01	1	9505-	●	●
82	NUT; FLEX HOSE,P/S 4ZE1 ENG(RLJ) (A) M6 FLANGE	0-91150-106-0	01	1	9112-	●	●
82	NUT; FLEX HOSE,P/S 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M16	9-99111-416-0	01	1	9112-	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-987-1	01	1	9112-9308	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97089-158-0	01	1	9309-9504	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97089-158-0	01	1	9505-9511	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97133-566-1	01	1	9512-9608	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-976-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 4ZE1 ENG(RLJ)	8-94473-738-3	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 4ZE1 ENG(RLJ)	8-97165-977-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97020-588-4	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97165-980-0	01	1	9609-	●	●
140	SWITCH; PRESSURE,POWER STEERING 6VD1 SOHC ENG(RLU)	8-94384-434-1	01	1	9112-9607	●	●
140	SWITCH; PRESSURE,POWER STEERING 6VD1 SOHC ENG(RLU)	8-97162-814-0	01	1	9608-	●	●
205	BOLT; EYE,FLEX HOSE,P/S 6VD1 SOHC ENG(RLU) M16X28	8-94383-489-0	01	1	9112-	●	●
207	GASKET; FLEX HOSE,P/S PUMP 6VD1 SOHC ENG(RLU) ID=16.2 OD=24	9-09571-416-0	02	1	9112-	●	●
263	BRACKET; P/S PIPE 6VD1 SOHC ENG(RLU)	8-97035-367-0	01	1	9112-9203	●	●
263	BRACKET; P/S PIPE 6VD1 SOHC ENG(RLU)	8-97076-470-0	01	1	9204-	●	●
313	WASHER; PL,FLEX HOSE,P/S 6VD1 SOHC ENG(RLU) ID=10.5 OD=26	9-09164-710-0	01	1	9112-	●	●

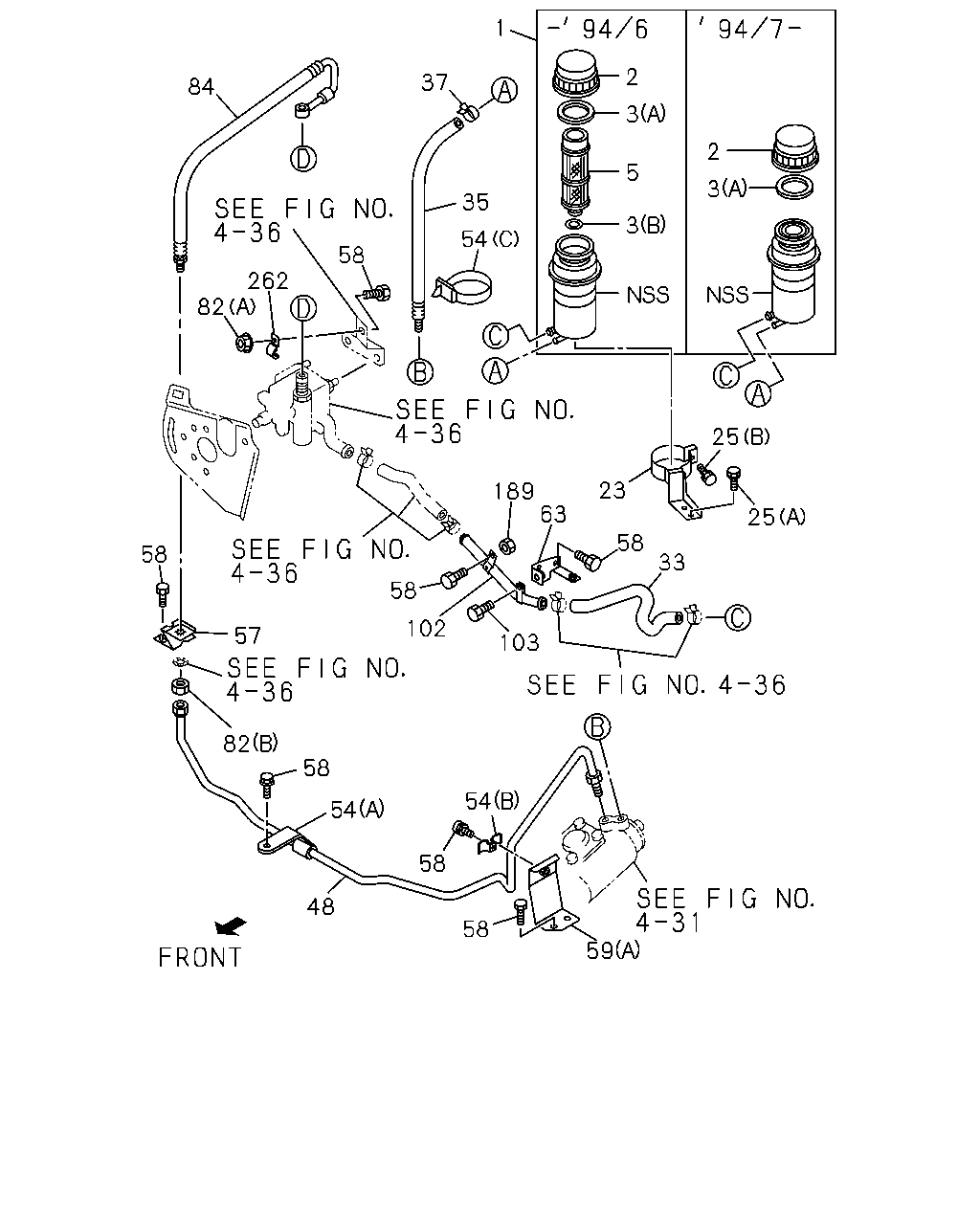

1 2 37 84 3 2 5 3 35 3 54 58 262 82 25 23 189 63 25 58 33 58 58 102 57 103 82 58 54 54 58 59 48 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-988-0	01	1	9112-9504	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9505-	●	●
23	BRACKET; OIL TANK,P/S 4ZE1 ENG(RLJ)	8-94440-403-1	01	1	9112-	●	●
23	BRACKET; OIL TANK,P/S 6VD1 SOHC ENG(RLU)	8-94381-052-1	01	1	9112-	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9309-9504	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9505-	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (B) M6X16	0-28410-616-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (A) M8X16 FLANGE	0-28410-816-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (A) M8X16 FLANGE	0-28480-816-0	02	1	9205-	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9209-9308	●	●
25	BOLT; OIL TANK BRKT 6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9205-9208	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9309-	●	●
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-467-0	01	1	9112-9504	●	●
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC)	8-97037-467-0	01	1	9505-	●	●
33	HOSE; RUBBER,POWER STRG 4ZE1 ENG(RLJ)	8-94434-125-2	01	1	9112-	●	●
33	HOSE; RUBBER,POWER STRG 6VD1 SOHC ENG(RLU)	8-97023-665-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-908-0	01	1	9112-9504	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9505-	●	●
35	HOSE; RETURN,P/S TANK 4ZE1 ENG(RLJ)	8-94310-226-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU) L=650	8-97027-876-2	01	1	9112-	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=16	8-94238-568-0	02	1	9112-9504	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ID=16	8-94238-568-0	02	1	9505-	●	●
37	CLIP; HOSE,P/S 4ZE1 ENG(RLJ) ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	CLIP; HOSE,P/S 4ZE1 ENG(RLJ) ID=17.1	8-94122-679-0	01	1	9609-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97037-909-0	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97076-457-0	01	1	9204-9607	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZE1 ENG(RLJ)	8-97111-115-0	01	1	9608-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-94374-925-4	01	1	9112-9203	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97076-451-2	01	1	9204-9607	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 SOHC ENG(RLU)	8-97111-112-0	01	1	9608-	●	●
54	CLIP; OIL PIPE (C) L=170	5-09707-054-0	01	1	9112-	●	●
54	CLIP; OIL PIPE (B)	8-94222-795-1	01	1	9112-	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9112-9504	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9505-	●	●
54	CLIP; OIL PIPE 4ZE1 ENG(RLJ) (A)	8-94178-110-0	01	1	9112-	●	●
57	BRACKET; POWER STRG PIPE 4ZE1 ENG(RLJ)	8-94310-048-0	01	1	9112-9412	●	●
57	BRACKET; POWER STRG PIPE 4ZE1 ENG(RLJ)	8-97124-388-0	01	1	9501-	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16	0-28410-616-0	03	1	9112-9204	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	03	1	9205-9501	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	02	1	9502-9504	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) M6X16 FLANGE	0-28480-616-0	02	1	9505-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28010-822-0	03	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	05	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9309-9504	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X22 FLANGE	0-28080-822-0	03	1	9505-9601	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9309-	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9309-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9309-9501	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	04	1	9502-	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16	0-28410-616-0	06	1	9112-9204	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	06	1	9205-9208	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	03	1	9209-9308	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	06	1	9209-9501	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-94442-105-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-97075-968-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-97120-706-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-94442-104-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-97075-969-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-97120-705-0	01	1	9502-	●	●
63	BRACKET; CLIP,P/S 4ZE1 ENG(RLJ)	8-94329-683-0	01	1	9112-	●	●
82	NUT; FLEX HOSE,P/S 4ZE1 ENG(RLJ) (A) M6 FLANGE	0-91150-106-0	01	1	9112-	●	●
82	NUT; FLEX HOSE,P/S 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M16	9-99111-416-0	01	1	9112-	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-987-1	01	1	9112-9308	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97089-158-0	01	1	9309-9504	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97089-158-0	01	1	9505-9511	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97133-566-1	01	1	9512-9608	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-976-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 4ZE1 ENG(RLJ)	8-94473-738-3	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 4ZE1 ENG(RLJ)	8-97165-977-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97020-588-4	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97165-980-0	01	1	9609-	●	●
102	PIPE; SUCTION,P/S 4ZE1 ENG(RLJ)	8-94146-056-1	01	1	9112-	●	●
103	BOLT; P/S SUCTION PIPE 4ZE1 ENG(RLJ) M8X16 FLANGE	0-28210-816-0	01	1	9112-9204	●	●
103	BOLT; P/S SUCTION PIPE 4ZE1 ENG(RLJ) M8X16 FLANGE	0-28280-816-0	01	1	9205-	●	●
189	SPACER; PIPE,P/S 4ZE1 ENG(RLJ)	9-46133-003-0	01	1	9309-	●	●
262	CLIP; P/S PIPE 4ZE1 ENG(RLJ)	9-09716-061-0	01	1	9112-	●	●

25 26 2 2 23 3 3 5 3 1 1 84 33 37 54 35 37 46 58 54 58 58 54 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97029-653-1	01	1	9112-9406	●	●
1	TANK ASM; OIL,P/S	8-97115-869-1	01	1	9407-	●	●
2	CAP; OIL TANK,P/S	8-94481-841-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (A)	8-94363-359-1	01	1	9112-	●	●
3	GASKET; OIL TANK,P/S (B) ID=22.1	9-09561-322-0	01	1	9112-9406	●	●
5	STRAINER; OIL TANK,P/S	8-97038-335-0	01	1	9112-9406	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-988-0	01	1	9112-9504	●	●
23	BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97037-988-0	01	1	9505-	●	●
23	BRACKET; OIL TANK,P/S 4ZE1 ENG(RLJ)	8-94440-403-1	01	1	9112-	●	●
23	BRACKET; OIL TANK,P/S 6VD1 SOHC ENG(RLU)	8-94381-052-1	01	1	9112-	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16	0-28410-616-0	01	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9309-9504	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9505-	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (B) M6X16	0-28410-616-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (A) M8X16 FLANGE	0-28410-816-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ) (A) M8X16 FLANGE	0-28480-816-0	02	1	9205-	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9209-9308	●	●
25	BOLT; OIL TANK BRKT 6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9112-9204	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9205-9208	●	●
25	BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A) M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
25	BOLT; OIL TANK BRKT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B) M6X16 FLANGE	0-28480-616-0	02	1	9309-	●	●
26	NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) M8 FLANGE	0-91150-108-0	02	1	9112-9504	●	●
26	NUT; OIL TANK TO BRKT 4JG2 ENG(RJC) M8 FLANGE	0-91150-108-0	02	1	9505-	●	●
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-467-0	01	1	9112-9504	●	●
33	HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC)	8-97037-467-0	01	1	9505-	●	●
33	HOSE; RUBBER,POWER STRG 4ZE1 ENG(RLJ)	8-94434-125-2	01	1	9112-	●	●
33	HOSE; RUBBER,POWER STRG 6VD1 SOHC ENG(RLU)	8-97023-665-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-908-0	01	1	9112-9504	●	●
35	HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97037-908-0	01	1	9505-	●	●
35	HOSE; RETURN,P/S TANK 4ZE1 ENG(RLJ)	8-94310-226-2	01	1	9112-	●	●
35	HOSE; RETURN,P/S TANK 6VD1 SOHC ENG(RLU) L=650	8-97027-876-2	01	1	9112-	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=16	8-94238-568-0	02	1	9112-9504	●	●
37	CLIP; HOSE,P/S 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ID=16	8-94238-568-0	02	1	9505-	●	●
37	CLIP; HOSE,P/S 4ZE1 ENG(RLJ) ID=16	8-94238-568-0	01	1	9112-9608	●	●
37	CLIP; HOSE,P/S 4ZE1 ENG(RLJ) ID=17.1	8-94122-679-0	01	1	9609-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97023-035-2	01	1	9112-9203	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97076-454-0	01	1	9204-9504	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97076-454-0	01	1	9505-9607	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97111-118-0	01	1	9608-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 SOHC ENG(RLU)	8-94375-246-3	01	1	9112-9203	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 SOHC ENG(RLU)	8-97076-452-0	01	1	9204-9607	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 SOHC ENG(RLU)	8-97111-117-0	01	1	9608-	●	●
54	CLIP; OIL PIPE (C) L=170	5-09707-054-0	01	1	9112-	●	●
54	CLIP; OIL PIPE (B)	8-94222-795-1	01	1	9112-	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9112-9504	●	●
54	CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97026-703-0	01	1	9505-	●	●
54	CLIP; OIL PIPE 4ZE1 ENG(RLJ) (A)	8-94178-110-0	01	1	9112-	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16	0-28410-616-0	03	1	9112-9204	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	03	1	9205-9501	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	02	1	9502-9504	●	●
58	BOLT; CLIP 4JG2 ENG(RJC) M6X16 FLANGE	0-28480-616-0	02	1	9505-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28010-822-0	03	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP M6X16	0-28410-616-0	01	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16	0-28410-616-0	05	1	9112-9204	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9205-9208	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9209-9308	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M8X22 FLANGE	0-28080-822-0	03	1	9309-9504	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X22 FLANGE	0-28080-822-0	03	1	9505-9601	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X20 FLANGE	0-28680-820-0	03	1	9602-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	01	1	9309-	●	●
58	BOLT; CLIP M6X16 FLANGE	0-28480-616-0	01	1	9309-	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ) M6X16 FLANGE	0-28480-616-0	05	1	9309-9501	●	●
58	BOLT; CLIP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	04	1	9502-	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16	0-28410-616-0	06	1	9112-9204	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	06	1	9205-9208	●	●
58	BOLT; CLIP 4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE	0-28480-616-0	03	1	9209-9308	●	●
58	BOLT; CLIP 6VD1 SOHC ENG(RLU) M6X16 FLANGE	0-28480-616-0	06	1	9209-9501	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-94442-105-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-97075-968-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE (A)	8-97120-706-0	01	1	9502-	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-94442-104-1	01	1	9112-9203	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-97075-969-0	01	1	9204-9501	●	●
59	BRACKET; CLIP,OIL PIPE 6VD1 SOHC ENG(RLU) (B)	8-97120-705-0	01	1	9502-	●	●
61	CLIP; OIL PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=10X2 H=22	8-94252-455-2	01	1	9112-9504	●	●
61	CLIP; OIL PIPE 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ID=10X2 H=22	8-94252-455-2	01	1	9505-	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97037-987-1	01	1	9112-9308	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97089-158-0	01	1	9309-9504	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97089-158-0	01	1	9505-9511	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97133-566-1	01	1	9512-9608	●	●
84	HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97165-976-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 4ZE1 ENG(RLJ)	8-94473-738-3	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 4ZE1 ENG(RLJ)	8-97165-977-0	01	1	9609-	●	●
84	HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97020-588-4	01	1	9112-9608	●	●
84	HOSE; FLEX,P/S 6VD1 SOHC ENG(RLU)	8-97165-980-0	01	1	9609-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
