Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#35215) — 447 parça

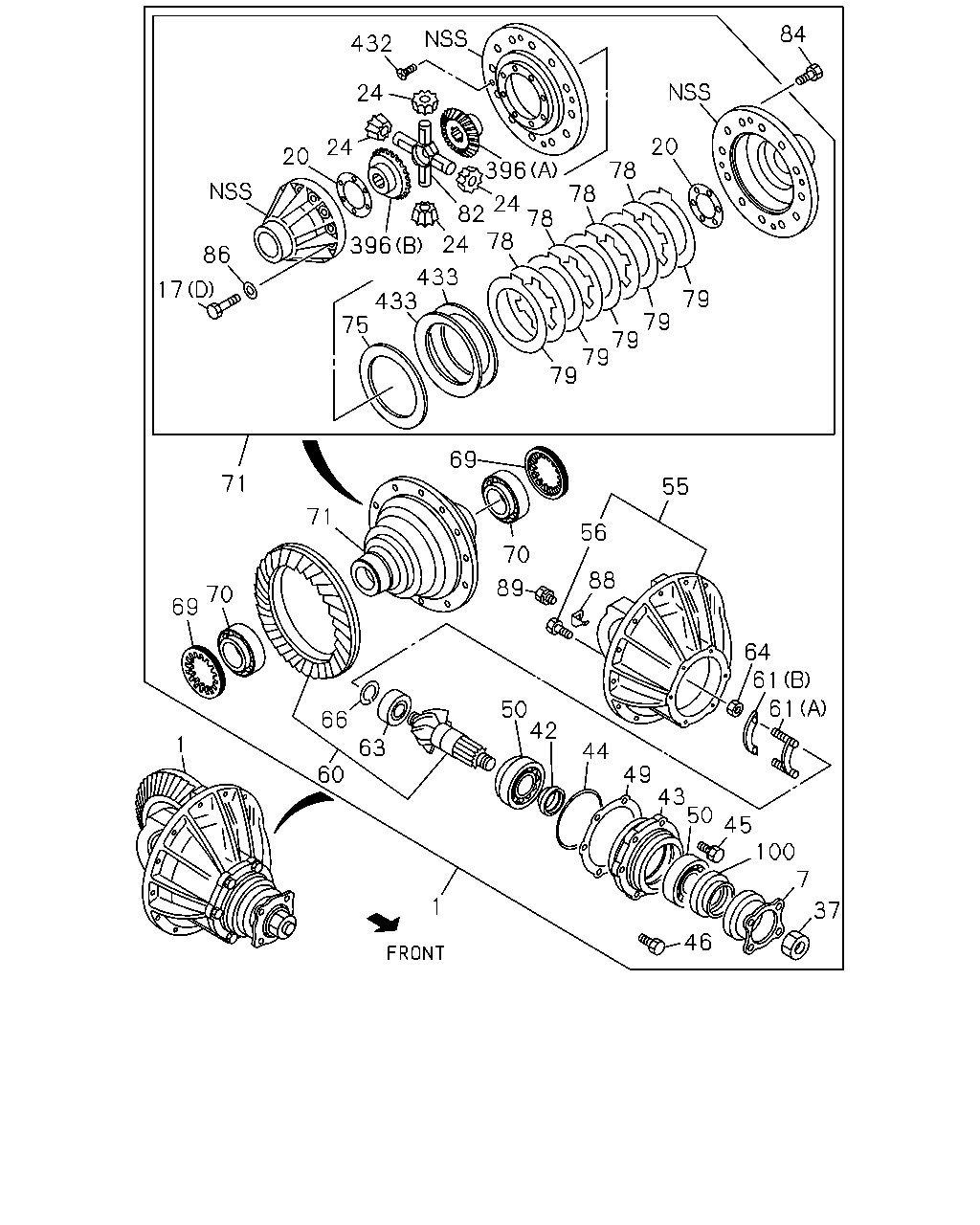

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 69 71 55 71 56 70 88 89 70 69 64 61 61 50 42 66 1 63 44 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR 39/7	8-97076-936-0	01	1	9812-0105	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97035-422-0	01	1	0106-0202	●	●
1	05.505 DRIVE ASM; FINAL,RR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97035-422-0	01	1	0203-0203	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97035-422-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0204-0205	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0206-	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0206-		●	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-277-0	01	1	0203-0205	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 43/9	8-97319-277-0	01	1	0203-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-277-0	01	1	0206-	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 43/9	8-97319-277-0	01	1	0206-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97035-423-0	01	1	0106-0202		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97035-423-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0206-0212		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0301-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97220-527-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97319-278-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97319-278-0	01	1	0206-		●	●
7	05.545 FLANGE; FINAL	8-97075-216-3	01	1	9812-0105	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0106-	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M12X58	5-09020-007-1	08	1	9812-0105	●
17	05.510 BOLT; DIFF CAGE SETTING (C) M10X75	5-09000-213-0	08	1	0106-0202	●	●
17	05.510 BOLT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (C) M10X75	5-09000-213-0	08	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> (C) M10X75	5-09000-213-0	08	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97220-726-0	12	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> (D)	8-97220-726-0	12	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97321-642-0	12	1	0204-0205	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0204-0205		●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0206-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0206-		●	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	04	1	0106-0202	●	●
17	05.510 BOLT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (B) M10X75 FLANGE	8-97232-161-0	04	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> (B) M10X75 FLANGE	8-97232-161-0	04	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (B),(C) M10X75 FLANGE	8-97232-161-0	12	1	0204-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> (B),(C) M10X75 FLANGE	8-97232-161-0	12	1	0204-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	9812-0105	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0106-	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0203-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0203-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0203-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	9-41551-029-1	04	1	9812-9911	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	9912-0105	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0106-	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	9812-0105	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0106-	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	9812-0105	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0106-	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0106-	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0106-	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0106-	●	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0106-	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0106-	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0106-	●	●	●
55	05.505 CARRIER; DIFF	8-94376-227-1	01	1	9812-0105	●
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	0106-0202	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-2	04	1	0106-	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97035-433-0	01	1	9812-0105	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97035-450-0	01	1	0106-0203	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0204-0205	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-157-0	01	1	0206-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0206-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97035-451-0	01	1	0106-0203		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97319-158-0	01	1	0204-0205		●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97319-158-0	01	1	0206-0212		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0301-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0106-	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0106-	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0106-	●	●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0106-	●	●	●
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0106-	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0106-	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	9812-0105	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0106-	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP)	8-97319-052-0	01	1	0203-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV>	8-97319-052-0	01	1	0203-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	9-41510-605-0	01	1	9812-9911	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	9912-0105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-97035-390-0	01	1	0106-0202	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97035-390-0	01	1	0203-0203	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97035-390-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-043-0	01	1	0204-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-043-0	01	1	0204-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97035-389-0	01	1	0106-0202		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97035-389-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0204-0205		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0206-0212		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0301-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97220-521-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97319-048-0	01	1	0204-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0203-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0203-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0203-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0203-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0203-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0203-		●	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0203-	●
75	05.511 PLATE; BEVEL 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0203-		●	●
78	05.511 DISC; FRICTION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0203-	●
78	05.511 DISC; FRICTION 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0203-		●	●
79	05.511 PLATE; FRICTION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0203-	●
79	05.511 PLATE; FRICTION 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0203-		●	●
82	05.517 SPIDER; DIFF PINION	9-41521-611-0	01	1	9812-0105	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0106-0202	●	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0203-	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0203-		●	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0203-	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0203-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR M12X22	9-09600-066-3	12	1	9812-0105	●
84	05.531 BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0106-0202	●	●
84	05.531 BOLT; FINAL DRIVE GEAR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	0203-0203	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	0203-0203		●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) M12X28.5	8-97316-673-0	12	1	0203-0203	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0203-0203		●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0204-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0204-		●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	0203-0203	●
86	05.510 WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	0203-0203		●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=10 OD=18 T=2	9-09651-116-0	24	1	0106-0202	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0203-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0203-		●	●
88	05.506 PLATE; LK,ADJ NUT	8-97027-281-0	AR	1	0106-	●	●	●
88	05.506 PLATE; LK,ADJ NUT	8-97027-282-0	AR	1	0106-	●	●	●
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	9812-0105	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0106-	●	●	●
100	05.469 SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	9812-0105	●
396	05.515 GEAR; DIFF,LSD 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> 05.528 (A) Z=20	8-97300-269-0	01	1	0203-	●
396	05.515 GEAR; DIFF,LSD 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> 05.528 (A) Z=20	8-97300-269-0	01	1	0203-		●	●
396	05.515 GEAR; DIFF,LSD 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97300-270-0	01	1	0203-	●
396	05.515 GEAR; DIFF,LSD 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97300-270-0	01	1	0203-		●	●
432	05.650 SCREW 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0203-	●
432	05.650 SCREW 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0203-		●	●
433	05.511 PLATE; FRICTION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0203-	●
433	05.511 PLATE; FRICTION 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0203-		●	●

70 84 73 71 83 24 21 82 24 73 19 17 21 20 20 24 24 73 70 19 17 73 60 51 51 39 42 56 55 39 100 7 37 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR 39/7	8-97076-936-0	01	1	9812-0105	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97035-422-0	01	1	0106-0202	●	●
1	05.505 DRIVE ASM; FINAL,RR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97035-422-0	01	1	0203-0203	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97035-422-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0204-0205	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0206-	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0206-		●	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-277-0	01	1	0203-0205	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 43/9	8-97319-277-0	01	1	0203-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-277-0	01	1	0206-	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 43/9	8-97319-277-0	01	1	0206-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97035-423-0	01	1	0106-0202		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97035-423-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0206-0212		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0301-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97220-527-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97319-278-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97319-278-0	01	1	0206-		●	●
7	05.545 FLANGE; FINAL	8-97075-216-3	01	1	9812-0105	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0106-	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M12X58	5-09020-007-1	08	1	9812-0105	●
17	05.510 BOLT; DIFF CAGE SETTING (C) M10X75	5-09000-213-0	08	1	0106-0202	●	●
17	05.510 BOLT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (C) M10X75	5-09000-213-0	08	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> (C) M10X75	5-09000-213-0	08	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97220-726-0	12	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> (D)	8-97220-726-0	12	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97321-642-0	12	1	0204-0205	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0204-0205		●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0206-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0206-		●	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	04	1	0106-0202	●	●
17	05.510 BOLT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (B) M10X75 FLANGE	8-97232-161-0	04	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> (B) M10X75 FLANGE	8-97232-161-0	04	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (B),(C) M10X75 FLANGE	8-97232-161-0	12	1	0204-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> (B),(C) M10X75 FLANGE	8-97232-161-0	12	1	0204-		●	●
19	05.510 WASHER; LK,DIFF CAGE SETTING 06.515 ID=12.2	9-09150-612-0	08	1	9812-0105	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	9812-0105	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0106-	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0203-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0203-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0203-		●	●
21	05.528 GEAR; SIDE,DIFF Z=18	9-41561-047-1	02	1	9812-9911	●
21	05.528 GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	9912-0105	●
21	05.528 GEAR; SIDE,DIFF 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-269-0	02	1	0106-	●
21	05.528 GEAR; SIDE,DIFF 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-269-0	02	1	0106-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	9-41551-029-1	04	1	9812-9911	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	9912-0105	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0106-	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	9812-0105	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0106-	●	●	●
39	05.484 BEARING; FINAL PINION OUTER NSK	9-00093-078-0	01	1	9812-0105	●
39	05.484 BEARING; FINAL PINION 05.447 INNER KOYO	9-00093-079-0	01	1	9812-0105	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	9812-0105	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0106-	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.12	9-41219-608-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.16	9-41219-610-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.20	9-41219-612-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.24	9-41219-614-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.28	9-41219-616-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.32	9-41219-618-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.36	9-41219-620-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.40	9-41219-622-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.44	9-41219-624-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.48	9-41219-626-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.52	9-41219-628-0	01	1	9812-0105	●
51	05.586 SHIM; PINION,FINAL DRIVE OD=89.5 T=2.56	9-41219-630-0	01	1	9812-0105	●
55	05.505 CARRIER; DIFF	8-94376-227-1	01	1	9812-0105	●
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	0106-0202	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-2	04	1	0106-	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97035-433-0	01	1	9812-0105	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97035-450-0	01	1	0106-0203	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0204-0205	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-157-0	01	1	0206-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0206-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97035-451-0	01	1	0106-0203		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97319-158-0	01	1	0204-0205		●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97319-158-0	01	1	0206-0212		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0301-		●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	9812-0105	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0106-	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP)	8-97319-052-0	01	1	0203-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV>	8-97319-052-0	01	1	0203-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	9-41510-605-0	01	1	9812-9911	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	9912-0105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-97035-390-0	01	1	0106-0202	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97035-390-0	01	1	0203-0203	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97035-390-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-043-0	01	1	0204-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-043-0	01	1	0204-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97035-389-0	01	1	0106-0202		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97035-389-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0204-0205		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0206-0212		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0301-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97220-521-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97319-048-0	01	1	0204-		●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	9-41519-009-0	AR	1	9812-0105	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	9-41519-010-0	AR	1	9812-0105	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	9-41519-601-0	AR	1	9812-0105	●
73	05.537 SHIM; DIFF SIDE BRG T=0.35	9-41519-602-0	AR	1	9812-0105	●
82	05.517 SPIDER; DIFF PINION	9-41521-611-0	01	1	9812-0105	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0106-0202	●	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0203-	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0203-		●	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0203-	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0203-		●	●
83	05.510 CAGE ASM; DIFF	9-41510-610-0	01	1	9812-0105	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-94161-010-1	01	1	0106-0202	●	●
83	05.510 CAGE ASM; DIFF FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-94161-010-1	01	1	0203-0203	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-94161-010-1	01	1	0203-0203		●
83	05.510 CAGE ASM; DIFF FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0204-0205	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0204-0205		●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0206-	●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0206-		●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94159-027-0	01	1	0106-0202		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-94159-027-0	01	1	0203-0203		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-0	01	1	0204-0205		●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-0	01	1	0206-0212		●	●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0301-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR M12X22	9-09600-066-3	12	1	9812-0105	●
84	05.531 BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0106-0202	●	●
84	05.531 BOLT; FINAL DRIVE GEAR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	0203-0203	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	0203-0203		●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) M12X28.5	8-97316-673-0	12	1	0203-0203	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0203-0203		●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0204-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0204-		●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	9812-0105	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0106-	●	●	●
100	05.469 SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	9812-0105	●

69 70 71 17 83 20 24 24 84 17 21 24 21 20 86 85 82 24 70 69 86 85 89 60 88 64 56 61 66 61 63 55 1 50 42 45 44 1 49 43 50 46 100 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.505 DRIVE ASM; FINAL,RR 39/7	8-97076-936-0	01	1	9812-0105	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97035-422-0	01	1	0106-0202	●	●
1	05.505 DRIVE ASM; FINAL,RR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97035-422-0	01	1	0203-0203	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97035-422-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0204-0205	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0206-	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 43/9	8-97319-254-0	01	1	0206-		●	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-277-0	01	1	0203-0205	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 43/9	8-97319-277-0	01	1	0203-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-277-0	01	1	0206-	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> 43/9	8-97319-277-0	01	1	0206-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97035-423-0	01	1	0106-0202		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97035-423-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0206-0212		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97319-255-0	01	1	0301-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97220-527-0	01	1	0203-0203		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97319-278-0	01	1	0204-0205		●
1	05.505 DRIVE ASM; FINAL,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV> 41/8	8-97319-278-0	01	1	0206-		●	●
7	05.545 FLANGE; FINAL	8-97075-216-3	01	1	9812-0105	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0106-	●	●	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M12X58	5-09020-007-1	08	1	9812-0105	●
17	05.510 BOLT; DIFF CAGE SETTING (C) M10X75	5-09000-213-0	08	1	0106-0202	●	●
17	05.510 BOLT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (C) M10X75	5-09000-213-0	08	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> (C) M10X75	5-09000-213-0	08	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97220-726-0	12	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> (D)	8-97220-726-0	12	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97321-642-0	12	1	0204-0205	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0204-0205		●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0206-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> (D)	8-97321-642-0	12	1	0206-		●	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M10X75 FLANGE	8-97232-161-0	04	1	0106-0202	●	●
17	05.510 BOLT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (B) M10X75 FLANGE	8-97232-161-0	04	1	0203-0203	●
17	05.510 BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> (B) M10X75 FLANGE	8-97232-161-0	04	1	0203-0203		●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> (B),(C) M10X75 FLANGE	8-97232-161-0	12	1	0204-	●
17	05.510 BOLT; DIFF CAGE SETTING 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> (B),(C) M10X75 FLANGE	8-97232-161-0	12	1	0204-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.00	9-41562-602-0	02	1	9812-0105	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0106-	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0203-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0203-		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0203-	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0203-		●	●
21	05.528 GEAR; SIDE,DIFF Z=18	9-41561-047-1	02	1	9812-9911	●
21	05.528 GEAR; SIDE,DIFF Z=18	8-97226-764-0	02	1	9912-0105	●
21	05.528 GEAR; SIDE,DIFF 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-269-0	02	1	0106-	●
21	05.528 GEAR; SIDE,DIFF 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97300-269-0	02	1	0106-		●	●
24	05.526 GEAR; PINION,DIFF Z=10	9-41551-029-1	04	1	9812-9911	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97226-762-0	04	1	9912-0105	●
24	05.526 GEAR; PINION,DIFF Z=10	8-97300-265-0	04	1	0106-	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	9812-0105	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0106-	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=53.35	9-41219-634-1	01	1	9812-0105	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0106-	●	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0106-	●	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0106-	●	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0106-	●	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0106-	●	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0106-	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 KOYO	5-09812-062-1	02	1	0106-	●	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0106-	●	●	●
55	05.505 CARRIER; DIFF	8-94376-227-1	01	1	9812-0105	●
55	05.505 CARRIER; DIFF	8-94365-264-0	01	1	0106-0202	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0203-	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-2	04	1	0106-	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 39/7	8-97035-433-0	01	1	9812-0105	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97035-450-0	01	1	0106-0203	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0204-0205	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 43/9	8-97319-157-0	01	1	0206-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	0206-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97035-451-0	01	1	0106-0203		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97319-158-0	01	1	0204-0205		●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> 41/8	8-97319-158-0	01	1	0206-0212		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	0301-		●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0106-	●	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0106-	●	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0106-	●	●	●
63	05.447 BEARING; PINION PILOT KOYO	8-97107-548-0	01	1	0106-	●	●	●
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-	●	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0106-	●	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0106-	●	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00032-211-0	02	1	9812-0105	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0106-	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP)	8-97319-052-0	01	1	0203-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV>	8-97319-052-0	01	1	0203-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	9-41510-605-0	01	1	9812-9911	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97228-309-0	01	1	9912-0105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-97035-390-0	01	1	0106-0202	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97035-390-0	01	1	0203-0203	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97035-390-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-043-0	01	1	0204-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-043-0	01	1	0204-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97035-389-0	01	1	0106-0202		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97035-389-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0204-0205		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0206-0212		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97319-040-0	01	1	0301-		●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97220-521-0	01	1	0203-0203		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> LIMITED SLIP DIFF<6LV>	8-97319-048-0	01	1	0204-		●	●
82	05.517 SPIDER; DIFF PINION	9-41521-611-0	01	1	9812-0105	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	0106-0202	●	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0203-	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0203-		●	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0203-	●
82	05.517 SPIDER; DIFF PINION 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0203-		●	●
83	05.510 CAGE ASM; DIFF	9-41510-610-0	01	1	9812-0105	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-94161-010-1	01	1	0106-0202	●	●
83	05.510 CAGE ASM; DIFF FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-94161-010-1	01	1	0203-0203	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-94161-010-1	01	1	0203-0203		●
83	05.510 CAGE ASM; DIFF FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0204-0205	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0204-0205		●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0206-	●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0206-		●	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94159-027-0	01	1	0106-0202		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-94159-027-0	01	1	0203-0203		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-0	01	1	0204-0205		●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-0	01	1	0206-0212		●	●
83	05.510 CAGE ASM; DIFF 4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0301-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR M12X22	9-09600-066-3	12	1	9812-0105	●
84	05.531 BOLT; FINAL DRIVE GEAR M12X25	9-09606-505-2	12	1	0106-0202	●	●
84	05.531 BOLT; FINAL DRIVE GEAR FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	0203-0203	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> M12X25	9-09606-505-2	12	1	0203-0203		●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0204-		●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> FRT INDEPENDENT SUSPENSION(6PP) M12X28.5	8-97316-673-0	12	1	0203-0203	●
84	05.531 BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<6LV> M12X28.5	8-97316-673-0	12	1	0203-0203		●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0204-	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0204-		●	●
85	05.510 NUT; DIFF CAGE SETTING 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0106-0202	●	●
85	05.510 NUT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0203-0203	●
85	05.510 NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0203-0203		●
85	05.510 NUT; DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 08.917 (A),(B) M10 FLANGE	0-91150-210-0	12	1	0204-	●
85	05.510 NUT; DIFF CAGE SETTING 4JH1 ENG(RJX) EXC. LIMITED SLIP DIFF<6LV> 08.917 (A),(B) M10 FLANGE	0-91150-210-0	12	1	0204-		●	●
85	05.510 NUT; DIFF CAGE SETTING 05.586 (B) M10	8-94159-009-1	08	1	0106-0202	●	●
85	05.510 NUT; DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> 05.586 (B) M10	8-94159-009-1	08	1	0203-0203	●
85	05.510 NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> 05.586 (B) M10	8-94159-009-1	08	1	0203-0203		●
86	05.510 WASHER; PL,DIFF CAGE SETTING FRT INDEPENDENT SUSPENSION(6PP) EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	0203-0203	●
86	05.510 WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	24	1	0203-0203		●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=10 OD=18 T=2	9-09651-116-0	24	1	0106-0202	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0203-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING 4JH1 ENG(RJX) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0203-		●	●
88	05.506 PLATE; LK,ADJ NUT	8-97027-281-0	AR	1	0106-	●	●	●
88	05.506 PLATE; LK,ADJ NUT	8-97027-282-0	AR	1	0106-	●	●	●
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0106-	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	9812-0105	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0106-	●	●	●
100	05.469 SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	9812-0105	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
