1 |

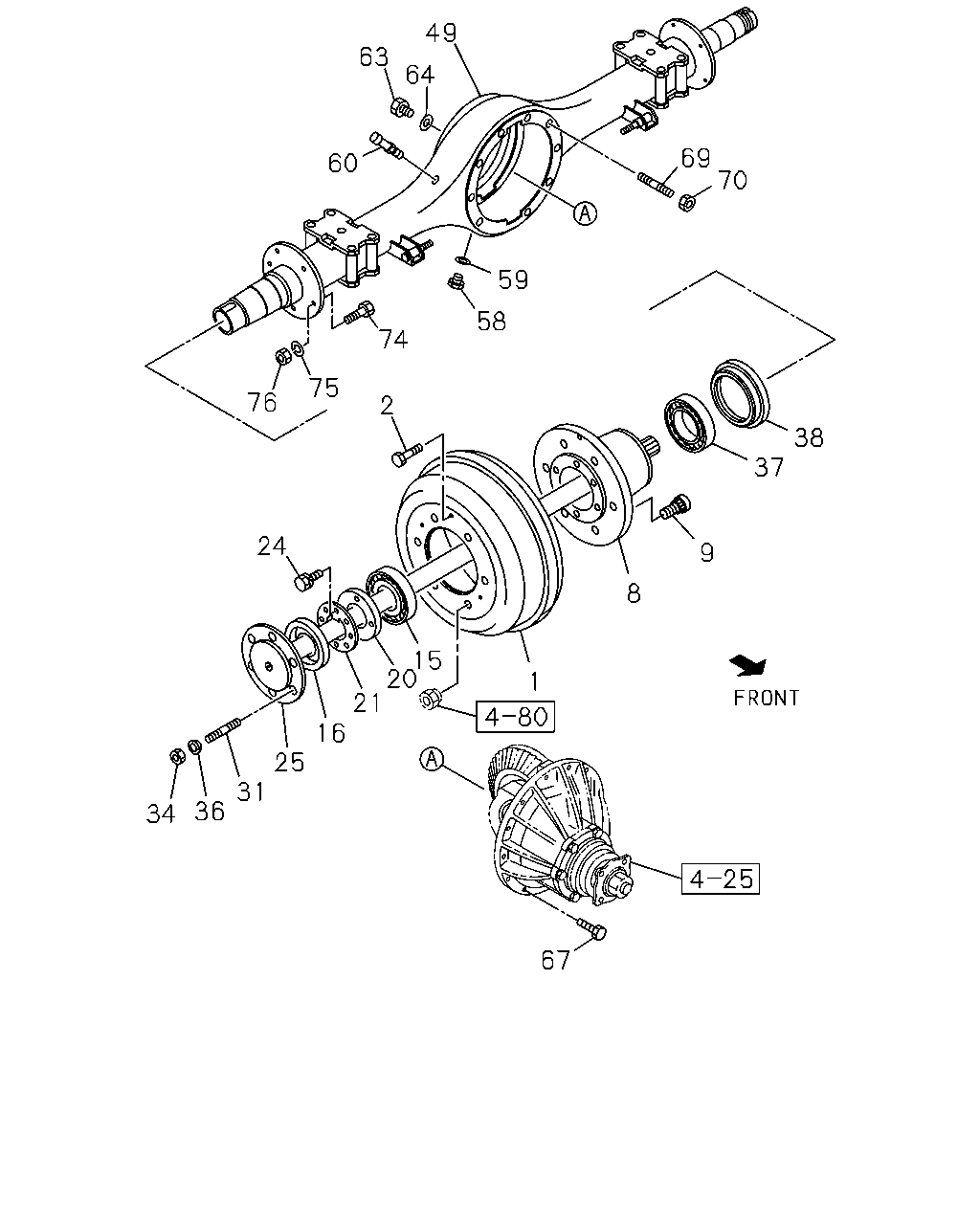

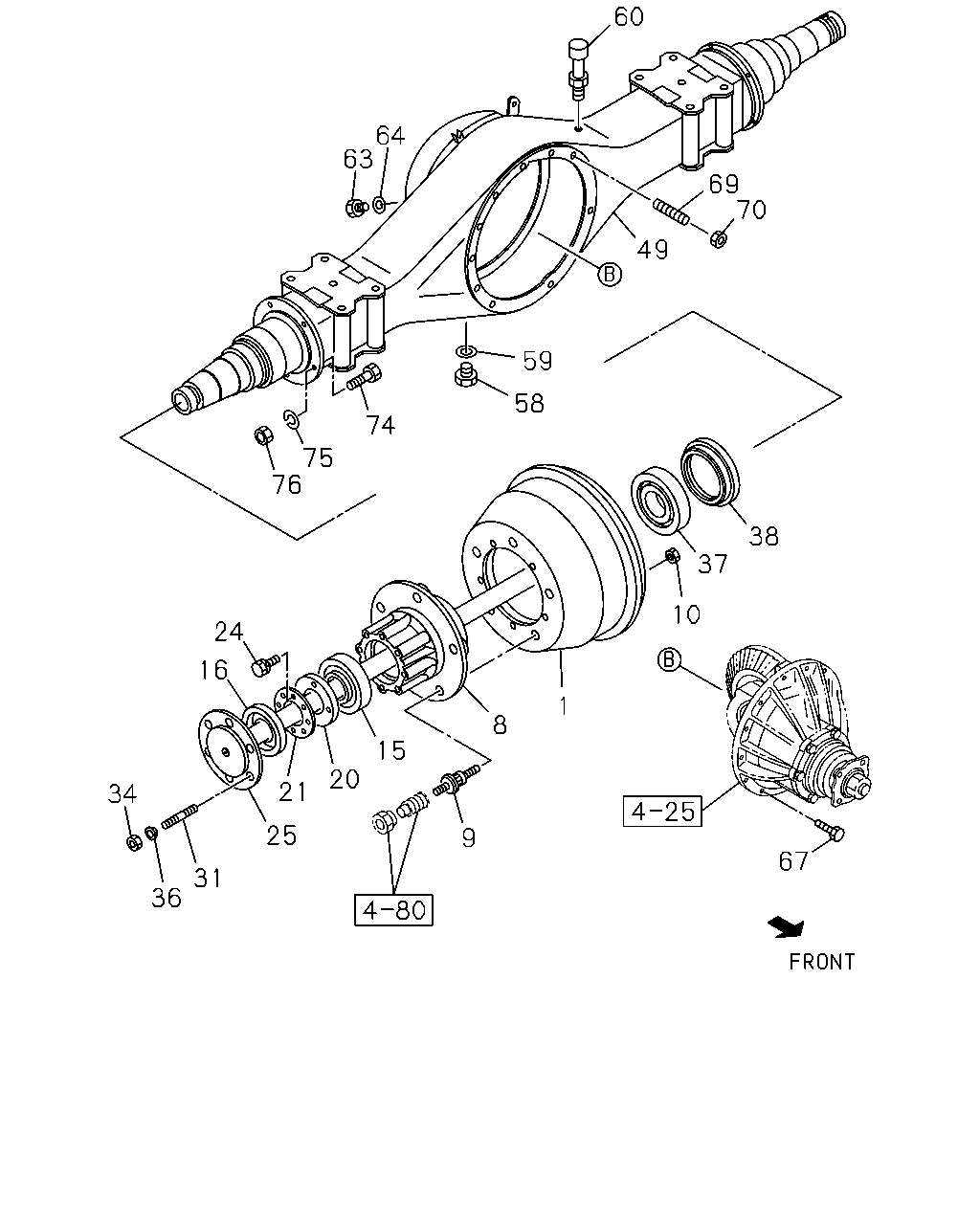

05.809 DRUM; BRK,RR
|
8-97032-891-2 |
02 |
1 |
9812-0105 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97192-097-1 |
02 |
1 |
0106- |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JH1 ENG(RJX)
|
8-97034-770-3 |
02 |
1 |
0106- |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
|
8-94335-927-3 |
02 |
1 |
9812-0105 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0106- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97240-323-1 |
02 |
1 |
0106- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-406-4 |
02 |
1 |
0106- |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0106- |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 LH THREAD
|
9-42332-605-4 |
06 |
1 |
9812- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 RH THREAD
|
9-42331-605-4 |
06 |
1 |
9812- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0106- |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0106- |
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JH1 ENG(RJX)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0106- |
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
9812- |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
9812- |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
9812- |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
8912- |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-0 |
02 |
1 |
9812- |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9812- |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
9812- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JH1 ENG(RJX)
|
8-97032-496-0 |
02 |
1 |
0106- |
|
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
9812- |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JH1 ENG(RJX)
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0106- |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
9812- |
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
4JH1 ENG(RJX)
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0106- |
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
12 |
1 |
9812- |
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JH1 ENG(RJX)
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0106- |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
9812- |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
9812- |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
9812- |
● |
● |
● |
| |
49 |
05.387 CASE; RR AXLE
|
8-97032-768-2 |
01 |
1 |
9812-0105 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97261-473-2 |
01 |
1 |
0106- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97304-377-1 |
01 |
1 |
0106- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97251-368-1 |
01 |
1 |
0106- |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-2 |
01 |
1 |
0106- |
|
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9812- |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9812- |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9812- |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9812- |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9812- |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9812- |
● |
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9812- |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9812- |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M10X25
|
9-09800-768-1 |
12 |
1 |
9812-0007 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
|
8-97259-178-0 |
12 |
1 |
0008- |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JH1 ENG(RJX)
M12X32
|
5-09000-078-0 |
12 |
1 |
0106- |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
9812- |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1 ENG(RJX)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0106- |
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.002
M10
|
9-09110-510-0 |
12 |
1 |
9812- |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1 ENG(RJX)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0106- |
|
● |
● |
