4-01 — PROPELLER SHAFT (#35211) — 97 parça

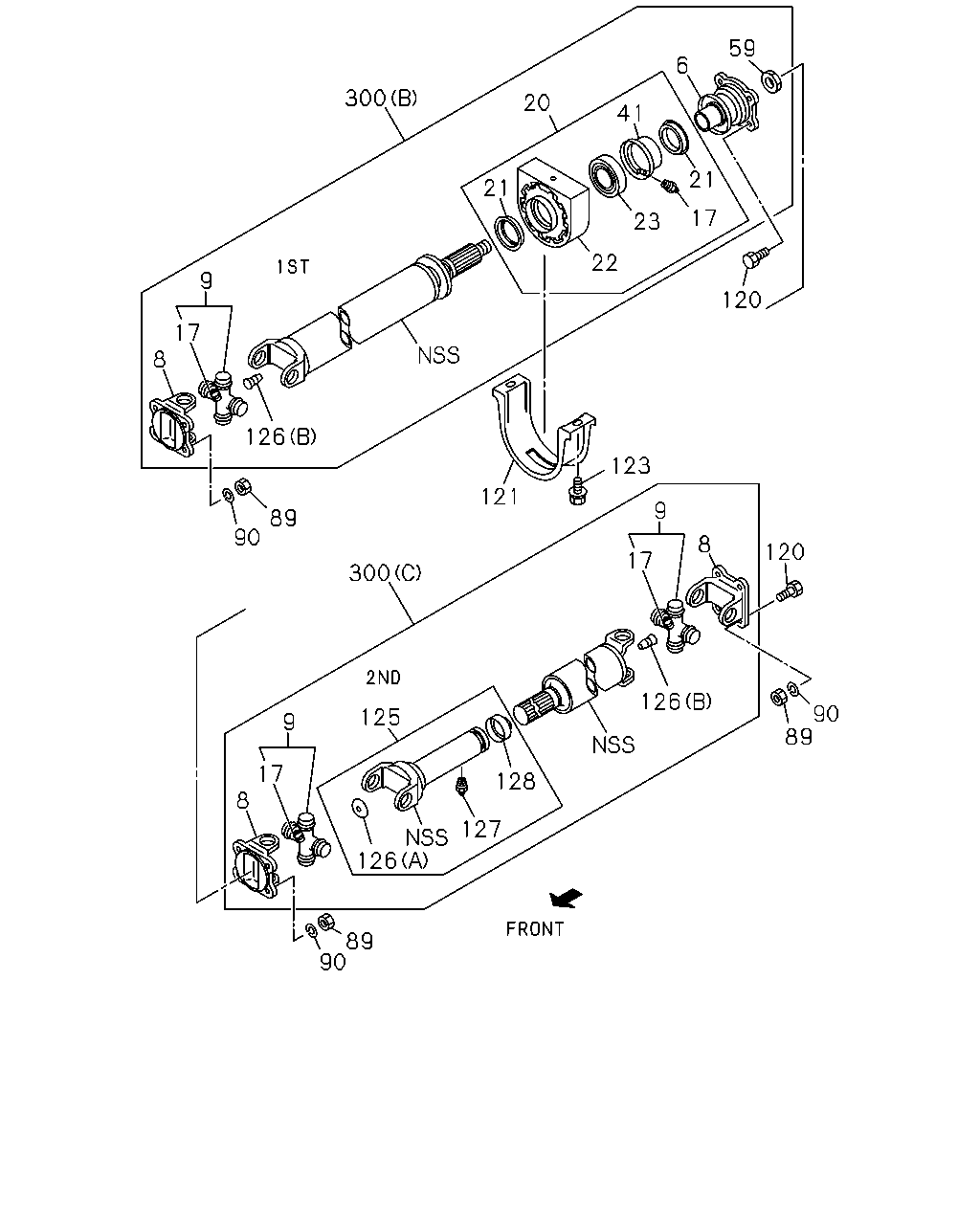

59 6 300 20 41 21 21 17 23 22 9 120 17 8 126 123 121 9 89 90 8 120 17 300 126 90 89 125 9 17 128 8 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4JH1 ENG(RJX)	8-97036-123-0	01	1	0106-	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	9812-0105		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX)	8-97225-254-0	02	1	0106-0205	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX)	8-97225-254-0	02	1	0206-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX)	8-97225-254-0	01	1	0106-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	9812-0105		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX)	8-97080-505-0	02	1	0106-0205	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX)	8-97080-505-0	02	1	0206-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX)	8-97080-505-0	01	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9812-0105		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 05.556 PT1/8 ELBOW	9-09031-210-0	02	1	0106-0205	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 05.556 PT1/8 ELBOW	9-09031-210-0	02	1	0206-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 05.556 PT1/8 ELBOW	9-09031-210-0	01	1	0106-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JH1 ENG(RJX) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0106-	●
21	05.590 SEAL; OIL,CENTER BRG 4JH1 ENG(RJX) 05.601 ID=49	5-09625-067-1	02	1	0106-	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4JH1 ENG(RJX)	5-37516-005-1	01	1	0106-	●
23	05.600 BEARING; CENTER,PROP SHAFT 4JH1 ENG(RJX) OD=80	5-09800-068-0	01	1	0106-	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4JH1 ENG(RJX)	5-37512-004-0	01	1	0106-	●
59	05.586 NUT; RET TO SUPPORT 4JH1 ENG(RJX) 05.595 M30 H=23	1-09449-068-0	01	1	0106-	●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10	8-94159-009-1	08	1	9812-9905		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10	8-94159-009-1	08	1	9906-0105		●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0106-0205		●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0206-		●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	12	1	0106-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC) 00.002 ID=10.2	9-09150-610-0	08	1	9812-9905		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	9906-0105		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) 00.002 ID=12.2	9-09150-812-0	08	1	0106-0205		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) 00.002 ID=12.2	9-09150-812-0	08	1	0206-		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) 00.002 ID=12.2	9-09150-812-0	12	1	0106-	●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10X29	8-97168-458-1	04	1	9812-9905		●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X29	8-97168-458-1	04	1	9906-0105		●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0106-0205		●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0206-		●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	08	1	0106-	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0106-	●
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0106-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT	8-97211-131-0	01	1	9812-0105		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX) L=191	8-97036-126-1	01	1	0106-	●	●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX) (B)	1-09600-023-0	01	1	0106-	●	●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX) (B)	1-09600-023-0	01	1	0106-	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX) (A)	8-94366-900-0	01	1	0106-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9812-0105		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JH1 ENG(RJX) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●	●	●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	9812-0105		●
128	05.586 SEAL; SLEEVE 4JH1 ENG(RJX)	8-97145-746-0	01	1	0106-	●	●	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-97211-674-0	01	1	9812-0105		●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (A) L=1037	8-97143-265-0	01	1	0106-0205		●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (A) L=1037	8-97143-265-0	01	1	0206-		●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) EXC. REAR WIDE TREAD(V4T) (A) L=1037	8-97143-265-0	01	1	0206-			●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (B) L=856	8-97206-681-1	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (C) L=1050	8-97206-688-0	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) L=1009	8-97206-685-0	01	1	0206-			●

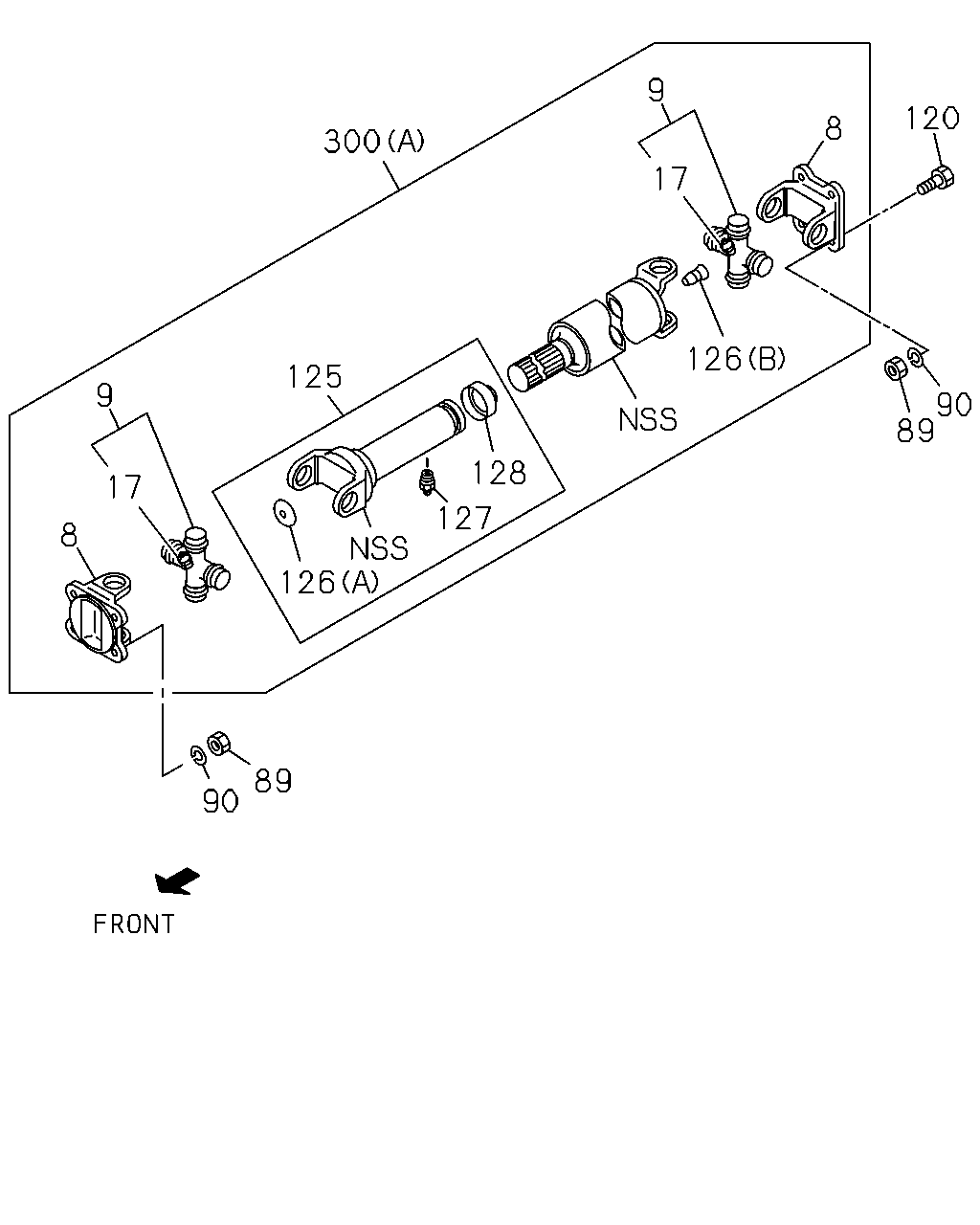

9 120 8 300 17 126 125 9 90 89 128 17 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97211-116-0	02	1	9812-0105		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX)	8-97225-254-0	02	1	0106-0205	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX)	8-97225-254-0	02	1	0206-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX)	8-97225-254-0	01	1	0106-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97211-135-0	02	1	9812-0105		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX)	8-97080-505-0	02	1	0106-0205	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX)	8-97080-505-0	02	1	0206-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX)	8-97080-505-0	01	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	02	1	9812-0105		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 05.556 PT1/8 ELBOW	9-09031-210-0	02	1	0106-0205	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 05.556 PT1/8 ELBOW	9-09031-210-0	02	1	0206-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX) 05.556 PT1/8 ELBOW	9-09031-210-0	01	1	0106-	●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10	8-94159-009-1	08	1	9812-9905		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10	8-94159-009-1	08	1	9906-0105		●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0106-0205		●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	08	1	0206-		●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12	8-94477-841-0	12	1	0106-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC) 00.002 ID=10.2	9-09150-610-0	08	1	9812-9905		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	9906-0105		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) 00.002 ID=12.2	9-09150-812-0	08	1	0106-0205		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) 00.002 ID=12.2	9-09150-812-0	08	1	0206-		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX) 00.002 ID=12.2	9-09150-812-0	12	1	0106-	●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC) M10X29	8-97168-458-1	04	1	9812-9905		●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X29	8-97168-458-1	04	1	9906-0105		●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0106-0205		●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	04	1	0206-		●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX) M12X35	8-94477-842-0	08	1	0106-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT	8-97211-131-0	01	1	9812-0105		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX) L=191	8-97036-126-1	01	1	0106-	●	●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX) (B)	1-09600-023-0	01	1	0106-	●	●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX) (B)	1-09600-023-0	01	1	0106-	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX) (A)	8-94366-900-0	01	1	0106-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9812-0105		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4JH1 ENG(RJX) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-	●	●	●
128	05.586 SEAL; SLEEVE 05.545	8-97020-597-1	01	1	9812-0105		●
128	05.586 SEAL; SLEEVE 4JH1 ENG(RJX)	8-97145-746-0	01	1	0106-	●	●	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-97211-674-0	01	1	9812-0105		●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (A) L=1037	8-97143-265-0	01	1	0106-0205		●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (A) L=1037	8-97143-265-0	01	1	0206-		●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) EXC. REAR WIDE TREAD(V4T) (A) L=1037	8-97143-265-0	01	1	0206-			●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (B) L=856	8-97206-681-1	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) (C) L=1050	8-97206-688-0	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (A) L=1009	8-97206-685-0	01	1	0206-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
