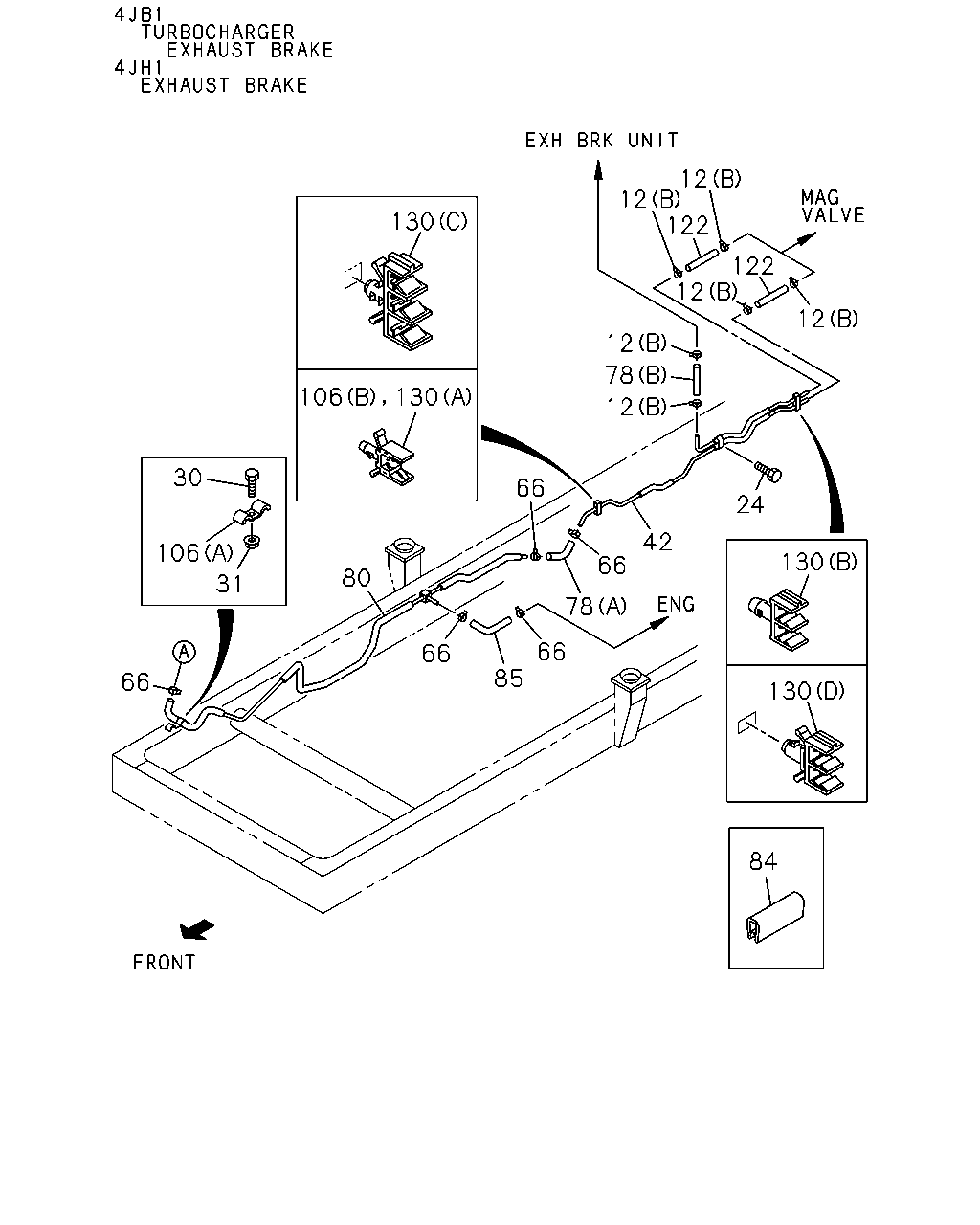

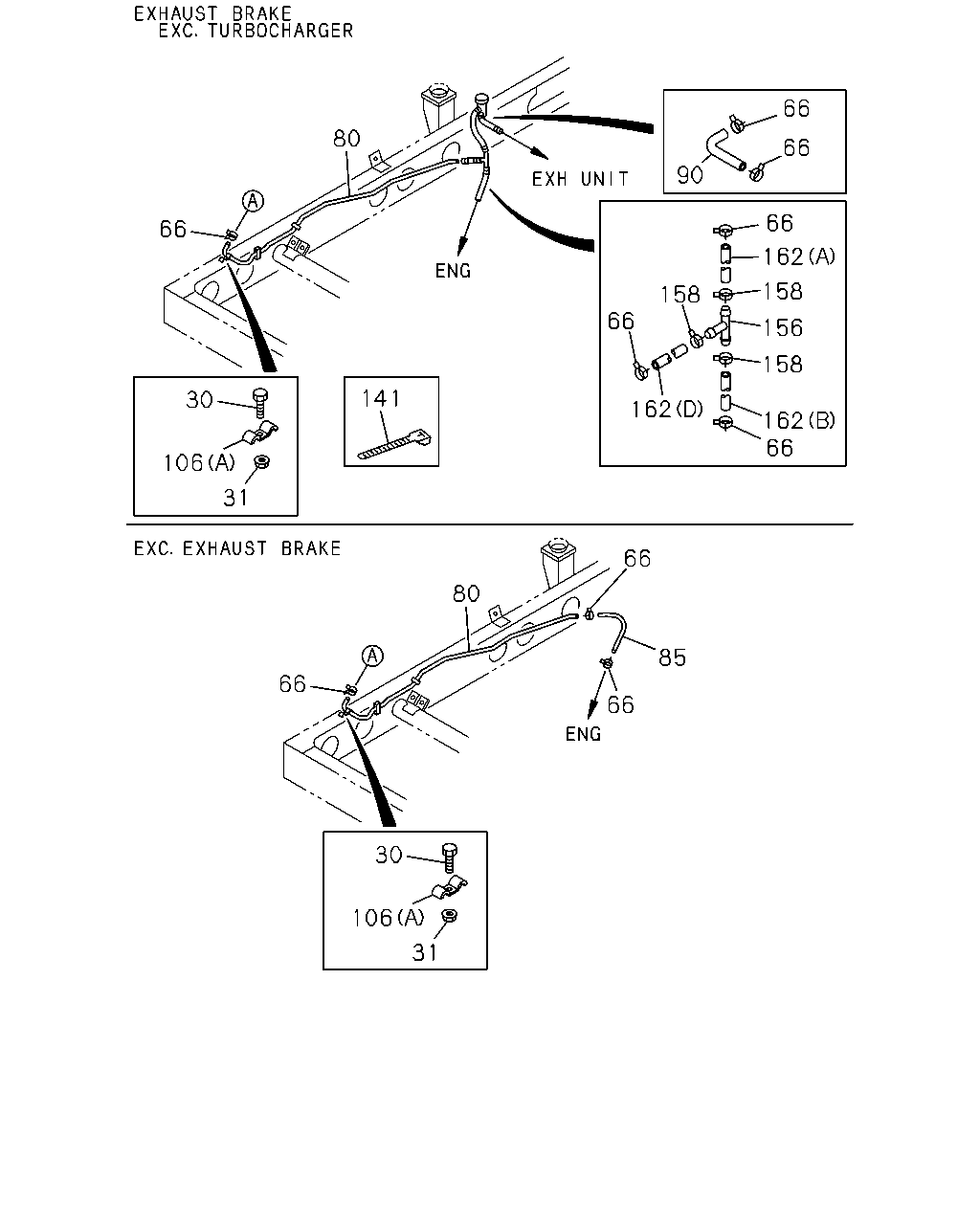

3-60 — BRAKE PIPING; VACUUM (#35210) — 111 parça

12 116 12 12 13 39 39 39 184 39 165 39 173 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	9812-	●	●	●
12	04.681 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	9906-0105	●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0106-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	0106-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	9812-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	03	1	9812-	●	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	9812-	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97048-909-0	01	1	9812-0109	●		●
116	04.931 HOSE; VAC,M/VAC	8-97314-597-0	01	1	0110-	●	●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-998-2	01	1	9812-	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9812-9905	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9906-0105	●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	0106-		●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	9812-9905	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97100-393-0	01	1	9906-0105	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	9812-9905	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (D)	8-97100-402-0	01	1	9906-0105	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9812-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	9812-	●	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	9812-	●	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9812-	●	●	●

66 80 66 90 66 66 162 158 158 66 156 158 141 30 162 162 66 106 31 66 80 85 66 66 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9812-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	9906-0105	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0106-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=16	8-94238-568-0	06	1	9812-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97205-997-0	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97288-013-0	01	1	0106-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97259-512-2	01	1	0106-0205			●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97259-512-2	01	1	0206-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97093-982-0	01	1	9812-0105	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97259-370-1	01	1	0106-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97287-445-1	01	1	0106-0205			●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. EXHAUST BRAKE<NF8>	8-97287-445-1	01	1	0206-		●	●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9812-9905	●
85	04.931 HOSE; VAC,ENG SIDE EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9906-0105	●
85	04.931 HOSE; VAC,ENG SIDE TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	9906-0105	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	0106-	●	●	●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9812-0105	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9812-0105	●
106	04.930 CLIP; PIPE 4JH1 ENG(RJX) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0106-		●	●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	9812-9905	●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.559 L=250	5-09707-030-1	01	1	9906-0105	●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9812-9905	●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=430	8-94467-387-0	01	1	9906-0105	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	9812-9905	●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 04.930 ID=14.5	8-94167-480-0	03	1	9906-0105	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97102-998-2	01	1	9812-	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9812-9905	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9906-0105	●
162	04.931 HOSE; VAC (C)	8-97102-369-2	01	1	0106-		●	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	9812-9905	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97100-393-0	01	1	9906-0105	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	9812-9905	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (D)	8-97100-402-0	01	1	9906-0105	●

12 12 122 130 122 12 12 12 78 130 106 12 30 66 24 42 106 130 66 80 31 78 66 66 85 66 130 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	9812-	●	●	●
12	04.681 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	9906-0105	●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0106-	●	●	●
24	04.686 BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●
24	04.686 BOLT; BRKT 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97204-605-0	01	1	9906-9909	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97233-401-0	01	1	9910-0105	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-372-3	01	1	0106-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97259-514-1	01	1	0106-			●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97329-462-0	01	1	0206-		●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9812-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	9906-0105	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0106-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=16	8-94238-568-0	06	1	9812-0105	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0106-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=460 SERVICED BY L=3000	0-08258-300-0	01	1	0106-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0205			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0206-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	0106-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0206-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97205-997-0	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97288-013-0	01	1	0106-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>	8-97070-034-1	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97259-512-2	01	1	0106-0205			●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97259-512-2	01	1	0206-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97093-982-0	01	1	9812-0105	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97259-370-1	01	1	0106-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97287-445-1	01	1	0106-0205			●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. EXHAUST BRAKE<NF8>	8-97287-445-1	01	1	0206-		●	●
84	04.931 PROTECTOR; EDGE,VAC HOSE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.008 L=80	5-22439-006-0	01	1	0206-		●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9812-9905	●
85	04.931 HOSE; VAC,ENG SIDE EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9906-0105	●
85	04.931 HOSE; VAC,ENG SIDE TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	9906-0105	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	0106-	●	●	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9812-0105	●
106	04.930 CLIP; PIPE 4JH1 ENG(RJX) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0106-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	9906-0105	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0106-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97287-362-1	02	1	0106-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	02	1	0206-		●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	9906-9909	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9910-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (D) ID=10X2 H=37.5	8-97018-546-0	01	1	0106-		●	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	9906-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0106-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	9910-0009	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	9910-0009	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=10 H=40	8-94462-219-0	01	1	0010-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	0010-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	0106-	●
