Sayfa 3-58 - Isuzu EPC

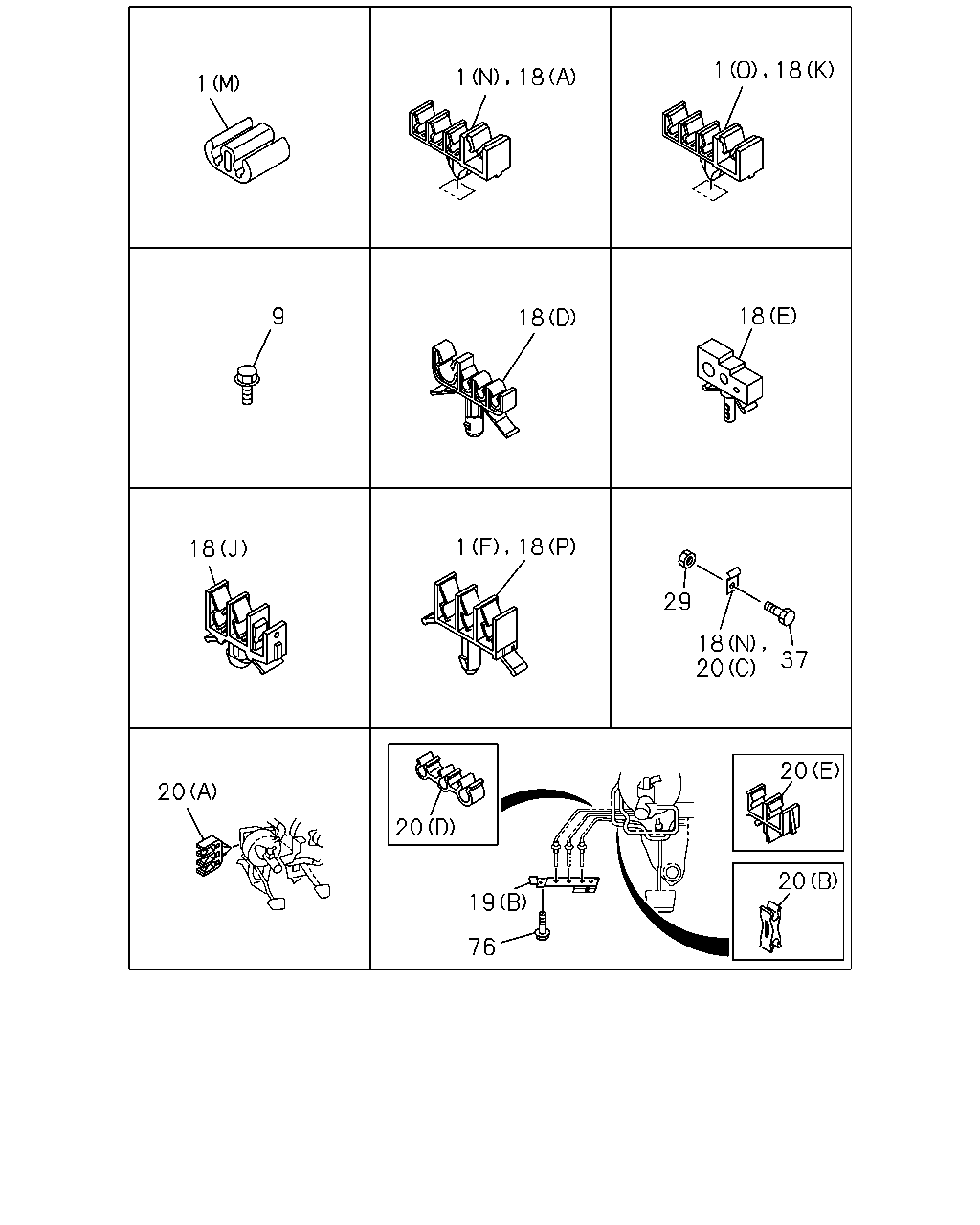

3-58 — FIXING PARTS; OIL PIPING (#35209) — 143 parça

1 18 1 18 1 18 9 18 1 18 18 29 18 20 37 20 20 20 20 19 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.686 CLIP; OIL PIPE TO BODY 04.685 (G) ID=4.76X3	8-94122-333-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=4.8X3	8-94487-369-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (L) ID=4.8 H=26	8-94249-685-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) B=14 L=16	9-09916-996-0	02	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=10 & 4.76X3	8-97168-819-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) B=14 L=16	9-09916-996-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (I)	8-97074-319-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) (I)	8-97074-319-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (M) ID=4.8X2	8-94389-060-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=6.4 & 4.8	8-94257-329-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8X2	8-94316-410-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8X2	8-94316-410-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) B=14 L=16	9-09916-996-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (J) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 06.672 (O) ID=10 & 4.8X3	8-97038-938-0	02	1	9812-0105	●
9	04.686 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-9909	●
9	04.686 BOLT; BRKT 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9910-0105	●
18	04.686 CLIP; BRK PIPE (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (L) B=14 L=16	9-09916-996-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(6PP) (O) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0112-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 06.672 (K) ID=10 & 4.8X3	8-97038-938-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=6.4 & 4.8	8-94257-329-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	01	1	0106-0202	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	01	1	0203-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=4.8X2	8-94316-410-0	01	1	0203-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 04.685 (M) ID=4.76X3	8-94122-333-0	01	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (Q) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (Q) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (N) B=18 L=20	1-09700-372-0	02	1	0106-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0107			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0107			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0107			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0108-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0108-		●	●
18	04.686 CLIP; BRK PIPE (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0108-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	03	1	0106-			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (J) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 4.76X3	8-97168-820-0	01	1	0206-		●
19	04.686 BRACKET; OIL PIPE (B)	8-97042-258-4	01	1	9812-	●	●	●
19	04.686 BRACKET; OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97068-790-0	01	1	9812-9909	●
19	04.686 BRACKET; OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97068-790-0	01	1	9910-0105	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94107-732-1	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=4.8X2	8-94113-470-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9812-	●	●	●
29	04.686 NUT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-			●
37	04.686 BOLT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-			●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-	●	●	●

15 1 18 18 1 1 18 14 1 18 18 1 18 1 18 1 18 1 1 18 9 1 18 1 15 19 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.686 CLIP; OIL PIPE TO BODY 04.685 (G) ID=4.76X3	8-94122-333-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=4.8X3	8-94487-369-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (L) ID=4.8 H=26	8-94249-685-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) B=14 L=16	9-09916-996-0	02	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=10 & 4.76X3	8-97168-819-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) B=14 L=16	9-09916-996-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (I)	8-97074-319-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) (I)	8-97074-319-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (M) ID=4.8X2	8-94389-060-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=6.4 & 4.8	8-94257-329-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8X2	8-94316-410-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8X2	8-94316-410-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) B=14 L=16	9-09916-996-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (J) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 06.672 (O) ID=10 & 4.8X3	8-97038-938-0	02	1	9812-0105	●
9	04.686 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-9909	●
9	04.686 BOLT; BRKT 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9910-0105	●
14	04.686 BOLT; CLIP,OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9812-	●
14	04.686 BOLT; CLIP,OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-9909	●
14	04.686 BOLT; CLIP,OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-9909	●
14	04.686 BOLT; CLIP,OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9910-0105	●
14	04.686 BOLT; CLIP,OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9910-0105	●
15	04.686 NUT; CLIP,OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-9909	●
15	04.686 NUT; CLIP,OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE	0-91150-106-0	01	1	9910-0105	●
18	04.686 CLIP; BRK PIPE (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (L) B=14 L=16	9-09916-996-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(6PP) (O) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0112-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 06.672 (K) ID=10 & 4.8X3	8-97038-938-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=6.4 & 4.8	8-94257-329-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	01	1	0106-0202	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	01	1	0203-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=4.8X2	8-94316-410-0	01	1	0203-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 04.685 (M) ID=4.76X3	8-94122-333-0	01	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (Q) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (Q) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (N) B=18 L=20	1-09700-372-0	02	1	0106-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0107			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0107			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0107			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0108-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0108-		●	●
18	04.686 CLIP; BRK PIPE (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0108-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	03	1	0106-			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (J) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 4.76X3	8-97168-820-0	01	1	0206-		●
19	04.686 BRACKET; OIL PIPE (B)	8-97042-258-4	01	1	9812-	●	●	●
19	04.686 BRACKET; OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97068-790-0	01	1	9812-9909	●
19	04.686 BRACKET; OIL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97068-790-0	01	1	9910-0105	●
