◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#35201) — 11 parça

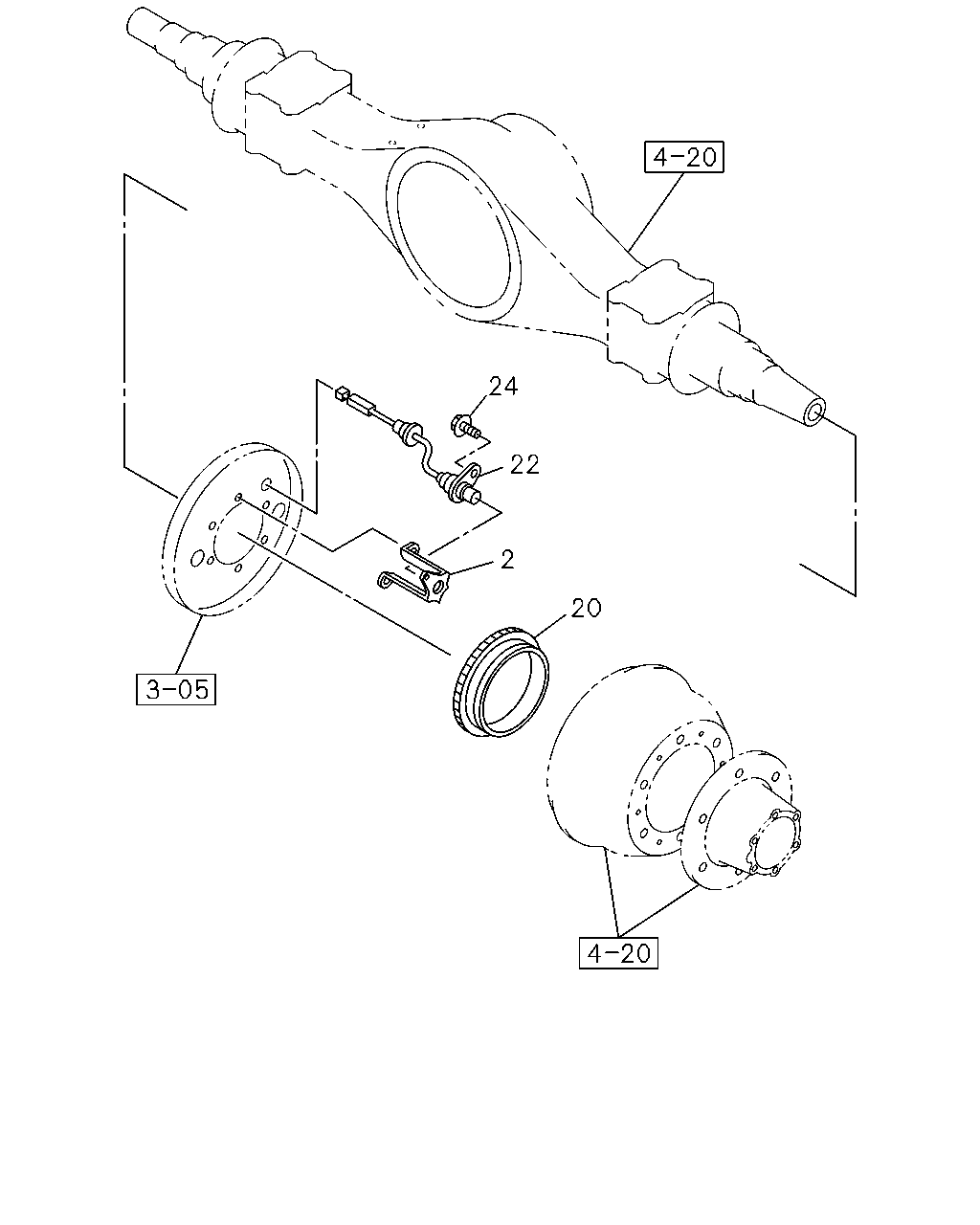

çizim 49318
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-529-0 02 1 0106- ●
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-115-0 02 1 0106-0106 ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0106- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-527-0 02 1 0106- ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0106- ● ●
22 04.710 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0106-0205 ● ●
22 04.710 SENSOR; SPEED
FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0206- ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0206- ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106-0205 ● ●
24 04.730 BOLT; SENSOR
FRT INDEPENDENT SUSPENSION(6PP) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0206- ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0206- ● ●
