◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50813 - NKR(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#35200) — 27 parça
çizim 8827
225 89 224 91 181 236 324
BalonParca AdiParca NoAdetTipApplied Date A B C
89 04.785 BRACKET; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97113-984-1 01 1 9812-0105 ●
91 04.785 CLIP; PARKING BRK CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=13 L=50 		9-09525-286-0 01 1 9812-0105 ●
91 04.785 CLIP; PARKING BRK CABLE
4JH1 ENG(RJX) 00.799 ID=13 L=20 		1-09701-138-1 01 1 0106- ● ● ●
181 04.785 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
224 04.785 BOLT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-0105 ●
224 04.785 BOLT; CABLE CLIP
4JH1 ENG(RJX) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ● ●
225 04.785 NUT; CABLE CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ●
225 04.785 NUT; CABLE CLIP
4JH1 ENG(RJX) M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ●
324 04.785 BRACKET
4JH1 ENG(RJX) 		8-97289-364-0 01 1 0106- ● ● ●

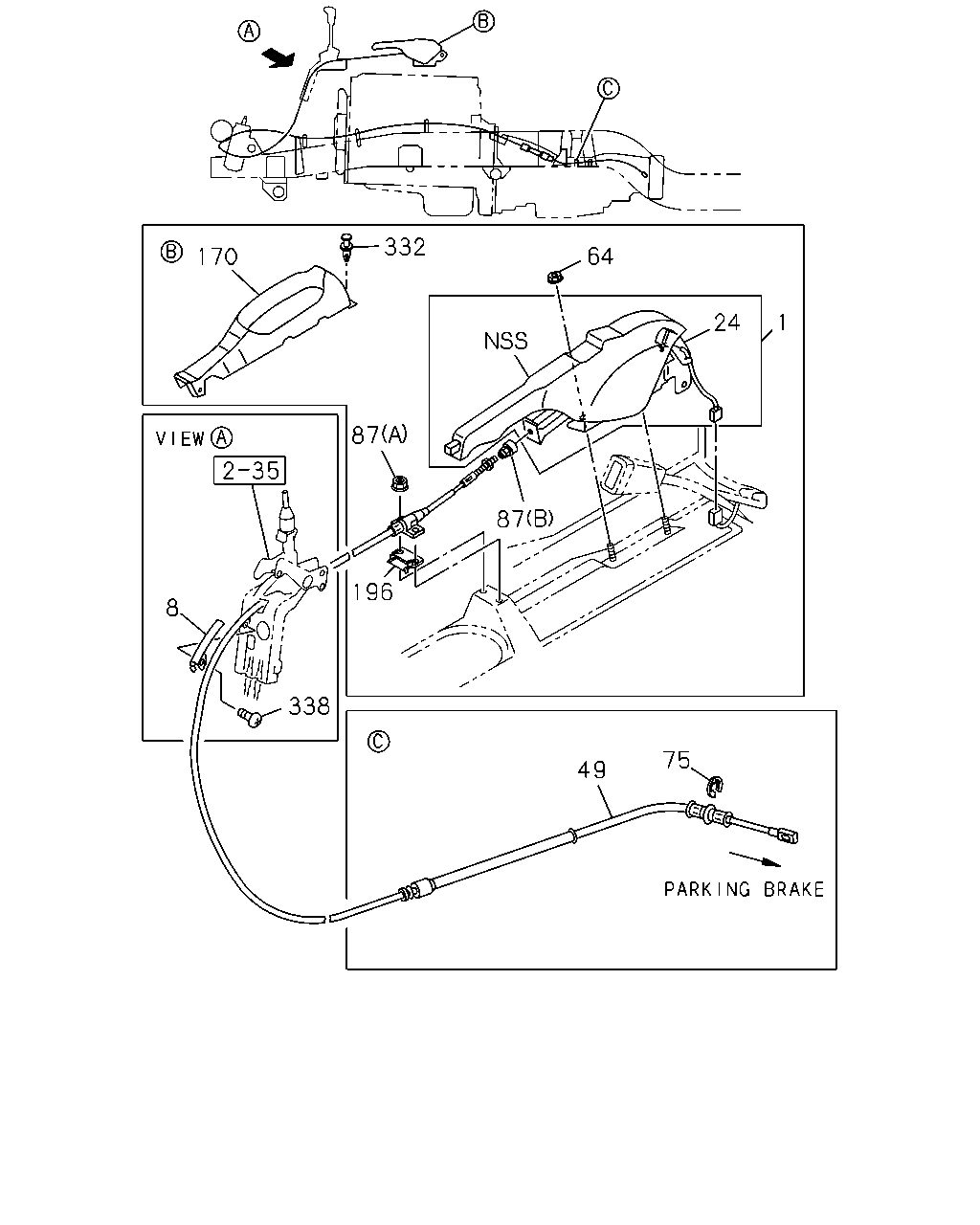

çizim 47567
332 64 170 24 1 87 196 8 338 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9812-0108 ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ●
8 04.592 GUIDE; PARKING BRK 8-97071-939-0 01 1 9812-9904 ●
8 04.592 GUIDE; PARKING BRK 8-97190-672-0 01 1 9905- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9812-0108 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ●
49 04.779 CABLE; PARKING BRK
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97184-270-0 01 1 9812-0105 ●
49 04.779 CABLE; PARKING BRK
4JH1 ENG(RJX) 		8-97260-320-0 01 1 0106- ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9812- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 9812- ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9812- ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 9812- ● ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY 		8-97155-172-0 01 1 9812- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 9812- ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 9812- ● ● ●
338 04.785 SCREW; GUIDE
16.270 M6X10 		9-03497-610-0 01 1 9812- ● ● ●
