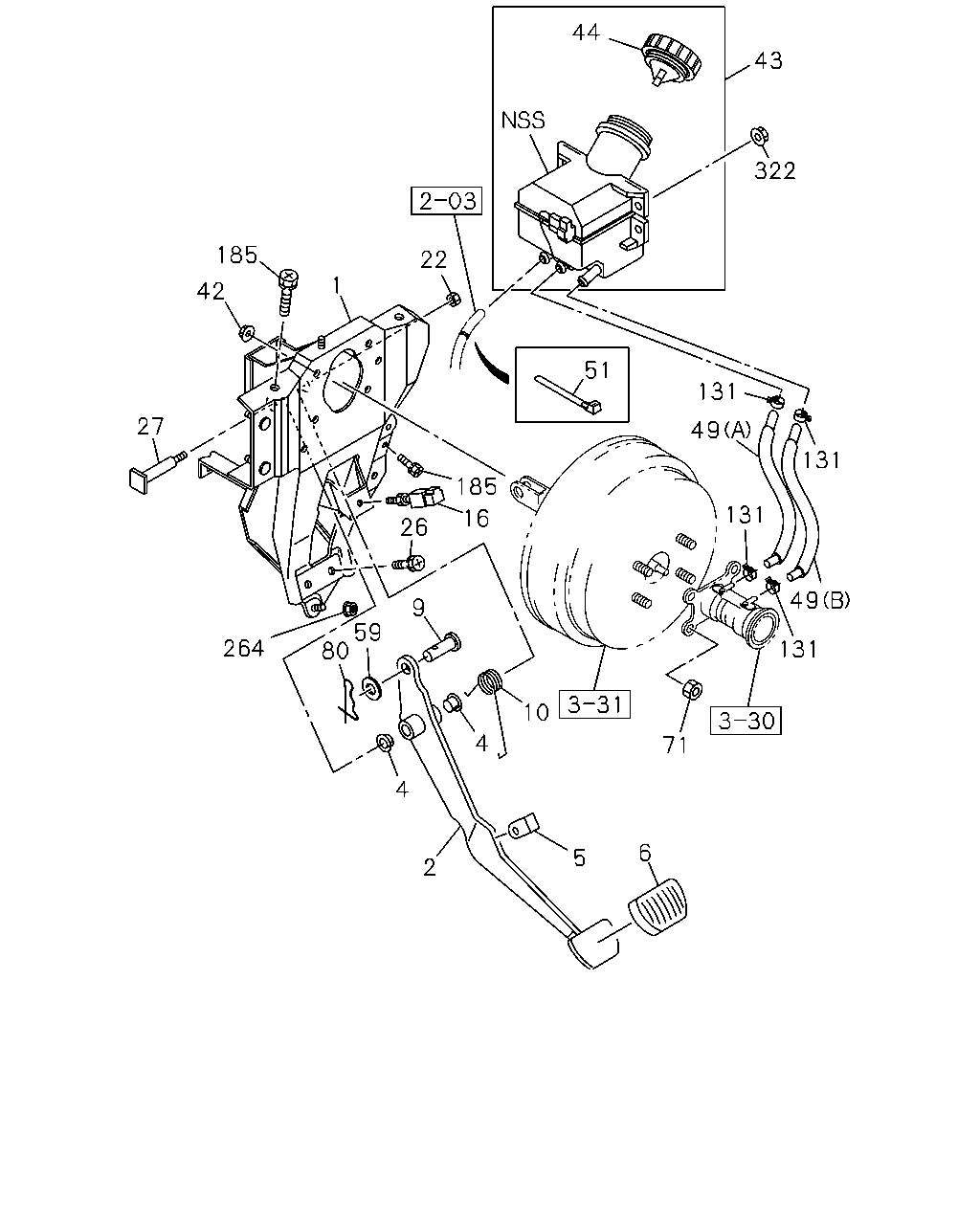

3-10 — BRAKE PEDAL AND CONTROL (#35199) — 45 parça

44 43 322 185 22 1 42 51 131 27 49 131 185 131 16 26 49 9 59 80 131 264 10 4 71 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.634 BRACKET ASM; PEDAL	8-97853-209-8	01	1	9812-9905	●
1	04.634 BRACKET ASM; PEDAL	8-97896-968-0	01	1	9906-0105	●
1	04.634 BRACKET ASM; PEDAL 4JH1 ENG(RJX)	8-97896-968-1	01	1	0106-	●	●	●
2	04.625 PEDAL; BRK	8-97853-210-2	01	1	9812-0105	●
2	04.625 PEDAL; BRK 4JH1 ENG(RJX)	8-97853-210-3	01	1	0106-	●	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	9812-0105	●
4	04.634 BUSHING; BRK PEDAL 4JH1 ENG(RJX) 04.792	8-94238-596-0	02	1	0106-	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-0	01	1	9812-0105	●
5	04.634 STOPPER; BRK PEDAL 4JH1 ENG(RJX)	8-97853-602-1	01	1	0106-	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-1	01	1	9812-0105	●
6	04.630 COVER; BRK PEDAL 4JH1 ENG(RJX) 00.829	8-97853-413-2	01	1	0106-	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	9812-	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	9812-0105	●
10	04.639 SPRING; RETURN,BRK PEDAL 4JH1 ENG(RJX)	8-97853-212-1	01	1	0106-	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	9812-0105	●
16	02.447 SWITCH; STOP LAMP 4JH1 ENG(RJX) 03.340	8-94337-761-0	01	1	0106-	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	9812-0105	●
22	04.634 NUT; SHAFT 4JH1 ENG(RJX) 00.833 M10 FLANGE	1-09440-022-0	01	1	0106-	●	●	●
26	04.634 BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	9812-0110	●		●
26	04.634 BOLT; PEDAL 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	9812-0105	●
27	04.634 SHAFT; BRK PEDAL 4JH1 ENG(RJX)	8-97866-667-0	01	1	0106-	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9812-	●	●	●
43	04.651 TANK ASM; OIL	8-97178-245-1	01	1	9812-	●	●	●
44	04.651 CAP; OIL TANK	8-97178-291-1	01	1	9812-	●	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97129-582-0	01	1	9812-0105	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97129-582-0	01	1	0106-0109	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL 4JH1 ENG(RJX) (B)	8-97129-582-0	01	1	0106-0109			●
49	04.680 HOSE; OIL TANK TO BRK M/CYL FRT INDEPENDENT SUSPENSION(6PP) (A),(B)	8-97129-582-0	02	1	0110-0205	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL 4JH1 ENG(RJX) (A),(B)	8-97129-582-0	02	1	0110-0205			●
49	04.680 HOSE; OIL TANK TO BRK M/CYL FRT INDEPENDENT SUSPENSION(6PP) (A),(B)	8-97129-582-0	02	1	0206-	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL 4JH1 ENG(RJX) (A),(B)	8-97129-582-0	02	1	0206-		●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97173-291-0	01	1	9812-0105	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97173-291-0	01	1	0106-0109	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL 4JH1 ENG(RJX) (A)	8-97173-291-0	01	1	0106-0109			●
51	04.681 CLIP; HOSE,OIL TANK 03.162 L=140	5-09707-031-1	01	1	9812-	●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	9812-	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9812-	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	9812-	●	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR FRT INDEPENDENT SUSPENSION(6PP)	8-97130-480-0	04	1	9812-0105	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR FRT INDEPENDENT SUSPENSION(6PP)	8-97130-480-0	04	1	0106-	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 4JH1 ENG(RJX)	8-97130-480-0	04	1	0106-		●	●
185	04.634 BOLT; BRKT 09.003 M10X25 FLANGE	0-28691-025-0	02	1	9812-	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	9812-	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9812-	●	●	●
