Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

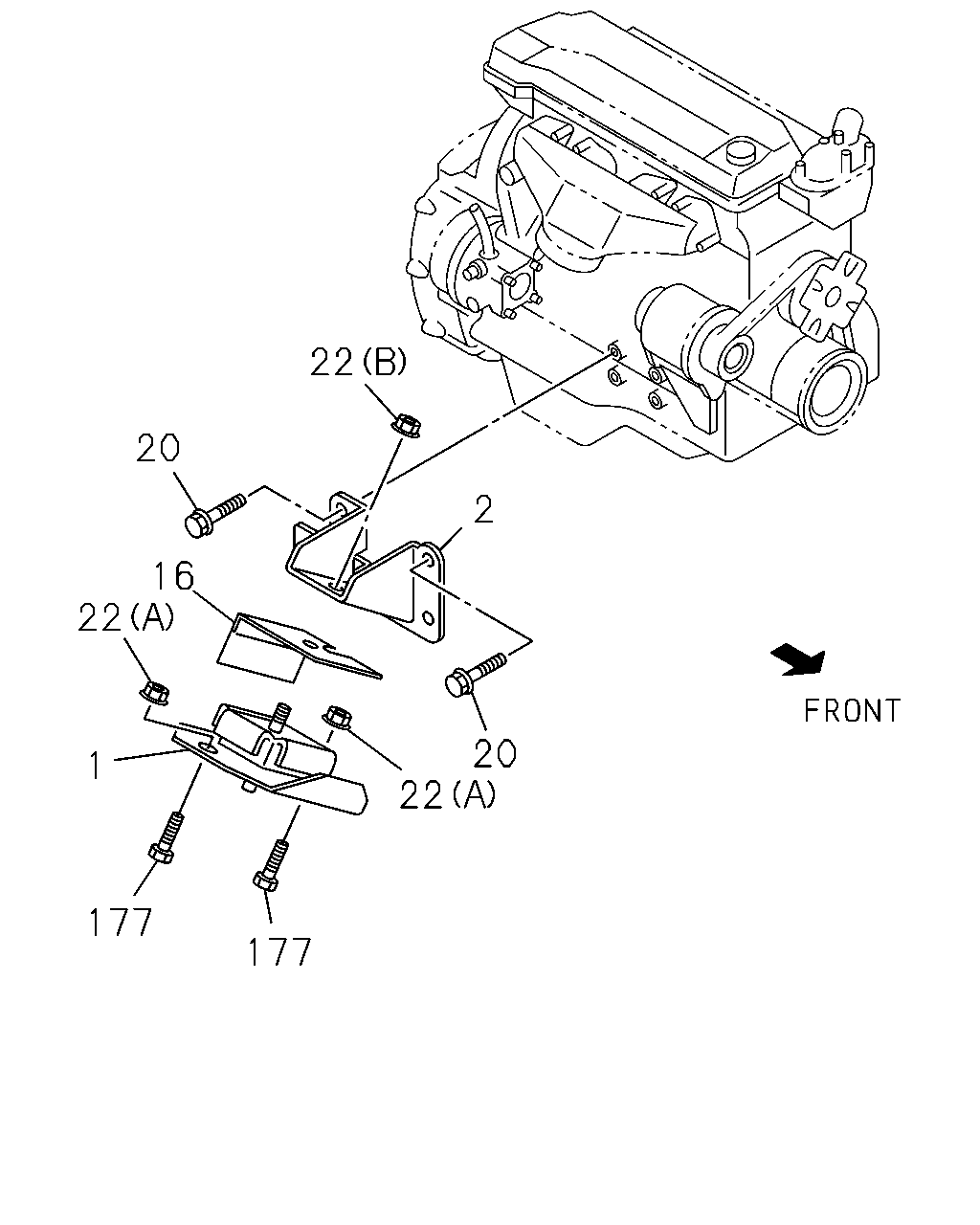

0-22 — ENGINE MOUNTING
(#35195) — 22 parça
◀
[022A] NO.2 (10 parça)
[022A] NO.1 (12 parça)
▶
22
20
2
16
22
20
22
1
177
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-98097-763-0
01
1
0901-
1
RUBBER; ENG FOOT,FRT
8-98097-764-0
01
1
0901-
2
FOOT; ENG
8-97228-669-2
02
1
0901-
16
PROTECTOR; HEAT,ENG MTG,FRT
8-94365-486-0
01
1
0901-
20
BOLT; ENG FOOT
M10X20 FLANGE
0-28161-020-0
08
1
0901-
22
NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE THA
0-91180-210-0
04
1
0901-
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE THA
0-91180-112-0
02
1
0901-1206
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE THA
0-91180-112-0
02
1
1207-1210
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE THA
0-91180-112-0
04
1
1211-
177
BOLT; BRKT TO CUSHION RUBBER
M10X37.5
8-94468-733-1
04
1
0901-
87
84
76
134
71
78
52
76
134
71
78
76
76
134
67
67
76
71
52
76
134
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
RUBBER; CUSHION,ENG MTG,RR
8-94111-903-1
02
1
0901-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97255-776-1
01
1
0901-
67
BRACKET; SUPPORT,ENG MTG,RR
8-97255-778-1
01
1
0901-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE THA
0-91180-110-0
04
1
0901-
76
STOPPER; ENG MTG RUBBER
(B)
8-94111-904-0
02
1
0901-
76
STOPPER; ENG MTG RUBBER
(A)
8-97039-947-1
04
1
0901-
78
BRACKET; ENG MTG,RR
8-97255-756-1
02
1
0901-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0901-
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
04
1
0901-1206
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
04
1
1207-1210
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
08
1
1211-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE
0-28751-225-0
06
1
0901-
