Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

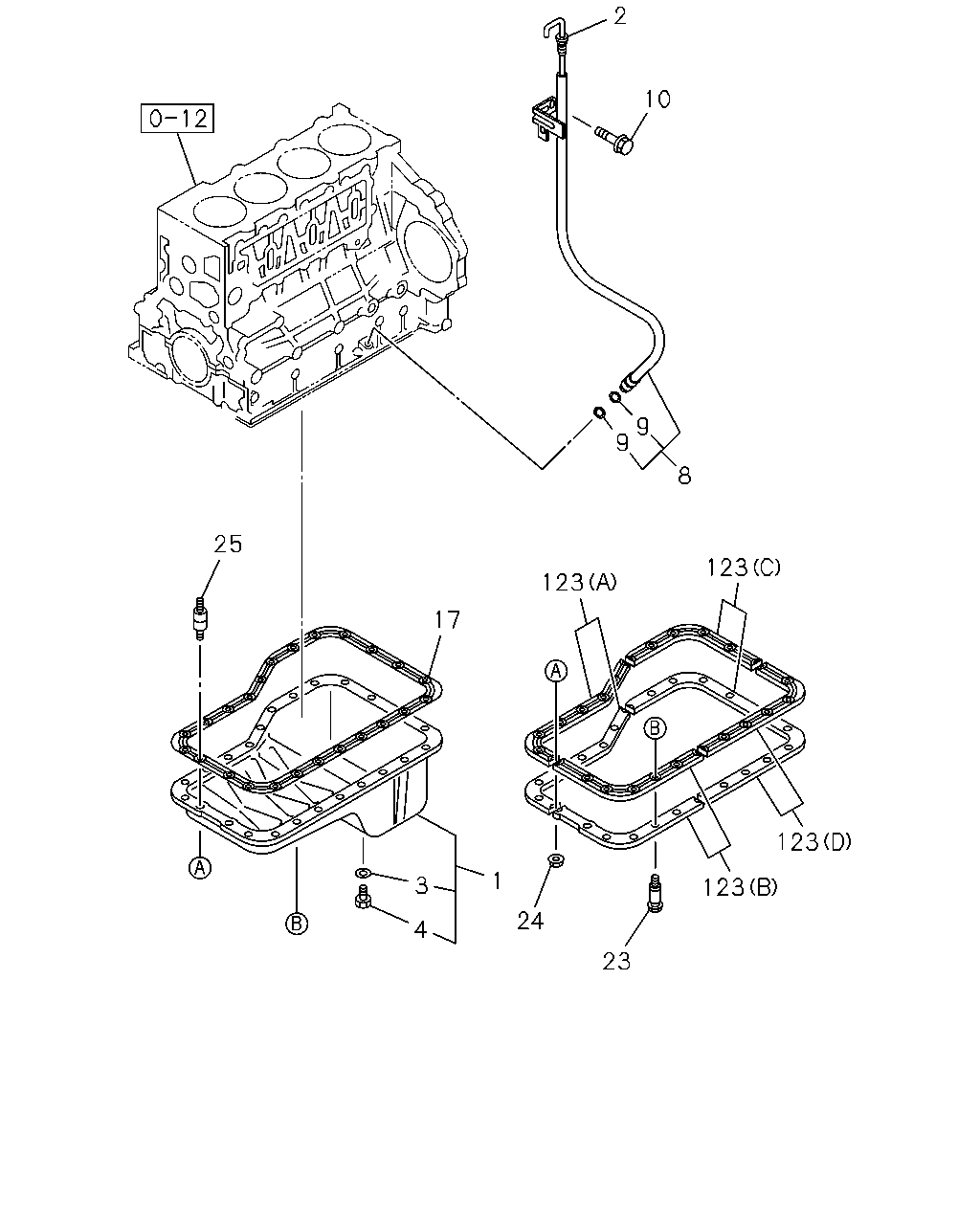

0-13 — OIL PAN AND LEVEL GAUGE
(#35191) — 16 parça
2
10
9
9
8
25
123
123
17
123
1
3
123
24
4
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97385-242-0
01
1
0901-
2
GAUGE; OIL LEVEL
8-97251-081-1
01
1
0901-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0901-
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
0901-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-97380-033-0
01
1
0901-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
5-09623-002-0
02
1
0901-
10
BOLT; GUIDE TUBE
M8X20 FLANGE THA
0-28650-820-0
01
1
0901-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
0901-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
0901-
24
NUT; OIL PAN
M8 FLANGE THA
0-91180-108-0
13
1
0901-
25
STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
0901-
25
STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
0901-
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
0901-
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
0901-
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
0901-
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
0901-
