0-50A — OIL COOLER AND OIL FILTER (#3519) — 131 parça

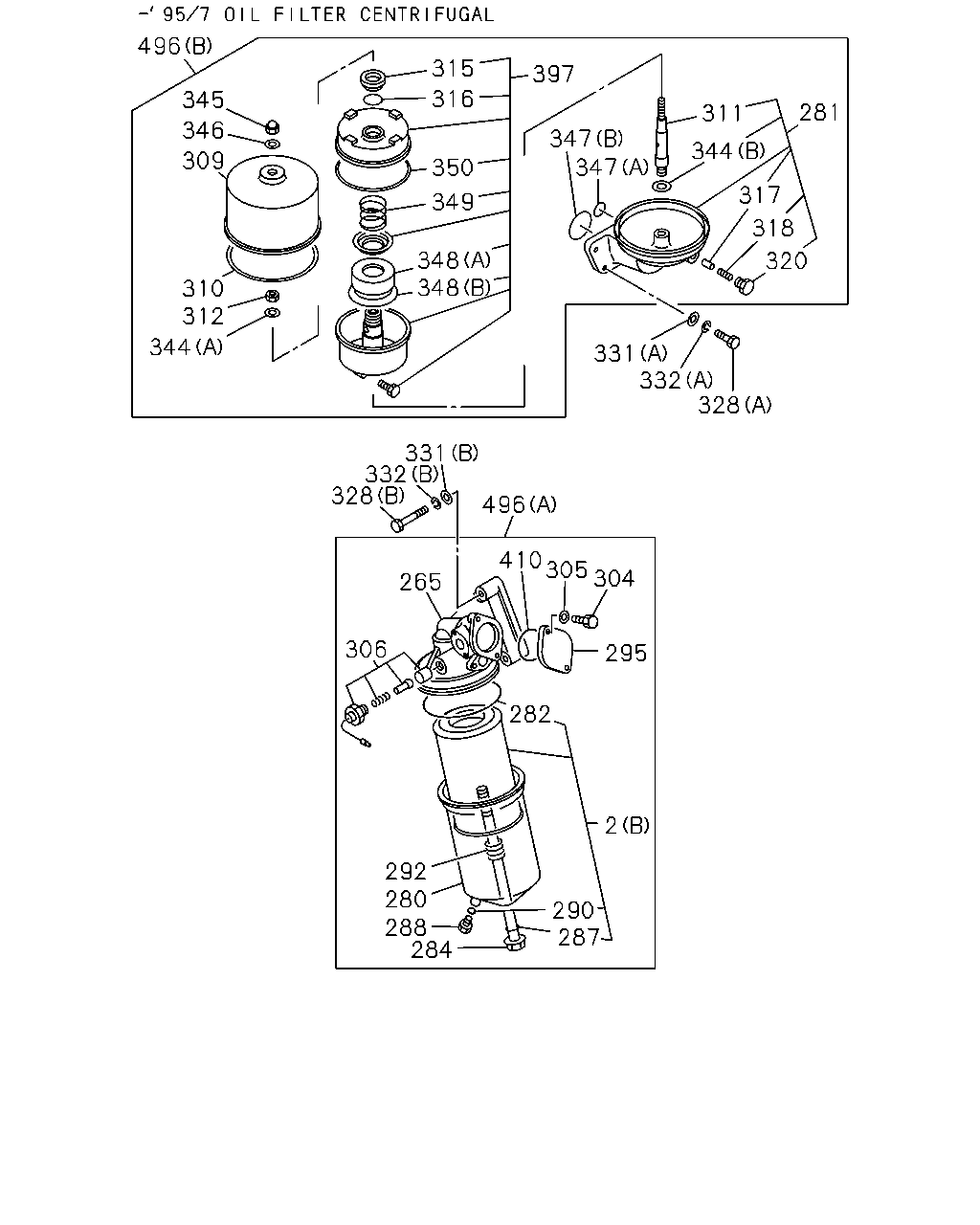

496 315 397 316 345 281 311 346 347 347 344 309 350 317 349 318 348 348 320 310 312 344 331 332 328 331 332 328 496 410 305 304 265 306 295 282 2 292 280 288 284 290 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (B)	1-87810-314-2	01	1	9002-	●	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13240-056-0	01	1	9002-	●	●
265	BODY; OIL FILTER	1-13212-082-1	01	1	9002-	●	●
280	CASE ASM; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13211-117-0	01	1	9002-9507	●
280	CASE ASM; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13211-105-1	01	1	9002-9507	●	●
280	CASE ASM; OIL FILTER	1-13211-105-2	01	1	9508-	●	●
281	COVER; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13210-016-0	01	1	9002-	●
282	GASKET; BODY TO CASE	1-09623-357-0	01	1	9002-	●	●
284	BOLT; CENTER,OIL FILTER	1-13231-054-1	01	1	9002-	●	●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9002-	●	●
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9002-	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9002-	●	●
292	SPRING; ELEMENT	1-13219-187-0	01	1	9002-	●	●
295	COVER; OIL FILTER	1-13219-122-0	01	1	9002-	●	●
304	BOLT; PIPE TO COVER M14X25	9-92351-425-0	02	1	9002-9005	●
304	BOLT; PIPE TO COVER M14X25	0-23801-425-0	02	1	9006-	●	●
305	WASHER; PL ID=10.5 OD=18	9-09160-510-0	02	1	9002-9507	●	●
306	VALVE; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13260-056-0	01	1	9307-9507	●
306	VALVE; OIL FILTER	1-13260-056-0	01	1	9002-9306	●	●
306	VALVE; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13200-875-0	01	1	9307-9507	●	●
306	VALVE; OIL FILTER	1-13200-875-0	01	1	9508-	●	●
309	BODY; OIL FILTER,CENTRIFUGAL OIL FILTER CENTRIFUGAL<E6S>	9-13212-151-1	01	1	9002-	●
310	GASKET; BODY TO COVER OIL FILTER CENTRIFUGAL<E6S>	1-13213-007-0	01	1	9002-	●
311	SPINDLE; ROTOR OIL FILTER CENTRIFUGAL<E6S>	9-13231-054-1	01	1	9002-	●
312	NUT; ROTOR BODY OIL FILTER CENTRIFUGAL<E6S>	9-09844-204-0	01	1	9002-	●
315	NUT; ROTOR LK OIL FILTER CENTRIFUGAL<E6S>	9-09844-221-0	01	1	9002-	●
316	GASKET; COVER TO BODY OIL FILTER CENTRIFUGAL<E6S>	9-09920-742-0	01	1	9002-	●
317	VALVE; CUT OFF OIL FILTER CENTRIFUGAL<E6S>	9-13262-012-0	01	1	9002-	●
318	SPRING; CUT OFF OIL FILTER CENTRIFUGAL<E6S>	9-09941-151-0	01	1	9002-	●
320	PLUG; CUT OFF OIL FILTER CENTRIFUGAL<E6S>	1-13265-013-0	01	1	9002-	●
328	BOLT; OIL FILTER (B) M10X60	9-01656-060-0	03	1	9002-9004	●
328	BOLT; OIL FILTER (B) M10X60	0-16806-060-0	03	1	9005-	●	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M10X30	9-01991-030-0	03	1	9002-9002	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9003-	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M14X40	9-92351-440-0	01	1	9002-9005	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M14X40	0-23801-440-0	01	1	9006-	●
331	WASHER; PL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=15	9-09160-514-0	01	1	9002-	●
331	WASHER; PL,OIL FILTER (B) ID=10.5 OD=18	9-09160-510-0	03	1	9002-	●	●
332	WASHER; LK,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=14.2	9-09150-514-0	01	1	9002-	●
332	WASHER; LK,OIL FILTER (B) ID=10.2	9-09150-510-0	03	1	9002-	●	●
344	WASHER; THRUST,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A)	1-13239-034-0	01	1	9002-	●
344	WASHER; THRUST,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (B)	9-13239-035-0	01	1	9002-	●
345	NUT; CAP,COVER,OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	9-09844-222-0	01	1	9002-	●
346	GASKET; CAP NUT OIL FILTER CENTRIFUGAL<E6S> ID=8.2 OD=13.2	1-09630-082-0	01	1	9002-	●
347	GASKET; COVER,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=24.4	1-09623-183-0	01	1	9002-	●
347	GASKET; COVER,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (B)	1-09623-373-0	01	1	9002-	●
348	GUIDE; OIL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A)	9-13249-015-0	01	1	9002-	●
348	GUIDE; OIL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (B)	9-13249-016-0	01	1	9002-	●
349	SPRING; OIL GUIDE OIL FILTER CENTRIFUGAL<E6S>	9-09941-140-0	01	1	9002-	●
350	GASKET; BODY TO COVER OIL FILTER CENTRIFUGAL<E6S>	9-09920-743-0	01	1	9002-	●
397	ROTOR; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	9-13240-101-0	01	1	9002-	●
410	GASKET ID=59.6	9-09565-360-0	01	1	9002-	●	●
496	FILTER ASM; OIL OIL FILTER CENTRIFUGAL<E6S> (B)	1-13200-619-1	01	1	9002-	●
496	FILTER ASM; OIL OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-620-2	01	1	9002-9507	●
496	FILTER ASM; OIL EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-509-4	01	1	9002-9306	●	●
496	FILTER ASM; OIL EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-921-0	01	1	9307-9507	●	●
496	FILTER ASM; OIL (A)	1-13200-921-1	01	1	9508-	●	●

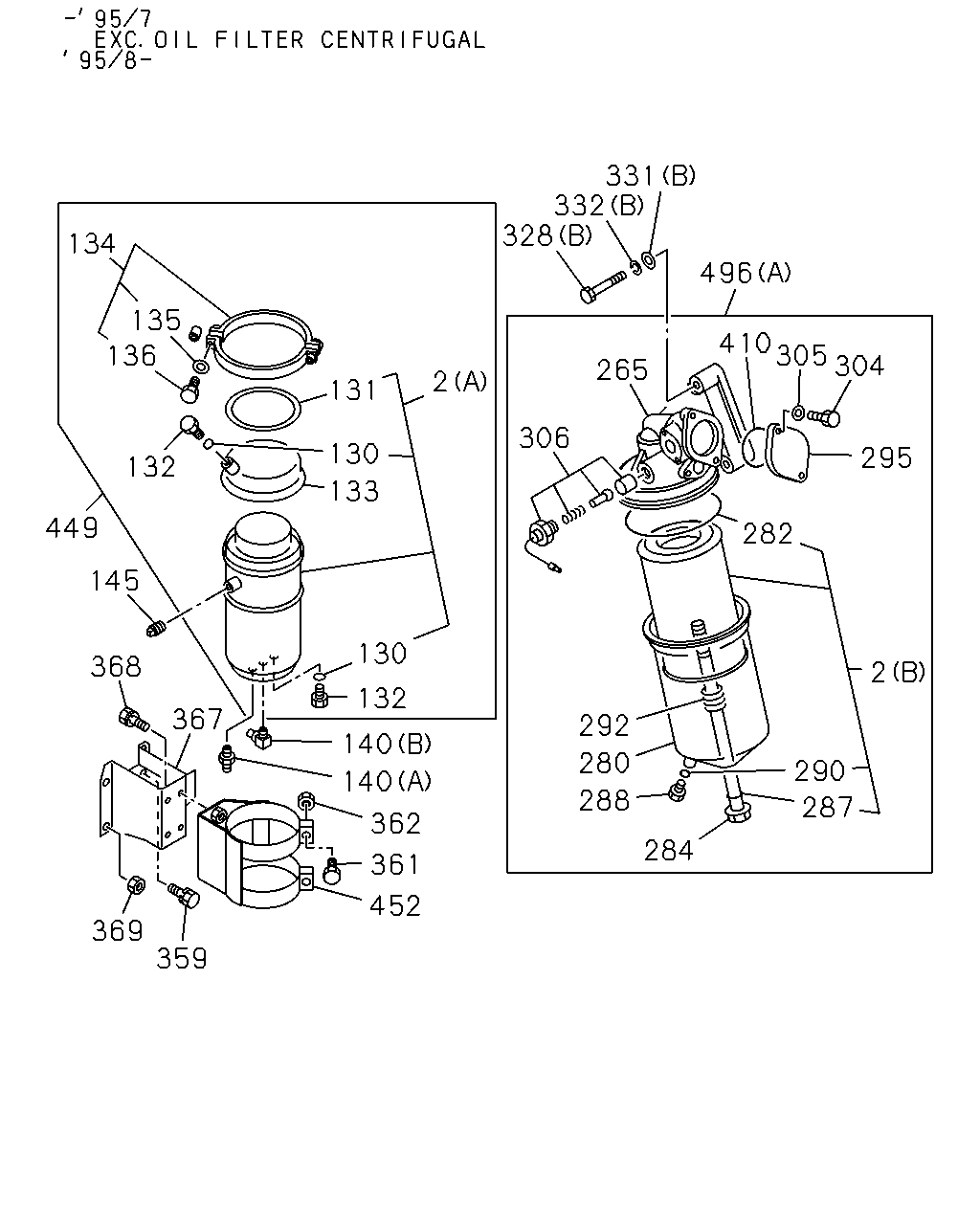

331 332 328 134 496 135 136 410 305 304 265 2 131 306 130 295 132 133 449 282 145 130 368 2 132 367 292 140 280 290 140 288 287 362 284 361 452 369 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (B)	1-87810-314-2	01	1	9002-	●	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13240-056-0	01	1	9002-	●	●
130	GASKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=9.8	1-09623-055-0	02	1	9002-	●	●
131	GASKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13213-006-0	01	1	9002-	●	●
132	PLUG; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10	1-09000-105-0	02	1	9002-	●	●
133	COVER; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13212-034-0	01	1	9002-	●	●
134	CLAMP; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13219-009-0	01	1	9002-	●	●
135	WASHER; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> ID=10.5	9-09164-510-0	01	1	9002-	●	●
136	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-09029-021-0	01	1	9002-	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●
140	CONNECTOR; ELBOW,PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
145	PLUG; FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-09605-024-0	01	1	9307-	●	●
265	BODY; OIL FILTER	1-13212-082-1	01	1	9002-	●	●
280	CASE ASM; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13211-117-0	01	1	9002-9507	●
280	CASE ASM; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13211-105-1	01	1	9002-9507	●	●
280	CASE ASM; OIL FILTER	1-13211-105-2	01	1	9508-	●	●
282	GASKET; BODY TO CASE	1-09623-357-0	01	1	9002-	●	●
284	BOLT; CENTER,OIL FILTER	1-13231-054-1	01	1	9002-	●	●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9002-	●	●
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9002-	●	●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9002-	●	●
292	SPRING; ELEMENT	1-13219-187-0	01	1	9002-	●	●
295	COVER; OIL FILTER	1-13219-122-0	01	1	9002-	●	●
304	BOLT; PIPE TO COVER M14X25	9-92351-425-0	02	1	9002-9005	●
304	BOLT; PIPE TO COVER M14X25	0-23801-425-0	02	1	9006-	●	●
305	WASHER; PL ID=10.5 OD=18	9-09160-510-0	02	1	9002-9507	●	●
306	VALVE; OIL FILTER OIL FILTER CENTRIFUGAL<E6S>	1-13260-056-0	01	1	9307-9507	●
306	VALVE; OIL FILTER	1-13260-056-0	01	1	9002-9306	●	●
306	VALVE; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13200-875-0	01	1	9307-9507	●	●
306	VALVE; OIL FILTER	1-13200-875-0	01	1	9508-	●	●
328	BOLT; OIL FILTER (B) M10X60	9-01656-060-0	03	1	9002-9004	●
328	BOLT; OIL FILTER (B) M10X60	0-16806-060-0	03	1	9005-	●	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M10X30	9-01991-030-0	03	1	9002-9002	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M10X30 W/LK&PL WASHER	0-50151-030-0	03	1	9003-	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M14X40	9-92351-440-0	01	1	9002-9005	●
328	BOLT; OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) M14X40	0-23801-440-0	01	1	9006-	●
331	WASHER; PL,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=15	9-09160-514-0	01	1	9002-	●
331	WASHER; PL,OIL FILTER (B) ID=10.5 OD=18	9-09160-510-0	03	1	9002-	●	●
332	WASHER; LK,OIL FILTER OIL FILTER CENTRIFUGAL<E6S> (A) ID=14.2	9-09150-514-0	01	1	9002-	●
332	WASHER; LK,OIL FILTER (B) ID=10.2	9-09150-510-0	03	1	9002-	●	●
359	BOLT; BRKT TO FRAME EXC. OIL FILTER CENTRIFUGAL<E6S> M10X30 W/LK WASHER	9-01911-030-0	04	1	9002-9002	●
359	BOLT; BRKT TO FRAME EXC. OIL FILTER CENTRIFUGAL<E6S> M10X30 W/LK WASHER	0-50041-030-0	04	1	9003-	●	●
361	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10X40 W/LK&PL WASHER	9-01971-040-0	02	1	9002-9002	●
361	BOLT; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9003-	●	●
362	NUT; OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S> M10	9-09110-510-0	02	1	9002-	●	●
367	BRACKET; PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-615-2	01	1	9002-9306	●	●
367	BRACKET; PARTIAL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-47475-371-3	01	1	9307-	●	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	9-01911-035-0	04	1	9002-9002	●
368	BOLT; BRKT TO FRAME M10X35 W/LK WASHER	0-50041-035-0	04	1	9003-	●	●
369	NUT; BRKT TO FRAME M10	9-09110-510-0	04	1	9002-	●	●
410	GASKET ID=59.6	9-09565-360-0	01	1	9002-	●	●
449	FILTER ASM; OIL PARTIAL EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13200-534-3	01	1	9002-	●	●
452	BRACKET; PARTIAL OIL FILTER EXC. OIL FILTER CENTRIFUGAL<E6S>	1-13219-131-5	01	1	9002-	●	●
496	FILTER ASM; OIL OIL FILTER CENTRIFUGAL<E6S> (B)	1-13200-619-1	01	1	9002-	●
496	FILTER ASM; OIL OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-620-2	01	1	9002-9507	●
496	FILTER ASM; OIL EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-509-4	01	1	9002-9306	●	●
496	FILTER ASM; OIL EXC. OIL FILTER CENTRIFUGAL<E6S> (A)	1-13200-921-0	01	1	9307-9507	●	●
496	FILTER ASM; OIL (A)	1-13200-921-1	01	1	9508-	●	●

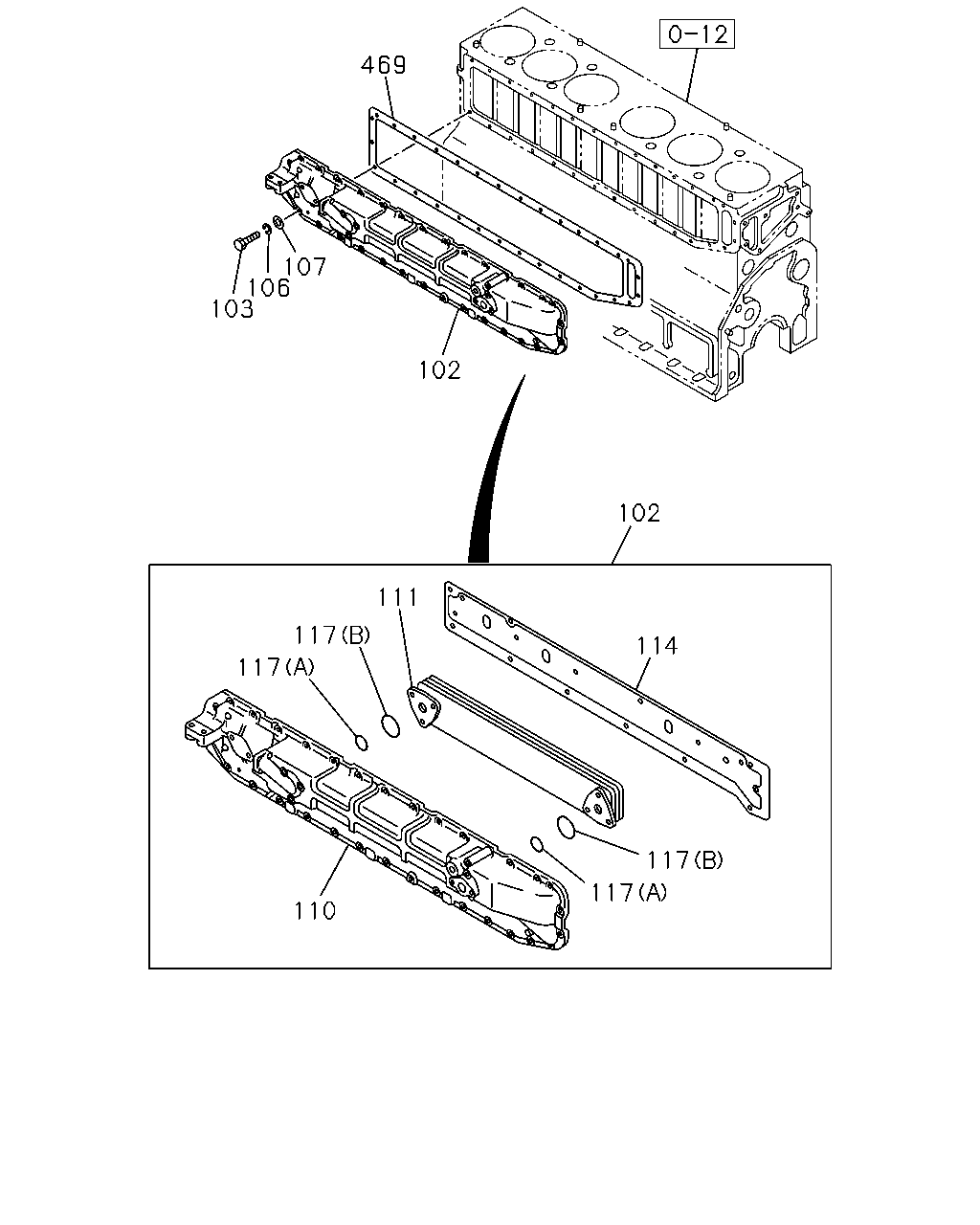

469 107 106 103 102 102 111 117 114 117 117 117 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COOLER ASM; OIL	1-21700-156-3	01	1	9002-	●
102	COOLER ASM; OIL	1-21700-206-2	01	1	9012-		●
103	BOLT; OIL COOLER M8X70	9-01055-870-0	01	1	9002-9005	●
103	BOLT; OIL COOLER M8X70	0-10805-870-0	01	1	9006-	●	●
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	9-01970-825-0	32	1	9002-9005	●
103	BOLT; OIL COOLER M8X25 W/LK&PL WASHER	0-50140-825-0	32	1	9006-	●	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	01	1	9002-	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9002-	●	●
110	BODY; CASE,OIL COOLER	1-21721-045-4	01	1	9002-	●	●
111	CORE; OIL COOLER	1-21723-035-0	01	1	9002-	●
111	CORE; OIL COOLER	1-21723-041-0	01	1	9012-		●
114	PLATE; BAFFLE,OIL COOLER	1-21729-071-0	01	1	9002-	●	●
117	GASKET; OIL COOLER (A) D=27.7	1-09623-187-0	02	1	9002-	●	●
117	GASKET; OIL COOLER (B) D=39.7	1-09623-188-0	02	1	9002-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-148-0	01	1	9002-	●	●
