Isuzu WW
▶
TRUCKS
▶
NMR
▶
51242 - NMR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#35189) — 24 parça
◀

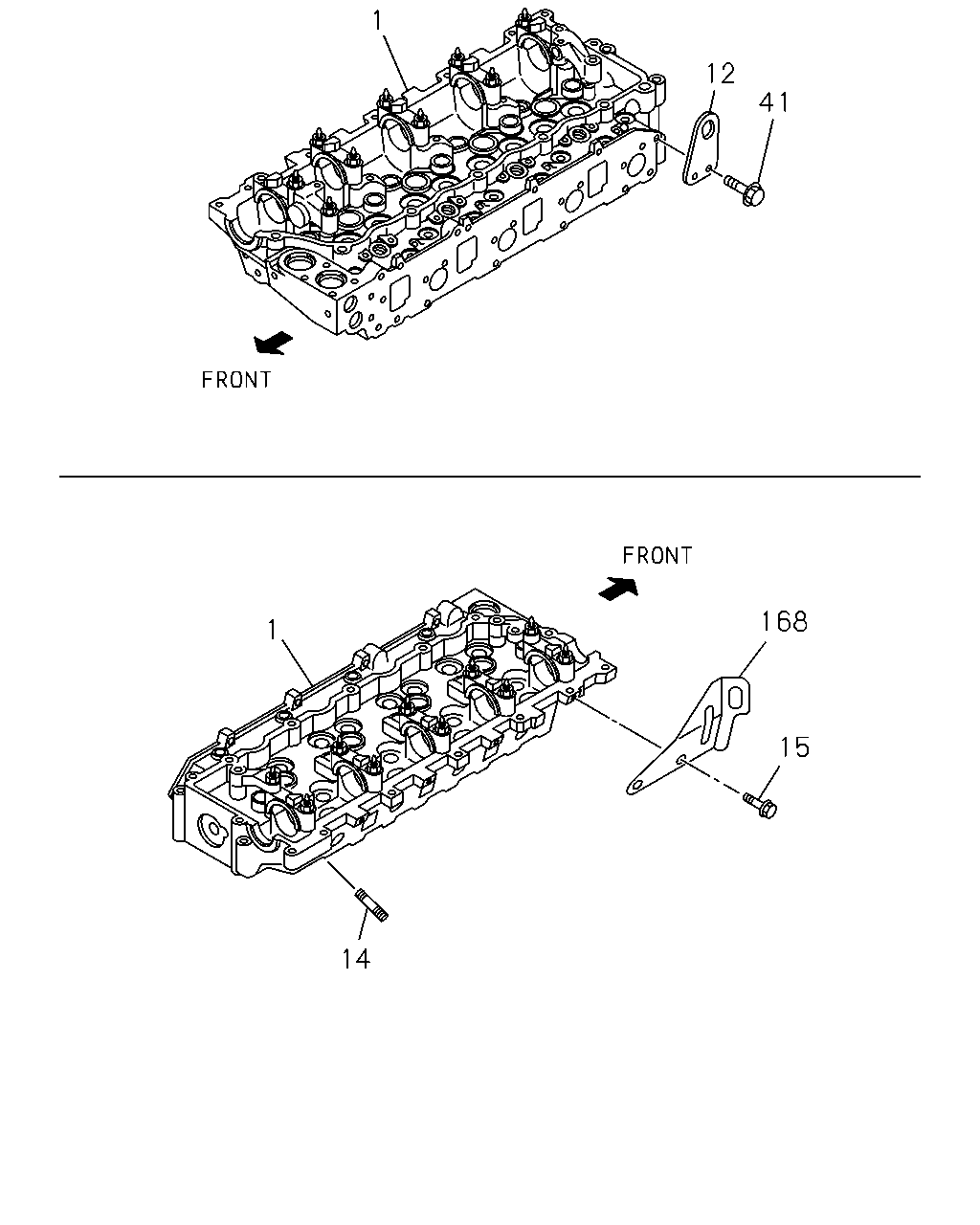

[011A] NO.2 (6 parça)

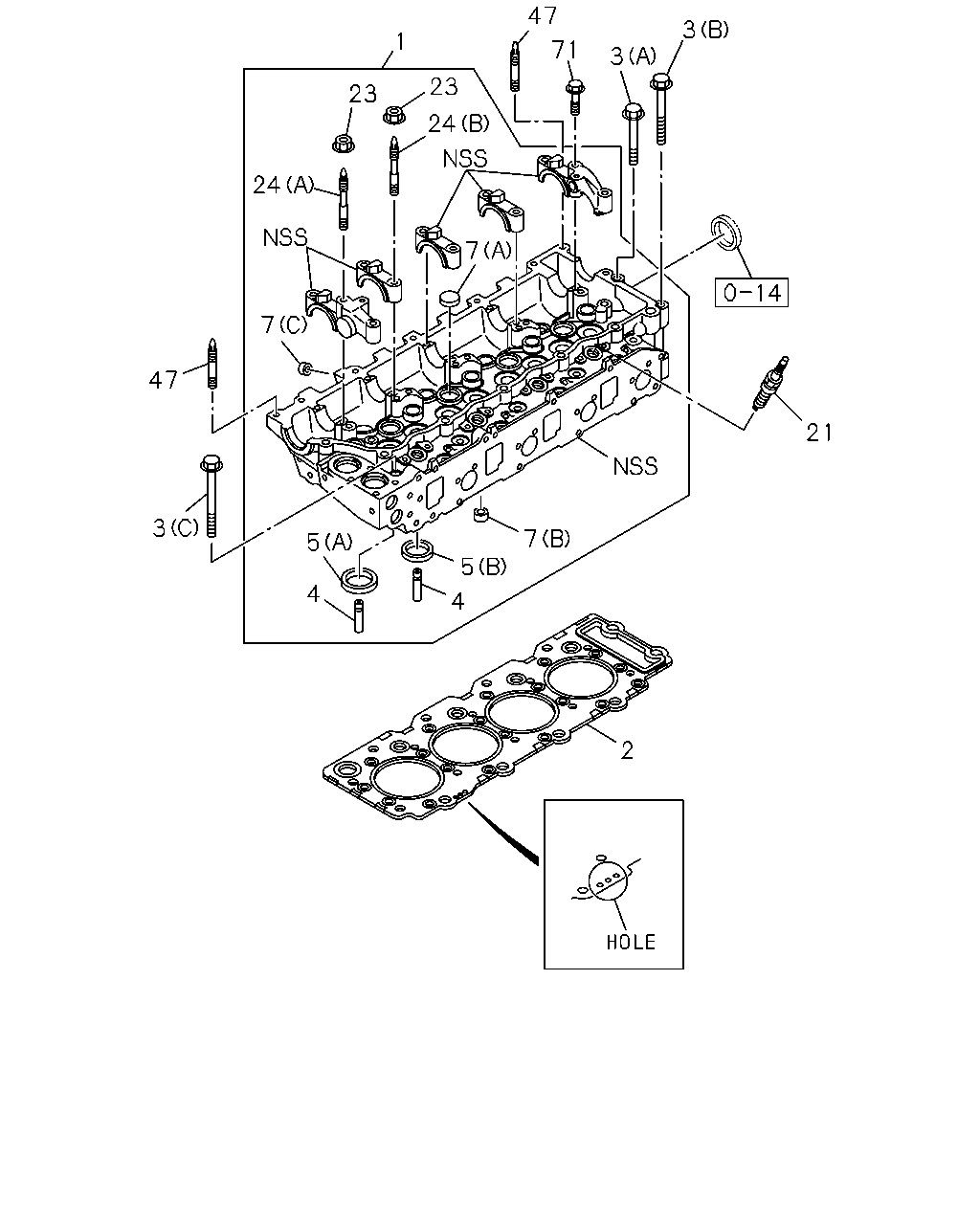

[011A] NO.1 (18 parça)
▶
1
12
41
168
1
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98045-750-0
01
1
0901-
12
HANGER; ENG,RR
8-97071-960-0
01
1
0901-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
02
1
0901-
15
BOLT; HANGER,FRT
M10X20 FLANGE THA
0-28751-020-0
02
1
0901-
41
BOLT; ENG HANGER
M12X20 FLANGE
0-28151-220-0
02
1
0901-
168
HANGER; ENG,FRT
8-97127-373-0
01
1
0901-
47
3
1
71
3
23
23
24
24
7
7
47
21
3
7
5
5
4
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98045-750-0
01
1
0901-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE
8-97349-491-0
01
1
0901-
3
BOLT; CYL HD TO BLOCK
(A) M10X73
8-94399-554-0
01
1
0901-
3
BOLT; CYL HD TO BLOCK
(B) M10X43
8-94399-555-0
01
1
0901-
3
BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE
8-97077-638-0
18
1
0901-1503
3
BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE
8-98260-005-0
18
1
1504-
4
GUIDE; VLV
8-94396-598-0
08
1
0901-
5
SEAT; VLV INSERT
(A) INLET
8-97230-003-0
04
1
0901-
5
SEAT; VLV INSERT
(B) EXHAUST
8-98039-509-0
04
1
0901-
7
CUP; SEALING,CYL HEAD
(B) OD=25
1-09600-016-0
02
1
0901-
7
CUP; SEALING,CYL HEAD
(C) OD=12
8-97036-335-1
04
1
0901-
7
CUP; SEALING,CYL HEAD
(A) OD=32
8-97096-821-0
12
1
0901-
21
PLUG; SPARK
8-98119-290-0
04
1
0901-
23
NUT; CAM BRKT
M8 FLANGE THA
0-91180-208-0
10
1
0901-
24
STUD; CM/SHF BRKT
(B) M8X54 L=79
8-94322-512-2
02
1
0901-
24
STUD; CM/SHF BRKT
(A) M8X41 L=66
8-94322-513-2
08
1
0901-
47
STUD; CYL HD
M8X40 L=58
0-49140-840-0
02
1
0901-
71
BOLT; CAM BRKT
M8X35 FLANGE THA
0-28050-835-0
02
1
0901-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
