Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#35183) — 12 parça
◀

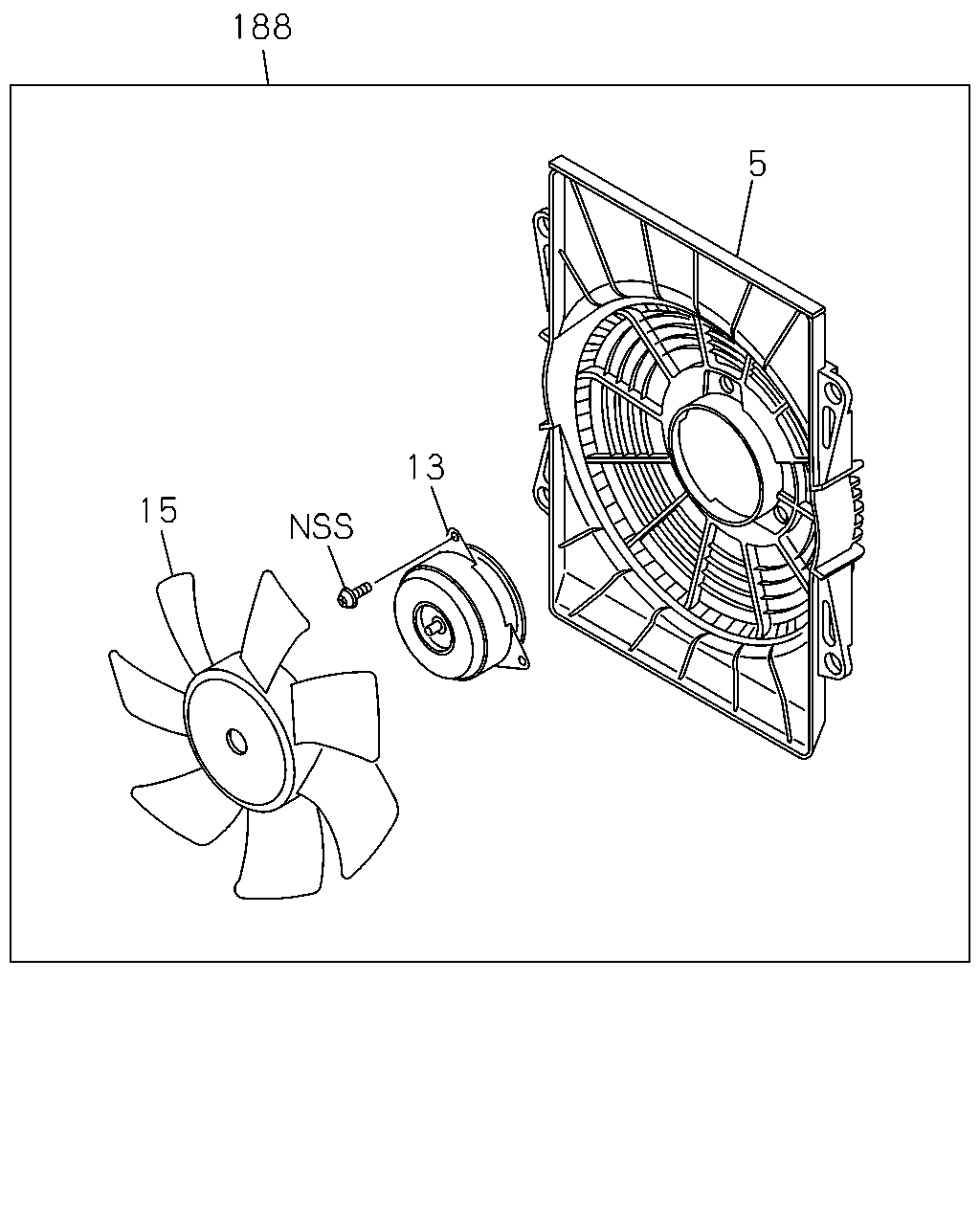

[875A] COMPONENT;BLOWER (4 parça)

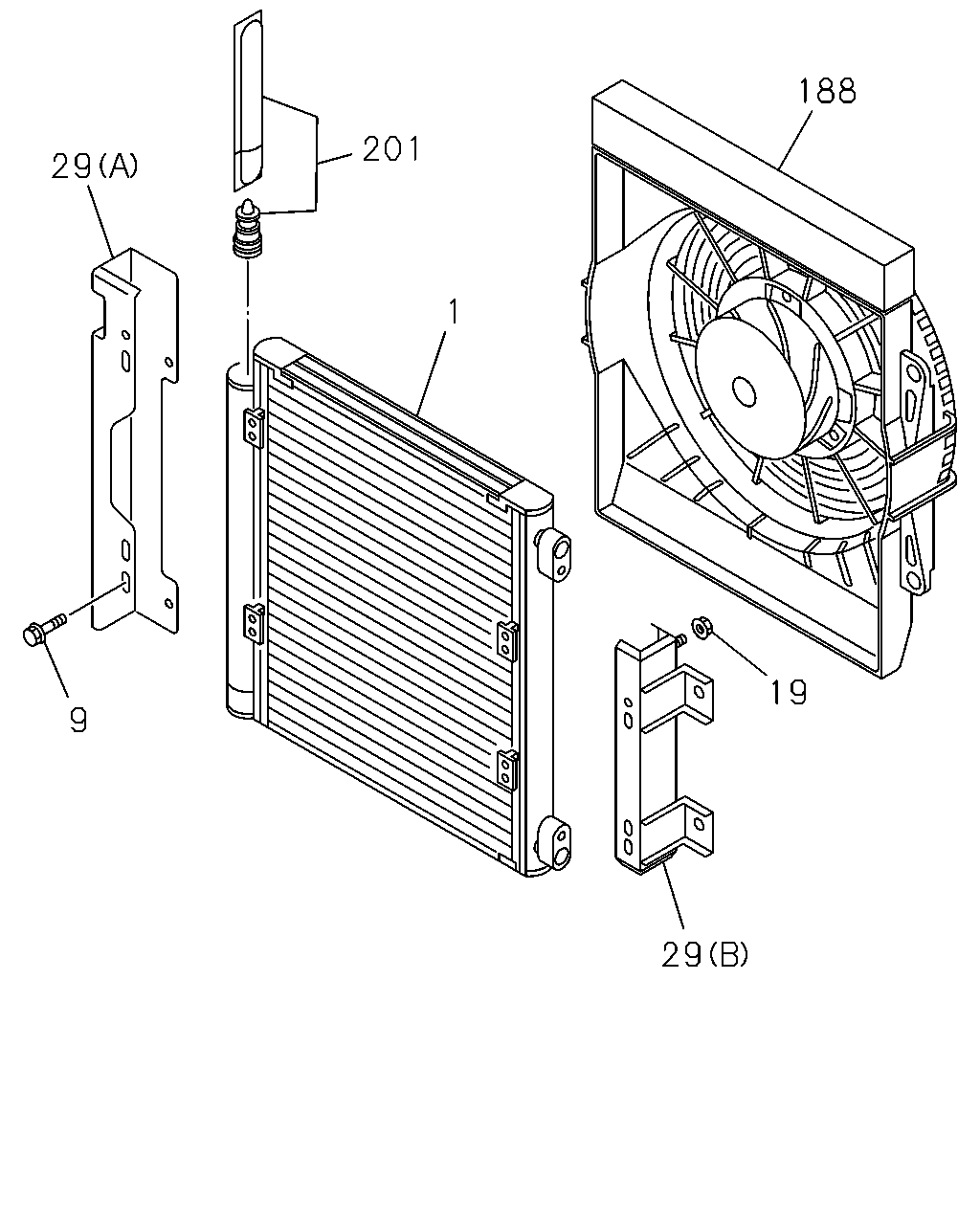

[875A] CONDENSER;AIR CONDITIONER (8 parça)
▶
188
5
13
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
SHROUD; FAN MOTOR
COOLER WO/HEATER<C65>
8-98152-866-0
01
1
0901-
13
MOTOR; FAN
COOLER WO/HEATER<C65>
8-98157-045-0
01
1
0901-
15
FAN; MOTOR
COOLER WO/HEATER<C65> THA
8-98152-861-0
01
1
0901-
188
BLOWER ASM; SHROUD
COOLER WO/HEATER<C65> THA
8-98042-461-0
01
1
0901-
188
201
29
1
19
9
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
COOLER WO/HEATER<C65>
8-98042-456-1
01
1
0901-
9
BOLT; BRKT
COOLER WO/HEATER<C65> M6X14 THA
1-83539-382-0
08
1
0901-
19
NUT; BRKT
COOLER WO/HEATER<C65> M6 THA
1-83539-354-0
04
1
0901-
29
BRACKET; SIDE
COOLER WO/HEATER<C65> (A) THA
8-98042-466-0
01
1
0901-
29
BRACKET; SIDE
COOLER WO/HEATER<C65> (B) THA
8-98042-467-0
01
1
0901-
188
BLOWER ASM; SHROUD
COOLER WO/HEATER<C65> THA
8-98042-461-0
01
1
0901-
201
DRYER ASM; CONDENSER
COOLER WO/HEATER<C65> THA
1-83535-097-0
01
1
0901-1409
201
DRYER ASM; CONDENSER
COOLER WO/HEATER<C65>
8-98282-482-0
01
1
1410-
