Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

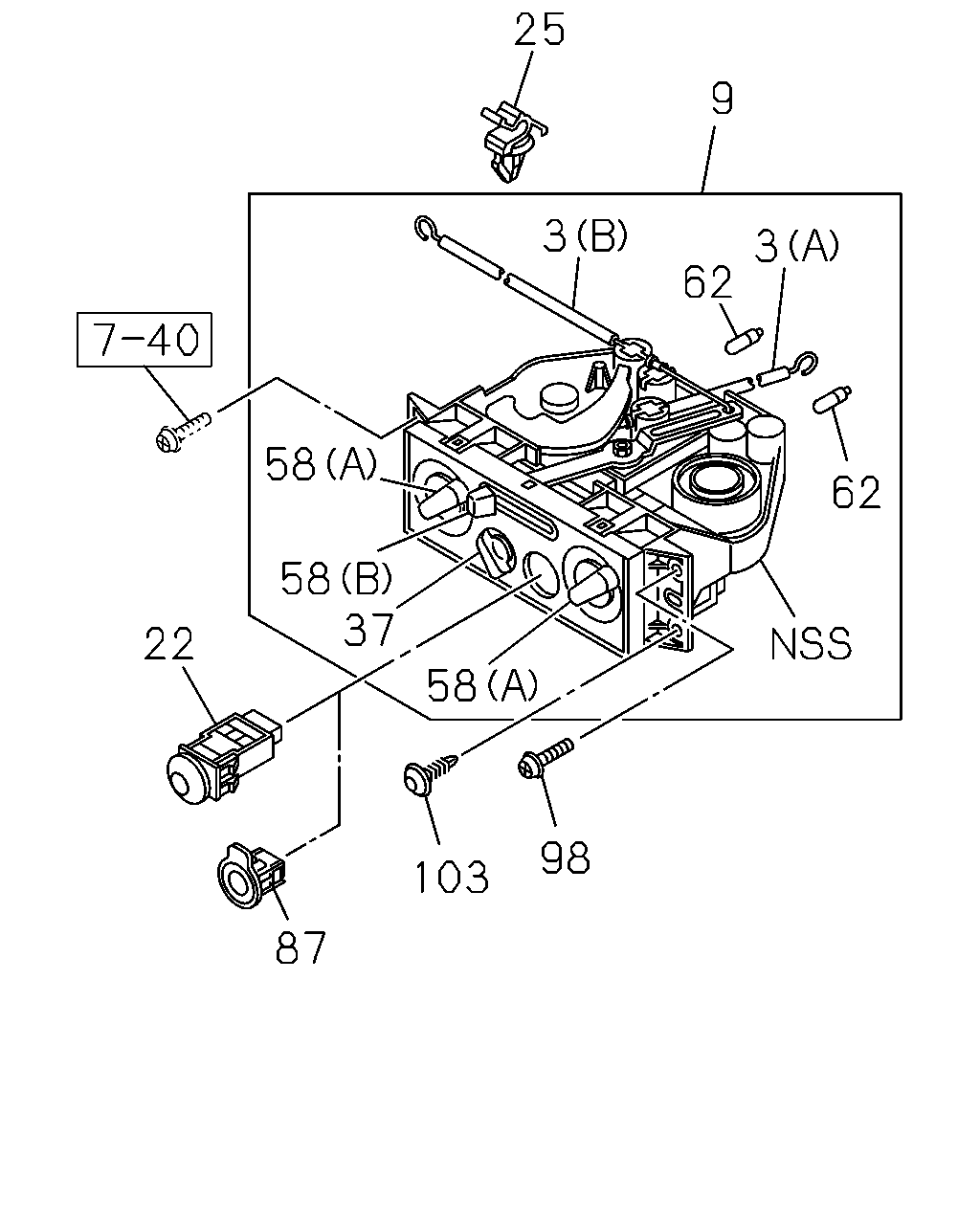

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#35180) — 14 parça
25
9
3
3
62
58
62
58
37
58
22
98
103
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) MODE
8-98039-250-0
01
1
0901-
3
CABLE; HTR CONT LVR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) FRESH
8-98039-253-2
01
1
0901-
9
LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION<C39>
8-98066-001-1
01
1
0901-
9
LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER<C65>
8-98066-000-1
01
1
0901-
22
SWITCH; A/C,MAIN
COOLER WO/HEATER<C65>
8-98021-982-0
01
1
0901-
25
CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> ID=4.8
8-94128-483-0
01
1
0901-
37
KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>
8-98037-368-0
01
1
0901-
58
KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION<C39> (A)
8-98037-369-0
01
1
0901-
58
KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B)
8-98037-370-0
01
1
0901-
58
KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (A)
8-98037-369-0
02
1
0901-
62
BULB; HTR CONT LVR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 24V 1.1W
8-98037-371-0
02
1
0901-
87
CAP; A/C SWITCH
FORGED AIR VENTILATION<C39>
8-98006-089-0
01
1
0901-
98
SCREW; CONT PANEL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
0901-
103
CLIP
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> DARK GRAY
8-97098-326-0
01
1
0901-
