0-42B — FUEL PUMP AND PIPE (#3518) — 99 parça

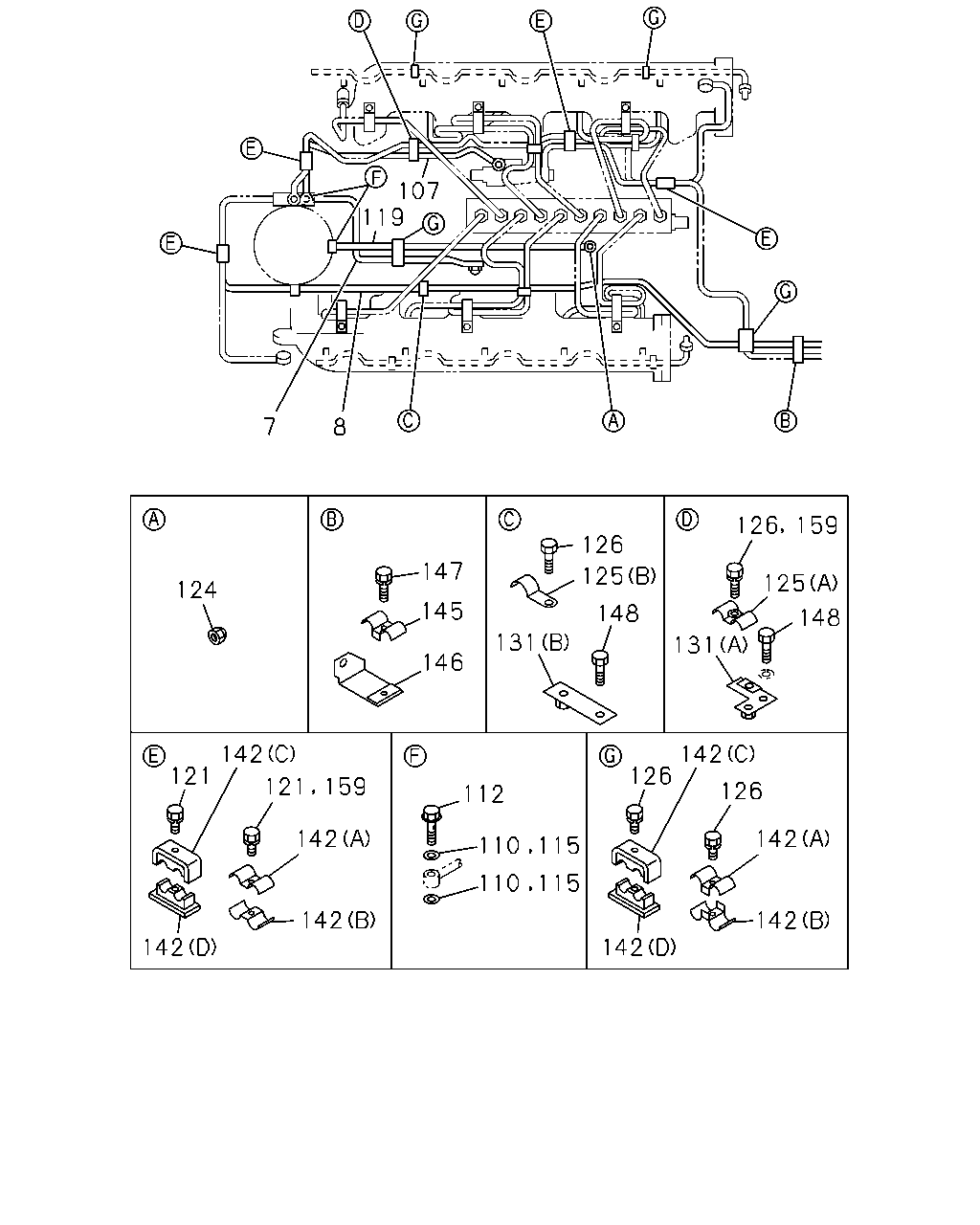

107 119 7 8 126 159 126 147 125 125 124 145 148 148 131 131 146 142 142 121 126 121 159 126 112 142 142 142 142 142 142 110 115 110 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-	●
7	PIPE ASM; FUEL OVERFLOW	1-15414-115-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW	1-15414-550-1	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW	1-15414-552-1	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9002-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●
112	BOLT; JOINT,FUEL FILTER M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9307-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15414-117-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15413-613-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9307-		●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9002-	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●
125	CLIP; FUEL PIPE (A)	1-09700-404-0	01	1	9002-	●	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	02	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	02	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-	●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
145	CLIP; FUEL PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9002-	●
146	BRACKET; FUEL END	1-22518-037-3	01	1	9002-	●
147	BOLT; CLIP,FUEL PIPE M6X20	0-28020-620-0	01	1	9002-9005	●
147	BOLT; CLIP,FUEL PIPE M6X20 FLANGE	0-28080-620-0	01	1	9006-	●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●	●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●	●

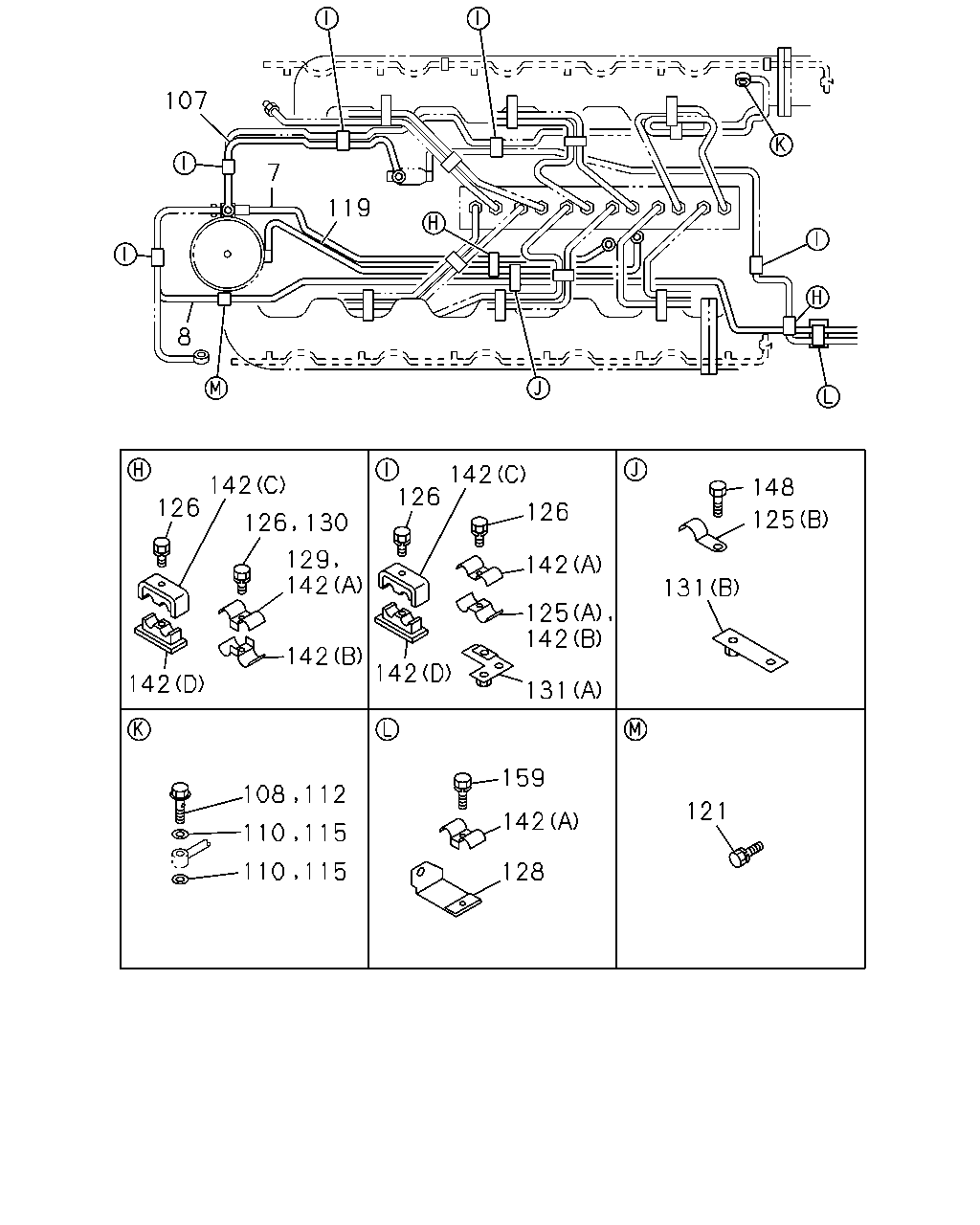

107 7 119 8 126 142 142 148 126 126 125 130 126 129 142 142 131 125 142 142 142 142 131 159 121 142 128 108 110 110 112 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	PIPE ASM; FUEL OVERFLOW	1-15413-614-0	01	1	9002-	●
7	PIPE ASM; FUEL OVERFLOW	1-15414-115-0	01	1	9307-		●
8	PIPE ASM; FUEL OVERFLOW	1-15414-550-1	01	1	9002-	●
8	PIPE ASM; FUEL OVERFLOW	1-15414-552-1	01	1	9307-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-612-0	01	1	9002-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15413-692-0	01	1	9307-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9307-		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9002-	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9307-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9002-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9002-	●
112	BOLT; JOINT,FUEL FILTER M14X27 M10-HOLE ON HEAD	1-09675-087-0	02	1	9002-9306	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9307-		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15414-117-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15413-613-0	01	1	9002-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15414-116-1	01	1	9307-		●
121	BOLT; CLIP M6X22	0-28020-622-0	01	1	9002-9005	●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	01	1	9006-	●	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	01	1	9002-	●
125	CLIP; FUEL PIPE (A)	1-09700-404-0	01	1	9002-	●	●
125	CLIP; FUEL PIPE (B) ID=9.7 L=20	1-09700-878-1	02	1	9307-		●
126	BOLT; CLIP,FUEL PIPE M6X22	0-28020-622-0	04	1	9002-9005	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	04	1	9006-9410	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	02	1	9411-	●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	06	1	9307-9410		●
126	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	03	1	9411-		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	03	1	9411-		●
128	BRACKET; FUEL RETURN CLIP	1-22518-037-3	01	1	9307-		●
129	CLIP; FUEL RETURN PIPE ID=10 & 10 L=25	9-09716-114-0	01	1	9307-		●
130	BOLT; CLIP RETURN PIPE M6X20 FLANGE	0-28080-620-0	01	1	9307-		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	01	1	9002-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-185-0	01	1	9002-	●	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-200-1	02	1	9307-		●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	02	1	9411-	●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	02	1	9002-9410	●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	02	1	9411-	●
142	CLIP; FUEL PIPE (A) ID=10 & 6 L=20	1-09700-404-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (B) ID=10 & 6 L=20 W/NUT	1-09700-405-0	05	1	9002-	●	●
142	CLIP; FUEL PIPE (A) ID=10 & 10 L=25	9-09716-114-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (C) ID=10 & 10 L=25	8-94393-039-1	03	1	9411-		●
142	CLIP; FUEL PIPE (B) ID=10 & 10 L=25 W/NUT	9-09716-124-0	03	1	9307-9410		●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-1	03	1	9411-		●
148	BOLT; BRKT M10X16 W/LK WASHER	9-01931-016-0	03	1	9002-9004	●
148	BOLT; BRKT M10X16 W/LK WASHER	1-09033-012-0	03	1	9005-	●	●
159	BOLT; CLIP M6X22	0-28020-622-0	05	1	9002-9005	●
159	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	05	1	9006-	●	●
