◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#35179) — 66 parça

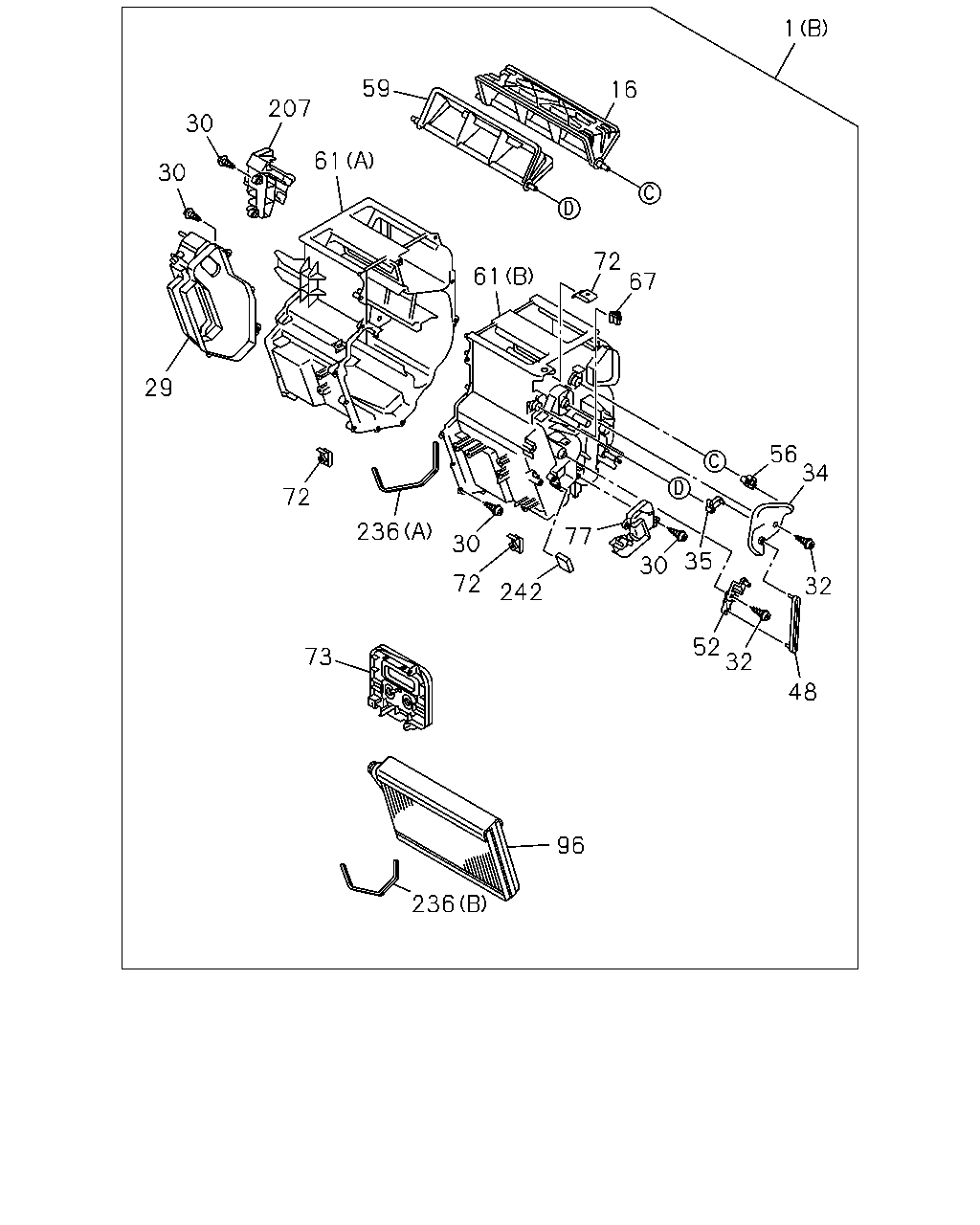

çizim 123273
1 59 16 207 30 61 30 72 67 61 29 56 34 72 77 236 30 35 30 72 32 242 52 32 73 48 96 236
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION<C39> (B) 		8-98062-757-1 01 1 0901-1301
1 HEATER UNIT
FORGED AIR VENTILATION<C39> (B) 		8-98214-400-1 01 1 1302-
1 HEATER UNIT
COOLER WO/HEATER<C65> (A) 		8-98057-980-2 01 1 0901-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-387-0 01 1 0901-
29 COVER; HTR UNIT
FORGED AIR VENTILATION<C39> 		8-98231-367-0 01 1 1302-
29 COVER; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98074-119-0 01 1 0901-1301
29 COVER; HTR UNIT
COOLER WO/HEATER<C65> 		8-98074-119-0 01 1 1302-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION<C39> M4X16 TAPPING 		8-97957-708-0 25 1 0901-1301
30 SCREW; HTR UNIT
FORGED AIR VENTILATION<C39> M4X16 TAPPING 		8-97957-708-0 20 1 1302-
30 SCREW; HTR UNIT
COOLER WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 0901-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION<C39> M4X16 		8-98047-416-0 02 1 0901-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-389-0 01 1 0901-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-392-0 01 1 0901-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-391-0 01 1 0901-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-390-0 01 1 0901-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-393-0 01 1 0901-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-386-0 01 1 0901-
61 CASE; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-98077-422-0 01 1 0901-
61 CASE; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98077-423-0 01 1 0901-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-417-0 01 1 0901-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 		8-98047-428-0 03 1 0901-
73 PLATE; HTR UNIT
FORGED AIR VENTILATION<C39> 		8-98077-419-0 01 1 0901-1301
73 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98077-420-0 01 1 0901-
77 COVER; HTR CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-414-0 01 1 0901-
96 PLATE; HTR UNIT
FORGED AIR VENTILATION<C39> 		8-98048-815-0 01 1 0901-1301
207 CLAMP; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-379-0 01 1 0901-1301
207 CLAMP; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-379-0 01 1 1302-
236 GASKET; HEATER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-98047-420-0 01 1 0901-
236 GASKET; HEATER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98047-421-0 01 1 0901-
242 GASKET; CASE
FORGED AIR VENTILATION<C39> 		8-98048-816-0 01 1 0901-1411

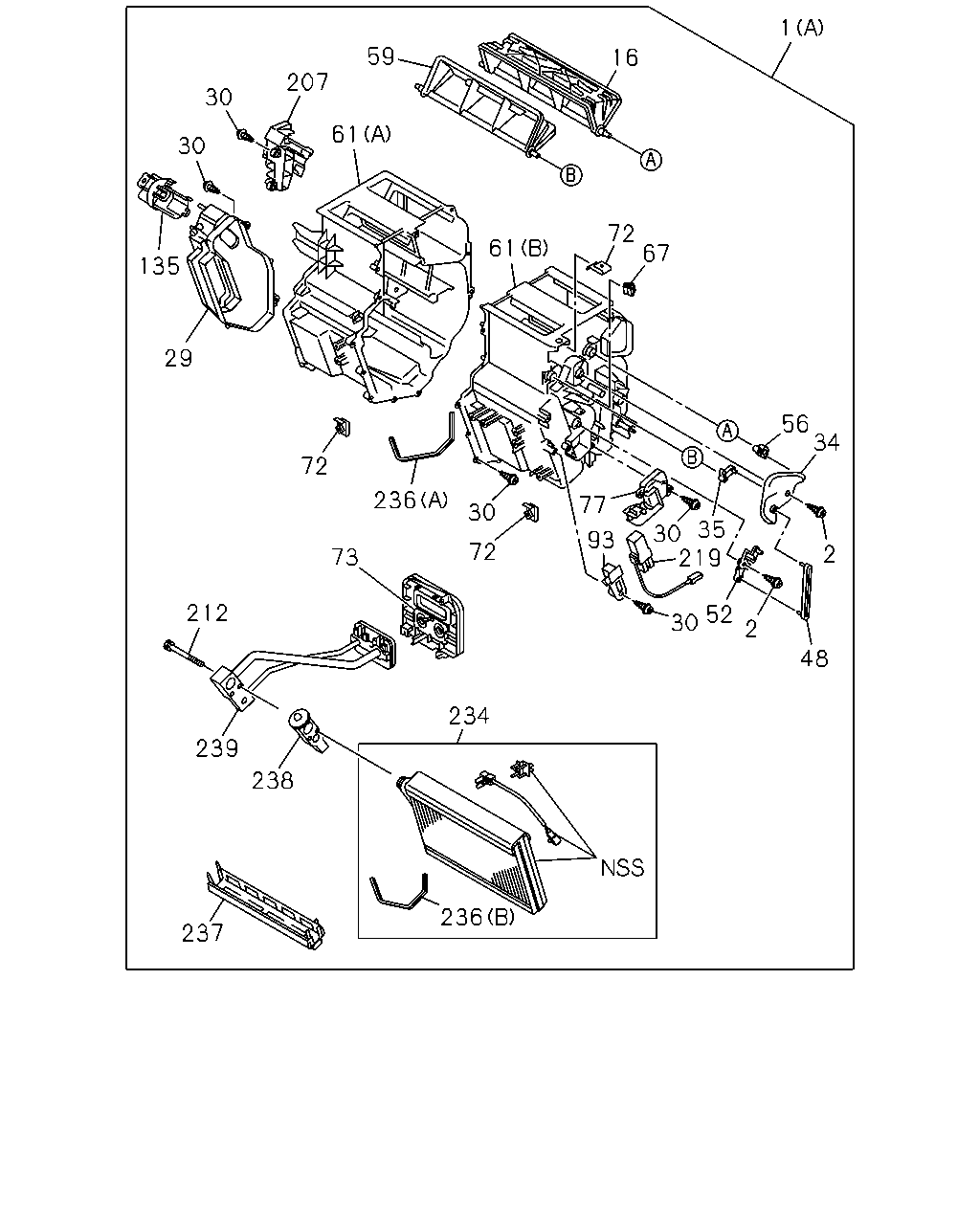

çizim 123276
1 59 16 207 30 61 30 72 67 61 135 29 56 34 72 236 77 30 30 35 219 93 72 2 73 212 52 30 2 48 234 239 238 236 237
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION<C39> (B) 		8-98062-757-1 01 1 0901-1301
1 HEATER UNIT
FORGED AIR VENTILATION<C39> (B) 		8-98214-400-1 01 1 1302-
1 HEATER UNIT
COOLER WO/HEATER<C65> (A) 		8-98057-980-2 01 1 0901-
2 SCREW; LEVER
COOLER WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 0901-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-387-0 01 1 0901-
29 COVER; HTR UNIT
FORGED AIR VENTILATION<C39> 		8-98231-367-0 01 1 1302-
29 COVER; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98074-119-0 01 1 0901-1301
29 COVER; HTR UNIT
COOLER WO/HEATER<C65> 		8-98074-119-0 01 1 1302-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION<C39> M4X16 TAPPING 		8-97957-708-0 25 1 0901-1301
30 SCREW; HTR UNIT
FORGED AIR VENTILATION<C39> M4X16 TAPPING 		8-97957-708-0 20 1 1302-
30 SCREW; HTR UNIT
COOLER WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 0901-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-389-0 01 1 0901-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-392-0 01 1 0901-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-391-0 01 1 0901-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-390-0 01 1 0901-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-393-0 01 1 0901-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-386-0 01 1 0901-
61 CASE; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-98077-422-0 01 1 0901-
61 CASE; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98077-423-0 01 1 0901-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-417-0 01 1 0901-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M6 		8-98047-428-0 03 1 0901-
73 PLATE; HTR UNIT
FORGED AIR VENTILATION<C39> 		8-98077-419-0 01 1 0901-1301
73 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98077-420-0 01 1 0901-
77 COVER; HTR CASE
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-414-0 01 1 0901-
93 PLATE; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-427-0 01 1 0901-
135 COVER; HTR
COOLER WO/HEATER<C65> 		8-98047-384-0 01 1 0901-
207 CLAMP; HTR UNIT
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> 		8-98047-379-0 01 1 0901-1301
207 CLAMP; HTR UNIT
COOLER WO/HEATER<C65> 		8-98047-379-0 01 1 1302-
212 BOLT; HTR UNIT
COOLER WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 0901-
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER<C65> 		8-98064-733-0 01 1 0901-
234 EVAPORATOR ASM; HEATER
COOLER WO/HEATER<C65> 		8-98074-116-1 01 1 0901-
236 GASKET; HEATER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-98047-420-0 01 1 0901-
236 GASKET; HEATER
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-98047-421-0 01 1 0901-
237 INSULATOR; EVAPORATOR
COOLER WO/HEATER<C65> 		8-98047-382-0 01 1 0901-
238 VALVE; EXPANSION
COOLER WO/HEATER<C65> 		8-98047-383-0 01 1 0901-
239 TUBE ASM; HEATER
COOLER WO/HEATER<C65> 		8-98074-115-0 01 1 0901-
