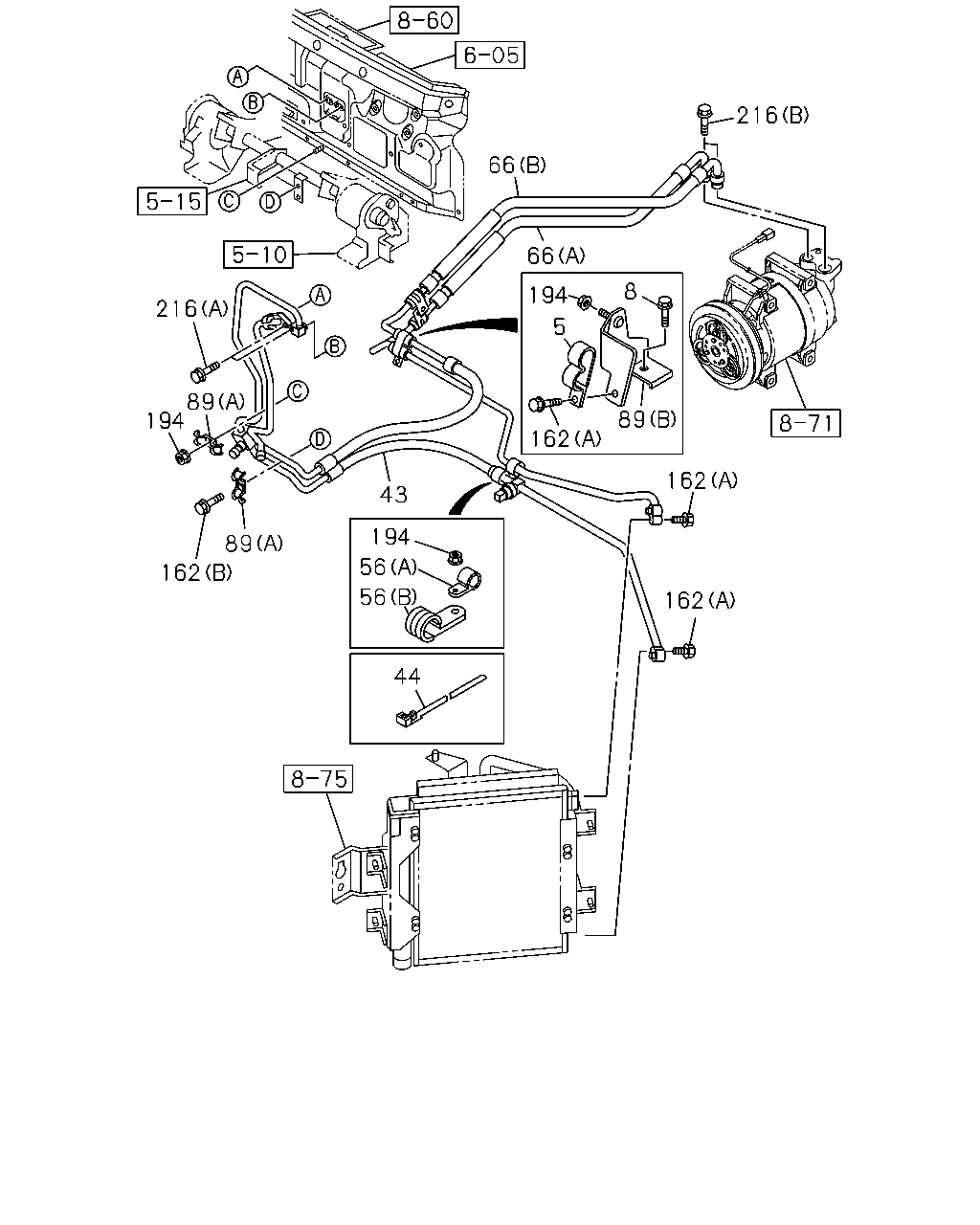

8-52 — PIPING; AIR CONDITIONING (#35178) — 32 parça

216 66 66 8 194 216 5 89 194 89 162 162 43 194 89 56 162 56 162 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; FLEX HOSE,A/C COOLER WO/HEATER<C65>	8-98052-857-0	01	1	0901-
8	BOLT; CLIP COOLER WO/HEATER<C65> M8X25 FLANGE THA	0-28650-825-0	01	1	0901-
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE	8-97386-813-4	01	1	0901-1009
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE	8-98179-006-0	01	1	1010-
44	CLIP; FLEX HOSE COOLER WO/HEATER<C65> L=250 THA	5-09707-030-1	01	1	0901-
56	CLIP; PIPE,A/C COOLER WO/HEATER<C65> (A) ID=13 L=20	0-95235-232-0	01	1	0901-
56	CLIP; PIPE,A/C COOLER WO/HEATER<C65> (B)	8-98032-641-0	01	1	0901-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A)	8-98100-099-1	01	1	0901-1009
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A)	8-98159-630-2	01	1	1010-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (B)	8-98100-100-1	01	1	0901-
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (B)	8-98002-365-2	01	1	0901-
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (A)	8-98029-613-0	02	1	0901-1009
89	BRACKET; A/C PIPE COOLER WO/HEATER<C65> (A)	8-98151-264-0	02	1	1010-
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (B) M6X20 FLANGE THA	0-28650-620-0	01	1	0901-
162	BOLT; FLEX HOSE COOLER WO/HEATER<C65> (A) M6X25 FLANGE THA	0-28650-625-0	03	1	0901-
194	NUT; HOSE COOLER WO/HEATER<C65> M6 FLANGE THA	0-91180-106-0	03	1	0901-
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> (A) M6X30 FLANGE THA	0-28650-630-0	02	1	0901-
216	BOLT; HOSE FIX COOLER WO/HEATER<C65> (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0901-

50 148 147 43 202 50 67 66 67 67 67 66 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE	8-97386-813-4	01	1	0901-1009
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<C65> HIGH PRESSURE	8-98179-006-0	01	1	1010-
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<C65> ID=7.5	1-83539-316-0	02	1	0901-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A)	8-98100-099-1	01	1	0901-1009
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (A)	8-98159-630-2	01	1	1010-
66	HOSE; FLEX,A/C COOLER WO/HEATER<C65> (B)	8-98100-100-1	01	1	0901-
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (A) ID=11.7 THA	8-97095-907-0	02	1	0901-
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (B) ID=14.5 THA	8-97095-908-0	01	1	0901-
67	GASKET; FLEX HOSE COOLER WO/HEATER<C65> (C) ID=17.6 THA	8-98036-895-0	01	1	0901-
147	CAP; FLEX HOSE COOLER WO/HEATER<C65> (A) CAP MARK L THA	1-83539-331-0	01	1	0901-
147	CAP; FLEX HOSE COOLER WO/HEATER<C65> (B) CAP MARK H THA	8-97095-911-0	01	1	0901-
148	VALVE; FLEX HOSE COOLER WO/HEATER<C65> (A) THA	8-97095-909-0	01	1	0901-
148	VALVE; FLEX HOSE COOLER WO/HEATER<C65> (B)	8-98031-629-0	01	1	0901-
202	SWITCH; PRESSURE COOLER WO/HEATER<C65>	1-83564-392-1	01	1	0901-
