Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

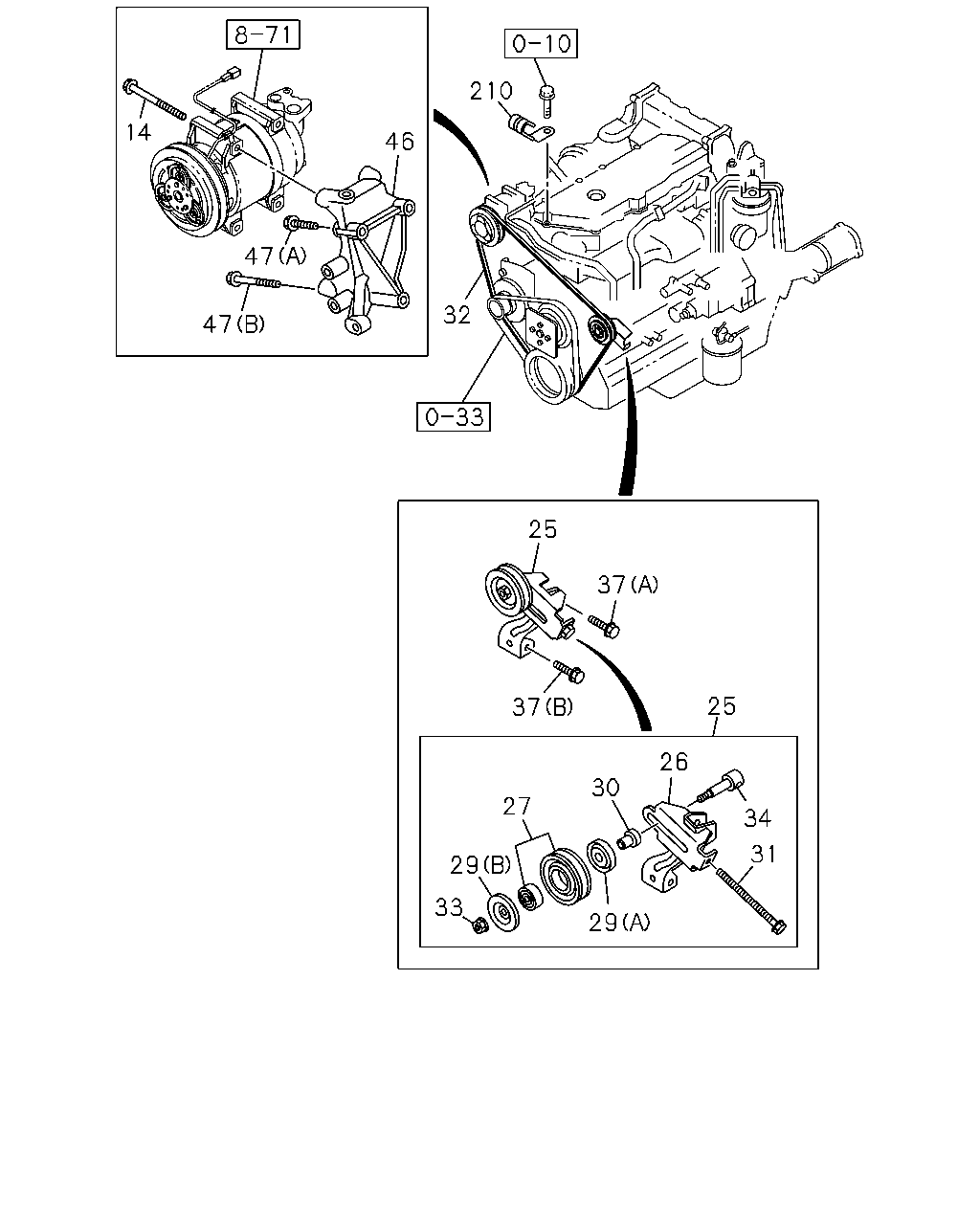

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#35177) — 28 parça
◀
[850A] NO.1 (21 parça)
[850A] NO.2 (7 parça)
▶
210
14
46
47
32
47
25
37
25
37
26
30
27
34
31
29
33
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
COOLER WO/HEATER<C65> M8X90 FLANGE
0-28050-890-0
04
1
0901-
25
PULLEY ASM; IDLER,CMPR
COOLER WO/HEATER<C65> 1-GROOVE
8-97161-198-1
01
1
0901-
26
BRACKET; IDLE PULLEY,A/C
COOLER WO/HEATER<C65>
8-97161-031-1
01
1
0901-
27
PULLEY; IDLE,A/C
COOLER WO/HEATER<C65>
8-97386-869-0
01
1
0901-
29
COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (B)
8-97384-114-0
01
1
0901-
29
COVER; DUST,IDLE PULLEY
COOLER WO/HEATER<C65> (A)
8-97384-115-0
01
1
0901-
30
COLLAR; IDLE PULLEY
COOLER WO/HEATER<C65>
8-97384-117-0
01
1
0901-
31
BOLT; ADJ,IDLE PULLEY
COOLER WO/HEATER<C65>
8-97384-113-0
01
1
0901-
32
BELT; A/C CMPR
COOLER WO/HEATER<C65> L=1569
8-97180-183-3
01
1
0901-
32
BELT; A/C CMPR
COOLER WO/HEATER<C65> BEST VALUE PARTS
5-87610-097-0
01
1
0901-
33
NUT; IDLER PULLEY
COOLER WO/HEATER<C65>
8-97384-118-0
01
1
0901-
34
SHAFT; IDLE PULLEY
COOLER WO/HEATER<C65>
8-97384-116-0
01
1
0901-
37
BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (A) M8X50 FLANGE THA
0-28050-850-0
01
1
0901-
37
BOLT; PULLEY BRKT
COOLER WO/HEATER<C65> (B) M10X65 FLANGE
8-94344-540-1
01
1
0901-
46
BRACKET; CMPR
COOLER WO/HEATER<C65>
8-97305-489-0
01
1
0901-0912
46
BRACKET; CMPR
8-97305-489-0
01
1
1001-
47
BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (B) M10X110 FLANGE
0-28156-011-0
01
1
0901-0912
47
BOLT; BRKT TO BODY
(B) M10X110 FLANGE
0-28156-011-0
01
1
1001-
47
BOLT; BRKT TO BODY
COOLER WO/HEATER<C65> (A) M10X55 FLANGE
8-97365-449-0
02
1
0901-0912
47
BOLT; BRKT TO BODY
(A) M10X55 FLANGE
8-97365-449-0
02
1
1001-
210
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
0901-

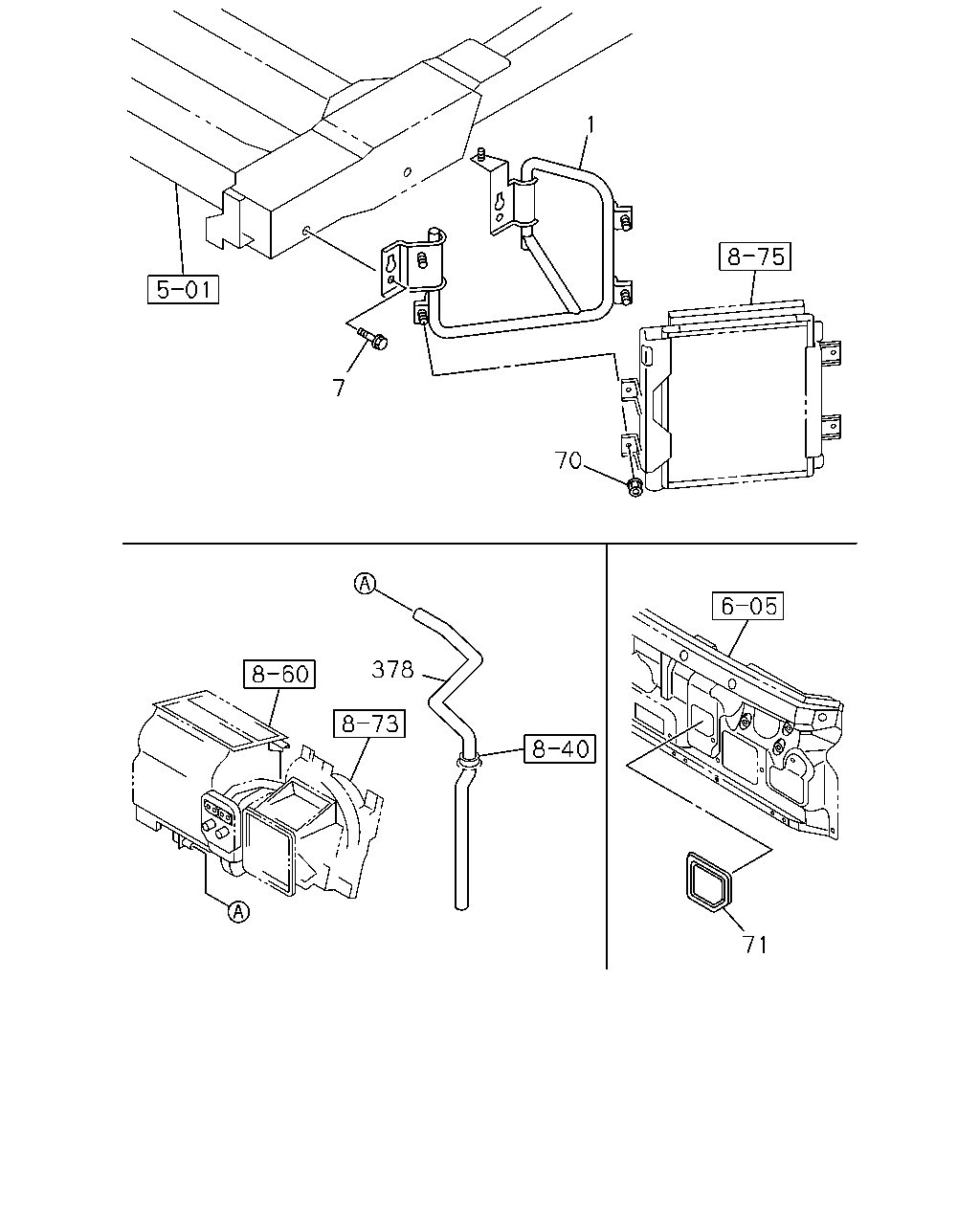

1
7
70
378
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; A/C
COOLER WO/HEATER<C65>
8-97387-182-0
01
1
0901-1303
1
BRACKET; A/C
COOLER WO/HEATER<C65>
8-98214-411-0
01
1
1304-
7
BOLT; BRKT
COOLER WO/HEATER<C65> M12X30 FLANGE THA
0-28651-230-0
04
1
0901-
70
NUT; EVAP,A/C
COOLER WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
04
1
0901-
71
COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>
8-98017-234-1
01
1
0901-1301
71
COVER; EVAP,A/C
EXC. COOLER WO/HEATER<C65>
8-98017-234-1
01
1
1302-
378
HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65>
8-97387-174-2
01
1
0901-
