Isuzu WW
▶
TRUCKS
▶
NPR
▶
51241 - NPR CNG(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

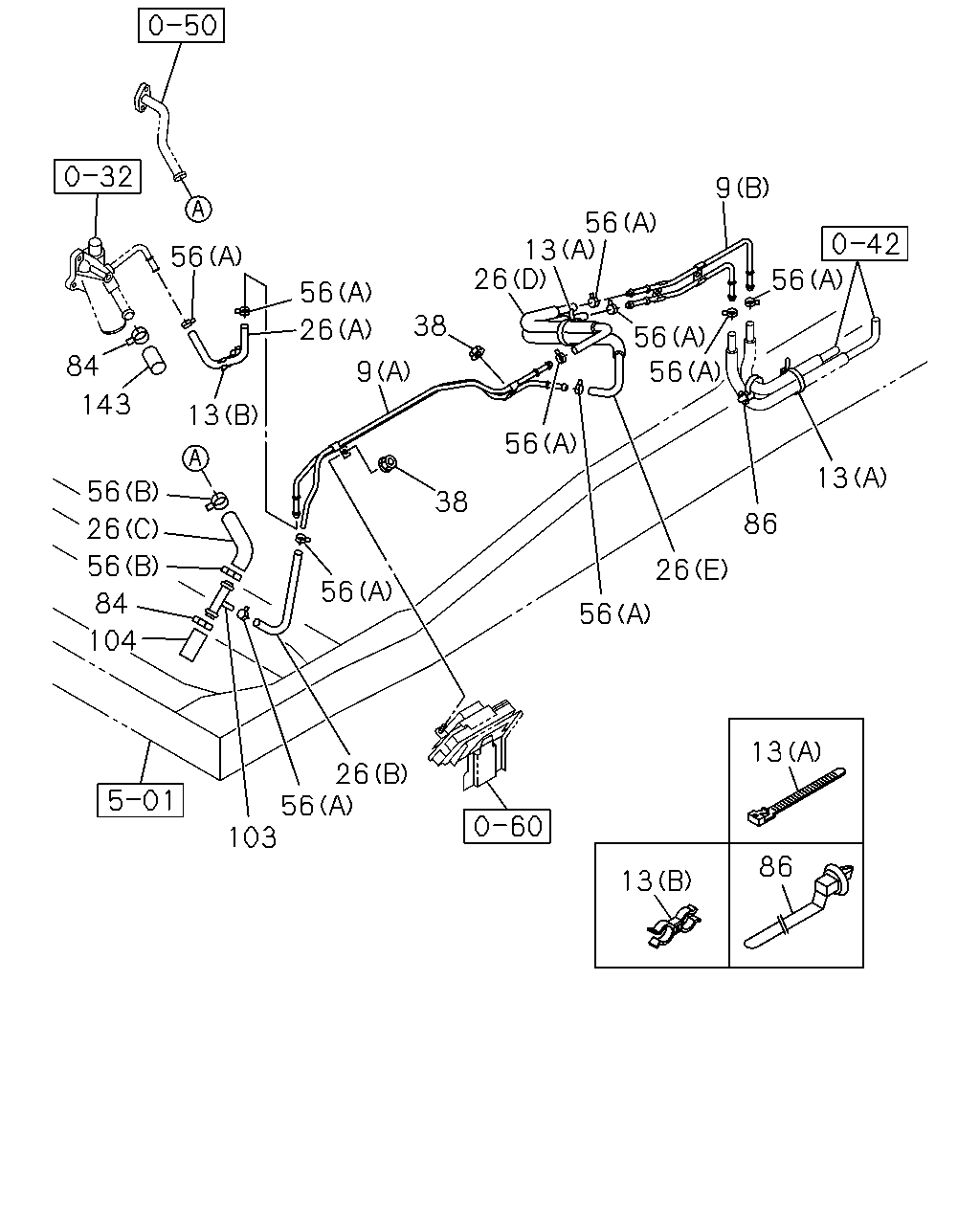

8-45 — HEATER PIPING
(#35176) — 18 parça
9
56
13
26
56
56
56
38
26
56
56
84
9
143
13
56
13
56
38
86
26
56
26
56
84
56
104
13
26
56
103
86
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
PIPE; HTR
(A) THA
8-98114-286-2
01
1
0901-
9
PIPE; HTR
(B)
8-98114-287-2
01
1
0901-
13
CLIP; HTR HOSE
(A) L=250 THA
5-09707-030-1
02
1
0901-
13
CLIP; HTR HOSE
(B) ID=13.2 & 11.5 THA
8-97230-081-0
01
1
0901-
26
HOSE; HTR
(A) L=230 SERVICED BY L=3000
0-03257-300-0
01
1
0901-
26
HOSE; HTR
(B)
8-97378-372-1
01
1
0901-
26
HOSE; HTR
(C)
8-97383-827-1
01
1
0901-
26
HOSE; HTR
(D)
8-98114-292-1
01
1
0901-
26
HOSE; HTR
(E)
8-98114-293-0
01
1
0901-
38
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
0901-
56
CLAMP; HTR HOSE
(B) ID=22
8-97359-141-0
03
1
0901-
56
CLAMP; HTR HOSE
(A) ID=13 THA
8-94238-571-0
10
1
0901-0911
56
CLAMP; HTR HOSE
(A) ID=13
8-98150-357-0
10
1
0912-
84
CLIP; HTR PIPE
ID=25
8-94233-115-0
01
1
0901-
86
CLIP; HTR HOSE
L=155 THA
8-97173-307-0
01
1
0901-
103
CONNECTOR; HOSE
8-97378-346-0
01
1
0901-
104
PLUG; RUBBER,HTR HOSE HOLE
8-94107-793-0
01
1
0901-
143
CAP; HEATER PIPE
8-94107-793-0
01
1
0901-
