8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#35173) — 22 parça

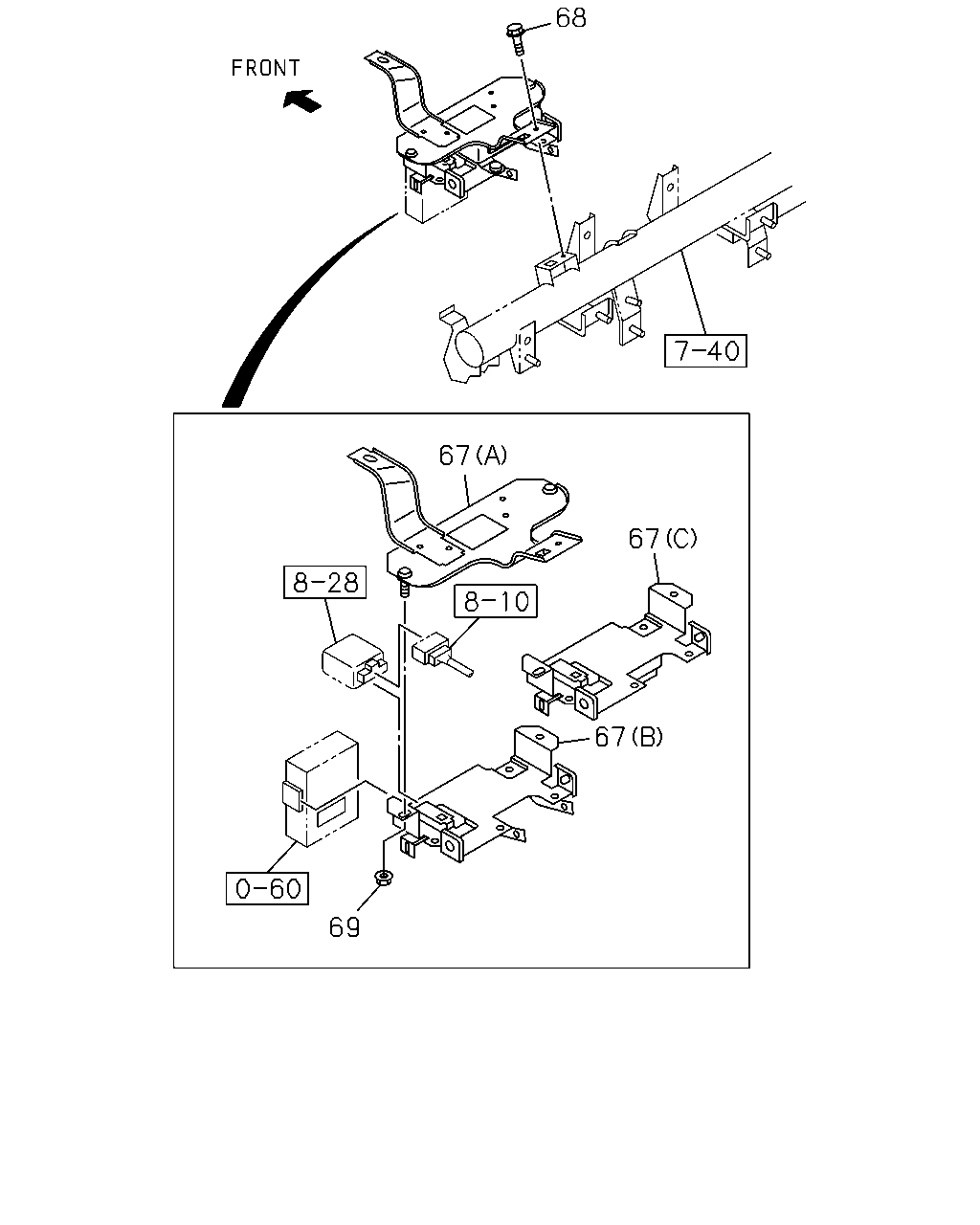

çizim 123489
68 67 67 67 69
BalonParca AdiParca NoAdetTipApplied Date
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0901-
67 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0901-1111
67 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207
67 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212
67 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404
67 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405-
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 0901-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 0901-

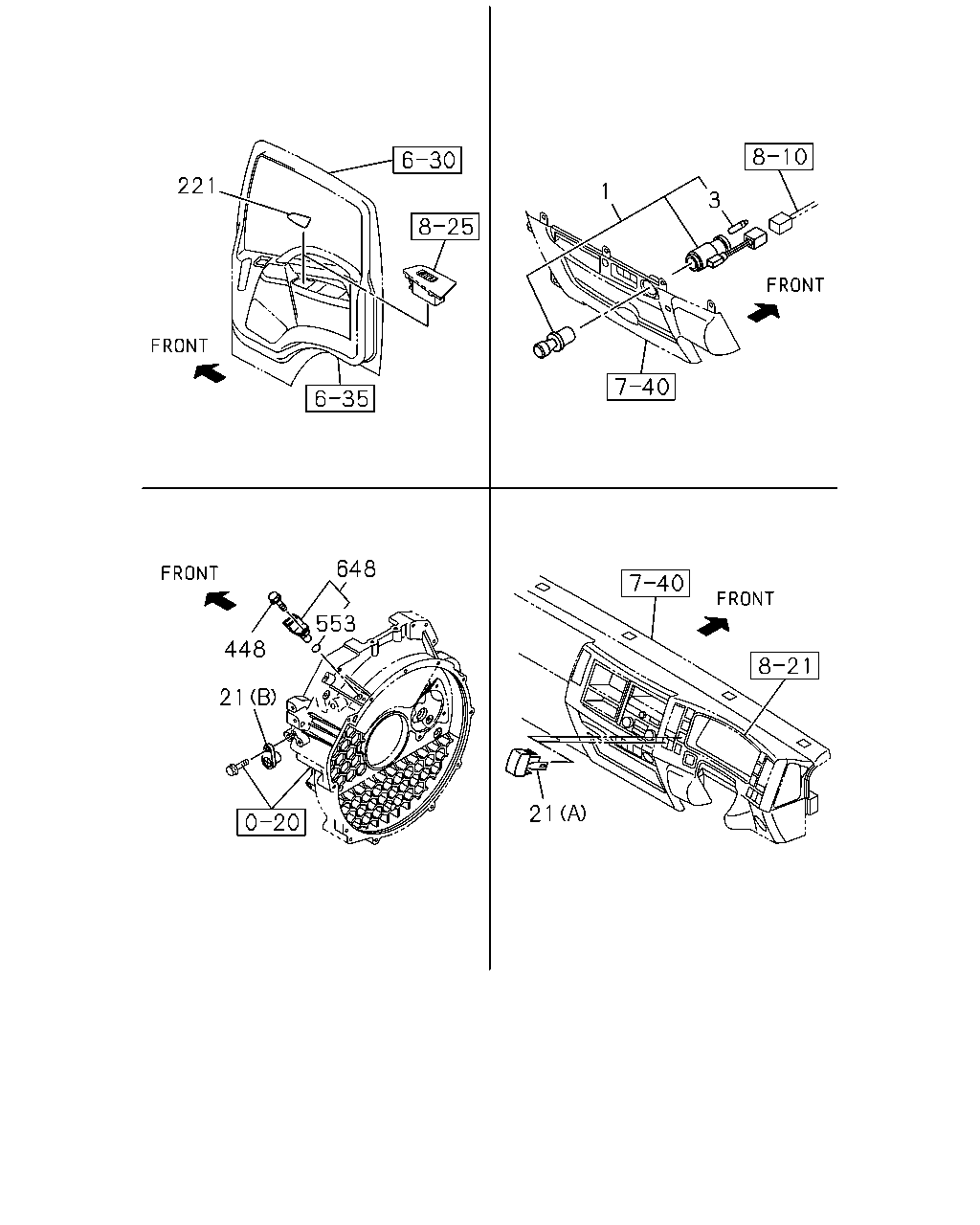

çizim 123496
221 1 3 648 553 448 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0901-0906
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0907-
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0901-0906
21 COVER; HOLE
(B) 		8-97101-974-0 01 1 0901-
21 COVER; HOLE
(A) 		8-98025-954-1 02 1 0901-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0901-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0901-
448 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 02 1 0901-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 0901-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 0901-

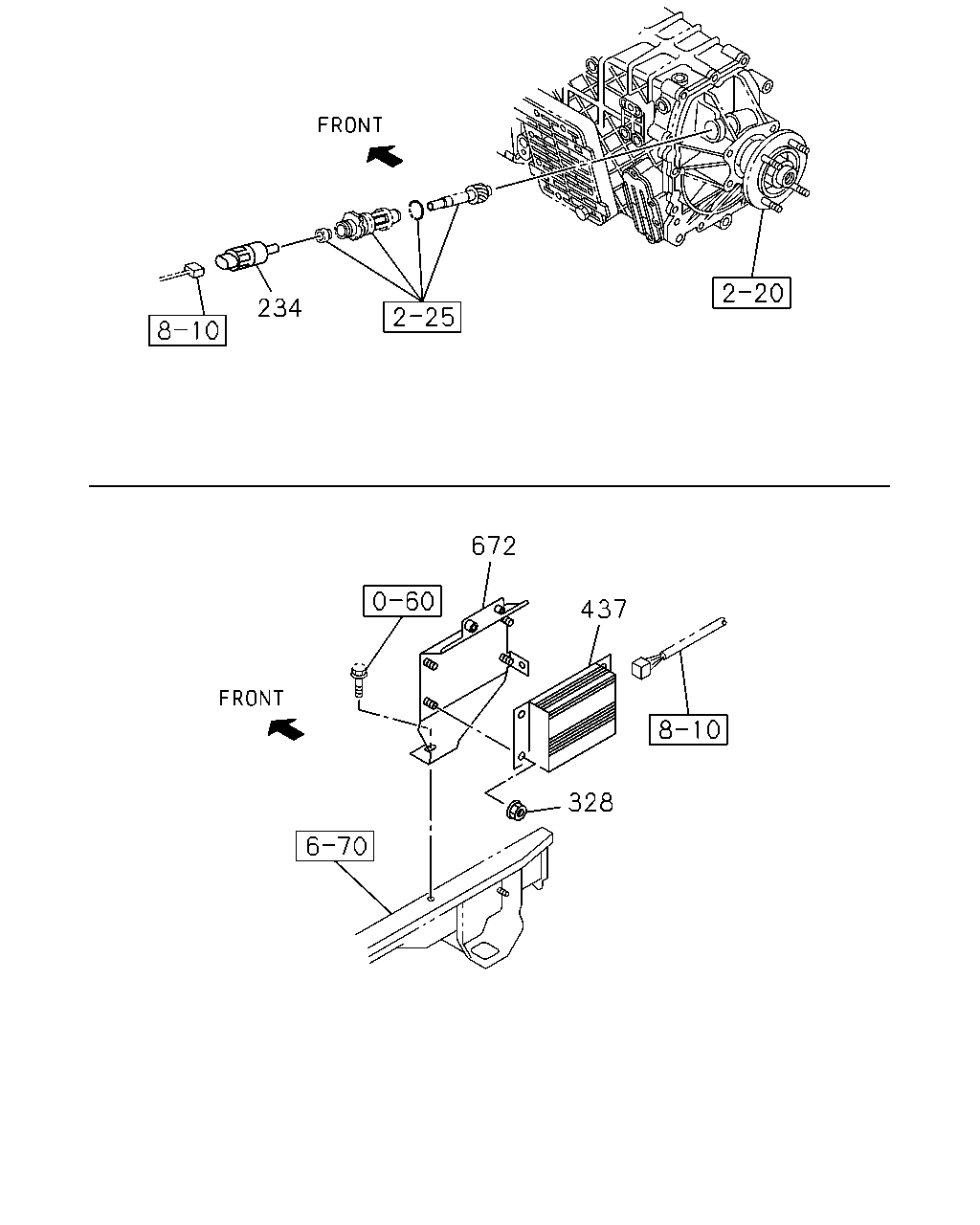

çizim 123498
234 672 437 328
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0901-
328 NUT
M6 FLANGE THA 		0-91180-106-0 04 1 0901-
437 CONVERTER; DC 8-97254-654-0 01 1 0901-
672 BRACKET; CONV 8-98058-179-1 01 1 0901-
