◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#35170) — 152 parça
çizim 123474
16 16 16 16 16 16 27 513 530
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (G) L=40.6 THA 		8-97229-357-0 02 1 1004-1104
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1105-
16 CLIP; HARNESS
COOLER WO/HEATER<C65> (E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0901-0912
16 CLIP; HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1001-
16 CLIP; HARNESS
(F) L=22 ID=10.5 THA 		8-94327-574-0 01 1 0901-
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0901-
16 CLIP; HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0901-
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 0901-1003
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1105-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 0901-1003
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (C) THA 		8-98052-679-0 02 1 1004-1104
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (C) THA 		8-98052-679-0 02 1 1004-1104
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1105-
27 PROTECTOR; EDGE
L=80 		5-22439-006-0 01 1 0901-
513 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 0907-1003
513 TAPE; SOFT,HARNESS
EXC. VIN MODEL YEAR 2010<VZA> 70X45 		8-97304-372-0 01 1 1004-1104
530 SEAL; HARNESS
OD=32 BLACK 		8-98031-126-0 01 1 0901-
çizim 123478
16 22 331 483 570 48 570 48 570 22 48 22 48 617 48 488 22 16 22
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (G) L=40.6 THA 		8-97229-357-0 02 1 1004-1104
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1105-
16 CLIP; HARNESS
COOLER WO/HEATER<C65> (E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0901-0912
16 CLIP; HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1001-
16 CLIP; HARNESS
(F) L=22 ID=10.5 THA 		8-94327-574-0 01 1 0901-
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0901-
16 CLIP; HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 0901-
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 0901-1003
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (A) L=155 THA 		8-97173-307-0 14 1 1004-1104
16 CLIP; HARNESS
(A) L=155 THA 		8-97173-307-0 14 1 1105-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 0901-1003
16 CLIP; HARNESS
CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2010<VZA> (C) THA 		8-98052-679-0 02 1 1004-1104
16 CLIP; HARNESS
VIN MODEL YEAR 2010<VZA> EXC. CORNERING LAMP<T87> (C) THA 		8-98052-679-0 02 1 1004-1104
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1105-
22 CLIP; ENG HARNESS
(D) L=140 THA 		8-97920-656-0 01 1 0901-
22 CLIP; ENG HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 01 1 0901-1002
22 CLIP; ENG HARNESS
(B) L=170.3 THA 		1-09987-182-0 03 1 0901-
22 CLIP; ENG HARNESS
(A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0901-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (C) L=140 THA 		5-09707-031-1 01 1 0901-0904
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 01 1 0901-
48 CLIP; FRAME HARNESS
WHEEL BASE 3400MM<34W> (B) ID=14 L=47 		5-09700-319-0 01 1 0901-
48 CLIP; FRAME HARNESS
WHEEL BASE 3800MM<38W> (B) ID=14 L=47 		5-09700-319-0 02 1 0901-
48 CLIP; FRAME HARNESS
(D) L=250 THA 		5-09707-030-1 01 1 0901-
48 CLIP; FRAME HARNESS
POWER TAKE OFF CONTROL ELECTRIC<7GR> (D) L=250 THA 		5-09707-030-1 01 1 0901-
48 CLIP; FRAME HARNESS
(A) L=170.3 THA 		1-09987-182-0 01 1 0901-
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 04 1 0901-0901
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 		5-09700-319-0 05 1 0902-
331 CLIP; HARNESS BRKT
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
483 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0901-
483 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-0901
483 CLIP; ENG HARNESS
ID=18 L=44 		8-97367-985-1 01 1 0901-1002
483 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1009-
488 CLIP; CABLE,TRAILER
L=250 THA 		5-09707-030-1 01 1 0901-
570 CLIP; HARNESS,PTO
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
570 CLIP; HARNESS,PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR> (A) L=140 THA 		5-09707-031-1 02 1 0901-
570 CLIP; HARNESS,PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR> (C) T=4.5 & 9 		8-97371-947-0 01 1 0901-
617 STRAP; BAND
L=140 THA 		8-97920-656-0 01 1 1104-1106
617 STRAP; BAND
L=140 THA 		5-09707-031-1 01 1 1104-1106
çizim 123479
516 529 38 313 313 313 38 150 304 313 377 377 386 386 113 139 24 294 515 577 219 515 525 552 515 515 552 620
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 01 1 0901-1409
24 NUT; HARNESS
M6 FLANGE STAINLESS THA 		8-98297-112-0 01 1 1410-
38 BOLT; CLIP,HARNESS
COOLER WO/HEATER<C65> (A) M6X12 FLANGE 		0-28250-612-0 01 1 0901-0912
38 BOLT; CLIP,HARNESS
(A) M6X12 FLANGE 		0-28250-612-0 01 1 1001-
38 BOLT; CLIP,HARNESS
PTO TRANSMISSION SIDE<V66> POWER TAKE OFF CONTROL ELECTRIC<7GR> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
113 SCREW; HARNESS CONNECTOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 HEXALOBULAR SOCKET THA 		8-98177-744-0 01 1 1208-1208
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
150 BOLT; CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 0901-0901
294 NUT
M6 W/LK WASHER THA 		8-94424-179-0 01 1 0901-
304 BOLT; ENG HARNESS CLIP
M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-1002
304 BOLT; ENG HARNESS CLIP
M8X12 FLANGE THA 		0-28050-812-0 01 1 1003-
313 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(C) M6X16 FLANGE THA 		0-28450-616-0 01 1 0901-
313 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 0901-1005
313 BOLT; BRKT
(D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0901-
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0901-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0901-
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0901-
515 NUT; BRKT
(C) M10 THA 		0-91111-510-0 02 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0901-
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0901-
515 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (D) M10 FLANGE THA 		0-91180-110-0 01 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0901-
516 BOLT; HARNESS
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0901-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 0901-1002
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1009-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 0901-
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0901-
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0901-0901
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0902-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0902-
577 NUT; FUSE BOX
M6 FLANGE THA 		0-91180-106-0 02 1 0901-
620 WASHER; PL BRKT
ID=15 		0-91614-614-0 01 1 1006-1008

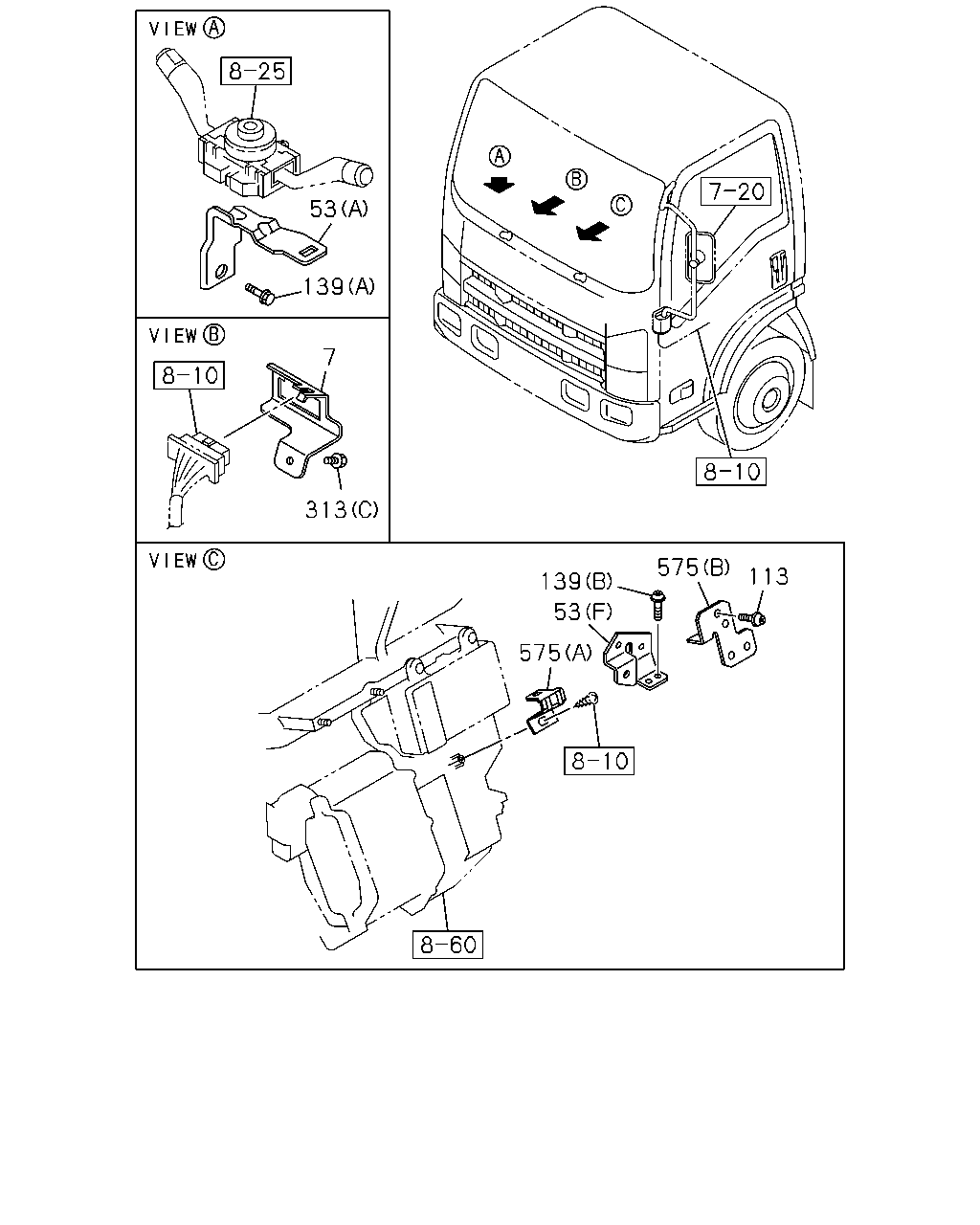

çizim 123486
53 139 7 313 575 139 53 575 113
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98043-070-1 01 1 0901-
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98077-503-1 01 1 0901-
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0901-
53 BRACKET; HARNESS
(B) 		8-98051-457-0 01 1 0901-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0901-
53 BRACKET; HARNESS
(D) 		8-98058-646-2 01 1 0901-
53 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F) 		8-98084-590-0 01 1 0901-
113 SCREW; HARNESS CONNECTOR
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X16 HEXALOBULAR SOCKET THA 		8-98177-744-0 01 1 1208-1208
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(C) M6X16 FLANGE THA 		0-28450-616-0 01 1 0901-
313 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 0901-1005
313 BOLT; BRKT
(D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
575 BRACKET; FUSE BOX
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) THA 		1-82698-128-2 01 1 1208-1208
575 BRACKET; FUSE BOX
(A) 		8-98042-656-2 01 1 0901-

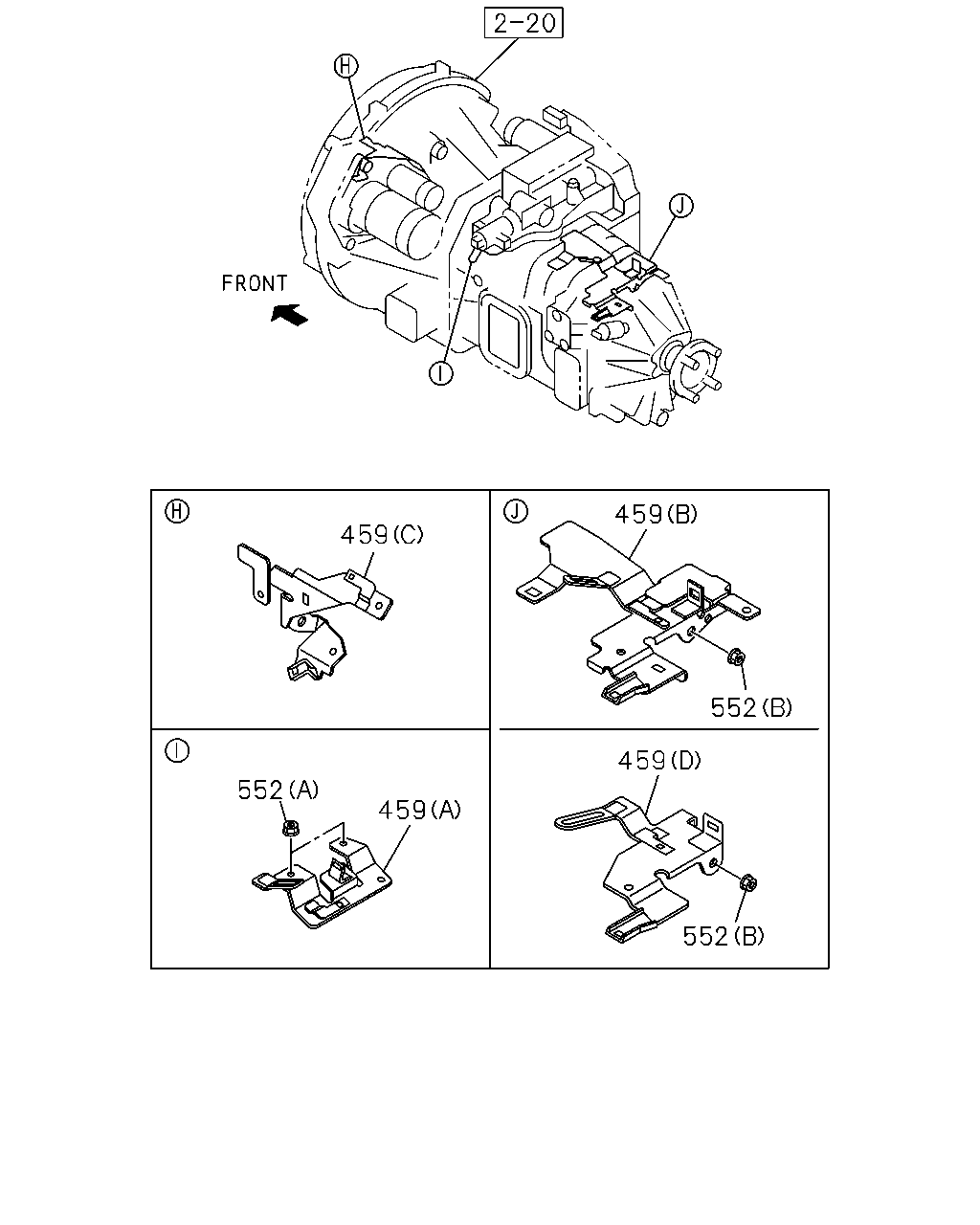

çizim 123488
459 459 552 459 552 459 552
BalonParca AdiParca NoAdetTipApplied Date
459 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 0901-
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98030-990-2 01 1 0901-1109
459 BRACKET; SUPPORT,HARNESS
(D) 		8-98196-974-0 01 1 1110-
459 BRACKET; SUPPORT,HARNESS
(C) 		8-98081-708-0 01 1 0901-
552 NUT; BRKT,HARNESS
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0901-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0901-0901
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0902-
552 NUT; BRKT,HARNESS
(B) M10 FLANGE THA 		0-91180-110-0 01 1 0902-

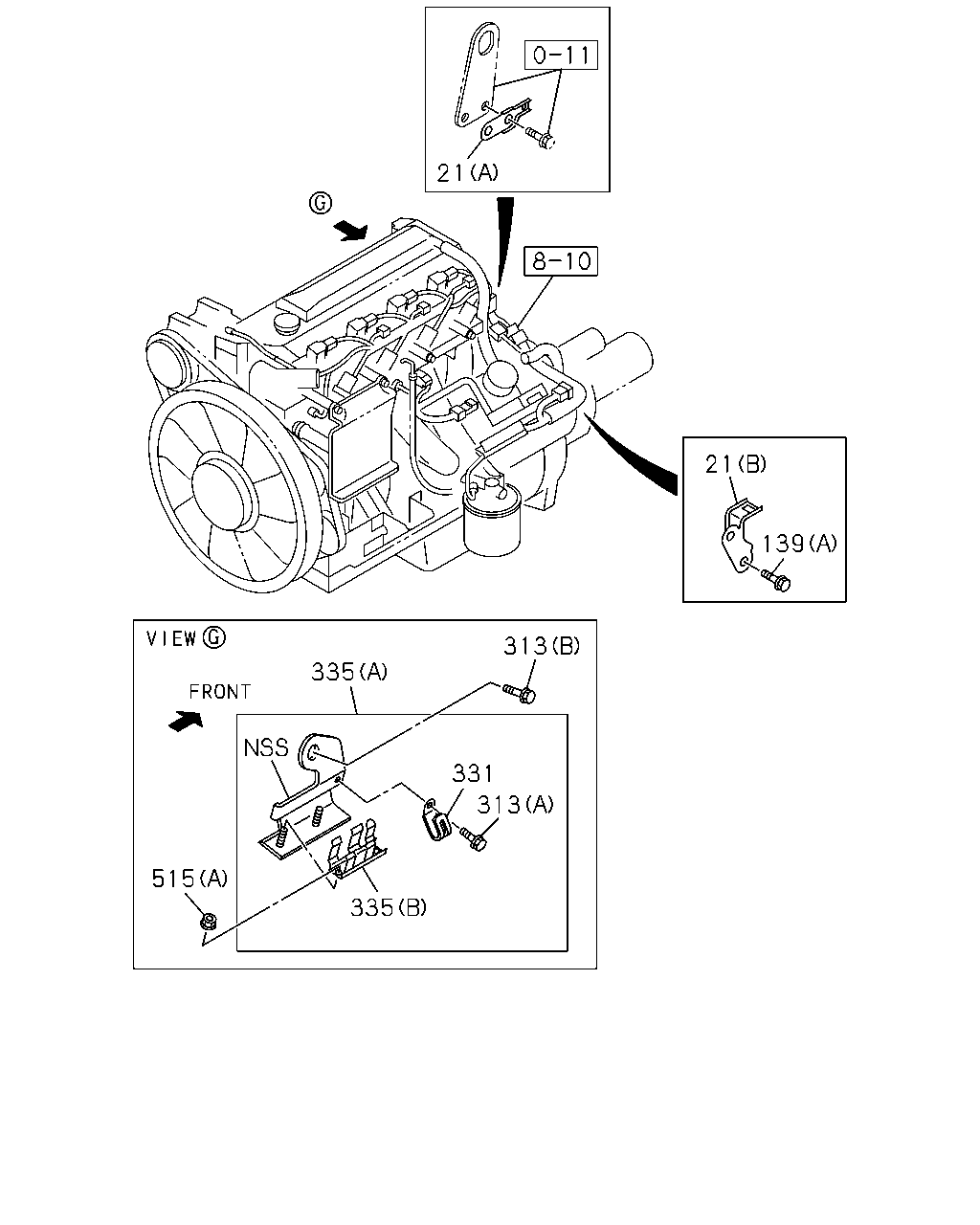

çizim 123490
21 21 139 313 335 331 313 515 335
BalonParca AdiParca NoAdetTipApplied Date
21 BRACKET; ENG HARNESS
(A) 		8-97383-683-0 01 1 0901-
21 BRACKET; ENG HARNESS
(B) 		8-97383-684-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 02 1 0901-
139 BOLT; BRKT
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 0901-
313 BOLT; BRKT
(C) M6X16 FLANGE THA 		0-28450-616-0 01 1 0901-
313 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 0901-1005
313 BOLT; BRKT
(D) M14X25 FLANGE 		0-28851-425-0 01 1 1006-1008
313 BOLT; BRKT
(B) M14X20 FLANGE 		0-28851-420-0 01 1 1009-
331 CLIP; HARNESS BRKT
ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0901-
335 BRACKET; CONNECTOR
(B) 		8-97262-725-0 01 1 0901-
335 BRACKET; CONNECTOR
(A) 		8-97262-726-0 01 1 0901-
515 NUT; BRKT
(C) M10 THA 		0-91111-510-0 02 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0901-
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0901-
515 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (D) M10 FLANGE THA 		0-91180-110-0 01 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0901-

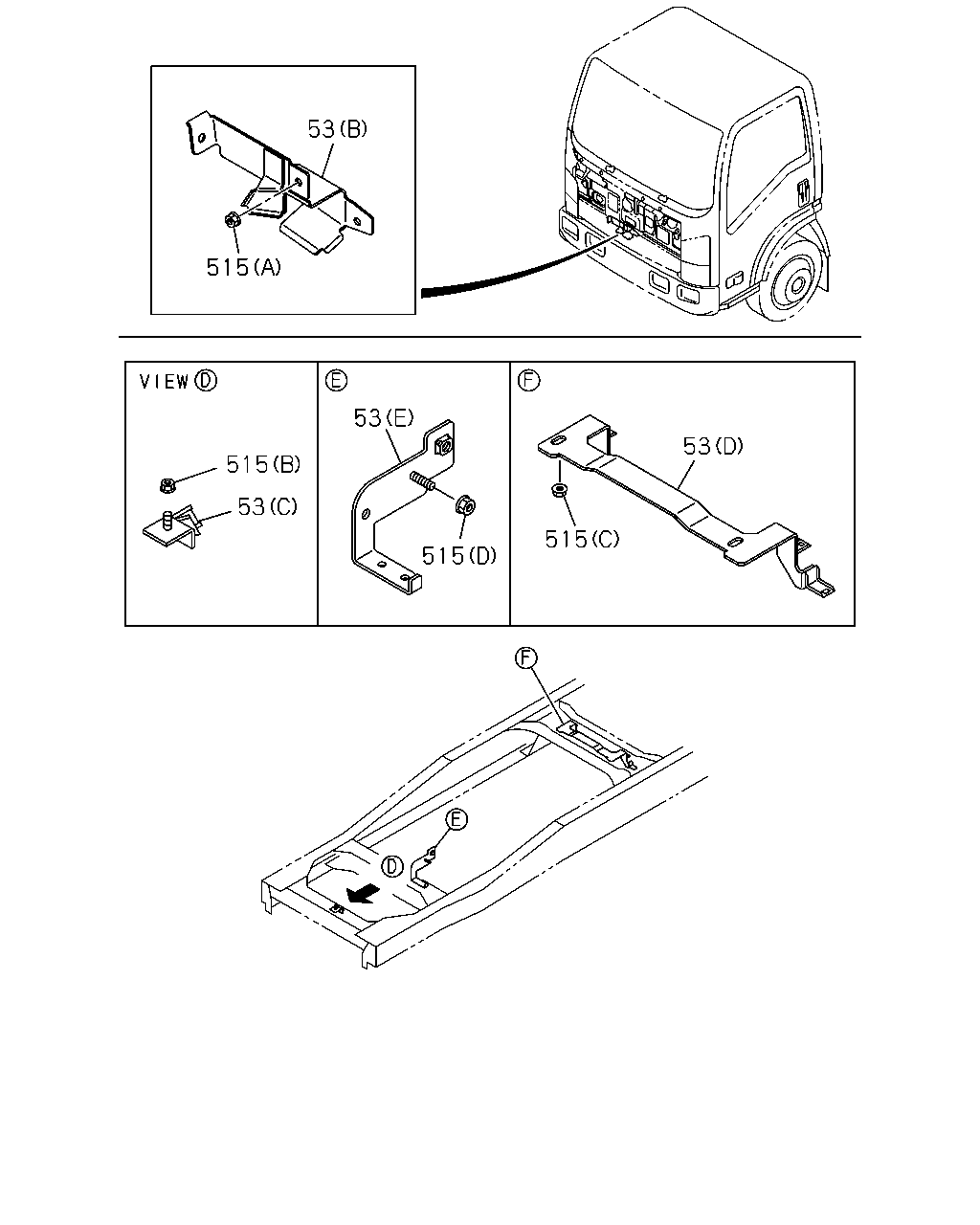

çizim 123502
53 515 53 53 515 53 515 515
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98077-503-1 01 1 0901-
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0901-
53 BRACKET; HARNESS
(B) 		8-98051-457-0 01 1 0901-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0901-
53 BRACKET; HARNESS
(D) 		8-98058-646-2 01 1 0901-
53 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (F) 		8-98084-590-0 01 1 0901-
515 NUT; BRKT
(C) M10 THA 		0-91111-510-0 02 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 02 1 0901-
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0901-
515 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (D) M10 FLANGE THA 		0-91180-110-0 01 1 0901-
515 NUT; BRKT
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0901-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
