◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#35164) — 56 parça

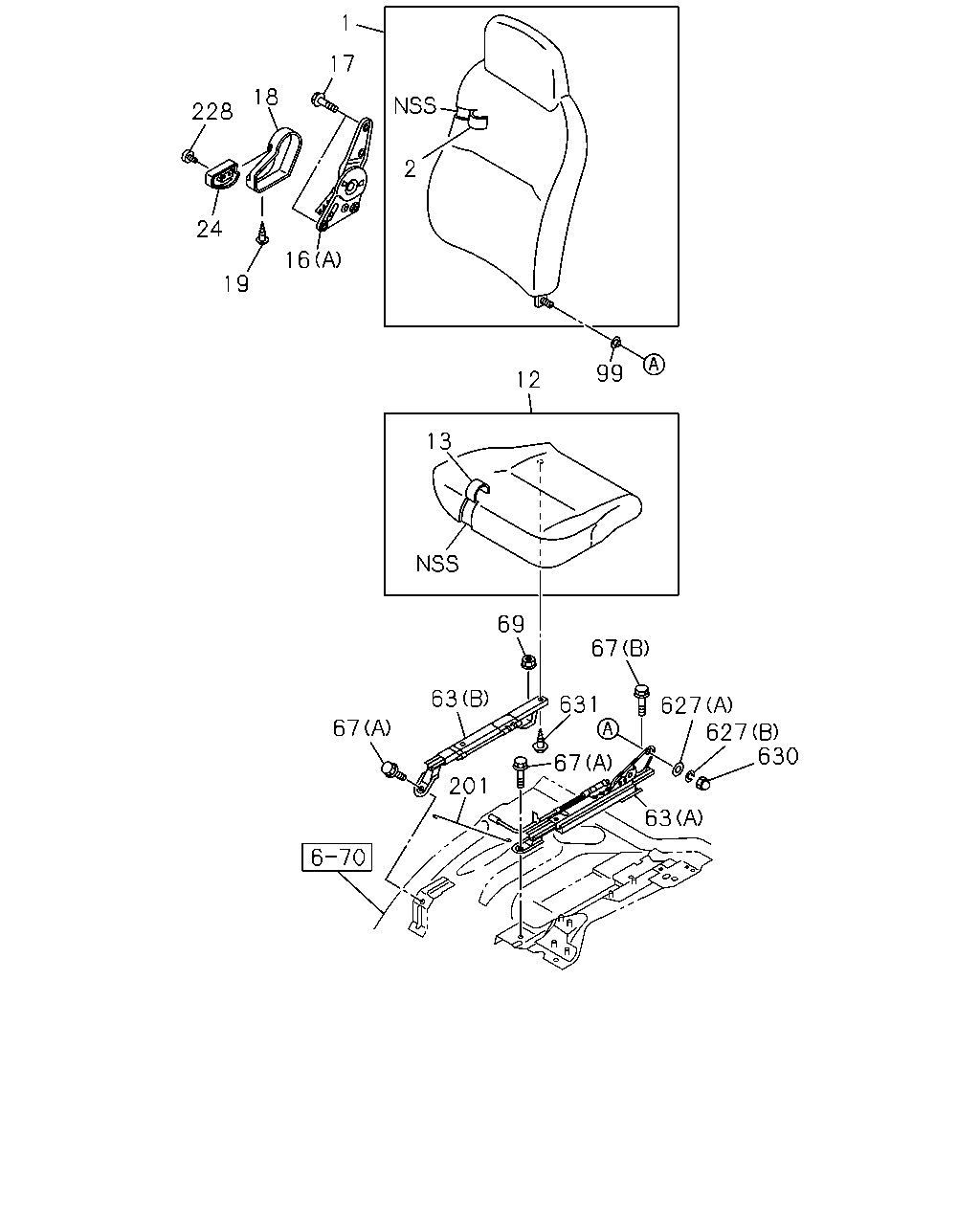

çizim 123462
1 17 18 228 2 24 16 19 99 12 13 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
THA 		8-97924-733-0 01 1 0901-
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-740-0 01 1 0901-
12 CUSHION; SEAT,FRT
THA 		8-97924-741-1 01 1 0901-
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-742-0 01 1 0901-
16 ADJUSTER ASM; RECLINING
(A) THA 		8-98003-087-1 01 1 0901-
16 ADJUSTER ASM; RECLINING
(B) BLACK THA 		8-97859-273-3 01 1 0901-
16 ADJUSTER ASM; RECLINING
(C) BLACK THA 		8-97859-274-3 01 1 0901-
17 BOLT; RECLINING
M10X20 THA 		8-98062-661-0 04 1 0901-
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 0901-
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 0901-
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 0901-
63 ADJUSTER; SEAT SLIDE
(A) INNER THA 		8-97382-800-2 01 1 0901-
63 ADJUSTER; SEAT SLIDE
(B) OUTER THA 		8-97382-801-1 01 1 0901-
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0901-
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0901-
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0901-
99 BUSHING; SEAT BACK
THA 		8-98112-751-0 01 1 0901-
201 CABLE; ADJ
THA 		8-98003-086-1 01 1 0901-
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 0901-
627 WASHER; FRT SEAT
(A) THA 		8-98063-223-0 01 1 0901-
627 WASHER; FRT SEAT
(B) THA 		8-98063-224-0 01 1 0901-
630 NUT; CAP
M8 THA 		8-98063-225-0 01 1 0901-
631 BOLT; ADJ,SEAT
M8X25 W/LK WASHER THA 		8-98062-658-0 02 1 0901-
631 BOLT; ADJ,SEAT
M8X32 W/LK WASHER THA 		8-98062-659-0 02 1 0901-

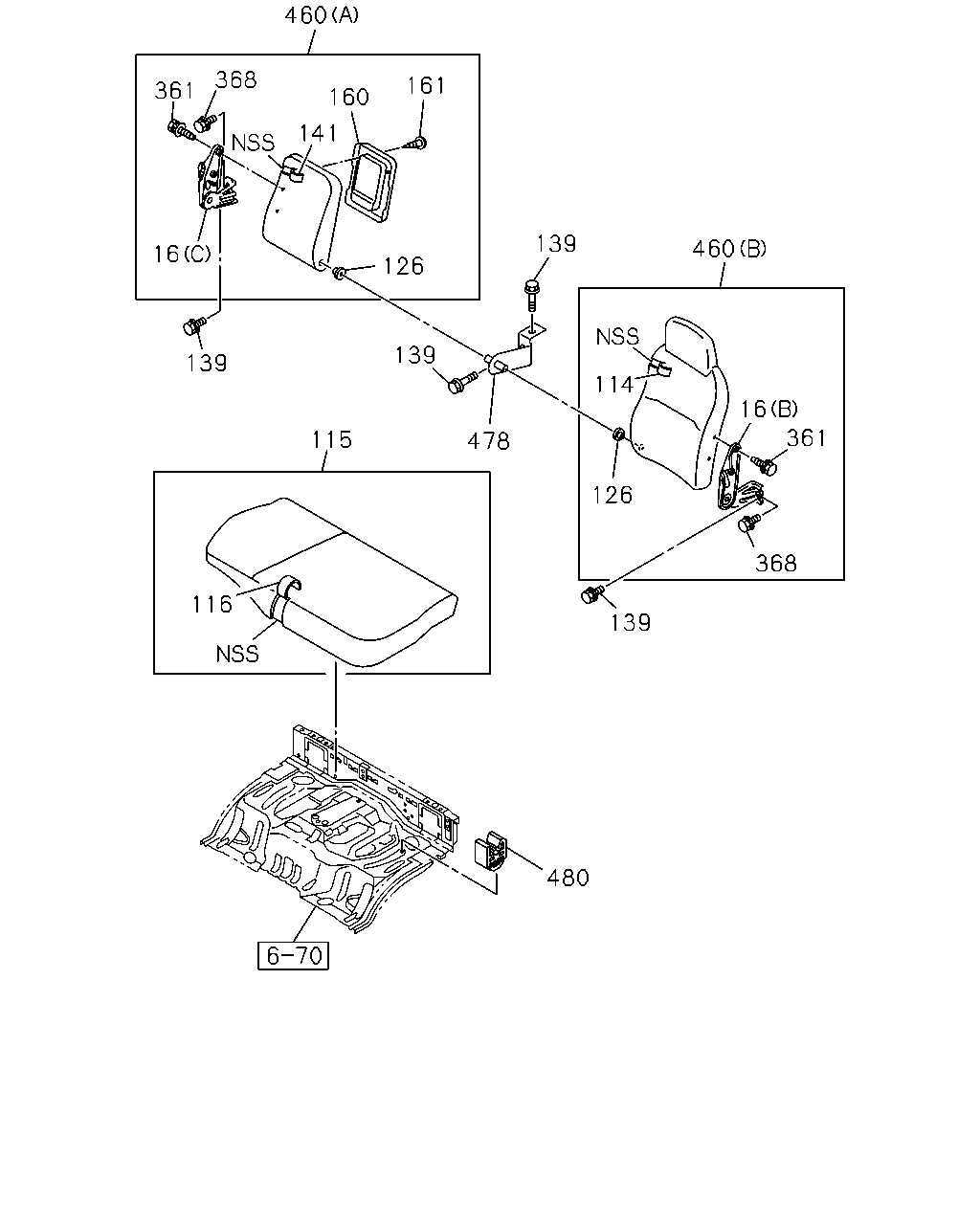

çizim 123472
460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 115 478 126 368 116 139 480
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
(A) THA 		8-98003-087-1 01 1 0901-
16 ADJUSTER ASM; RECLINING
(B) BLACK THA 		8-97859-273-3 01 1 0901-
16 ADJUSTER ASM; RECLINING
(C) BLACK THA 		8-97859-274-3 01 1 0901-
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-278-0 01 1 1105-
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-479-0 01 1 0901-1002
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-479-0 01 1 1004-1104
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97924-745-0 01 1 0901-1002
115 CUSHION ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-745-0 01 1 1003-1104
115 CUSHION ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> THA 		8-97925-271-0 01 1 1003-1104
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97925-271-0 01 1 1105-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97925-276-0 01 1 1105-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97924-746-0 01 1 0901-1002
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-746-0 01 1 1004-1104
126 BUSHING; HINGE,RECLINING
THA 		8-98069-558-0 02 1 0901-
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER THA 		8-98031-841-0 04 1 0901-
141 COVER; TRIM,BENCH SEAT,BACK
THA 		8-97925-279-0 01 1 1105-
141 COVER; TRIM,BENCH SEAT,BACK
THA 		8-97924-478-0 01 1 0901-1002
141 COVER; TRIM,BENCH SEAT,BACK
EXC. VIN MODEL YEAR 2010<VZA> THA 		8-97924-478-0 01 1 1004-1104
160 CONSOLE; UPR,BACK CENTER
GRAY THA 		8-97405-361-1 01 1 0901-
161 SCREW; CONSOLE
M4X12 THA 		8-94279-351-0 04 1 0901-
361 BOLT; ADJ,RECLINING
M8X18 THA 		8-94279-109-1 04 1 0901-
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER THA 		8-94279-217-0 02 1 0901-
460 BACK ASM; PASSENGER SEAT
(B) THA 		8-97924-466-2 01 1 0901-1002
460 BACK ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> (B) THA 		8-97924-466-2 01 1 1004-1104
460 BACK ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> (B) THA 		8-97925-273-0 01 1 1004-1104
460 BACK ASM; PASSENGER SEAT
(B) THA 		8-97925-273-0 01 1 1105-
460 BACK ASM; PASSENGER SEAT
(A) THA 		8-97924-467-2 01 1 0901-1002
460 BACK ASM; PASSENGER SEAT
EXC. VIN MODEL YEAR 2010<VZA> (A) THA 		8-97924-467-2 01 1 1004-1104
460 BACK ASM; PASSENGER SEAT
VIN MODEL YEAR 2010<VZA> (A) THA 		8-97925-274-0 01 1 1004-1104
460 BACK ASM; PASSENGER SEAT
(A) THA 		8-97925-274-0 01 1 1105-
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-98002-092-0 01 1 0901-
480 CLIP; CUSHION 8-94279-977-0 05 1 0901-
