◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#35160) — 136 parça

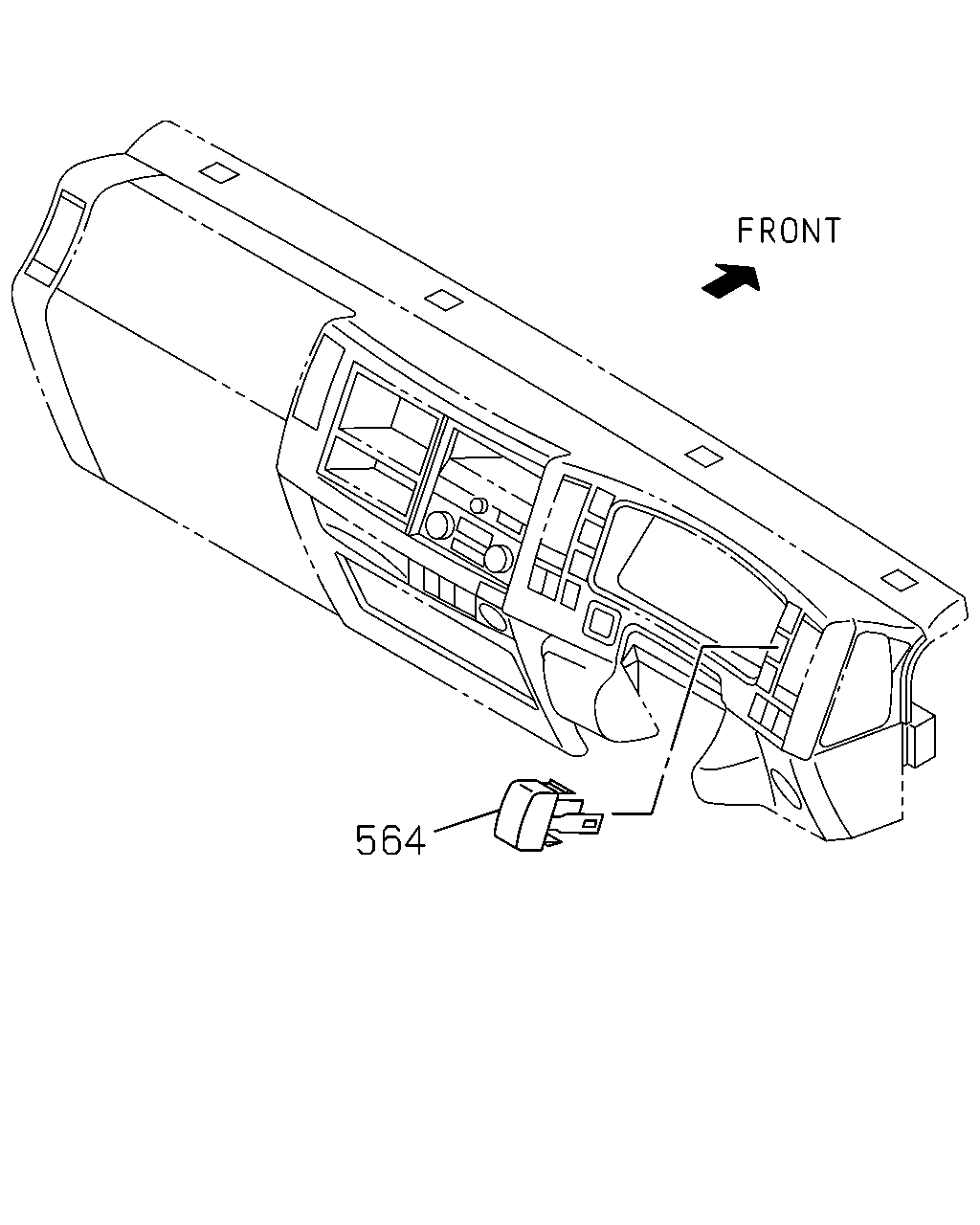

çizim 123458
564
BalonParca AdiParca NoAdetTipApplied Date
564 COVER; SW 8-98025-954-1 03 1 0901-

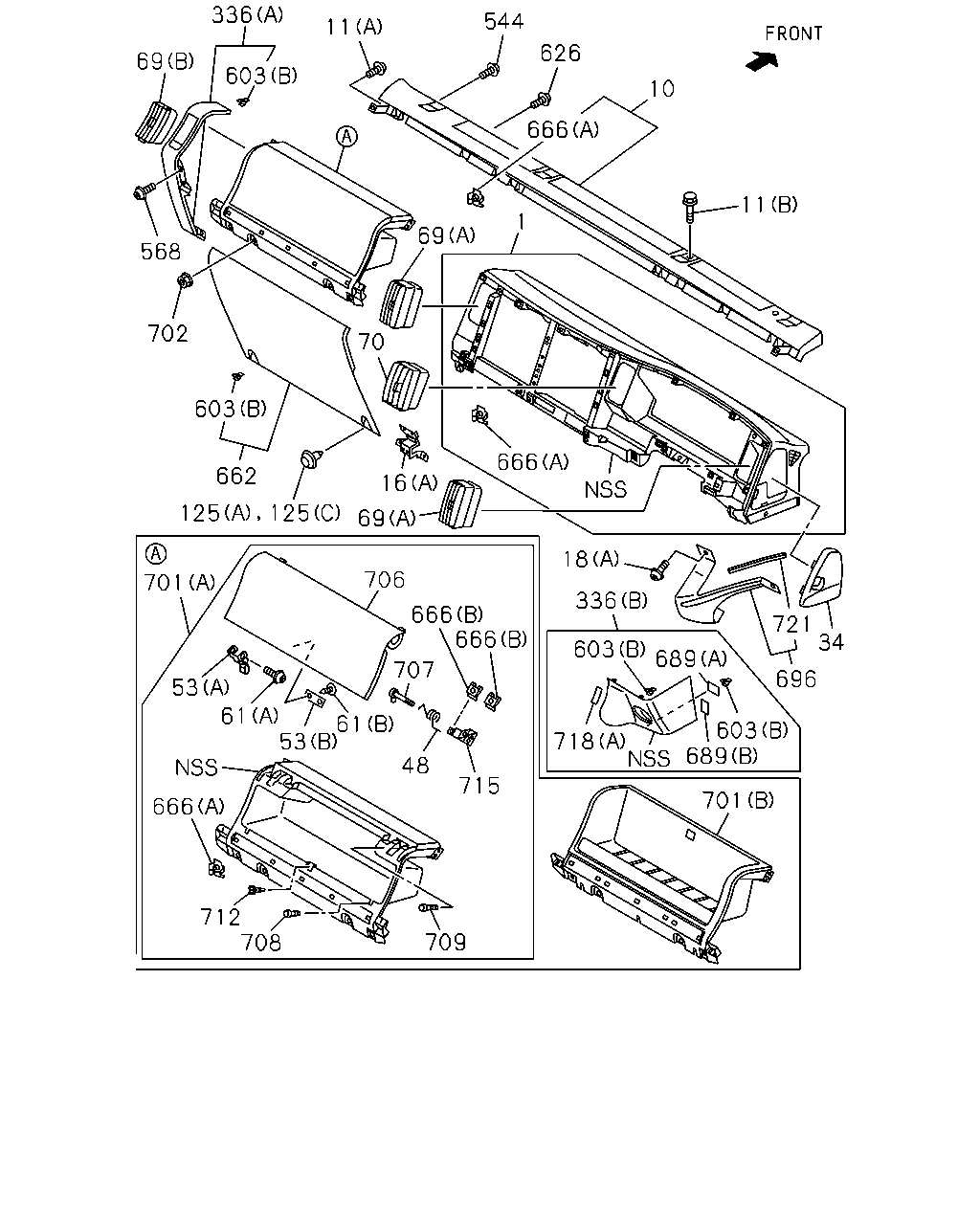

çizim 123471
336 69 568 702 603 662 125 125 69 666 11 666 626 544 10 11 603 69 70 1 16 701 53 666 61 53 712 708 709 715 48 61 707 666 706 666 603 336 18 689 603 689 701 696 721 34 718
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 0901-
10 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0901-1003
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0901-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 0901-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0901-
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 0901-
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 0901-
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0901-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0901-1104
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1105-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0901-1104
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1105-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0901-1104
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1105-1405
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
61 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 0901-1104
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1105-1405
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 THA 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0901-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0901-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0901-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1012-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 06 1 0901-1011
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1012-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0901-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0901-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0901-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0901-
603 CLIP; COVER
(B) 		8-98021-271-0 10 1 0901-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0901-
662 COVER; LWR,INST PANEL
GRAY 		8-97414-904-2 01 1 0901-
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1012-
666 INSERT; INST PANEL
(A) 		8-98037-629-0 19 1 0901-1003
666 INSERT; INST PANEL
(A) 		8-98037-629-0 17 1 1004-1011
666 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 1012-1104
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1105-
666 INSERT; INST PANEL
(B) 		8-98038-450-0 04 1 0901-1104
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1105-1311
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 THA 		8-97926-400-0 04 1 1312-
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0901-
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0901-
696 BRACKET; KNEE 8-97589-189-4 01 1 0901-1211
696 BRACKET; KNEE 8-98199-366-0 01 1 1212-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1105-
701 TRAY; INST
(A) GRAY 		8-97415-542-6 01 1 0901-1104
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1105-1405
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406-
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 0901-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0901-1104
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1105-1405
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0901-1104
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1105-1311
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0901-1104
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1105-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 0901-1104
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING THA 		0-71040-516-0 04 1 1105-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0901-1104
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1105-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0901-1104
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1105-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0901-1104
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1105-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> THA 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0901-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0901-1211
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212-

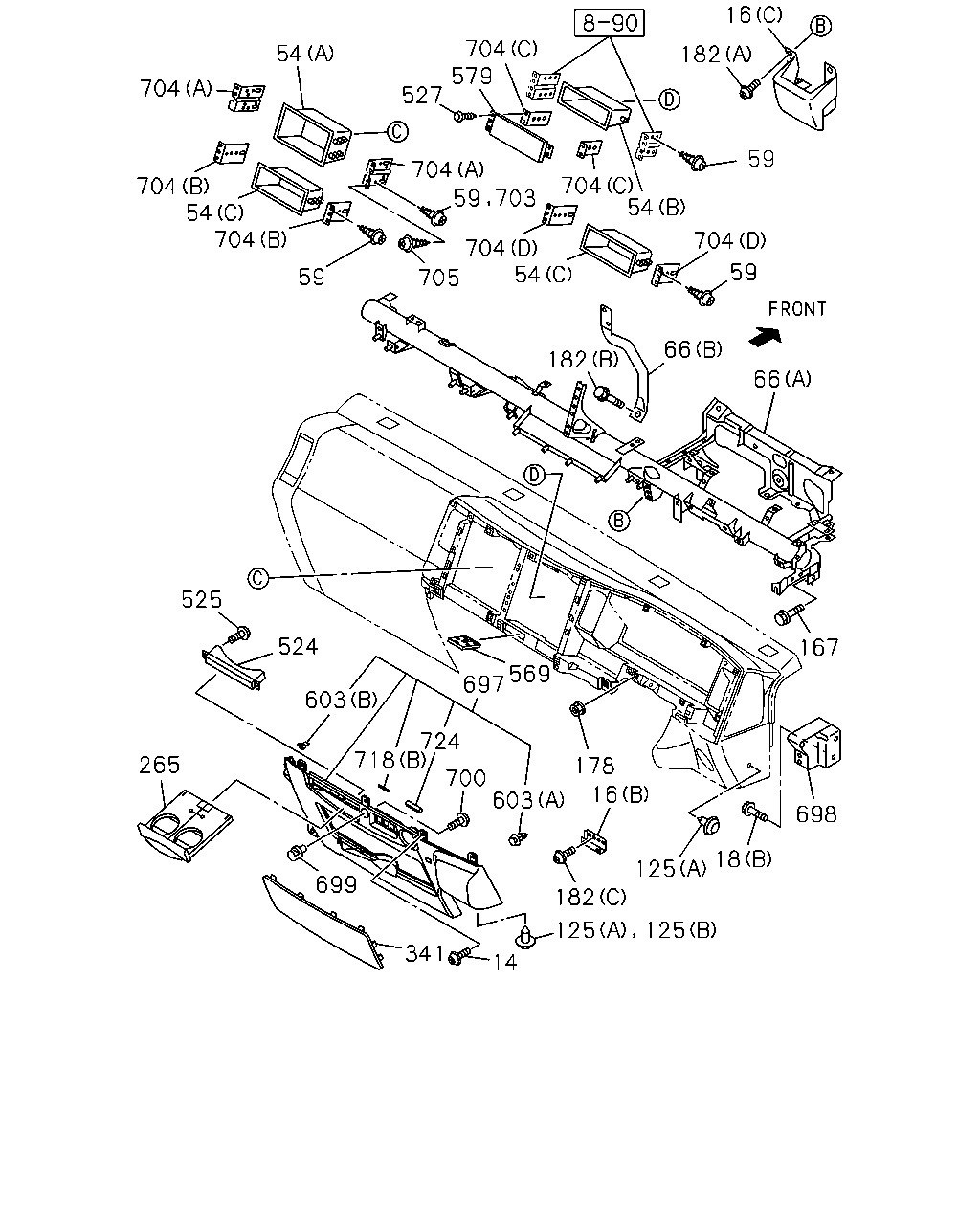

çizim 123482
14 341 125 125 182 125 18 16 178 698 603 700 718 724 699 265 603 524 525 697 569 167 66 66 182 59 704 54 704 54 704 705 59 182 16 704 579 527 54 704 704 704 54 59 704 703 59
BalonParca AdiParca NoAdetTipApplied Date
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (B) 		8-97585-532-0 01 1 0901-
16 BRACKET; INST PNL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (A) 		8-97585-612-2 01 1 0901-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0901-
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 0901-
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 0901-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0901-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0901-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0901-0910
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0911-
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) H=69.8 BLACK 		8-97408-865-3 01 1 0911-
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0911-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0901-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 0901-
66 REINFORCEMENT; INST PANEL
(A) 		8-98106-831-3 01 1 0901-1204
66 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1205-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1012-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 06 1 0901-1011
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1012-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0901-
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 03 1 0901-
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0901-
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 0901-
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0901-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0901-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97406-265-3 01 1 0901-1205
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0901-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0901-
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> DARK GRAY 		8-97098-326-0 01 1 0901-
569 HOLDER; CARD 8-97410-276-1 01 1 0901-
579 COVER; INST PNL
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> BLACK 		8-97408-909-0 01 1 0901-0911
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0901-
603 CLIP; COVER
(B) 		8-98021-271-0 10 1 0901-
697 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0901-1205
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206-
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0901-
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0901-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0901-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0901-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0901-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (D) 		8-98107-549-0 02 1 0912-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0901-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0901-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> (C) 		8-98073-822-0 02 1 0901-1011
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0901-
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION<C39>,COOLER WO/HEATER<C65> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0901-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0901-
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-
