◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51241 - NPR CNG(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#35158) — 98 parça

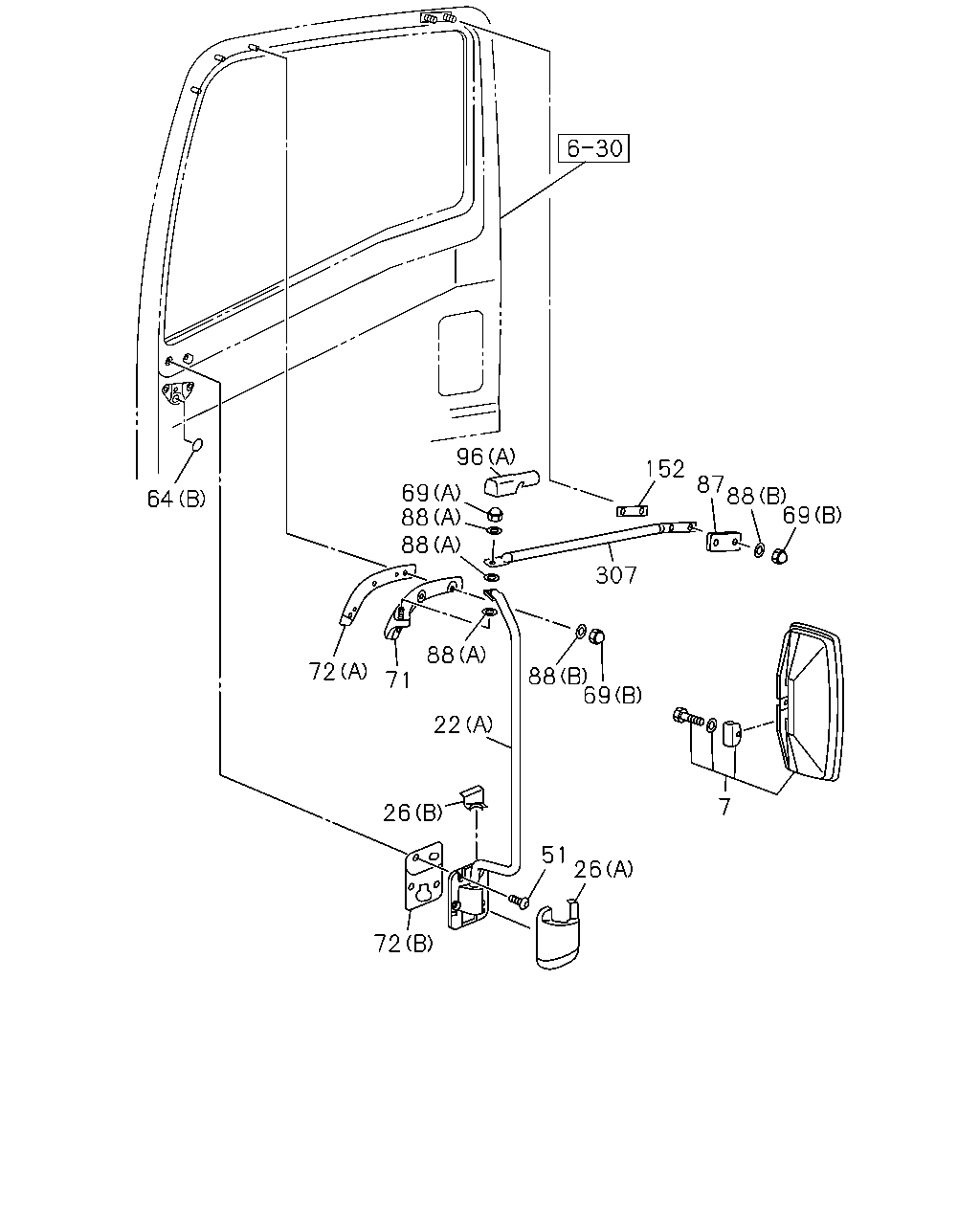

çizim 123278
96 152 87 88 69 69 88 88 64 307 88 72 88 69 71 22 7 26 51 26 72
BalonParca AdiParca NoAdetTipApplied Date
7 MIRROR ASM; DOOR 8-98055-991-1 01 1 0901-1011
7 MIRROR ASM; DOOR 8-98055-991-1 01 1 1012-1104
7 MIRROR ASM; DOOR 8-98055-992-1 01 1 0901-1011
7 MIRROR ASM; DOOR 8-98055-992-1 01 1 1012-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>, O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98147-082-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> EXC. UNDER MIRROR<RR9> (B) 		8-98180-412-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98180-413-0 01 1 1105-
26 COVER; OUTSIDE MIRROR
(A) 		8-98031-802-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
(A) 		8-98031-803-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 0901-1104
51 SCREW; MIRROR
M8X23 		8-97310-216-1 08 1 0901-1104
64 SEAL; MIRROR
(A) OD=25 BLACK THA 		1-76798-019-0 02 1 0901-1104
64 SEAL; MIRROR
(C) 25X25 		8-94272-533-0 01 1 1105-
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0901-1104
69 NUT; CAP
(A) M10 CAP NUT 		8-98059-913-0 02 1 0901-1104
69 NUT; CAP
(B) M8 CAP NUT 		8-98059-914-0 10 1 0901-1104
71 BRACKET; OUTSIDE MIRROR 8-98031-793-2 01 1 0901-1104
71 BRACKET; OUTSIDE MIRROR 8-98031-794-2 01 1 0901-1104
72 SHEET
(A) 		8-98031-796-0 01 1 0901-1104
72 SHEET
(A) 		8-98031-797-0 01 1 0901-1104
72 SHEET
(B) 		8-98080-418-0 02 1 0901-1104
87 SPACER 8-98063-789-0 02 1 0901-1104
88 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0901-1104
88 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-1104
96 CAP; MIRROR STAY
(A) 		8-98080-173-0 02 1 0901-1003
96 CAP; MIRROR STAY
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105-
152 SHEET; MIRROR STAY 8-98063-786-0 02 1 0901-1104
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0901-1104
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0901-1104

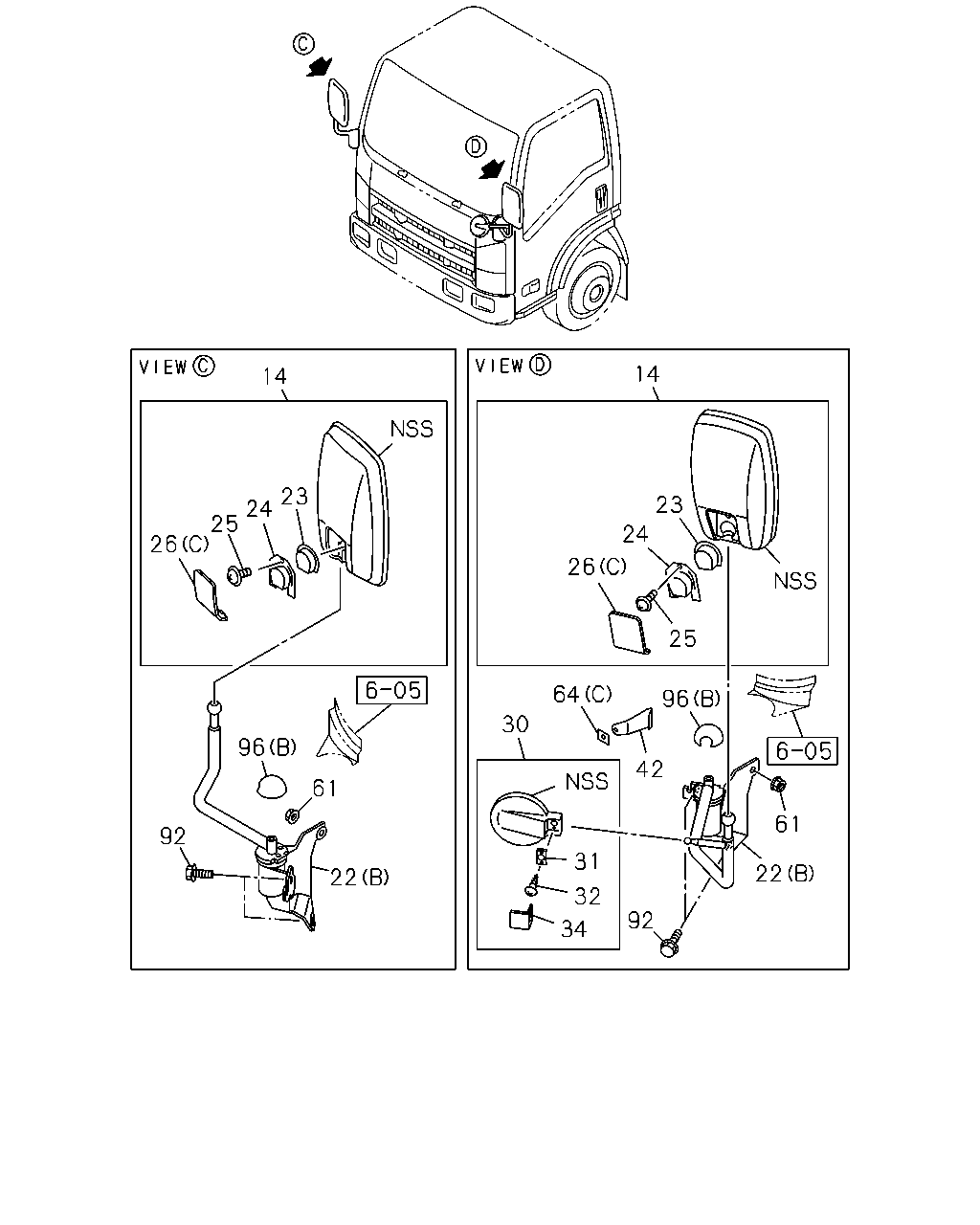

çizim 123283
14 14 23 24 25 26 23 24 26 25 64 96 30 96 42 61 61 92 31 22 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105-
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (B) 		8-98070-509-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> (B) 		8-98147-080-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>, O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98147-082-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> EXC. UNDER MIRROR<RR9> (B) 		8-98180-412-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-514-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98027-519-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A) 		8-98067-515-1 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> (B) 		8-98070-507-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-510-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> (B) 		8-98070-505-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> (A) 		8-98067-511-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B) 		8-98038-224-1 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-512-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> (B) 		8-98147-079-0 01 1 1105-
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 		8-98067-513-0 01 1 0901-1104
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> (B) 		8-98180-413-0 01 1 1105-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 1105-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 1105-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 1105-
26 COVER; OUTSIDE MIRROR
(A) 		8-98031-802-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
(C) T=2.3 		8-94262-547-2 01 1 1105-
26 COVER; OUTSIDE MIRROR
(A) 		8-98031-803-2 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(B) 		8-98031-805-0 01 1 0901-1104
26 COVER; OUTSIDE MIRROR
(B) 		8-98031-806-0 01 1 0901-1104
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 1105-
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 1105-
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 1105-
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 1105-
42 ATTACHMENT; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> 		8-98180-419-0 01 1 1105-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 02 1 1105-
64 SEAL; MIRROR
(A) OD=25 BLACK THA 		1-76798-019-0 02 1 0901-1104
64 SEAL; MIRROR
(C) 25X25 		8-94272-533-0 01 1 1105-
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0901-1104
92 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>, O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M8X25 FLANGE THA 		0-28650-825-0 04 1 1105-
92 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE EX LONG STAY VAR.2<8PF> M8X25 FLANGE THA 		0-28650-825-0 05 1 1105-
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA 		0-28650-825-0 01 1 1105-
96 CAP; MIRROR STAY
(A) 		8-98080-173-0 02 1 0901-1003
96 CAP; MIRROR STAY
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98080-173-0 02 1 1004-1104
96 CAP; MIRROR STAY
(B) 		8-98027-552-2 02 1 1105-

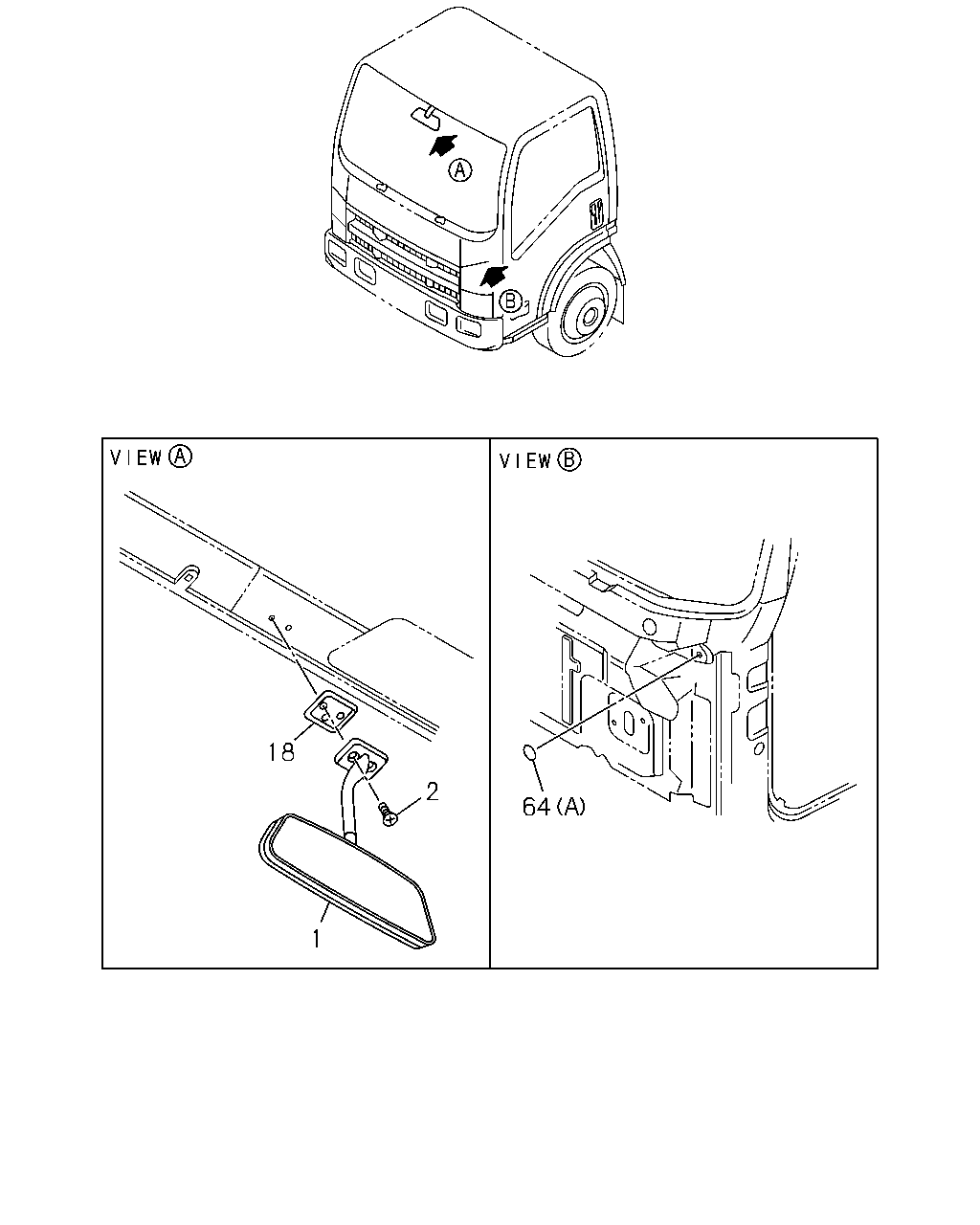

çizim 123460
18 2 64 1
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 0901-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0901-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0901-1003
18 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 1004-1104
64 SEAL; MIRROR
(A) OD=25 BLACK THA 		1-76798-019-0 02 1 0901-1104
64 SEAL; MIRROR
(C) 25X25 		8-94272-533-0 01 1 1105-
64 SEAL; MIRROR
(B) OD=52 BLACK THA 		1-76798-041-0 02 1 0901-1104
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
